3FTH9+1GA09+2S09-08.0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 3FTH9+1GA09+2S09-08.0

Preview

3FTH9+1GA09+2S09-08.0: DescriptionPushbutton Switch, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size102KB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

3FTH9+1GA09+2S09-08.0 Overview

Pushbutton Switch, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight,

3FTH9+1GA09+2S09-08.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	10.1 mm
body height	7.5 mm
Body length or diameter	10.1 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	10000000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	160 °C
Minimum operating temperature	-40 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

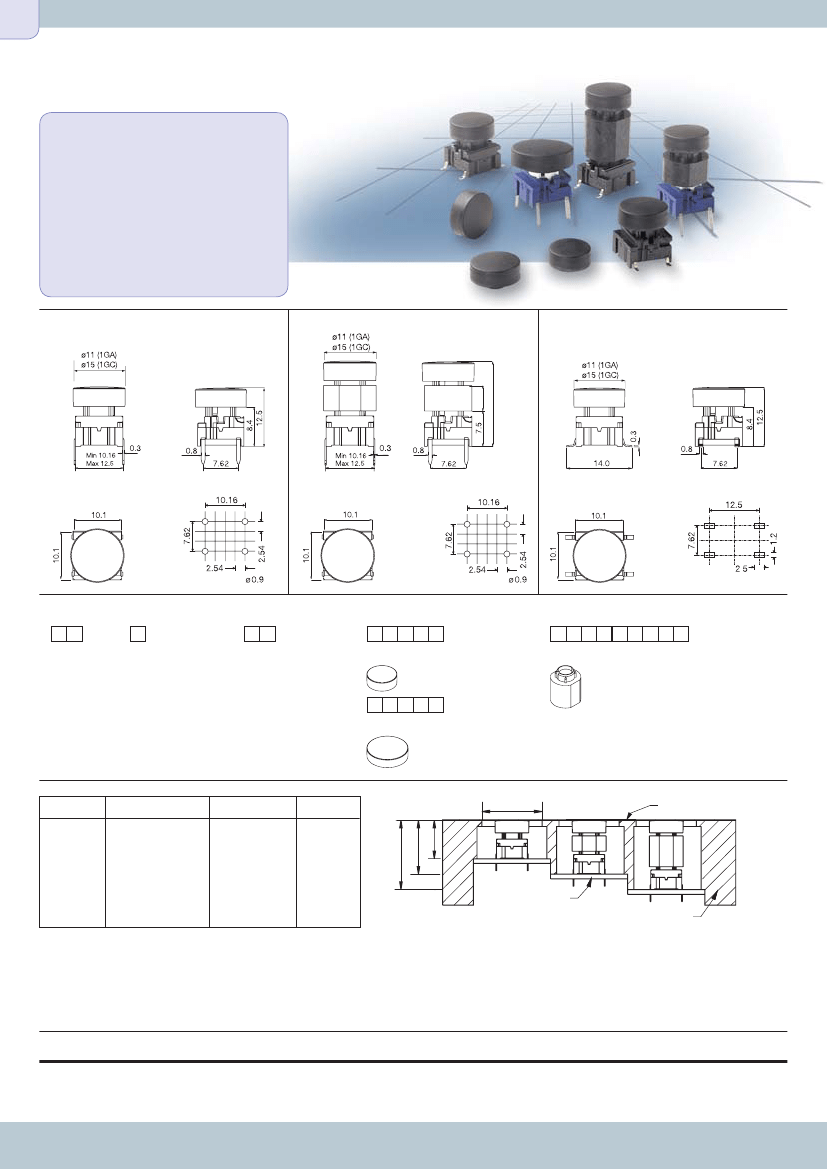

Preview

Download Datasheet

View All

26

multimec

Technical Data

■

through-hole or SMD

50mA/24VDC

single pole/momentary

10.000.000 operations life time

IP67 sealing

temperature range:

low temp: -40/+115°C

high temp: -40/+160°C

®

3F + 1GA/1GC

Dimensions (through-hole)

Dimensions (w/extender)

Total height (H) = 12.5+2Sxx.x

H=17.5

18.5

19.5

20.5

21.5

22.5

Dimensions (SMD)

PCB layout

Height

2Sxx.x

PCB layout

How to order

3 F

Switch

Mounting

T

through-hole

S

surface mount

+

L 6

low temp.

H 9

high temp.

1 G A 0 9

Cap black

+

2 S 0 9 -

Extender black

. 0

Height

05.0

06.0

07.0

08.0

09.0

10.0

1 G C 0 9

Cap black

(Optional)

Adds 5-10 mm

to total height.

Keycap

1GA/1GC

Variable Extender H (height) mm

12.5

17.5

18.5

19.5

20.5

21.5

22.5

Example

H1

H2

H3

H2

H1

A

Foil

2S09-05.0

2S09-06.0

2S09-07.0

2S09-08.0

2S09-09.0

2S09-10.0

PCB

H3

Panel

H = Overall height

Overall heights below 12.5 mm - Please see Multimec

®

versions 3C and 3E.

All 2S09 extenders are stackable giving the possibility to match most overall heights.

A = We recommend you to allocate enough space for travel of the foil and leave the area free from adhesive.

Switch travel = 1 mm.

H = We recommend you to calculate this dimension from the top of the PCB to the inner top of the panel.

Ordering example:

3FTL6 + 1GA09 or 3FTL6 + 2S09-07.0 + 1GC09

For updates of products and/or changes of specifications please see

www.mec.dk

mec

|

www.mec.dk
