PE-1206CD821GTT datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PE-1206CD821GTT

PE-1206CD821GTT: DescriptionGeneral Purpose Inductor, 0.82uH, 2%, 1 Element, Ceramic-Core, SMD, 1206, CHIP, 1206, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，28 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PE-1206CD821GTT Overview

General Purpose Inductor, 0.82uH, 2%, 1 Element, Ceramic-Core, SMD, 1206, CHIP, 1206, ROHS COMPLIANT

PE-1206CD821GTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	1206
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1206
structure	Chip
core material	CERAMIC
DC Resistance	1.82 Ω
Nominal inductance(L)	0.82 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	1206CD
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.52 mm
Package length	3.56 mm
Package form	SMT
Package width	2.16 mm
method of packing	TR, 13 Inch
Minimum quality factor (at nominal inductance)	45
Maximum rated current	0.4 A
self resonant frequency	420 MHz
series	1206CD
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 150 MHZ
surface mount	YES
Terminal surface	Gold (Au)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	35 MHz
Tolerance	2%

Preview

Download Datasheet

View All

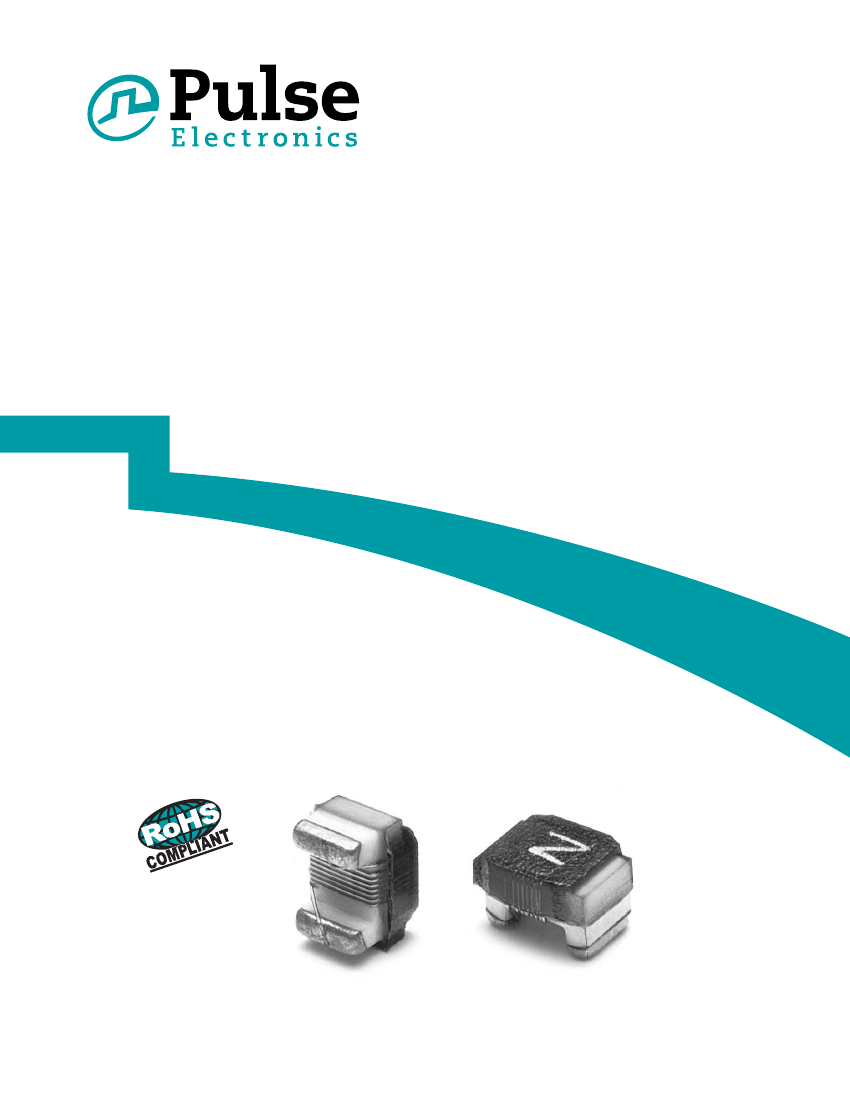

RF Chip Inductors

Wire-Wound - 0402, 0603, 0805, 1008, 1206

Pulse Electronics - leading supplier of magnetics for consumer applications

Table of Contents

The 0402 to 1206 series range of Miniature Chip Inductors contains the very latest in wire-wound technology and

Ceramic or Ferrite Core, thus providing the ultimate in performance demanded by today's Wireless products. The

Inductors provide high Q and SRFs in an industry standard size and footprint. Pulse chip inductors manufactured

after February 2005 are in compliance with RoHS requirements.

Part Number Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Performance Specifications

Environmental Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mechanical Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Tape and Reel Specification . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Miniature Wire-wound RF Chip Inductors

0402CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

0603CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

0805CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13

0805CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

0805FT Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

1008CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20

1008CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

1008CQ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24

1206CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..25-27

Pulse Jack

WC701.O (01/15)

www.pulseelectronics.com

Electronics
