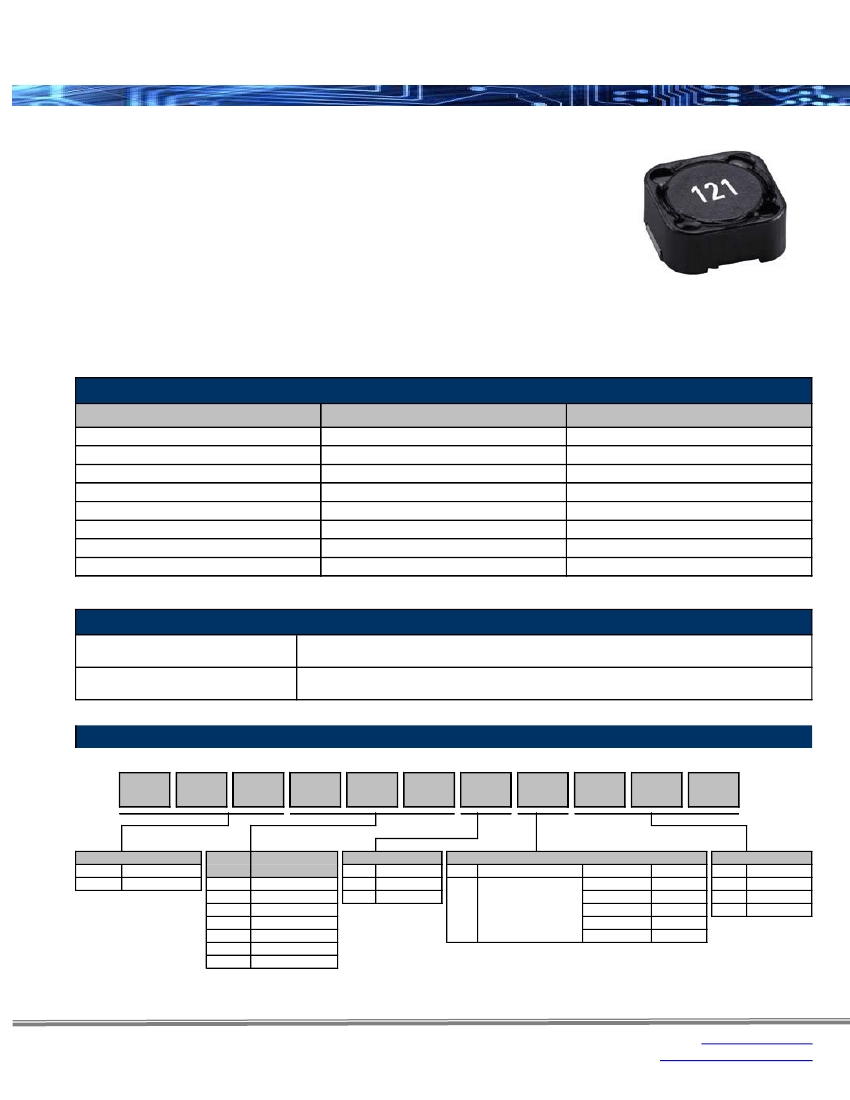

PCS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
Provides high power and high saturation
Provides magnetic shielding against radiation
Electrode directly connected to ferrite core
Contact factory for inductance values outside those
listed in the datasheet
Operating temperature 40 ~ 85ºC
Power supply for VTRs
LCD televisions
Personal computers
Handheld communication equipments
DC/DC converters
Applications:
•
•
•
•
•
Inductance and Current Ranges
Type
PCS62B
PCS64B
PCS73
PCS74
PCS124
PCS125
PCS127
PCS127H
Electrical specifications at 25ºC.
Inductance (μH)
2.9 ~ 330
10 ~ 1000
1 ~ 1000
1 ~ 1000
2.5 ~ 330
1.3 ~ 1000
1.2 ~ 1000
4.7 ~ 1000
Current Range (A)
1.94 ~ 0.19
1.35 ~ 0.14
7.97 ~ 0.16
8 ~ 0.18
8 ~ 0.5
8 ~ 0.4
9.8 ~ 0.55
15.9 ~ 1.14
Performance Characteristics
Rated DC Current
Operating Temperature Range
The DC current at which the inductance becomes 30% lower than its initial value (Ta=25ºC)
-40 ~ 105ºC
How to Order
1
2
3
4
5
6
7
8
9
10
11
P
C
S
6
2
B
M
T
1
0
1
Product Series
Standard
PCS
High Current
PCSH
Code
62B
64B
73
74
124
125
127
Dimensions
(mm)
6.2x6.6x3.0
6.2x6.6x5.0
7.3x7.3x3.4
7.3x7.3x4.5
12x12x4.5
12x12x6.0
12x12x8.0
Tolerance
Tol
Code
20%
M
+40%-20%
P
Code
T
Packaging
Size
Description
62B
64B, 73, 74
13" Tape and Reel
124
125, 127
H127
Quantity
1,500
1,000
500
400
500
Inductance
Code Inductance
1R1
1.1 uH
470
47 uH
101
100 uH
Rev Date: 06/01/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
PCS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

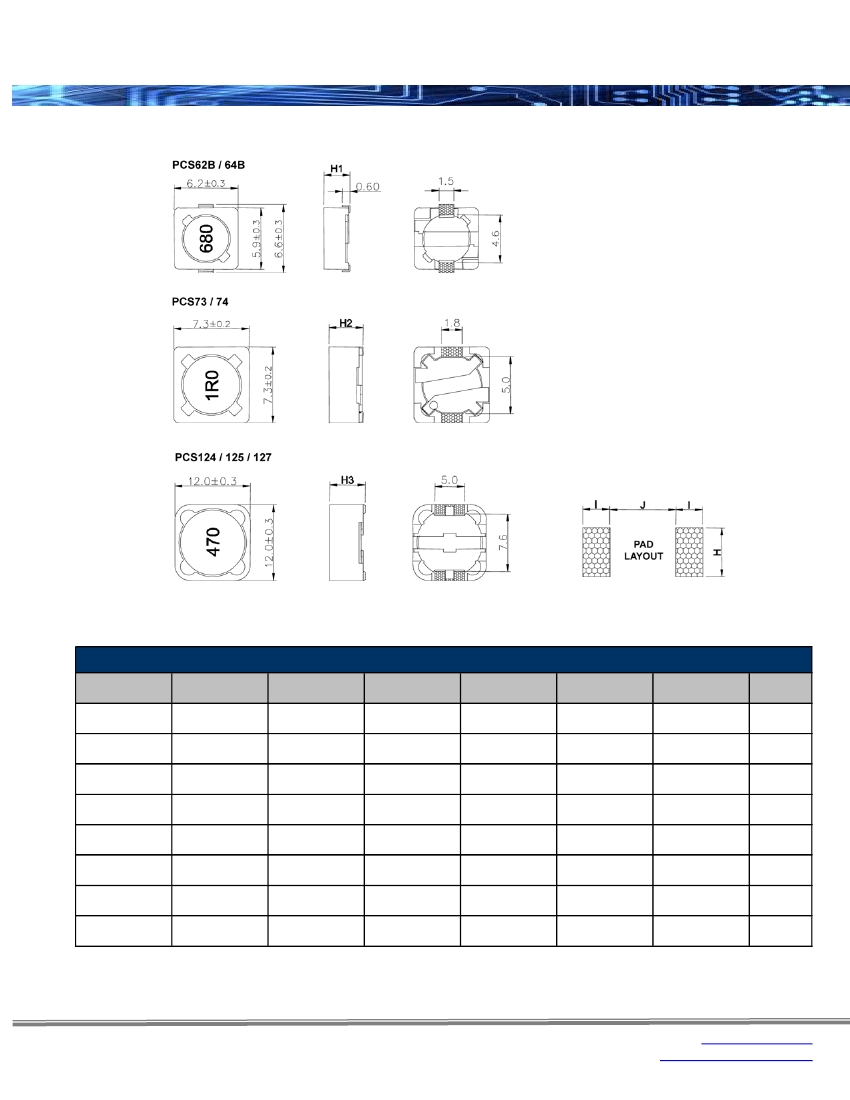

Mechanical Specifications
Type/Code
PCS62B
PCS64B
PCS73
PCS74
PCS124
PCS125
PCS127
PCSH127
H1 max.
0.118
3.0
0.197
5.0
-
-
-
-
-
-
-
-
-
-
-
-
H2 max.
-
-
-
-
0.134
3.4
0.177
4.5
-
-
-
-
-
-
-
-
H3 max.
-
-
-
-
-
-
-
-
0.177
4.5
0.236
6.0
0.315
8.0
0.315
8.0
H
0.075
1.9
0.075
1.9
0.087
2.2
0.087
2.2
0.213
5.4
0.213
5.4
0.213
5.4
0.213
5.4
I
0.055
1.4
0.055
1.4
0.063
1.6
0.063
1.6
0.114
2.9
0.114
2.9
0.114
2.9
0.114
2.9
J
0.181
4.6
0.181
4.6
0.189
4.8
0.189
4.8
0.276
7.0
0.276
7.0
0.276
7.0
0.276
7.0
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 06/01/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
PCS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – PCS 62B, 64B, 73, 74
Type / Code
1R0
1R5
2R2
2R9
3R3
3R9
4R0
4R7
5R5
5R6
6R8
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
L
(μH)
1.0
1.5
2.2
2.9
3.3
3.9
4.0
4.7
5.5
5.6
6.8
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
62B
-
-
-
0.070
0.075
-
0.080
0.090
0.100
-
-
0.150
0.200
0.230
0.270
0.340
0.380
0.450
0.490
0.690
0.780
1.070
1.210
1.390
1.900
2.180
2.770
3.120
4.380
4.940
-
-
-
-
-
-
DCR (Ω) max.
64B
73
-
0.016
-
-
-
-
-
-
-
-
-
-
0.120
0.130
0.180
0.240
0.270
0.300
0.330
0.370
0.520
0.560
0.630
0.710
1.030
1.150
1.680
1.870
2.080
2.370
2.670
2.940
3.930
5.430
7.320
8.240
9.260
0.023
0.027
-
0.031
0.041
-
0.048
-
0.056
0.062
0.072
0.098
0.130
0.140
0.190
0.210
0.240
0.320
0.360
0.470
0.520
0.690
0.790
0.890
1.270
1.450
1.650
2.310
2.620
2.940
4.180
4.670
5.730
6.540
9.440
74
0.020
0.018
0.028
-
0.032
0.035
-
0.038
-
0.040
0.045
0.049
0.058
0.081
0.091
0.110
0.150
0.170
0.230
0.260
0.350
0.380
0.430
0.610
0.660
0.880
0.980
1.170
1.640
1.860
2.850
3.010
3.620
4.630
5.200
6.000
62B
-
-
-
1.940
1.800
-
1.630
1.550
1.400
-
-
1.100
1.000
0.900
0.800
0.740
0.660
0.590
0.540
0.500
0.460
0.420
0.380
0.340
0.310
0.280
0.260
0.230
0.220
0.190
-
-
-
-
-
-
IDC (A) max.
64B
73
-
7.970
-
-
-
-
-
-
-
-
-
-
1.350
1.220
1.110
1.020
0.910
0.820
0.740
0.690
0.620
0.580
0.510
0.460
0.420
0.380
0.350
0.320
0.290
0.260
0.230
0.220
0.200
0.180
0.170
0.150
0.140
5.500
4.500
-
4.000
3.800
-
3.500
-
3.000
2.000
1.680
1.520
1.330
1.200
1.070
0.960
0.910
0.770
0.760
0.680
0.610
0.570
0.500
0.490
0.430
0.390
0.350
0.320
0.280
0.260
0.240
0.220
0.190
0.180
0.160
74
8.000
7.000
6.000
-
4.800
4.400
-
4.000
-
3.500
3.000
1.840
1.710
1.470
1.310
1.230
1.120
0.960
0.910
0.880
0.750
0.690
0.610
0.600
0.520
0.460
0.420
0.360
0.340
0.320
0.290
0.260
0.230
0.220
0.200
0.180
Rev Date: 06/01/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
PCS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – PCS 124, 125, 127
Type / Code
1R2
1R3
2R1
2R2
2R4
2R5
2R7
3R1
3R3
3R5
3R9
4R4
4R7
5R6
5R8
6R1
6R8
7R5
7R6
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
L
(μH)
1.2
1.3
2.1
2.2
2.4
2.5
2.7
3.1
3.3
3.5
3.9
4.4
4.7
5.6
5.8
6.1
6.8
7.5
7.6
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
124
-
-
-
-
-
0.013
-
-
-
-
0.015
-
0.018
-
-
-
0.023
-
-
0.026
0.028
0.038
0.050
0.057
0.066
0.080
0.097
0.132
0.150
0.190
0.220
0.260
0.308
0.380
0.530
0.620
0.700
0.876
0.990
-
-
-
-
-
-
DCR (Ω) max.
125
-
0.012
0.014
0.014
-
-
-
0.017
0.014
-
-
0.020
0.018
-
0.021
-
0.023
0.024
-
-
0.025
0.027
0.030
0.034
0.036
0.051
0.057
0.068
0.075
0.110
0.120
0.140
0.160
0.170
0.230
0.290
0.400
0.460
0.510
0.690
0.770
0.860
1.200
1.340
1.530
127
0.007
-
-
0.010
0.012
-
0.012
-
0.013
0.014
-
-
0.016
0.014
-
0.018
0.014
-
0.020
-
0.022
0.024
0.027
0.039
0.043
0.046
0.065
0.073
0.100
0.110
0.140
0.160
0.220
0.250
0.280
0.350
0.390
0.560
0.640
0.700
0.980
1.070
1.460
1.640
1.820
124
-
-
-
-
-
8.000
-
-
-
-
0.650
-
5.700
-
-
-
4.900
-
-
4.600
4.500
4.000
3.200
3.100
2.900
2.800
2.700
2.100
1.900
1.800
1.500
1.300
1.200
1.100
0.950
0.850
0.800
0.600
0.500
-
-
-
-
-
-
IDC (A) max.
125
-
8.000
7.000
7.000
-
-
-
6.000
6.750
-
-
5.000
6.200
-
4.400
-
5.900
4.200
-
-
4.000
3.500
3.300
3.000
2.800
2.300
2.100
2.000
1.800
1.700
1.500
1.400
1.300
1.100
1.000
0.900
0.800
0.750
0.680
0.650
0.580
0.540
0.480
0.430
0.400
127
9.800
-
-
8.500
8.000
-
8.000
-
7.800
7.500
-
-
6.800
6.700
-
6.600
6.400
-
5.900
-
5.400
4.900
4.500
3.900
3.600
3.400
3.000
2.750
2.500
2.350
2.100
1.950
1.700
1.600
1.420
1.300
1.160
1.060
0.950
0.880
0.790
0.730
0.670
0.600
0.550
Rev Date: 06/01/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
PCS Series
SMD Shielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – PCSH 127
Type / Code
4R7
6R8
8R2
100
150
220
330
470
680
820
101
151
221
331
471
681
821
102
L
(μH)
4.7
6.8
8.2
10
15
22
33
47
68
82
100
150
220
330
470
680
820
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
DCR (Ω) max.
0.016
0.021
0.023
0.024
0.031
0.040
0.070
0.080
0.105
0.143
0.163
0.247
0.376
0.574
0.861
1.080
1.470
1.660
IDC (A) max.
15.90
13.30
12.20
11.20
9.00
7.57
6.22
5.28
4.26
3.80
3.52
3.01
2.36
2.00
1.64
1.38
1.26
1.14
Rev Date: 06/01/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
