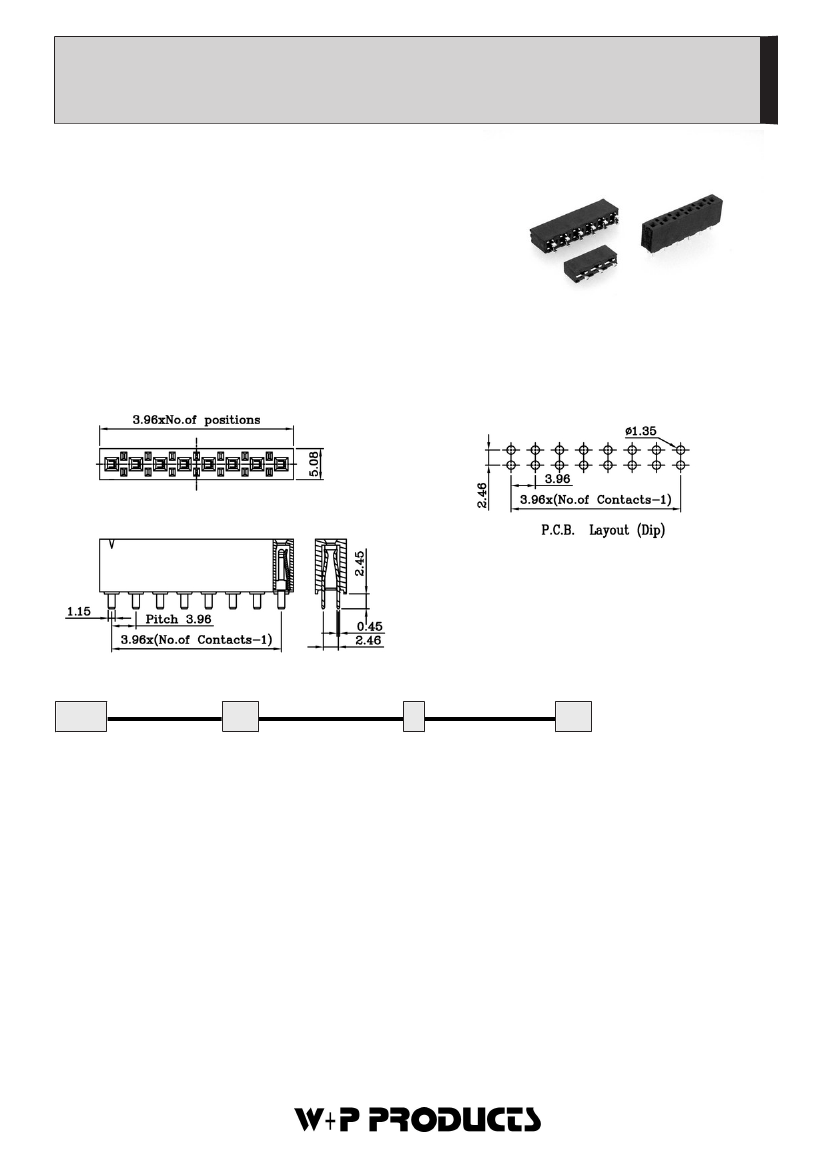

Board Connector, 9 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug
| Parameter Name | Attribute value |
| Maker | W+P Products GmbH |
| Reach Compliance Code | compliant |
| body width | 0.2 inch |
| body length | 1.404 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0P9 |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 393 |
| Mixed contacts | YES |
| Installation option 1 | LOCKING MECH |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Rated current (signal) | 8 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.096 inch |
| Termination type | SOLDER |
| Total number of contacts | 9 |
| 39309150 | 39304100 | 39316150 | 39312100 | 39312150 | 39310100 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 9 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug | Board Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug | Board Connector, 16 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug | Board Connector, 12 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug | Board Connector, 12 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug | Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, Locking Mech, Plug |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| body width | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch | 0.2 inch |
| body length | 1.404 inch | 0.624 inch | 2.496 inch | 1.872 inch | 1.872 inch | 1.56 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S0P9 | S0P4 | S0P16 | S0P12 | S0P12 | S0P10 |
| Contact to complete cooperation | SN ON NI | AU ON NI | SN ON NI | AU ON NI | SN ON NI | AU ON NI |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | 393 | 393 | 393 | 393 | 393 | 393 |
| Mixed contacts | YES | YES | YES | YES | YES | YES |
| Installation option 1 | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Rated current (signal) | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.096 inch | 0.096 inch | 0.096 inch | 0.096 inch | 0.096 inch | 0.096 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 9 | 4 | 16 | 12 | 12 | 10 |
| Maker | W+P Products GmbH | - | W+P Products GmbH | W+P Products GmbH | W+P Products GmbH | W+P Products GmbH |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 |
