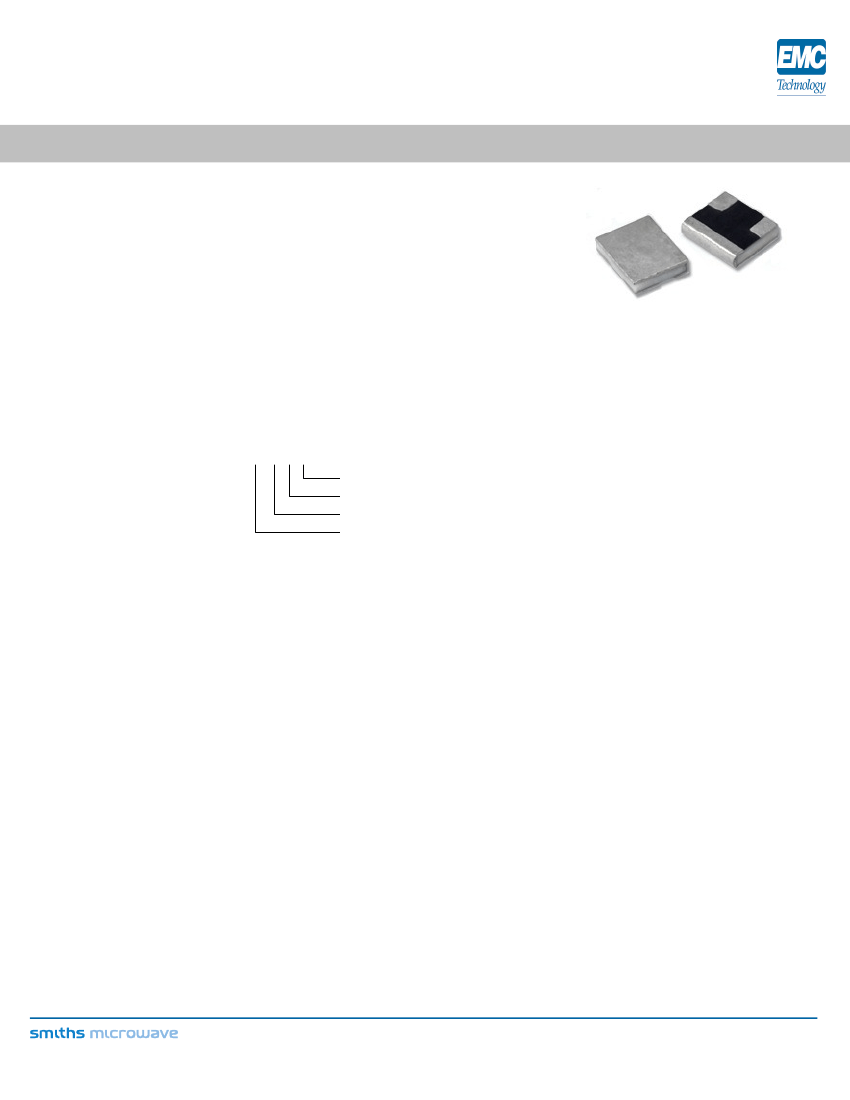

ATTENUATOR

HIGH RELIABILITY CHIP 200 MILLIWATT

DATA SHEET

FEATURES

Small Footprint

High Power

Surface Mount

Low VSWR

Easy Installation

Wide Attenuation Offering

PART SERIES: HRMXXXXXXXW1S

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators/Circulators

Military

Instrumentation

SHEET 1 OF 2

Dwg 1009825

EN 16-0723

Revision E

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip attenuators worldwide. We offer a line of fixed attenuators in a high-reliability S-level

common platform for space, military, and aerospace designs. The standard parts eliminate the need for costly and time-consuming

drawings and specifications meeting the specification and testing requirements of Mil-PRF-55342. Parts may be ordered 100% tested to

Group A with the option to add Group B or Group C. With our smart part numbering system, companies may designate the level of

testing they require simply by indicating Group A, B, & C at the appropriate location in the part number.

ORDERING INFORMATION

Part Identifier:

HRMXXXXXXXW1S

XX-Temperature Coefficient of Attenuation 1 x 10

-3

dB/dB/°

X-Attenuation Shift Negative or Positive

XX-Test Code: 0A=Group A; 0B=Group B; 0C=Group C

XX-dB Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy @ 25ºC:

VSWR:

Input Power

Temperature Coefficient Tolerance:

50 ohms

DC – 12.4 GHz

0-10 dB in 1 dB increments

± 0.5 dB @ 1GHz

1.30:1 Max @ 1GHz

200 Milliwatts Full Rated Power To 125° Derated Linearly to 0 Watts at 150 °

± 0.001 dB/dB/ºC

Temperature Coefficient of Attenuation:-0.003, -0.004, -0.005, -0.006, -0.007, and -0.009 dB/dB/ºC

2.0 ENVIRONMENTAL

Operating Temperature:

-55˚C to +150˚C

3.0 MARKING

Unit Marking:

None

Form 423F147

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
