ATT-313F-24-BNC-10 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-313F-24-BNC-10

ATT-313F-24-BNC-10: DescriptionFixed Attenuator, 0MHz Min, 4000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size63KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-313F-24-BNC-10 Overview

Fixed Attenuator, 0MHz Min, 4000MHz Max, STAINLESS STEEL

ATT-313F-24-BNC-10 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	BNC
Nominal attenuation	24 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

Wireless - Cellular Products

Frequency:

DC - 2.0 and DC - 4.0 GHz units available

Attenuation Values:

1 - 40 dB as noted

Attenuation Accuracy:

1 - 6 dB

+ 0.3 dB

7 - 10 dB

11 - 20 dB

21 - 40 dB

41-60 dB

+ 0.5 dB

+ 0.75 dB

+ 1.0 dB

1.5 dB

Attenuators

2 , 5 & 10 Watt BNC Interface - Wireless System Performance

Impedance:

50 Ohms

VSWR:

1.25 max

Power:

2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125

C U.O.S.

Peak Power:

200 Watts for 2Watt units and 100 Watts Peak for 5 & 10 Watt

Operating Temperature Range:

-54C to +125C

DC - 2.0 GHz

Male/Female

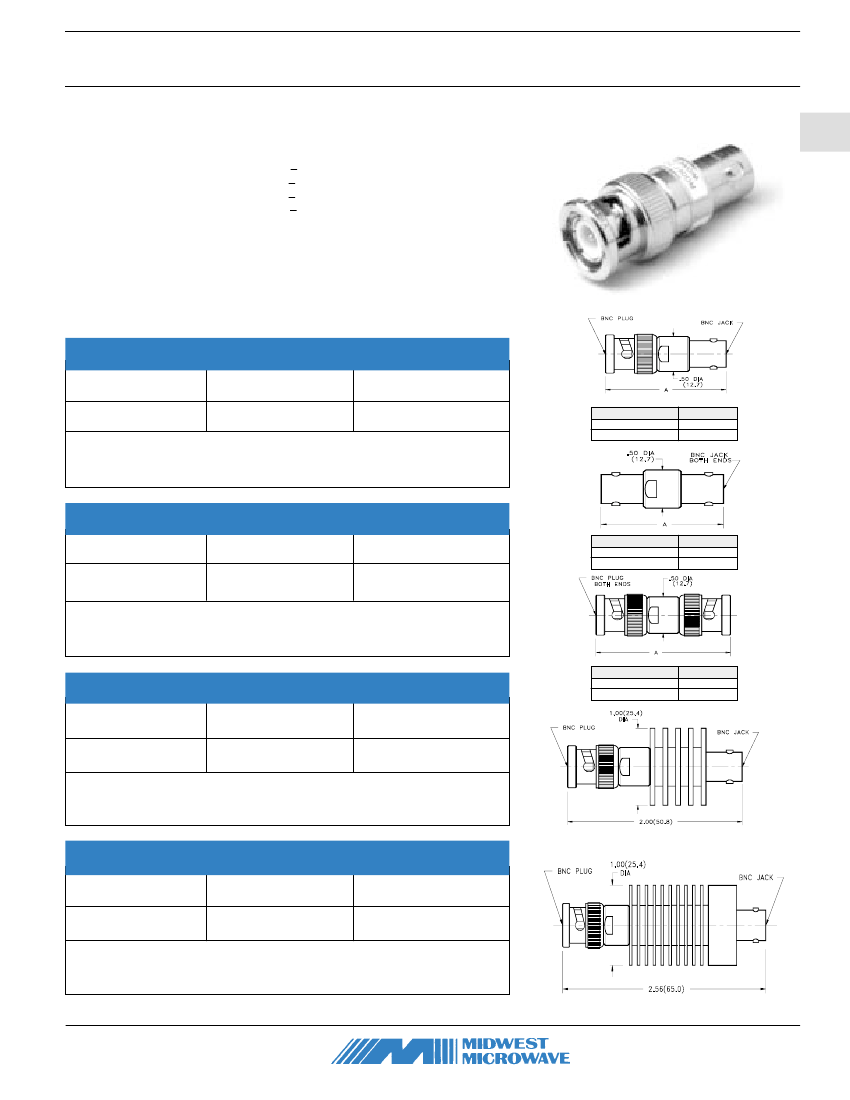

ATT-0314-XX-BNC-10

314 Series

Female/Female

ATT-314F-XX-BNC-10

Model Number

Male/Male

ATT-314M-XX-BNC-10

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.36

1.65

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

Wireless System Performance

DC - 4.0 GHz

Male / Female

ATT-0313-XX-BNC-10

313 Series

Female / Female

ATT-313F-XX-BNC-10

Model Number

Male / Male

ATT-313M-XX-BNC-10

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.43

1.72

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

Wireless System Performance

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.55

1.84

DC - 4.0 GHz

Male/Female

ATT-0581-XX-BNC-07

581 Series

Female/Female

ATT-581F-XX-BNC-07

Model Number

Male/Male

ATT-581M-XX-BNC-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

5 Watts -

Wireless System Performance

DC - 4.0 GHz

Male/Female

ATT-0582-XX-BNC-07

582 Series

Female/Female

ATT-582F-XX-BNC-07

Model Number

Male/Male

ATT-582M-XX-BNC-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts -

Wireless System Performance
