626328-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 626328-5

Preview

626328-5: DescriptionTERMINAL; CategoryThe connector; File Size127KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

626328-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	626328-5	-	-	View	Buy Now

626328-5 Overview

TERMINAL

626328-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2059019151
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 5 days
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	6 mm2

Preview

Download Datasheet

View All

4

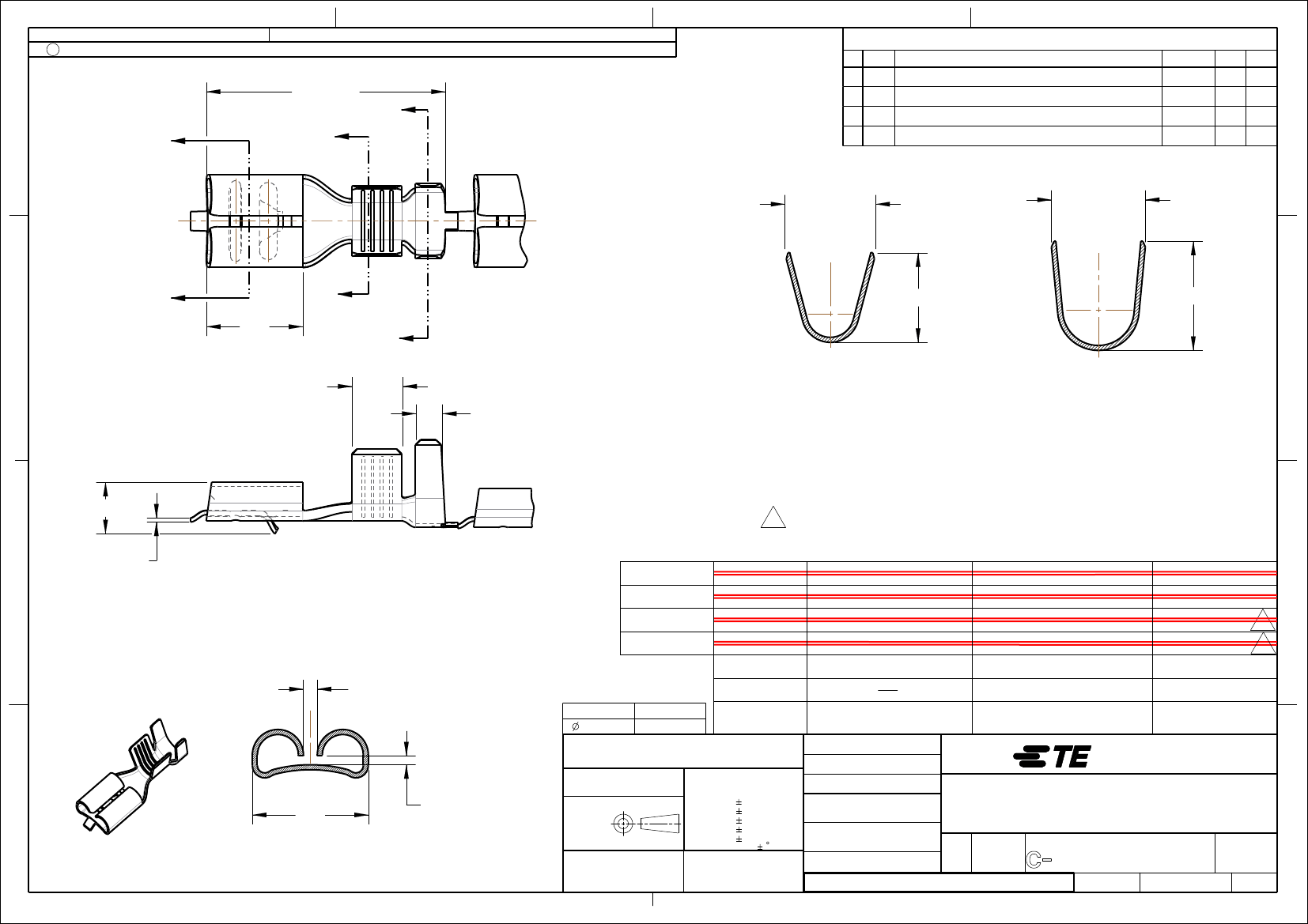

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

3

2012

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

BY TE CONNECTIVITY

G2

REDRAW BY CAD ECO-15-013548

REVISED DRAWING ECO-18-014178

22SEP2015

11SEP2018

NCL

DAO

JMN

D

19,2±0,3

A

G3

D

X

B

5,8±0,3

6,0±0,3

X

7,7

B

A

4,1

2,1

SECTION

SCALE 5:1

5,8±0,3

7,0±0,3

C

B-B

SECTION

SCALE 5:1

A-A

4,3

1

0,3

- OBSOLETE PARTS: OBSOLETE CIS STREAMLING PER D.RENAUD/D.SINISI

OBSOLETE

0,9

INS.RANGE

3,4-5,0mm

WIRE RANGE

4,0-6,0mm²

626362-6

626362-5

626362-4

626362-3

626362-2

626362-1

PN LOSSE PIECE

PLATEADO/SILVER PLATED

ESTANHADO / TIN PLATED

PLATEADO/SILVER PLATED

ESTANHADO / TIN PLATED

BRONZE FOSF./PHOSP BRONZE

LATÃO / BRASS

626328 -6

626328 -5

626328 -4

626328 -3

626328 -2

626328 -1

1

B

FINISH

22SEP2015

NCLAPRESA

CHK

22SEP2015

JRGOLDSCHMIDT

APVD

22SEP2015

DAOLIVEIRA

DWN

PRODUCT SPEC

MATERIAL

PART NUMBER

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NAME

A

7,4

SECTION

SCALE 5:1

PERSPECTIVE VIEW

SCALE 2:1

1470-19 (3/13)

X-X

PARA LINGUETA

DE 0,8mm ESPESSURA

FOR 0,8mm TAB

MATERIAL

0

1

2

3

4

ANGLES

FINISH

PLC

-

0,5

-

APPLICATION SPEC

-

TERMINAL FASTIN-FASTON.250 RECEPT

-

CAGE CODE DRAWING NO

RESTRICTED TO

A

1

-

WEIGHT

SIZE

SEE TABLE

-

SEE TABLE

-

Customer Drawing

A3

00779

626328

SCALE

-

3:1

SHEET

1

OF

1

REV

G3

626328-5 Related Products

	626328-5	626328-6
Description	TERMINAL	.250 S FASTIN ON RC
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
terminal gender	FEMALE	FEMALE
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL
Conductor cross section	6 mm2	6 mm2
