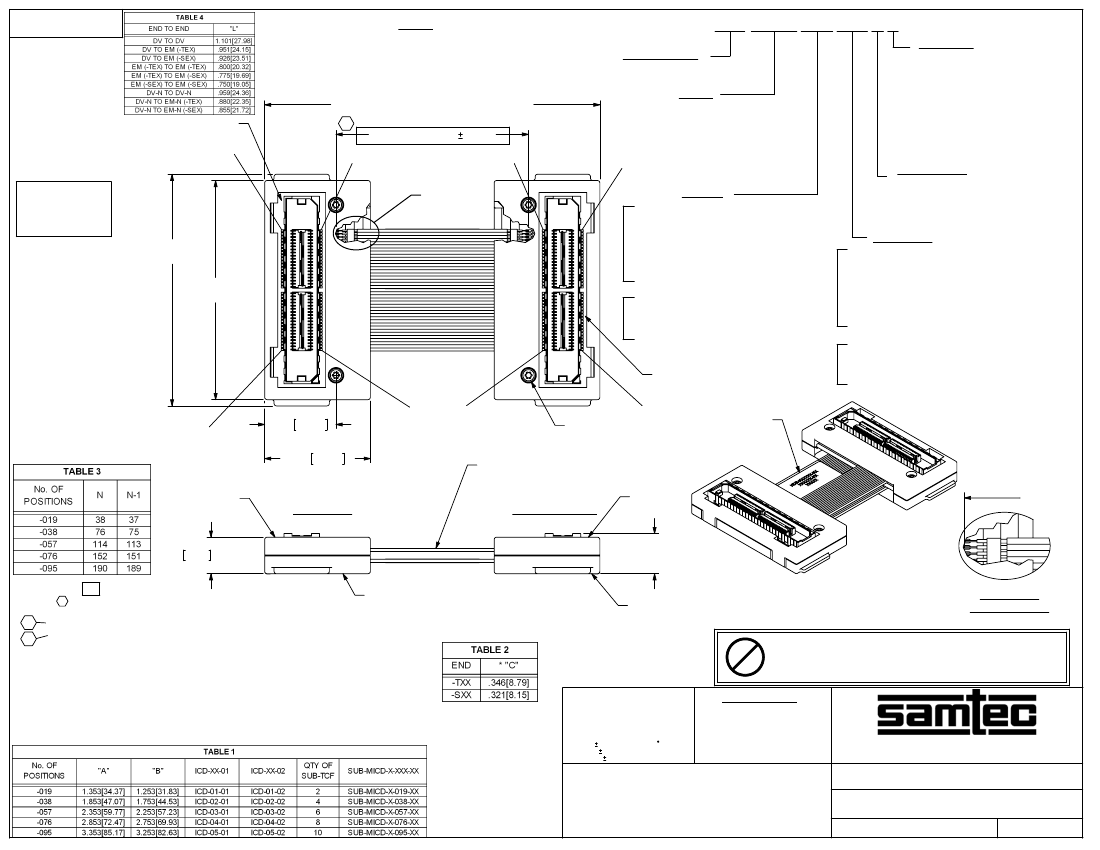

REVISION G
VERTICAL
(MICD-038-XX.XX-STR-STR-1 SHOWN)
FIG. 1
MICD-XXX-XX.XX-XXX-XXX-X-X
No OF POSITIONS
-019, -038, -057, -076, -095
(PER ROW)
LENGTH
-XX.XX (INCHES)
(03.75[95.3] MIN)
(SEE NOTE 2)
(SEE NOTE 8)
END OPTION
-F: SCREW OPTION FIRST END ONLY
-S: SCREW OPTION SECOND END ONLY
-B: SCREW OPTION BOTH ENDS
-N: NO CAPS
(SEE FIG. 3, SHEET 5 FOR EDGE MOUNT
END OPTIONS)
(SEE FIG. 4, SHEET 5 FOR DOUBLE
VERTICAL END OPTIONS)
(SEE FIG. 5, SHEET 5 FOR NO CAPS OPTIONS)
(LEAVE BLANK FOR STANDARD CAPS
BOTH ENDS)
WIRING OPTION
-1: PIN 1 TO PIN 1
-2: PIN 1 TO PIN 2
-3: PIN 1 TO PIN N-1
-4: PIN 1 TO PIN N
(SEE TABLE 9, SHEET 6)
SECOND END
-TTR: TERMINAL, TOP, RIGHT
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
(SEE TABLE 1 & SHEET 3)
-TEU: TERMINAL, EDGE MOUNT, UP
-TED: TERMINAL, EDGE MOUNT, DOWN
-SEU: SOCKET, EDGE MOUNT, UP
-SED: SOCKET, EDGE MOUNT, DOWN
(SEE TABLE 5 & SHEET 4)
LENGTH: XX.XX + "L" REF (SEE TABLE 4)
SUB-MICD-X-XXX-XX
N (SEE TABLE 3)
C1
LENGTH: XX.XX
N-1
(SEE TABLE 3)
01%
N
(SEE TABLE 3)
N-1 (SEE TABLE 3)
FIRST END
-TTR: TERMINAL, TOP, RIGHT
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
(SEE TABLE 1 & SHEET 2)
-TEU: TERMINAL, EDGE MOUNT, UP
-TED: TERMINAL, EDGE MOUNT, DOWN
-SEU: SOCKET, EDGE MOUNT, UP
-SED: SOCKET, EDGE MOUNT, DOWN
(SEE TABLE 5 & SHEET 4)
DO NOT
SCALE FROM
THIS PRINT
"A" REF
(TYP)
"B" REF
(TYP)
'A'
SUB-MICD-X-XXX-XX
1
2
.570 14.49
REF (TYP)
.845 21.47
REF (TYP)
ICD-XX-01
2
HDRL-11
(SEE NOTE 5)
STS-01
(TIGHTEN TO 1.4 - 1.7 IN-LBS)
(4 PLCS)
SUB-TCF-3850-19-01-XX.XX
(SEE TABLE 1 FOR QTY)
1
FIRST END
SECOND END
ICD-XX-01
LENGTH
REF
.292 7.42 REF (TYP)
NOTES:
* "C" REF
C2
C3
G
ICD-XX-02
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. SUB-TCF LENGTH IS EQUAL TO MICD LENGTH.
3. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED.
4. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 300V.
5. TOP SUB-TCF NOT SHOWN IN THIS VIEW FOR CLARITY; HDRL-11
TO BE CENTERED ON LOWER SUB-TCF AS SHOWN; HDRL-11 IS
TO CONTAIN PART NUMBER, SHOP NUMBER, & DATE CODE.
6. FOR SUB-ASSEMBLY AND FINISHED GOOD PACKAGING REQUIREMENTS,
REFERENCE PACKAGING STANDARD CO-HD-WI-3033-M.
7. PARTS TO BE PROCESSED PER SAMTEC ACCEPTABILITY REQUIREMENTS:
HDR-PI-01 "CABLE ASSEMBLY WORKMANSHIP STANDARDS".
8. CABLE LENGTHS LONGER THAN 40.00 INCHES ARE NOT SUPPORTED BY
S.I. TEST DATA.
ICD-XX-02
DETAIL 'A'
SCALE 2.5 : 1
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
* -DV END OPTIONS ONLY
TOLERANCES DO NOT APPLY
TO REFERENCE DIMENSIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
.XX: .01[.3]
2
.XXX: .005[.13]
.XXXX: .0020[.051]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.25:1
0.635 HIGH-SPEED COAX CABLE ASSEMBLY
MICD-XXX-XX.XX-XXX-XXX-X-X
12/11/03
SHEET
1
OF
6
F:\DWG\MISC\MKTG\MICD-XXX-XX.XX-XXX-XXX-X-X-MKT.SLDDRW
BY:
KEVIN B
REVISION G

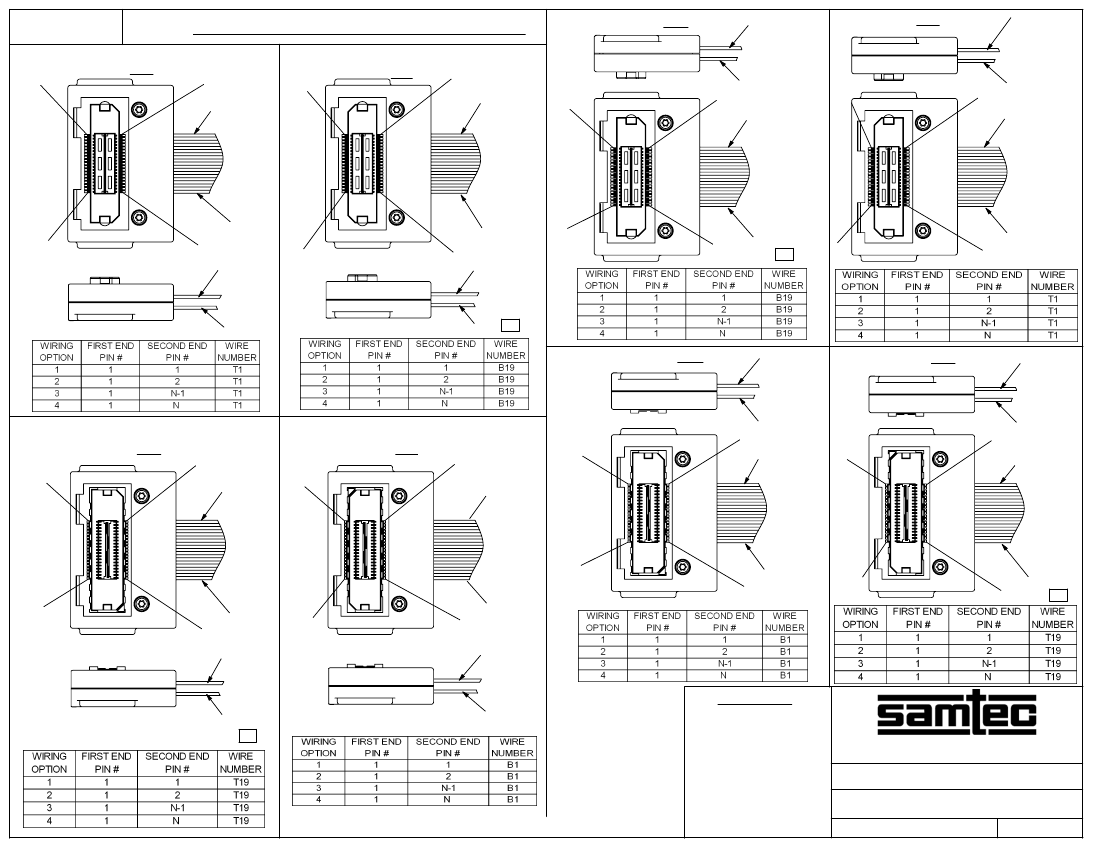

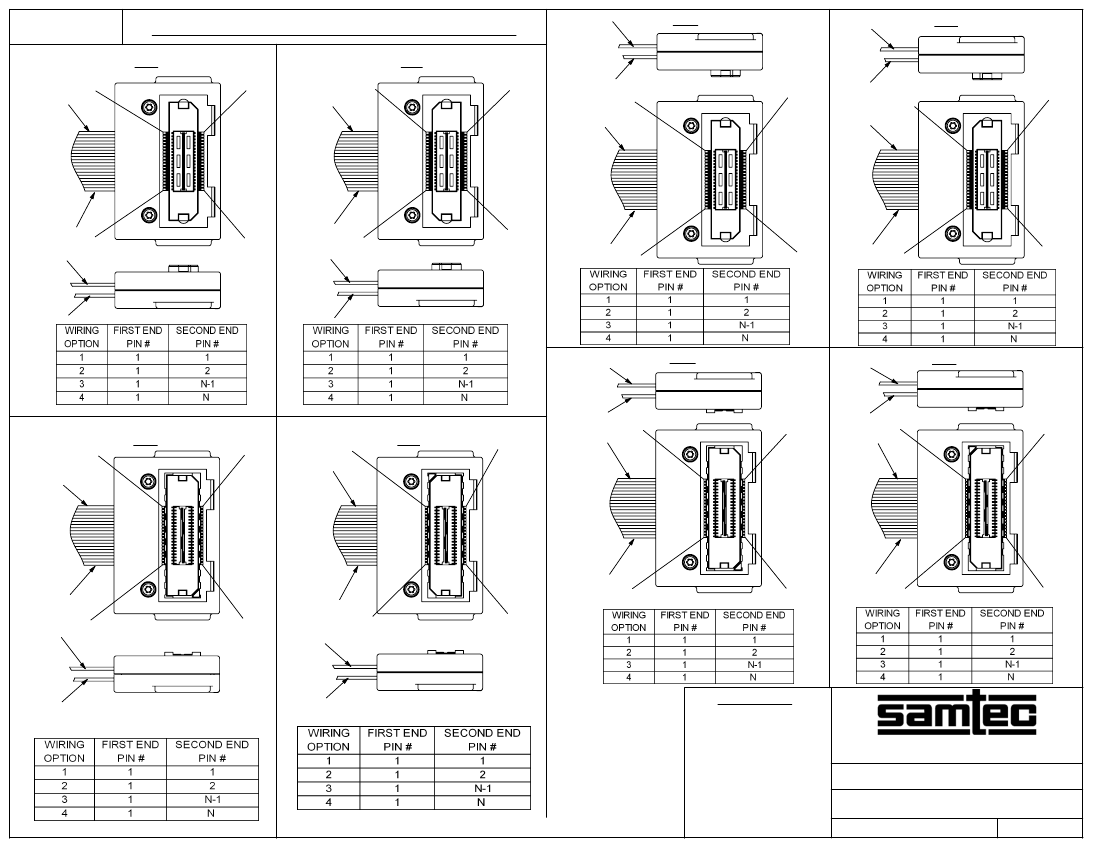

2
1

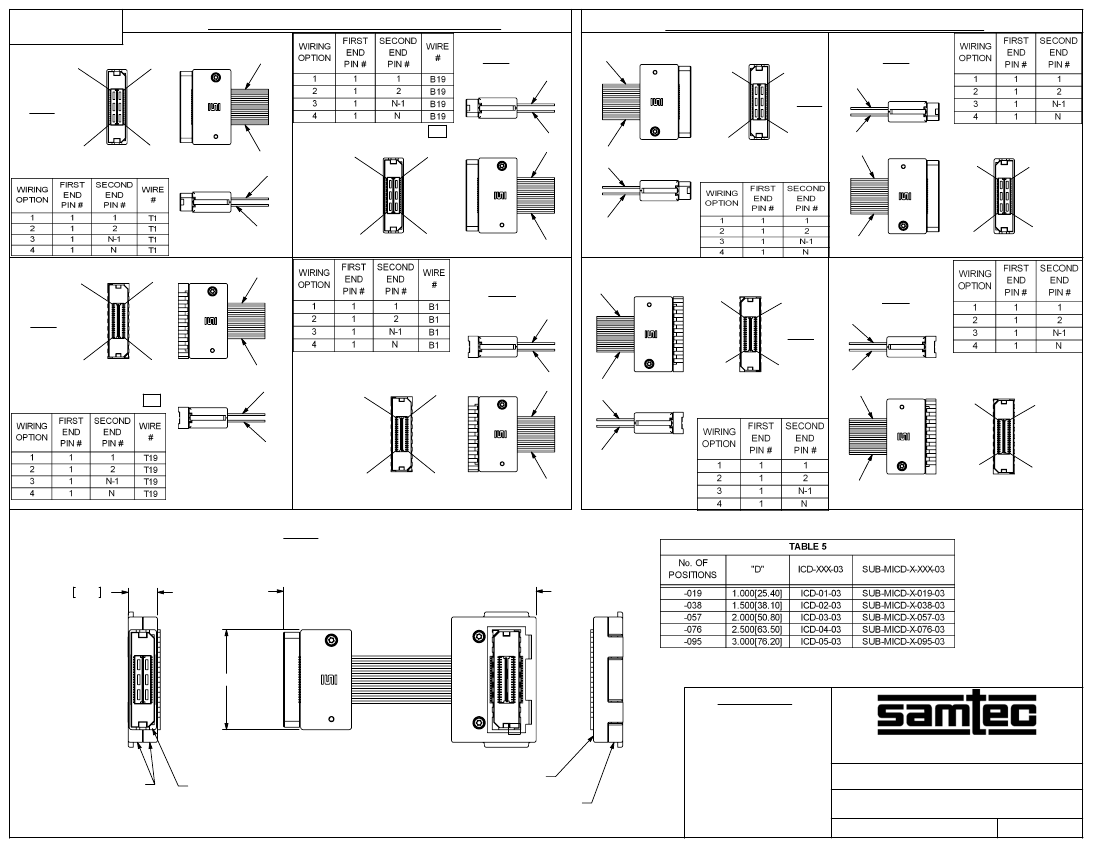

FIRST END - EDGE MOUNT (SEE TABLE 9, SHEET 6)
T1
SECOND END - EDGE MOUNT (SEE TABLE 9, SHEET 6)
T1
T
N-1
-TED
-TED
N
-TEU
N
N-1
-TEU
G
T19
T
2
1
B
B19
T19
T
1
2
T
B
B19
N-1
N
B
B
N
N-1
B1
B1
1
2
N
N-1
T1
-SED
T
T1
1
2
-SED
T
-SEU
2
1
T19
T
N
N-1
-SEU
N-1
T19
T
N
B
B19
B
B19
1
2
G
B
2
1
B1
B
N-1
B1
N
EDGE MOUNT (NO CAPTIVE PANEL SCREWS)
(MICD-019-XX.XX-TEU-STL-X SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
.292 7.42
REF
LENGTH: XX.XX + "L" REF (SEE TABLE 4, SHEET 1)
FIG. 2
"D" REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
ICD-XX-03 (TYP)
SUB-MICD-X-XXX-03
ICD-XX-01
ICD-XX-02
F:\DWG\MISC\MKTG\MICD-XXX-XX.XX-XXX-XXX-X-X-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
0.635 HIGH-SPEED COAX CABLE ASSEMBLY
DWG. NO.
MICD-XXX-XX.XX-XXX-XXX-X-X
12/11/03
SHEET
4
OF
6
BY:
KEVIN B
REVISION G

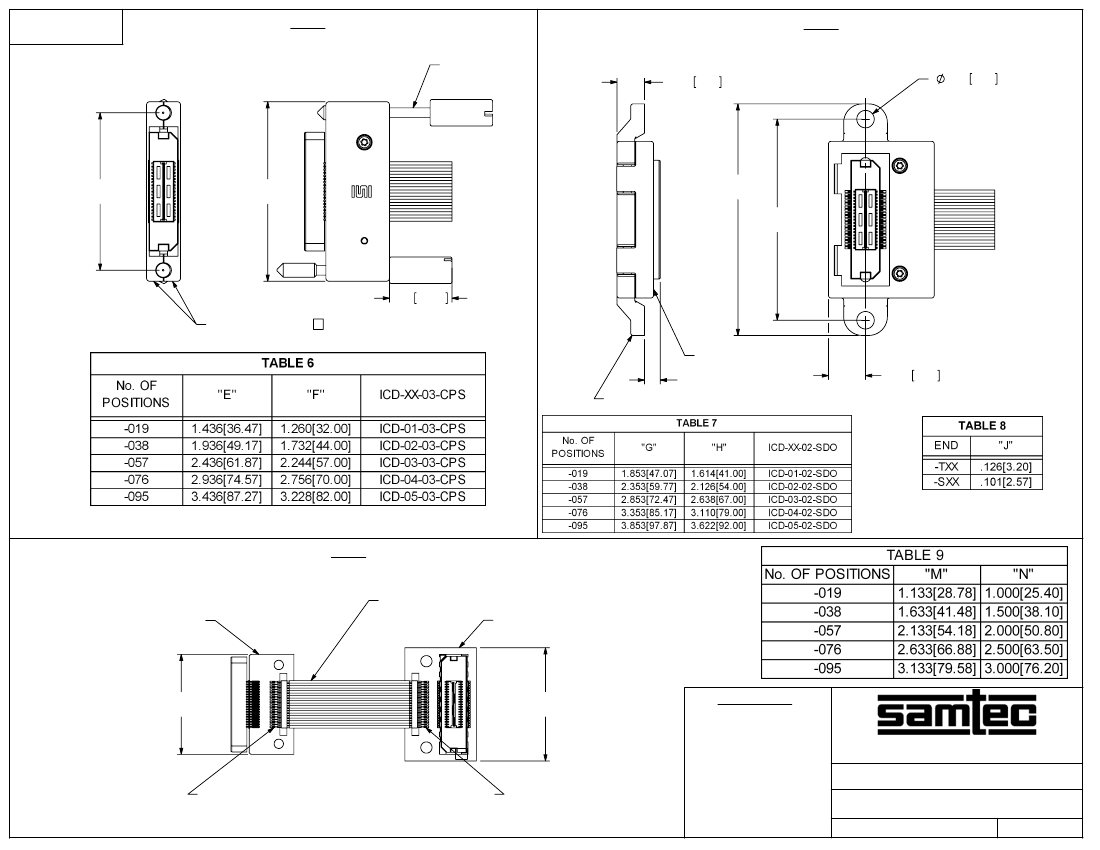

EDGE MOUNT (WITH CAPTIVE PANEL SCREWS)
