ATT1C05-2T100I-DB datasheet, PDF

ATT1C05-2T100I-DB: DescriptionField Programmable Gate Array, 144 CLBs, 5000 Gates, CMOS, PQFP100; CategoryProgrammable logic devices Programmable logic; File Size3MB，97 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric View All

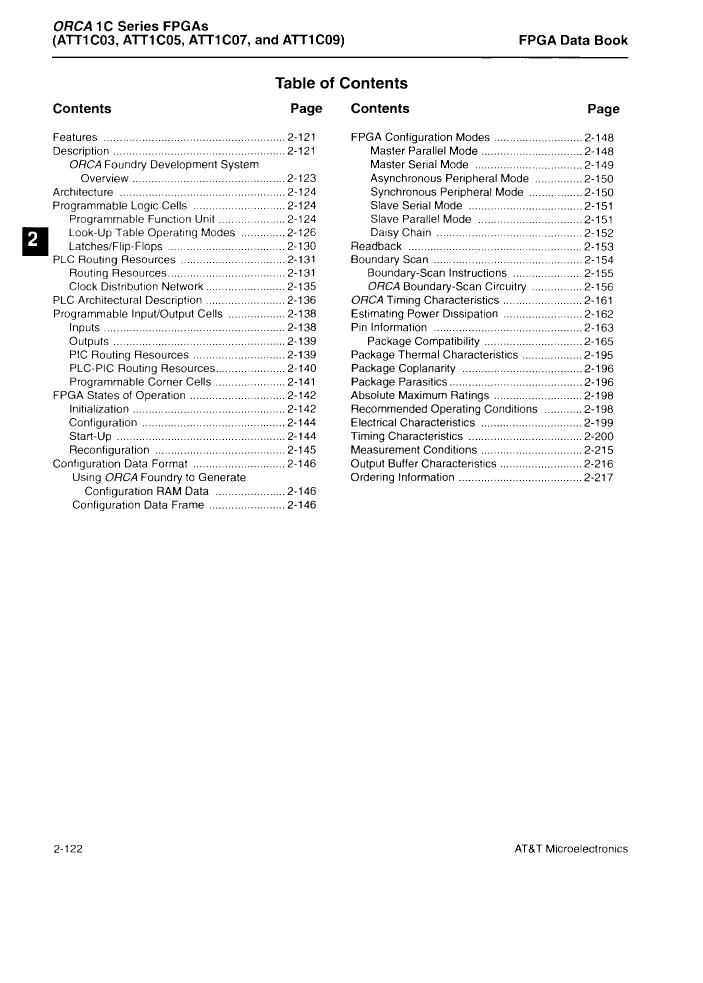

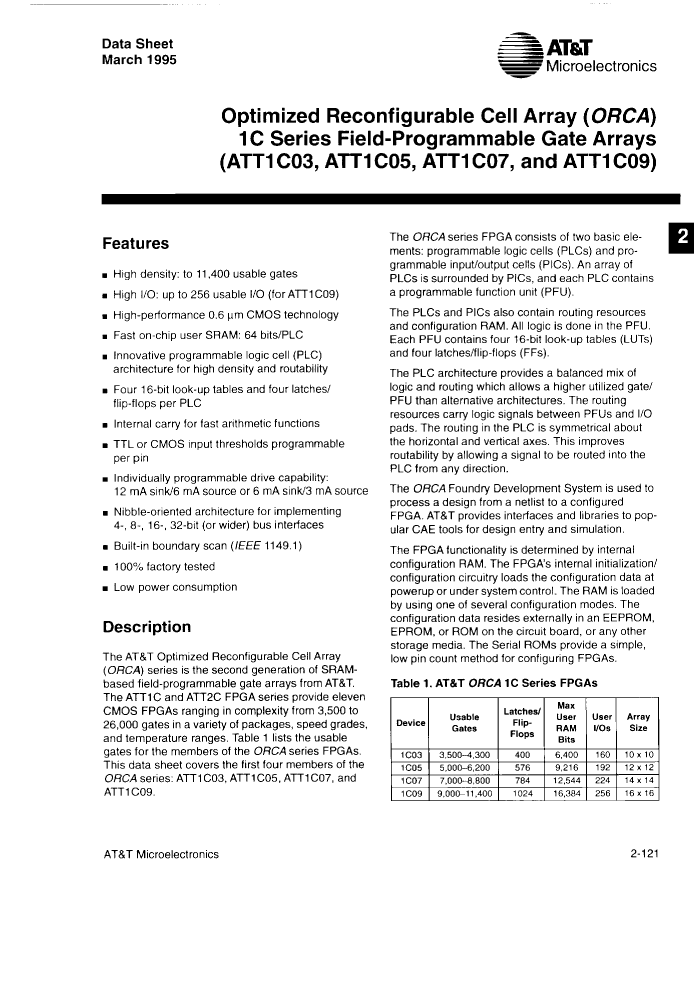

ATT1C05-2T100I-DB Overview

Field Programmable Gate Array, 144 CLBs, 5000 Gates, CMOS, PQFP100

Parameter Name	Attribute value
Maker	LSC/CSI
package instruction	,
Reach Compliance Code	unknown
Other features	MAX 77 I/OS; 576 FLIP-FLOPS; TYP GATES = 5000 TO 6200
Combined latency of CLB-Max	5.4 ns
JESD-30 code	S-PQFP-G100

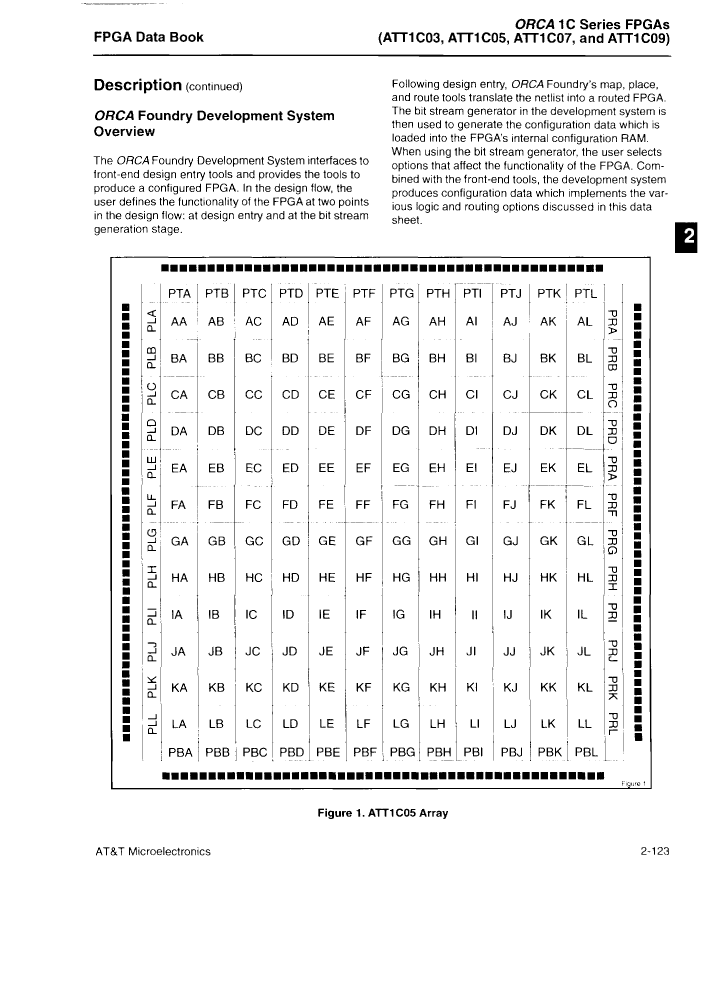

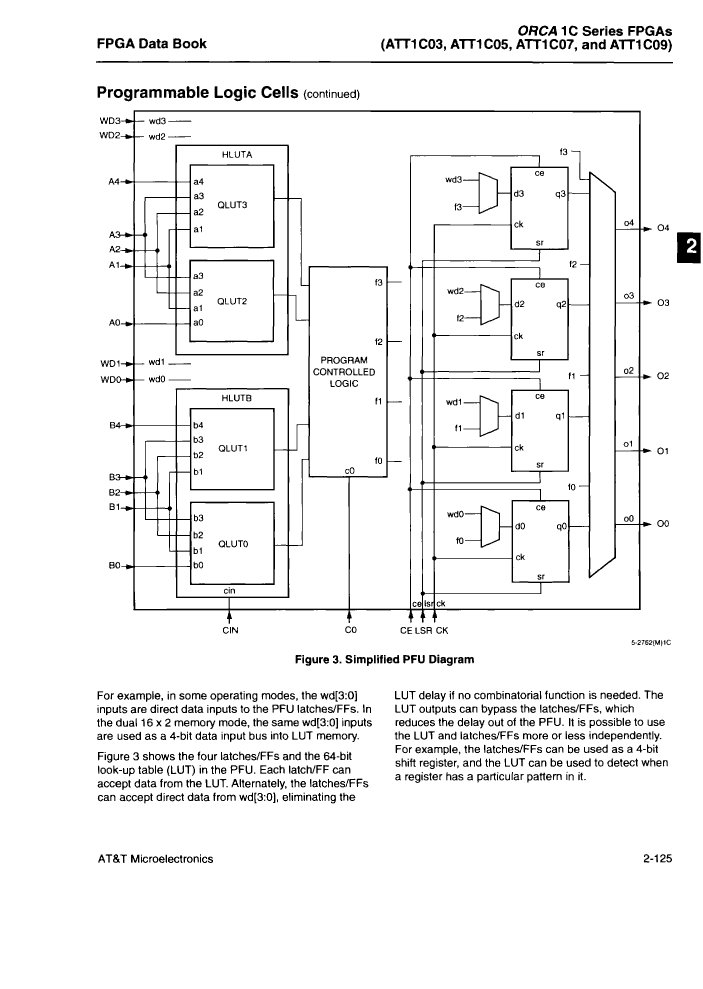

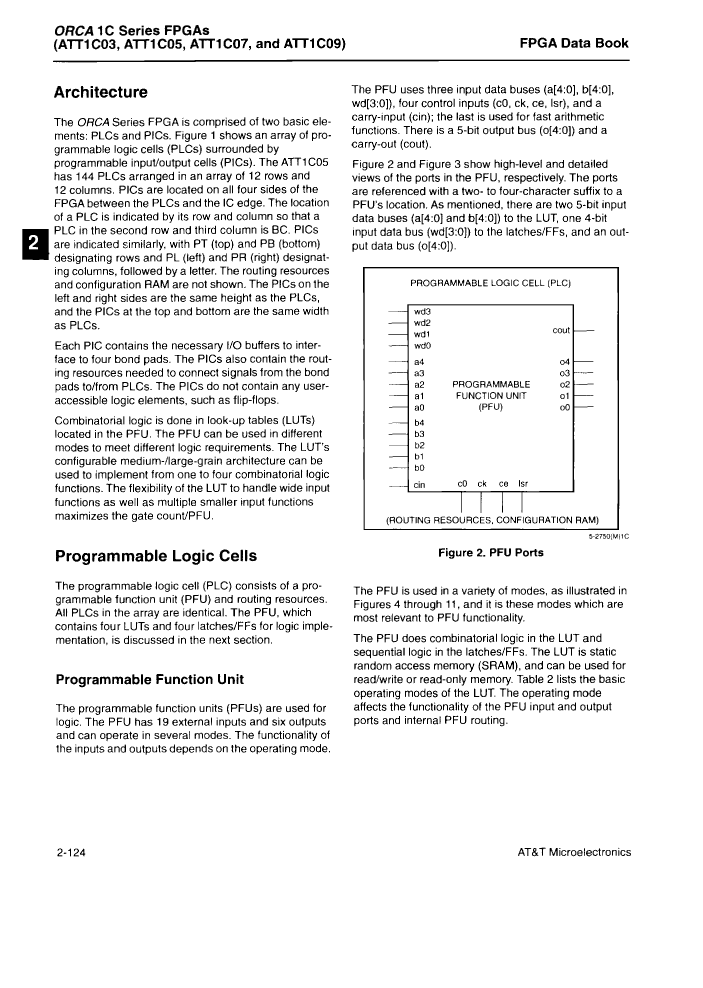

Configurable number of logic blocks	144
Equivalent number of gates	5000
Number of terminals	100
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	144 CLBS, 5000 GATES
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	QUAD
