NJM2930L05-(T3)

Description
5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PBCY3, TO-92, 3 PIN
CategoryPower/power management    The power supply circuit
File Size160KB,6 Pages
ManufacturerNew Japan Radio Co., Ltd..
Environmental Compliance
Download Datasheet Parametric Compare View All

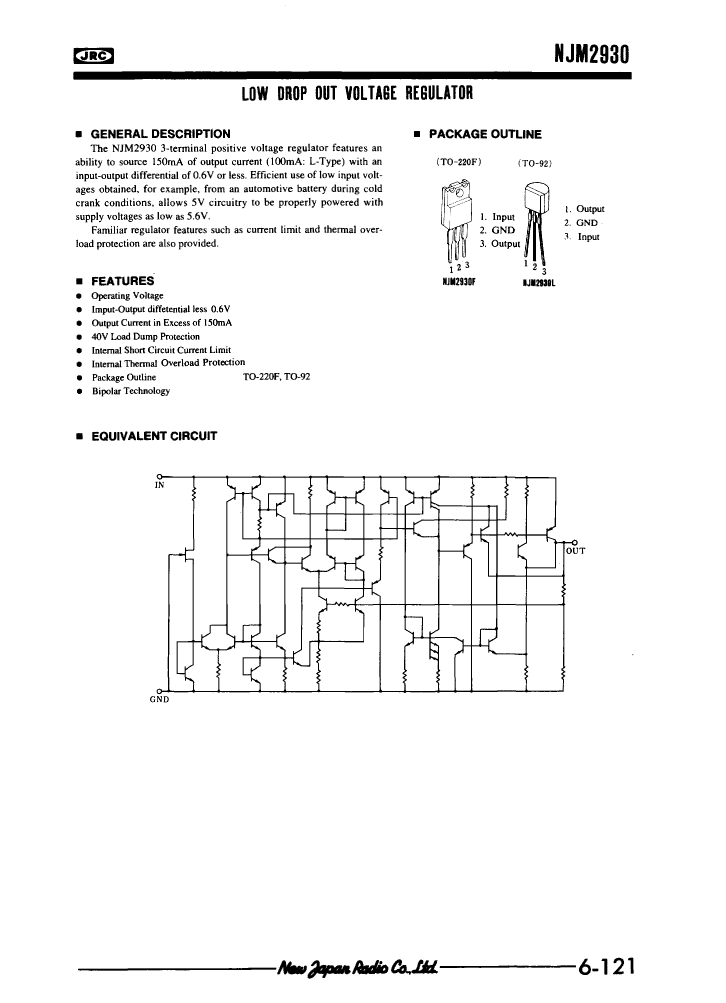

NJM2930L05-(T3) Overview

5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PBCY3, TO-92, 3 PIN

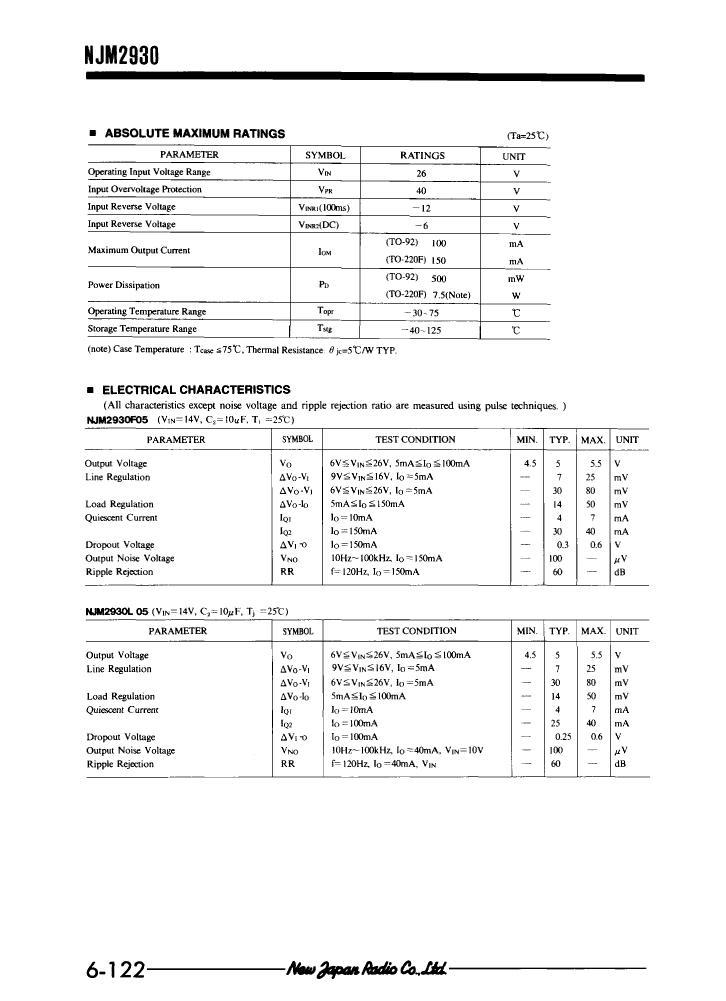

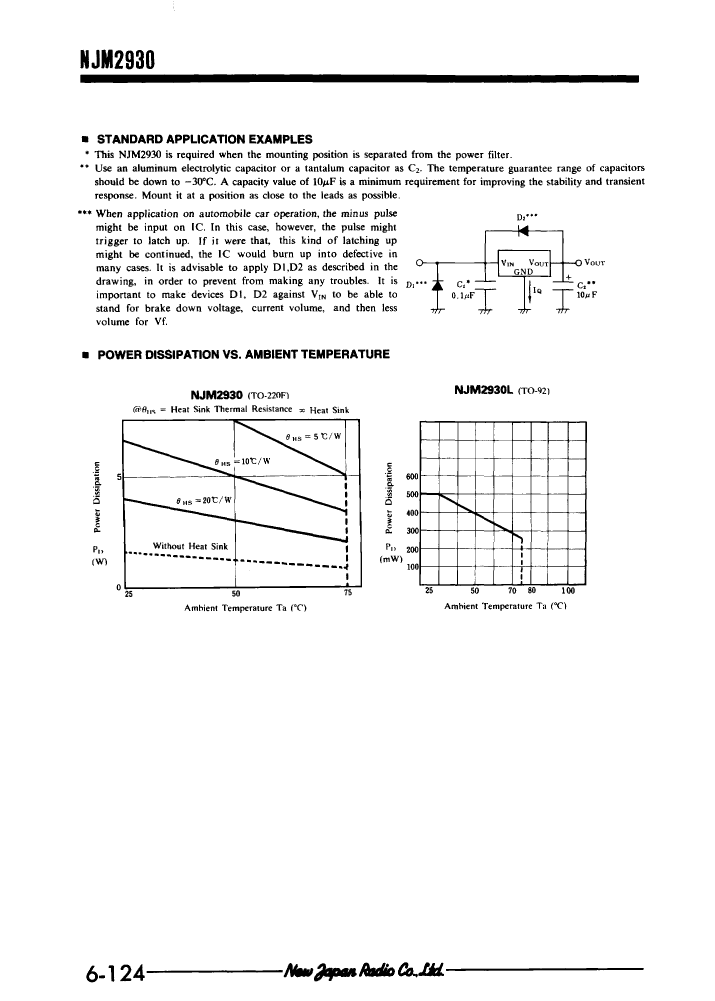

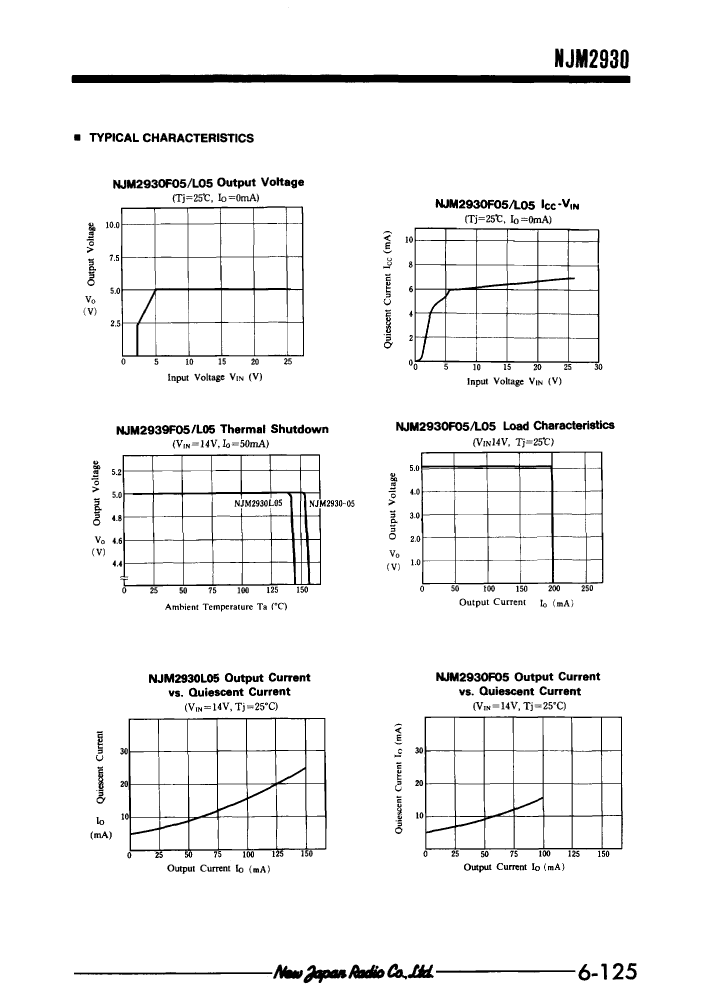

NJM2930L05-(T3) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNew Japan Radio Co., Ltd..
Parts packaging codeTO-92
package instructionTO-92, 3 PIN
Contacts3
Reach Compliance Codecompliant
Maximum drop-back voltage 10.6 V
Maximum input voltage26 V
Minimum input voltage6 V
JESD-30 codeO-PBCY-T3
JESD-609 codee6
Number of functions1
Number of terminals3
Maximum output current 10.1 A
Maximum output voltage 15.5 V
Minimum output voltage 14.5 V
Nominal output voltage 15 V
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mountNO
technologyBIPOLAR
Terminal surfaceTIN BISMUTH
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED

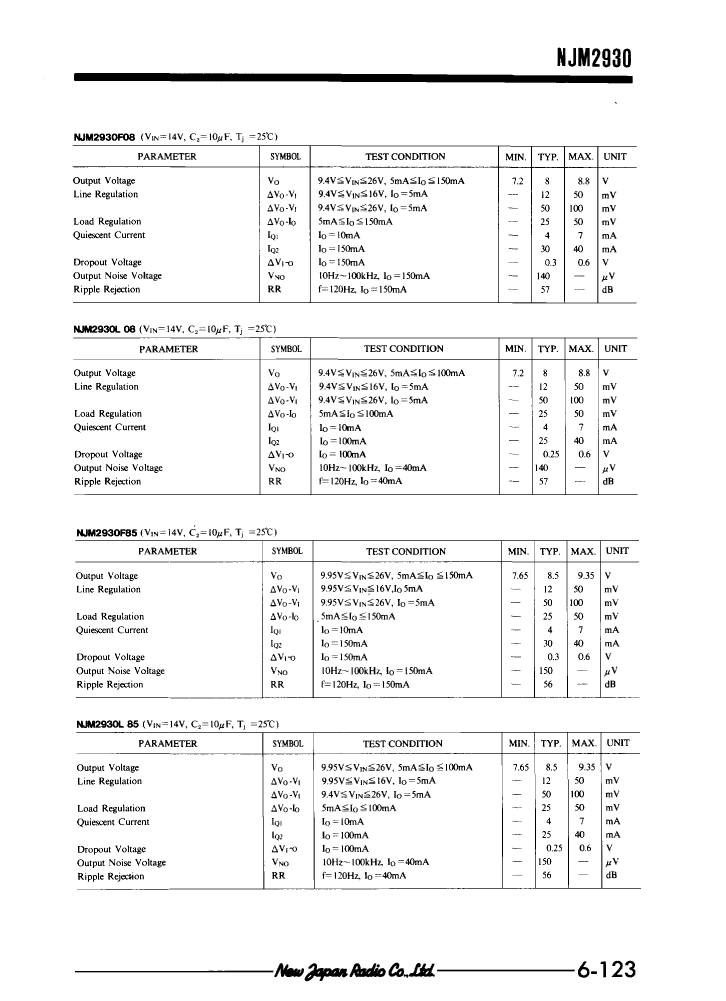

NJM2930L05-(T3) Related Products

NJM2930L05-(T3) NJM2930L85-(T3) NJM2930L08-(T3)
Description 5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PBCY3, TO-92, 3 PIN 8.5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PBCY3, TO-92, 3 PIN 8V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PBCY3, TO-92, 3 PIN
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Parts packaging code TO-92 TO-92 TO-92
package instruction TO-92, 3 PIN TO-92, 3 PIN ,
Contacts 3 3 3
Reach Compliance Code compliant compliant compliant
Maximum drop-back voltage 1 0.6 V 0.6 V 0.6 V
Maximum input voltage 26 V 26 V 26 V
Minimum input voltage 6 V 9.95 V 9.4 V
JESD-30 code O-PBCY-T3 O-PBCY-T3 O-PBCY-T3
JESD-609 code e6 e6 e6
Number of functions 1 1 1
Number of terminals 3 3 3
Maximum output current 1 0.1 A 0.1 A 0.1 A
Maximum output voltage 1 5.5 V 9.35 V 8.8 V
Minimum output voltage 1 4.5 V 7.65 V 7.2 V
Nominal output voltage 1 5 V 8.5 V 8 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified
Regulator type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR
Terminal surface TIN BISMUTH TIN BISMUTH TIN BISMUTH
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location BOTTOM BOTTOM BOTTOM
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maker New Japan Radio Co., Ltd.. - New Japan Radio Co., Ltd..
