2N4414A datasheet, PDF - EEWORLD Datasheet

2N4414A: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size299KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

2N4414A Overview

Transistor

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Maximum collector current (IC)	0.6 A
Configuration	Single
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.6 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	20 MHz
Base Number Matches	1

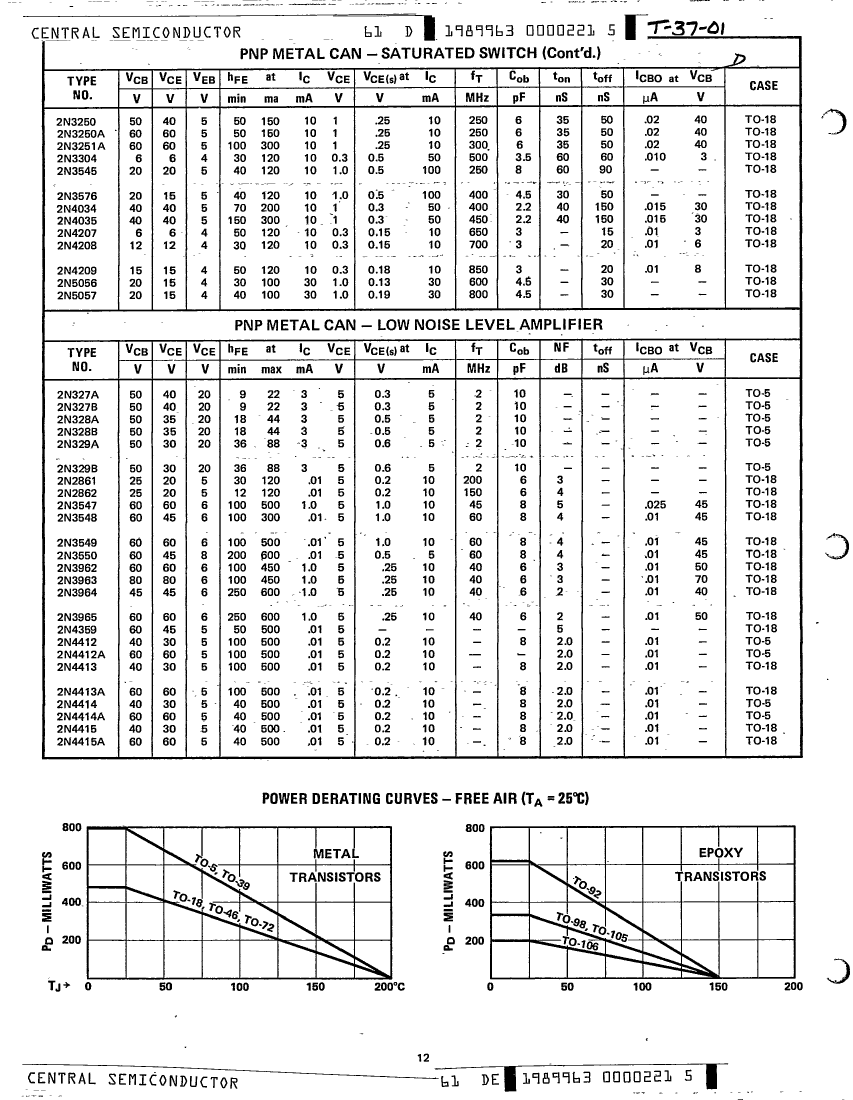

This Material Copyrighted By Its Respective Manufacturer

	2N4414A	2N3304	2N328A	2N329A	2N329B
Description	Transistor	Transistor	Small Signal Bipolar Transistor, 0.05A I(C), 35V V(BR)CEO, 1-Element, PNP, Silicon, TO-5, METAL CAN-3	Small Signal Bipolar Transistor, 0.05A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-5, TO-5, 3 PIN	Transistor
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	_compli	_compli	_compli	unknow
Configuration	Single	Single	SINGLE	Single	Single
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	175 °C	175 °C	160 °C	160 °C	175 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.6 W	0.5 W	0.386 W	0.386 W	0.4 W
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	20 MHz	500 MHz	2 MHz	0.5 MHz	5 MHz
Base Number Matches	1	1	1	1	1
Maximum collector current (IC)	0.6 A	-	0.05 A	0.05 A	0.1 A
Minimum DC current gain (hFE)	-	30	18	60	-
