2SA817A
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)
2SA817A
Driver-Stage Amplifier Applications
Voltage Amplifier Applications
Unit: mm
•
•
Complementary to 2SC1627A.
Driver stage application of 30 to 35 watts amplifiers.
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−80
−80
−5
−400
-40
800
150
−55
to 150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TO-92MOD
―
Note1: Using continuously under heavy loads (e.g. the application of high
TOSHIBA
2-5J1A
temperature/current/voltage and the significant change in
Weight: 0.36 g (typ.)
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1

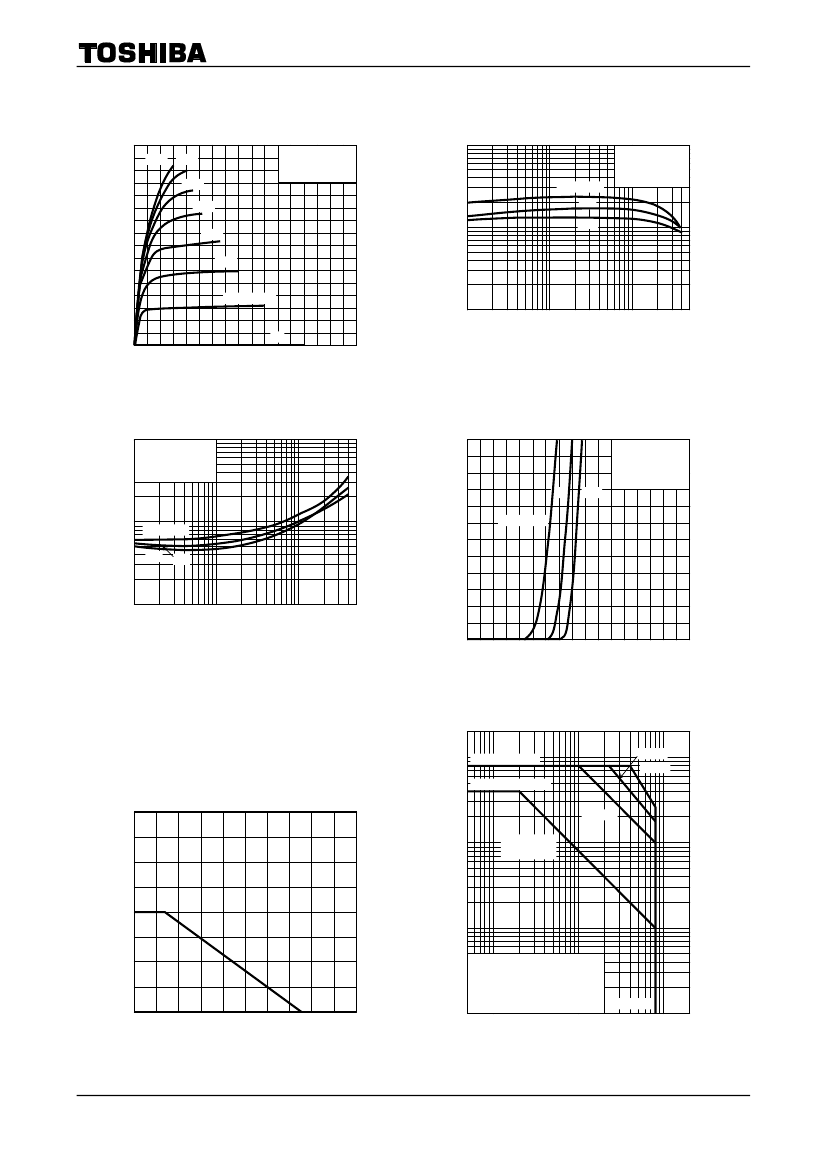

2009-12-21
