2SA1425
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)
2SA1425
Power Amplifier Applications
Driver-Stage Amplifier Applications

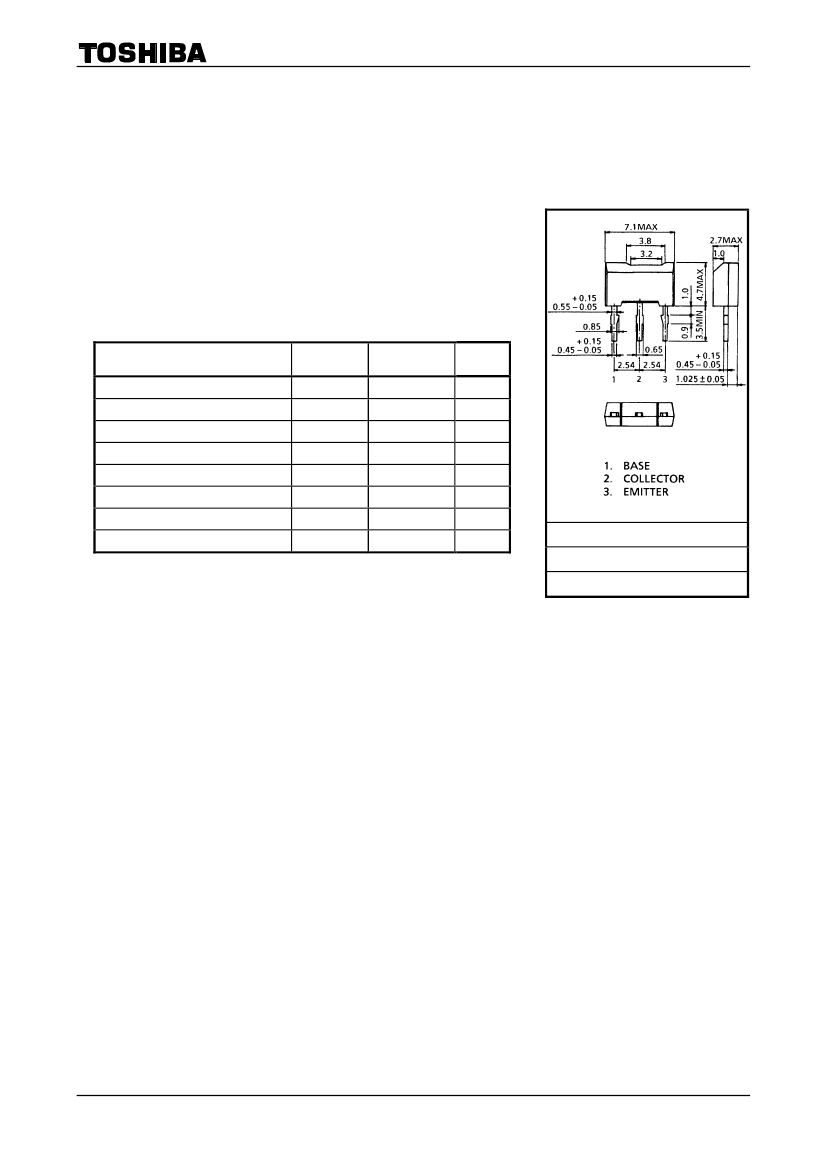

Unit: mm
•
Complementary to 2SC3665.
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−120
−120
−5
−800
−80
1000
150
−55
to 150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
―
JEITA
―
Note1: Using continuously under heavy loads (e.g. the application of high
TOSHIBA
2-7D101A
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
Weight: 0.2 g (typ.)
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2010-03-10

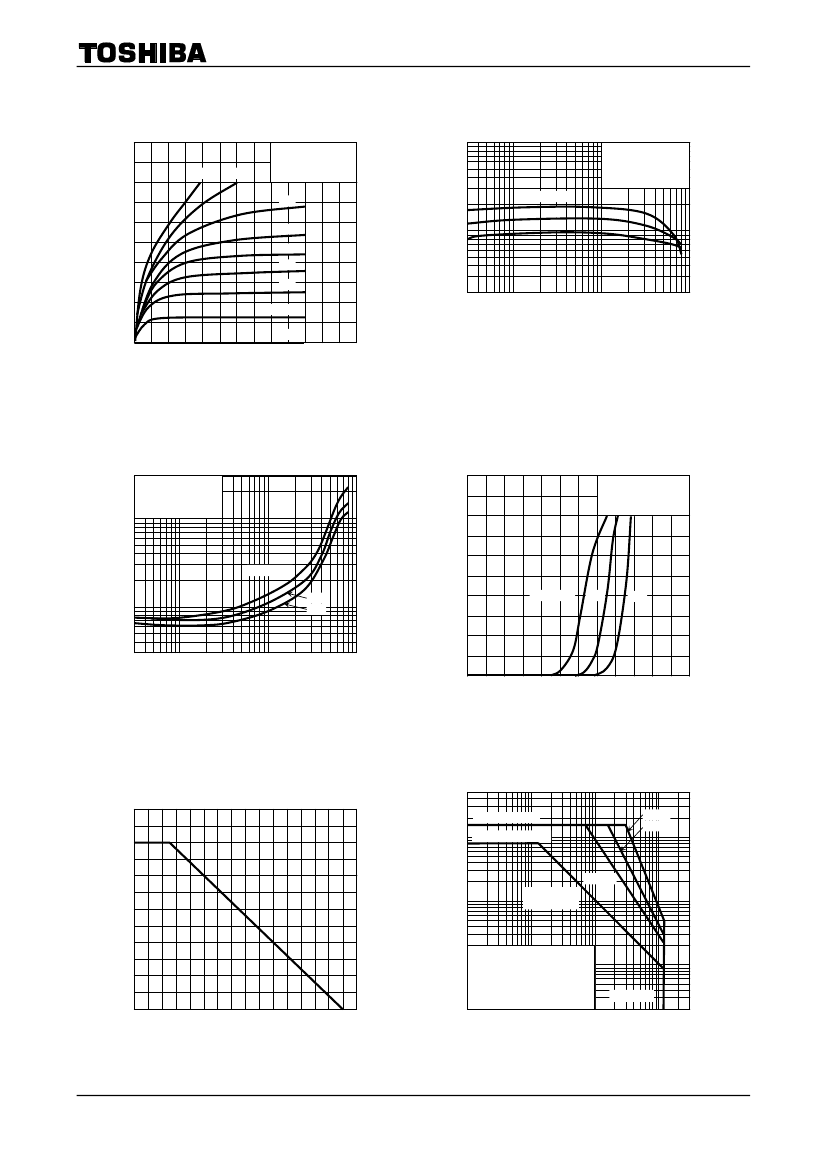

2SA1425
