2SA1500Q datasheet, PDF - EEWORLD Datasheet

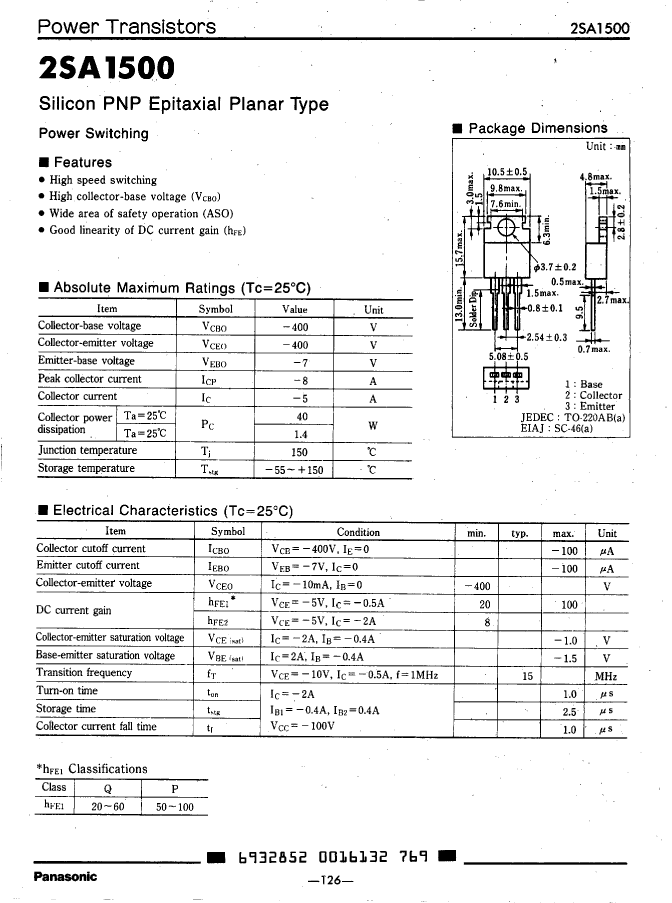

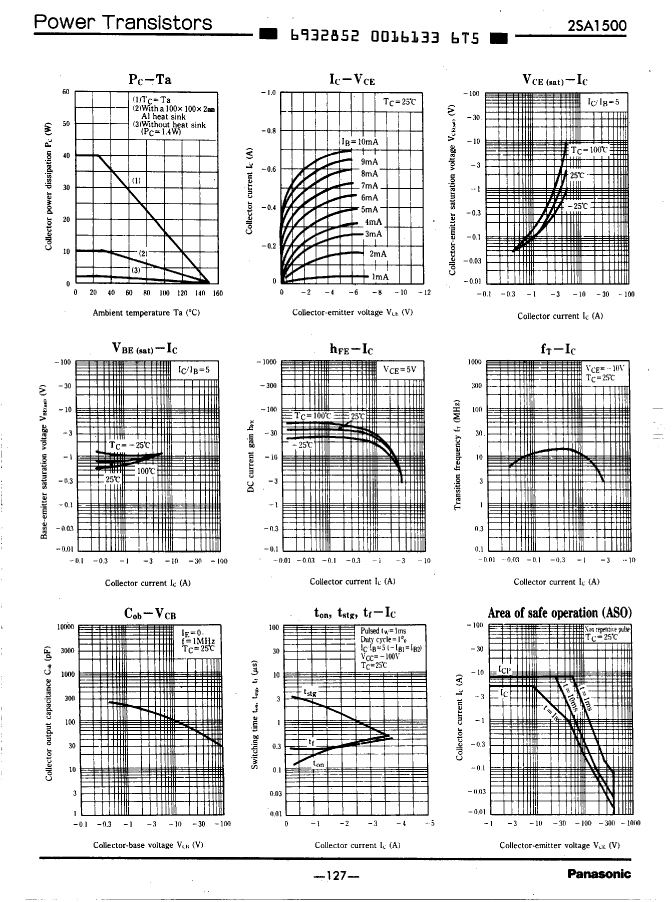

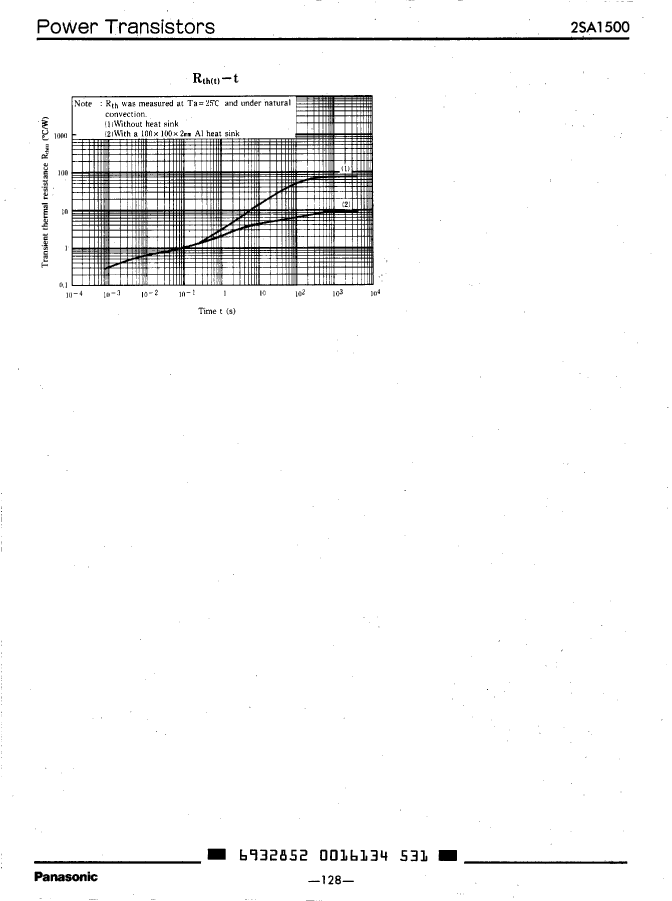

2SA1500Q: DescriptionPower Bipolar Transistor, 5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, SC-46, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size182KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

2SA1500Q Overview

Power Bipolar Transistor, 5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, SC-46, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SC-46
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1.4 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	15 MHz
Base Number Matches	1
