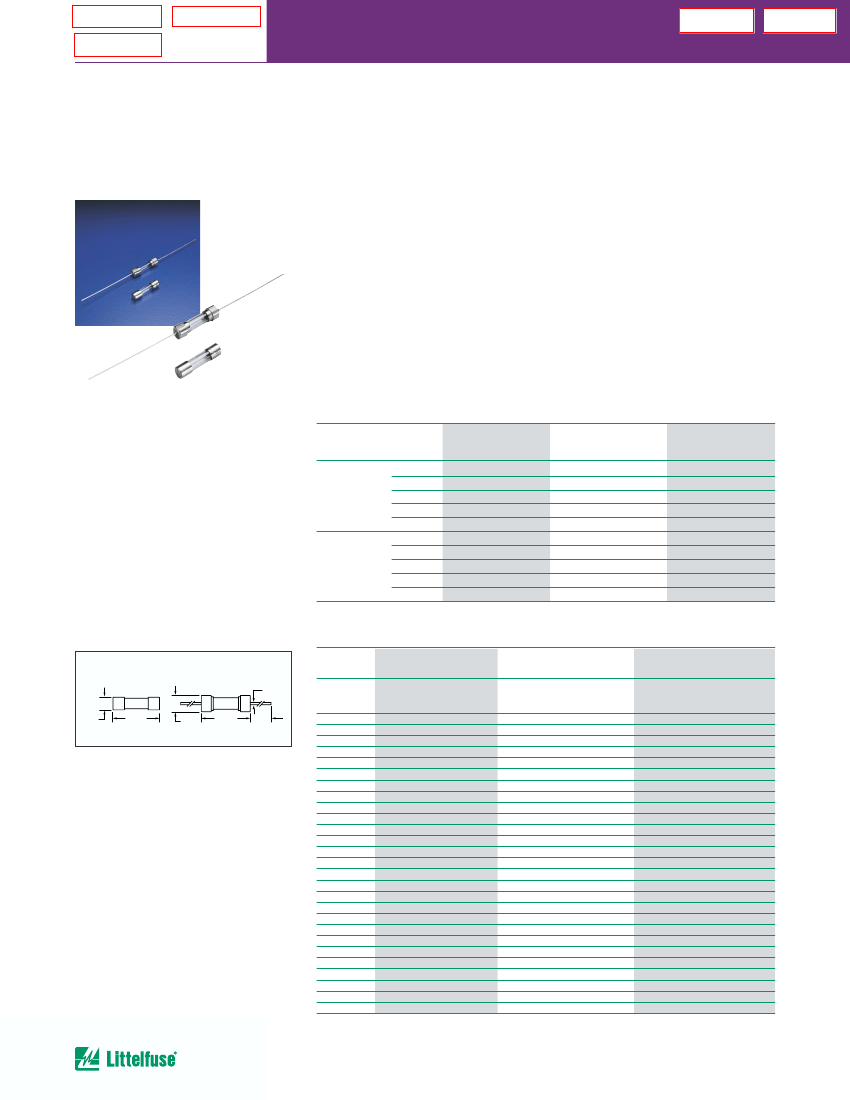

IEC Standard Axial Lead and Cartridge Fuses
5 x 20mm Series
Features
5 x 20mm Fast-Acting Fuses
216 and 217 Series, and
Time Lag Fuses 218 Series:
•
•
Designed to IEC standards for global use
Meets the IEC 60127-2, Sheet 1 and 2
specification for fast-acting fuses,
Sheet 3 specifications for time lag fuses
Available in cartridge and axial lead form
Available in ratings of 0.032 to 10A
Specifications
Interrupting Ratings:
(216 Series)
1500A
(217/218 Series)
35A or 10 x rated
current, whichever is greater
Approvals:
(216/217/218 Series)
IEC 60127-2/127-2
Semko approved through 6.3A
VDE approved .05 to 6.3A
BSI approved 1A to 6.3A
UL Recognized/CSA Certified
•
•
Electrical Characteristics
216/226 Series
% of Ampere
Opening Time
Rating
Minimum / Maximum
150
210
275
400
1000
150
210
275
400
1000
60 min. / —
— / 30 min.
0.01 sec. / 2 sec.
0.003 sec. / 0.3 sec.
— / 0.02 sec.
60 min. / —
— / 30 min.
0.01 sec. / 3 sec.
0.003 sec. / 0.3 sec.
— / 0.02 sec.
217/227 Series
Opening Time
Minimum / Maximum
60 min. / —
— / 30 min.
0.01 sec. / 5 sec.
0.003 sec. / 0.1 sec.
— / 0.02 sec.
60 min. / —
— / 30 min.
0.05 sec. / 2 sec.
0.01 sec. / 0.3 sec.
— / 0.02 sec.
218/228 Series
Opening Time
Minimum / Maximum
60 min. / —
— / 2 min.
0.2 sec. / 10 sec.
0.04 sec. / 3 sec.
0.01 sec. / 0.3 sec.
60 min. / —
— / 2 min.
0.6 sec. / 10 sec.
0.15 sec. / 3 sec.
0.01 sec. / 0.3 sec.
.032 – .100A
.125 – 6.3A
Dimensions
216/217/218 Series
226/227/228 Series
.635
(.025")
Ordering Information
216/226 Series
(Fast-Acting)
Nominal
Catalog Melting I
2
t
Number (A
2
Sec.)
217/227 Series
(Fast-Acting)
Nominal
Catalog
Melting I
2
t
Number
(A
2
Sec.)
218/228 Series
(Time Lag)
Nominal
Catalog
Melting I
2
t
Number
(A
2
Sec.)
Ampere
Rating
5
(.197")
20
(.787")
5.25
(.207")
22.5
(.886")
40
(1.58")
0.032
—
—
217.032
0.000048
218.032
0.00305
0.040
—
—
217.040
0.000074
218.040
0.0055
0.050
216.050
0.00019
217.050
0.00020
218.050
0.0071
0.063
216.063
0.00055
217.063
0.00057
218.063
0.012
0.080
216.080
0.00086
217.080
0.00085
218.080
0.0265
0.100
216.100
0.0033
217.100
0.0034
218.100
0.0495
0.125
216.125
0.0056
217.125
0.0049
218.125
0.150
0.160
216.160
0.0018
217.160
0.011
218.160
0.225
0.200
216.200
0.0045
217.200
0.025
218.200
0.350
0.250
216.250
0.0092
217.250
0.043
218.250
0.555
0.315
216.315
0.015
217.315
0.110
218.315
1.14
0.400
216.400
0.028
217.400
0.130
218.400
1.35
0.500
216.500
0.045
217.500
0.225
218.500
2.90
0.630
216.630
0.097
217.630
0.420
218.630
4.80
0.800
216.800
0.18
217.800
0.870
218.800
1.99
1
216 001
0.19
217 001
1.07
218 001
3.33
1.25
216 1.25
0.49
217 1.25
2.29
218 1.25
5.80
1.6
216 01.6
1.04
217 01.6
4.74
218 01.6
10.61
2
216 002
1.92
217 002
5.88
218 002
14.80
2.5
216 02.5
2.77
217 02.5
9.72
218 02.5
23.85
3.15
216 3.15
7.85
217 3.15
18.2
218 3.15
39.20
4
216 004
15.4
217 004
30.0
218 004
70.95
5
216 005
28.2
217 005
43.9
218 005
114.0
6.3
216 06.3
57.9
217 06.3
64.2
218 06.3
204.0
8
216 008
66.1
217 008
203.5
218 008
350.5
10
216 010
158.5
217 010
223.5
218 010
583.0
15
—
—
—
—
218 015
1441.0
Note: For axial leads in 216, 217, and 218 Series, change catalog numbers from 216 to 226, 217 to 227, and 218
to 228. All fuses listed are rated @ 250 VAC.
30
Consult Littelfuse web site for more information
www.littelfuse.com
