IRKL26/08S90PBF datasheet, PDF

IRKL26/08S90PBF: DescriptionSilicon Controlled Rectifier, 60A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-240AA; CategoryAnalog mixed-signal IC Trigger device; File Size165KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

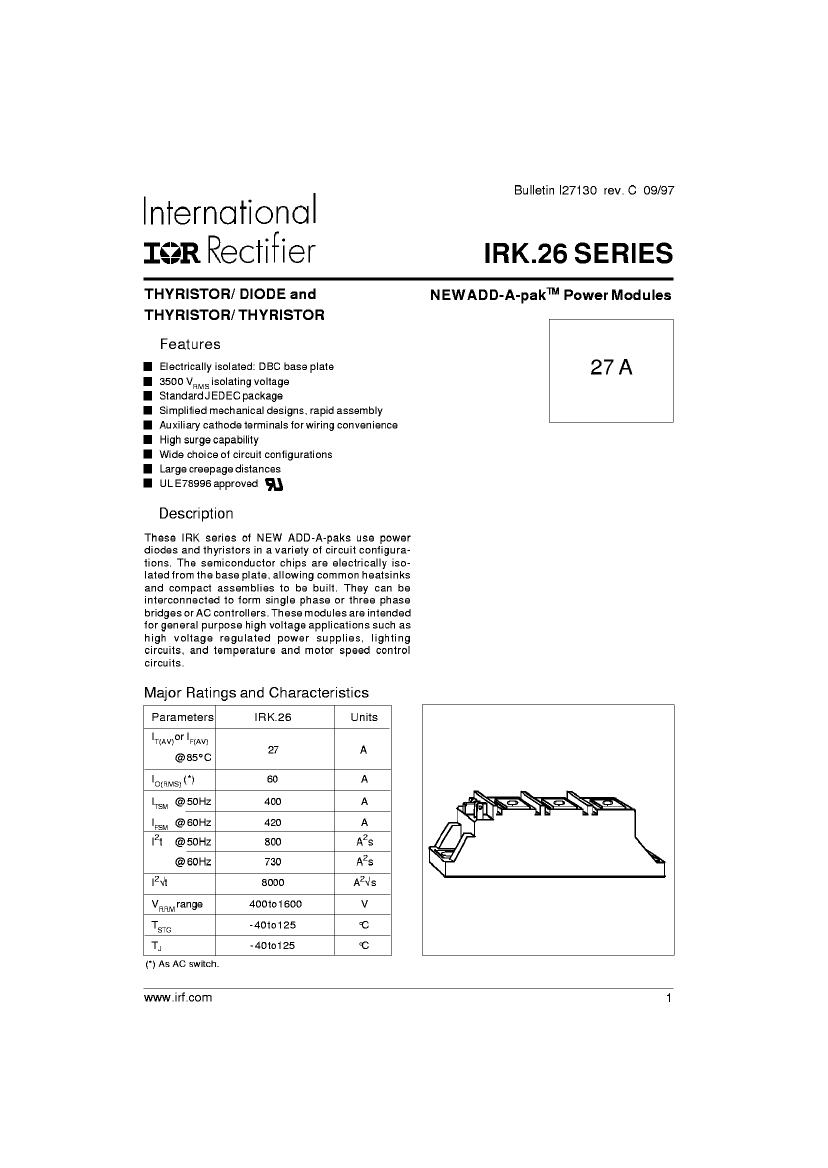

IRKL26/08S90PBF Overview

Silicon Controlled Rectifier, 60A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-240AA

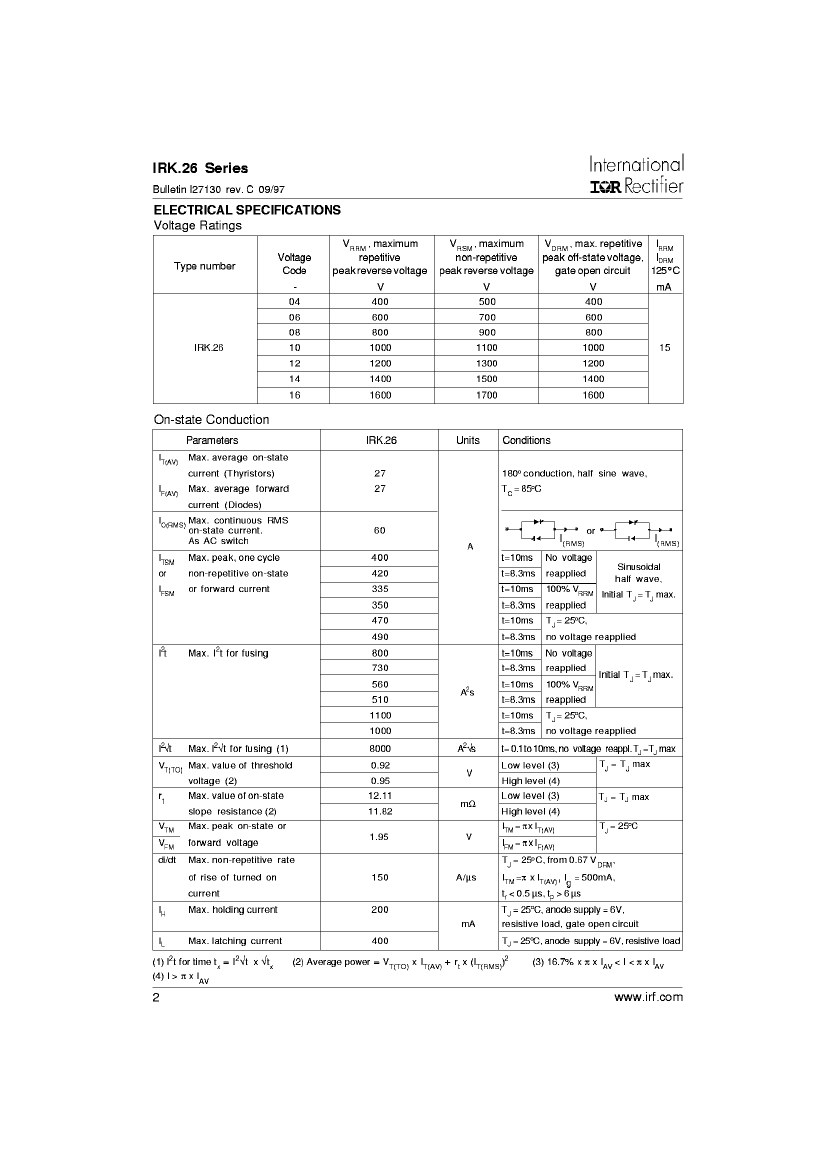

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X3
Reach Compliance Code	compliant
Other features	UL APPROVED
Shell connection	ISOLATED

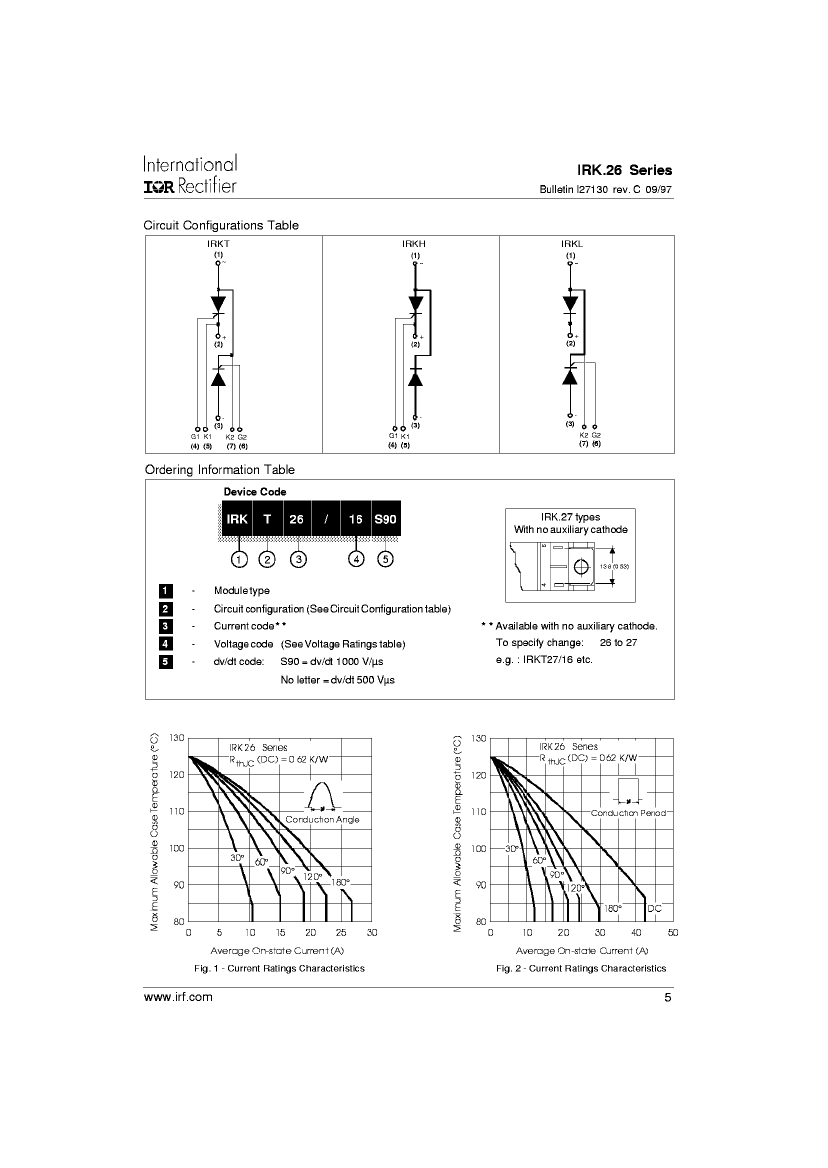

Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE

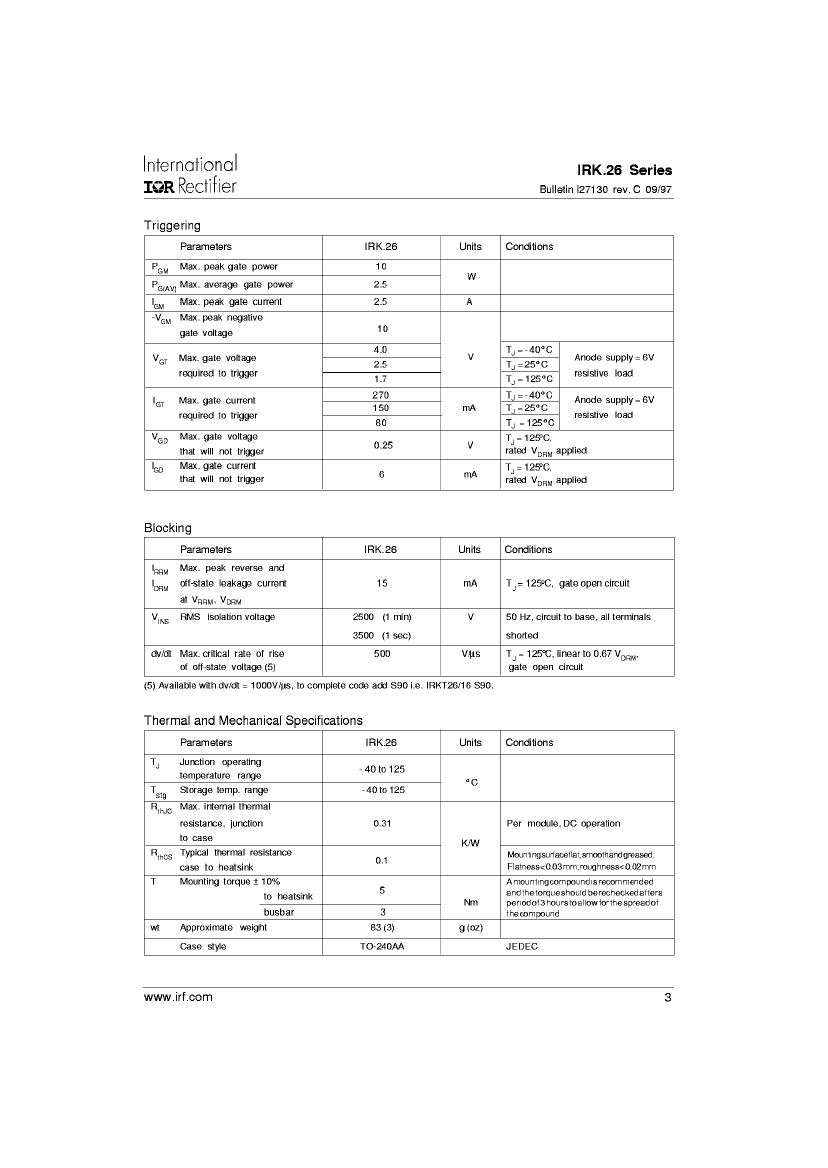

Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	200 mA

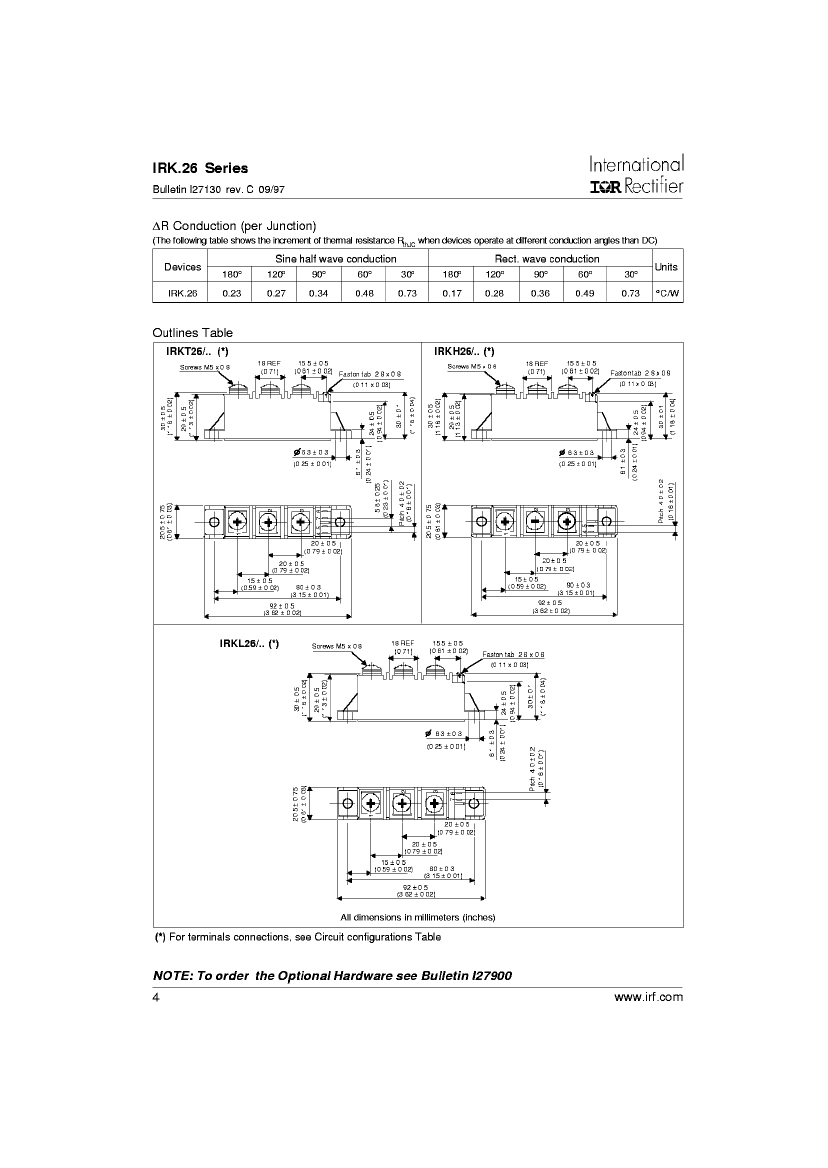

JEDEC-95 code	TO-240AA
JESD-30 code	R-PUFM-X3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	60 A
Maximum repetitive peak off-state leakage current	15000 µA
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Trigger device type	SCR
