GC9700 – GC9704
TM
®
SCHOTTKY BARRIER DIODES
General Purpose
RoHS Compliant
DESCRIPTION
This unique mesa construction (GC9700, GC9701, and GC9702) provides
high breakdown voltage with true Schottky characteristics without resorting to
the use of a diffused guard ring. The GC9703 and GC9704 are planar
schottky devices. The standard devices are available in glass axial leaded
packages as well as in chip form. Custom package styles are available on
request.
KEY FEATURES
Fast Switching
Low Turn On Voltage
Economical
Tape and Reel Available
RoHS Compliant
1
www.MICROSEMI.com
APPLICATIONS
General high speed switching. High level mixers and detectors. Bridge quads
for sampling circuits. Well suited for pulse shaping as well as limiting
requirements..
1
The GC9700 Series of products
are supplied with a RoHS complaint
Gold finish.
ABSOLUTE MAXIMUM RATINGS AT 25º C
(
UNLESS OTHERWISE SPECIFIED)
Rating
Carrier Lifetime
Storage Temperature
Operating Temperature
Symbol
T
L
T
STG
T
OP
Value
100
-65 to +200
-55 to +150
Unit
pS
ºC
ºC
APPLICATIONS/BENEFITS
Mixers
Detectors
Limiters
Pulse Shaping
CHIP ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
C
T
(pF)
V
F
(mV)
I
F
(mA)
1
I
R
(nA)
V
b
(V)
Model Number
GC9700
GC9701
GC9702
GC9703
GC9704
.
I
R
=10μA
V
R
=0V
I
F
=1mA
@ 1.0V
@ V
R
V
R
(V)
50
25
15
1
1
(Min)
70
30
20
8
5
(Max)
2.1
1.5
1.5
1.2
0.8
(Max)
430
430
430
350
600
(Min)
15
50
35
10
1
(Max)
200
100
300
100
100
10
ELECTRICAL
ELECTRICAL
Notes
:
1.
I
F
(min) for the GC9703 is measured at V
F
= 0.5 V. All others measured at 1.0 V.
Copyright
2007
Rev: 2009-01-22
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
GC9700 – GC9704
TM
®
SCHOTTKY BARRIER DIODES
General Purpose
RoHS Compliant

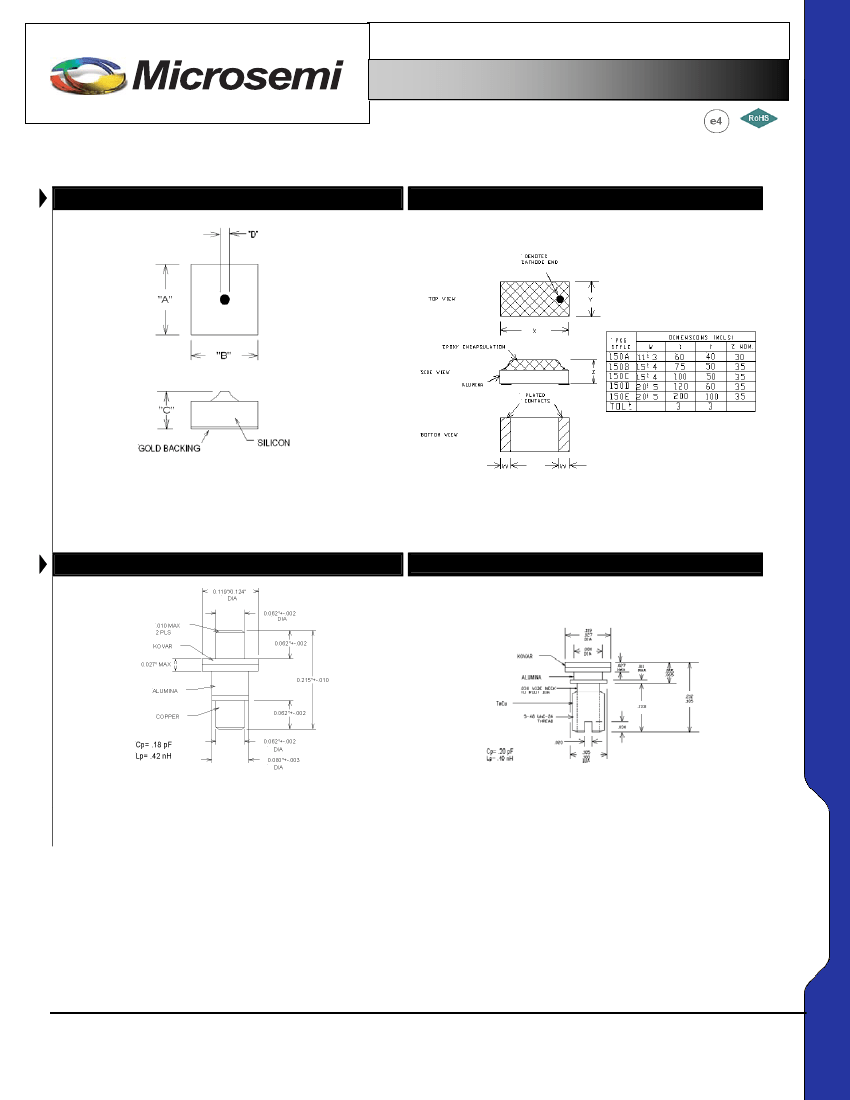

Typical Package Options
PACKAGE STYLE 00
PACKAGE STYLE 150A (-150E)
www.MICROSEMI.com
Notes:
-
Dimensions vary by model number
-
-
Consult factory for details
Order as GC25xx – 00
PACKAGE STYLE 30
PACKAGE STYLE 42
OTHER PACKAGE STYLES AVAILABLE ON REQUEST
CONSULT FACTORY
MECHANICAL
MECHANICAL
Copyright
2007
Rev: 2009-01-22
Microsemi
Microwave Products
Page 2
