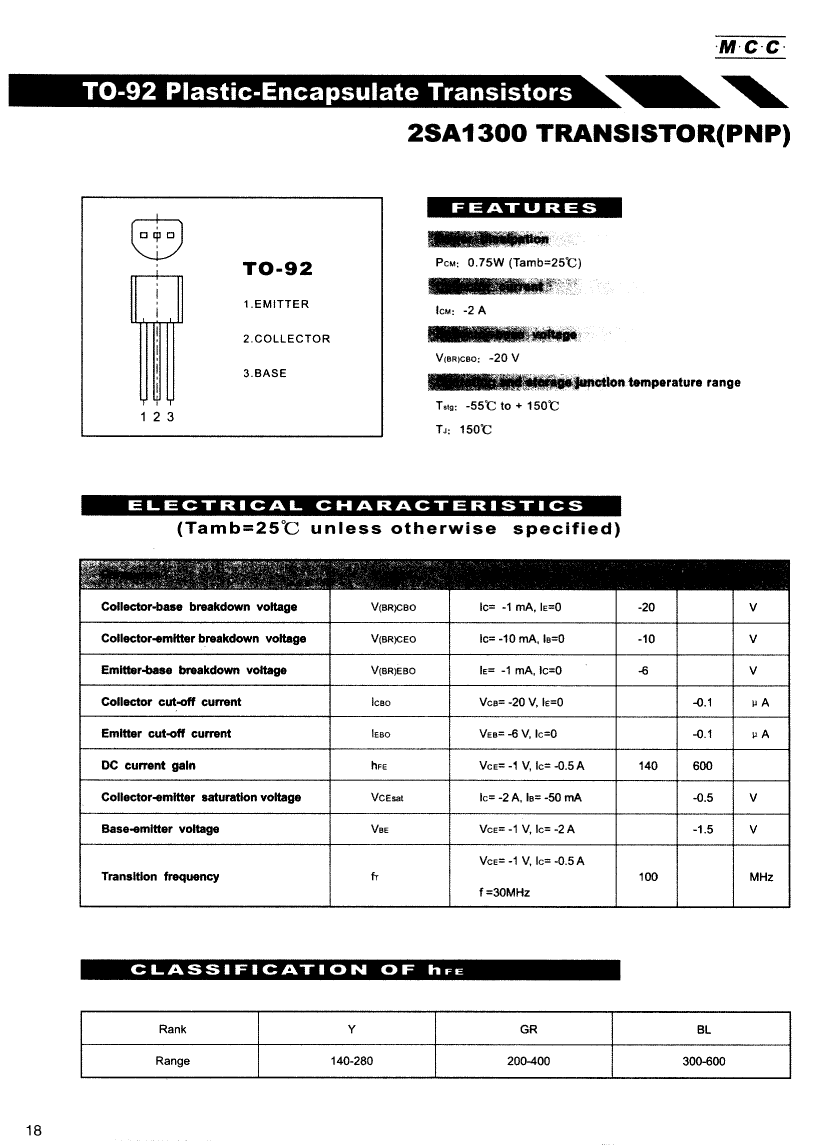

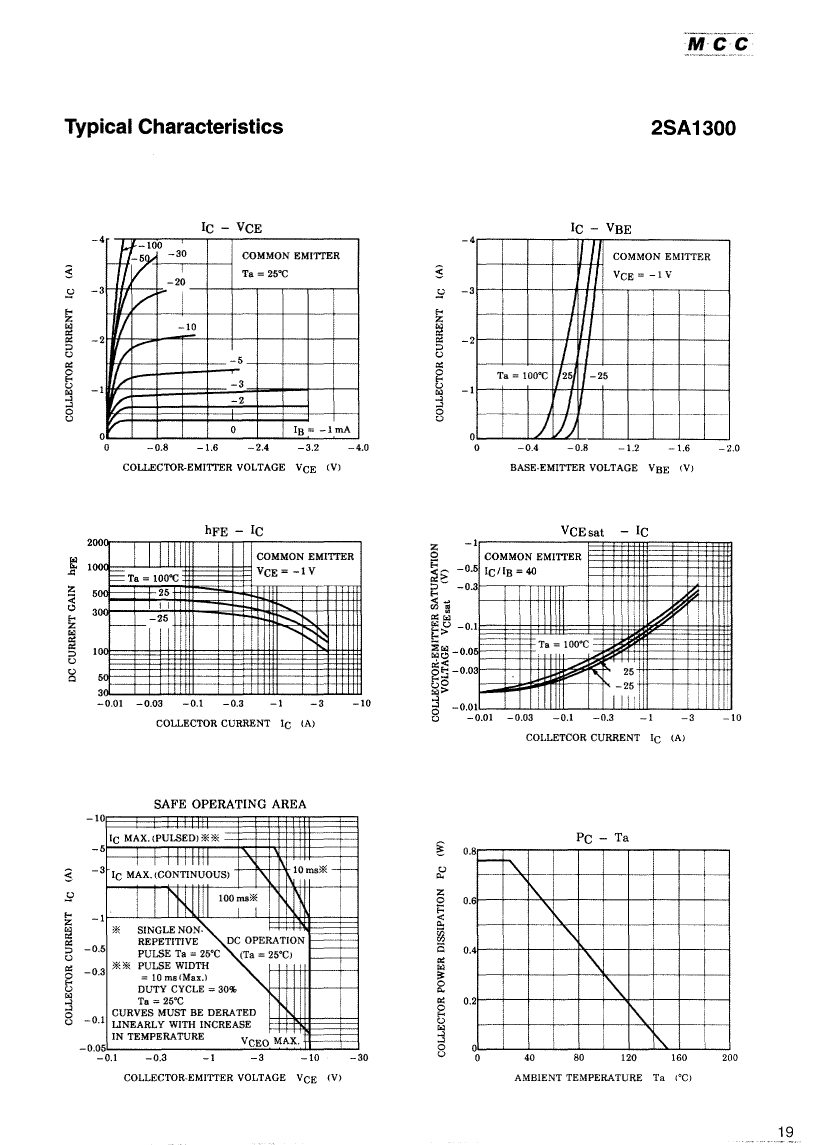

Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | TO-92 |
| package instruction | CYLINDRICAL, O-PBCY-T3 |
| Contacts | 3 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 2 A |
| Collector-emitter maximum voltage | 10 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 200 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-T3 |
| JESD-609 code | e3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | MATTE TIN |
| Terminal form | THROUGH-HOLE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 100 MHz |
| Base Number Matches | 1 |
| 2SA1300GR-BP | 2SA1300BL | 2SA1300BL-BP | 2SA1300GR | 2SA1300Y | 2SA1300Y-BP | 2SA1300-BP | 2SA1300 | |
|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 | Small Signal Bipolar Transistor, 2A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3 |
| Is it Rohs certified? | conform to | incompatible | conform to | incompatible | incompatible | conform to | conform to | incompatible |
| Parts packaging code | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
| package instruction | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compli | compli | compli | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A |
| Collector-emitter maximum voltage | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 200 | 300 | 300 | 200 | 140 | 140 | 140 | 140 |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
| JESD-30 code | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 |
| JESD-609 code | e3 | e0 | e3 | e0 | e0 | e3 | e3 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | MATTE TIN | TIN LEAD | MATTE TIN | TIN LEAD | TIN LEAD | MATTE TIN | MATTE TIN | TIN LEAD |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it lead-free? | Lead free | Contains lead | Lead free | Contains lead | - | Lead free | Lead free | - |
