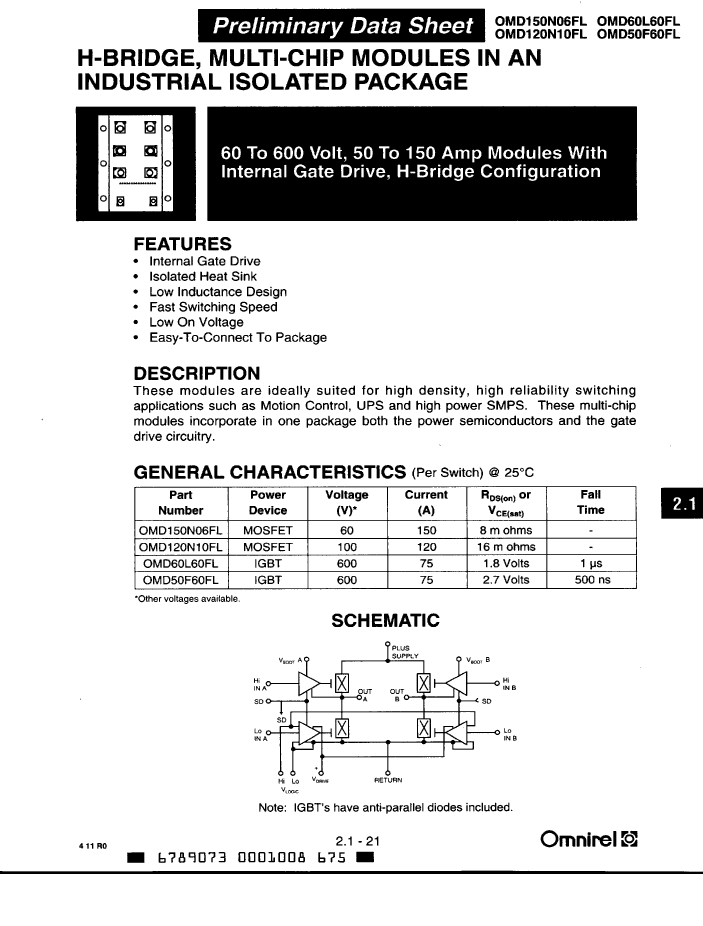

OMD150N06FL datasheet, PDF - EEWORLD Datasheet

OMD150N06FL: DescriptionHalf Bridge Based MOSFET Driver, MOS,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size133KB，4 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

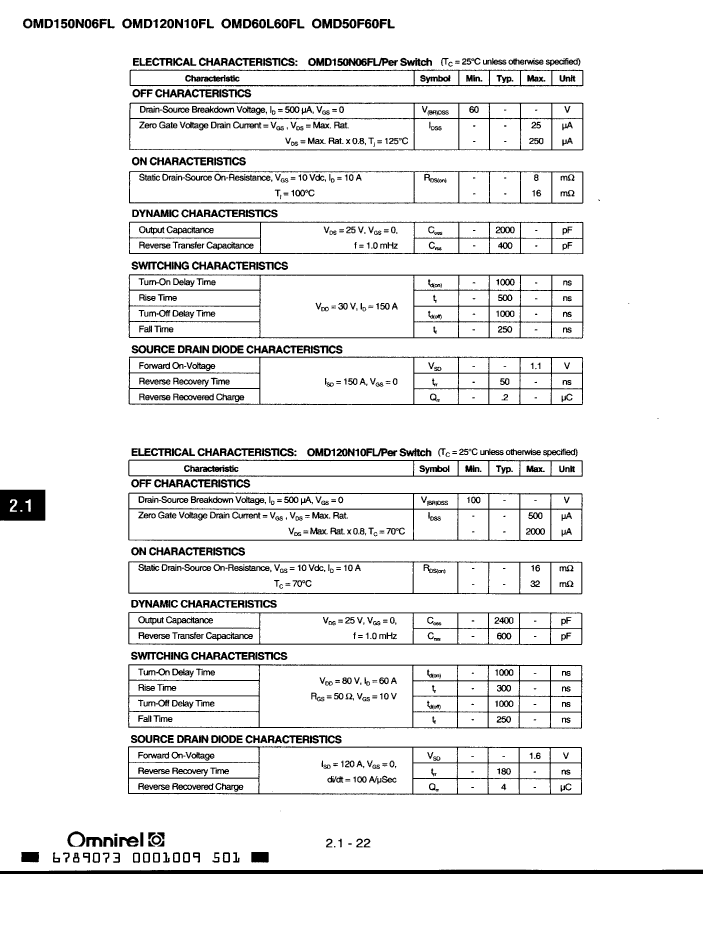

OMD150N06FL Overview

Half Bridge Based MOSFET Driver, MOS,

Parameter Name	Attribute value
Maker	Omnirel Corp.
Reach Compliance Code	unknown
high side driver	YES
Input properties	STANDARD
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-XUFM-X18
Number of functions	2
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Nominal supply voltage	18 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal form	UNSPECIFIED
Terminal location	UPPER

This Material Copyrighted By Its Respective Manufacturer

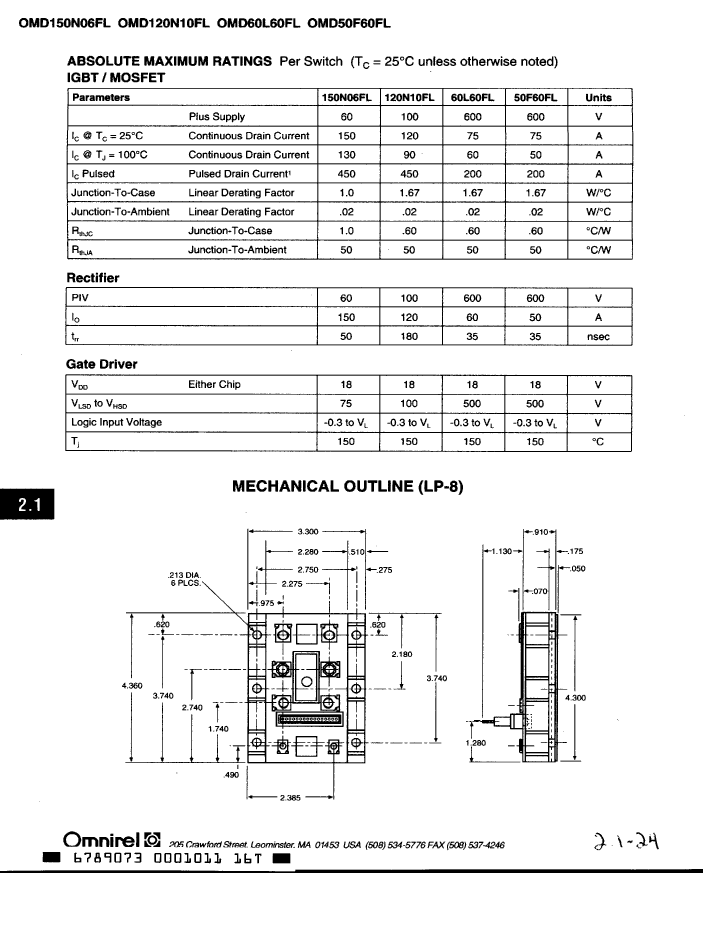

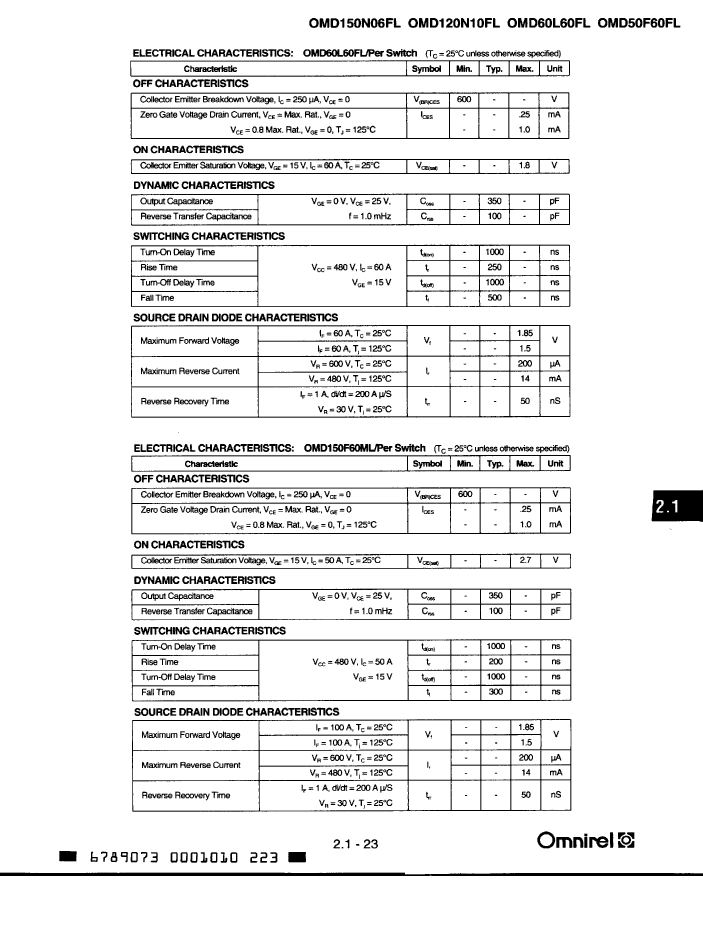

	OMD150N06FL	OMD120N10FL	OMD50F60FL	OMD60L60FL
Description	Half Bridge Based MOSFET Driver, MOS,	Half Bridge Based MOSFET Driver, MOS,	Half Bridge Based Peripheral Driver,	Half Bridge Based Peripheral Driver,
Maker	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.
Reach Compliance Code	unknown	unknown	unknown	unknown
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED PERIPHERAL DRIVER	HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 code	R-XUFM-X18	R-XUFM-X18	R-XUFM-X18	R-XUFM-X18
Number of functions	2	2	2	2
Number of terminals	18	18	18	18
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	18 V	18 V	18 V	18 V
surface mount	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
