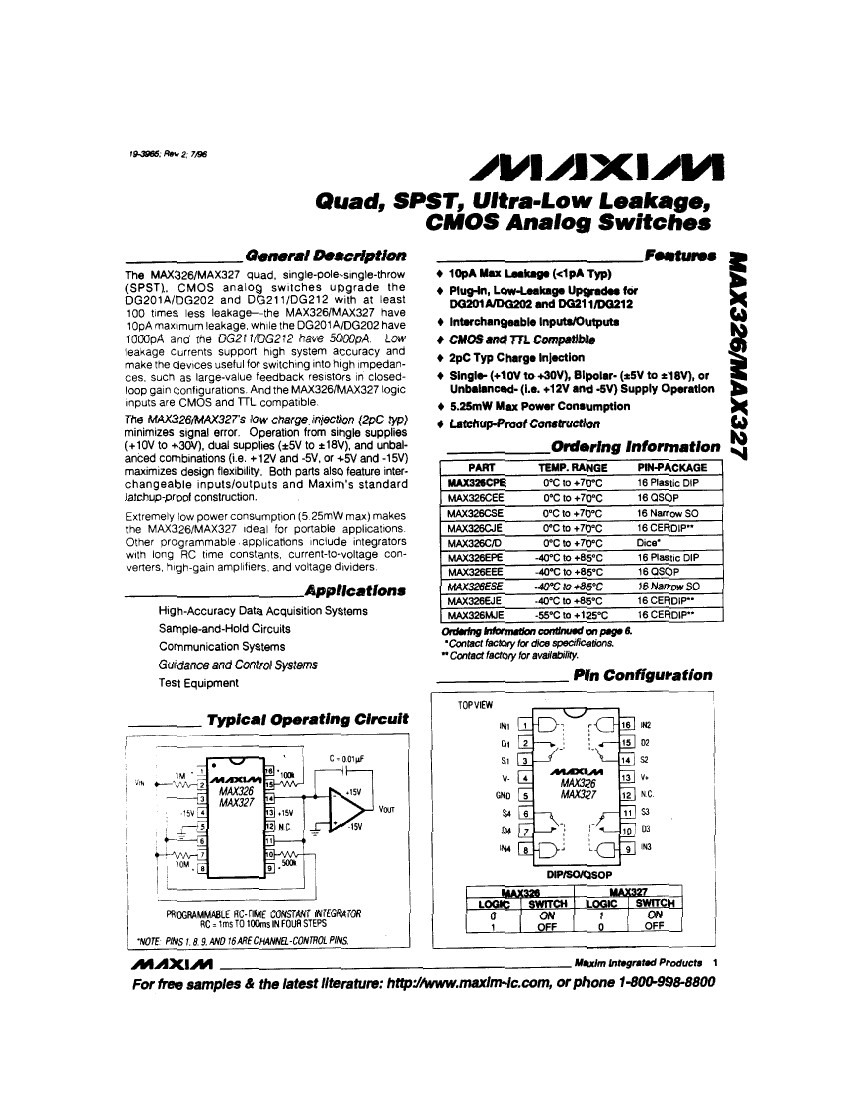

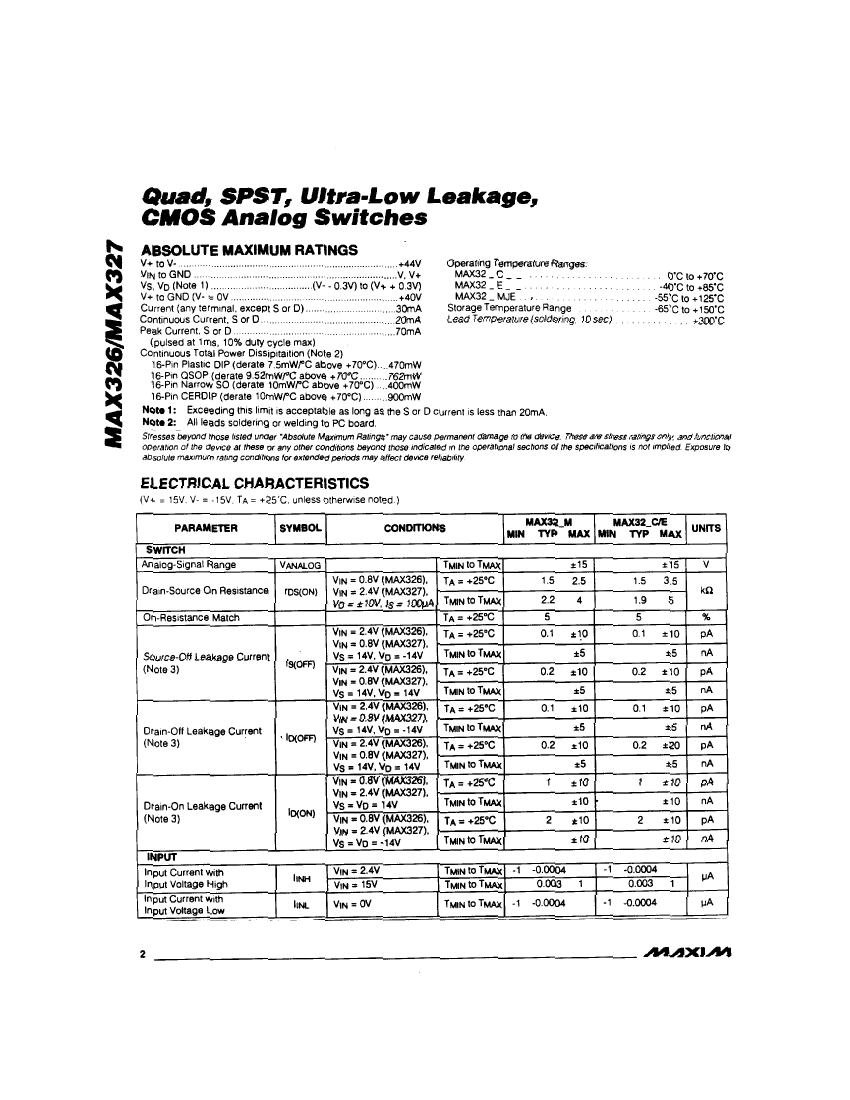

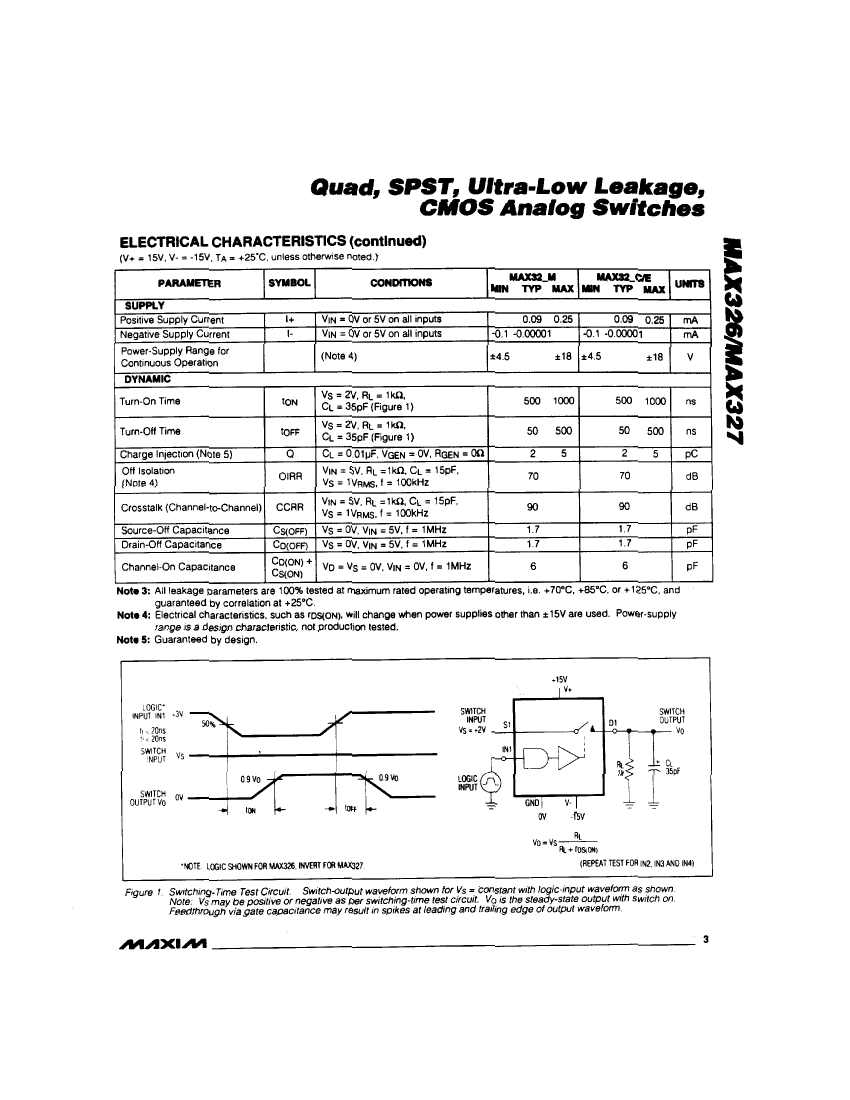

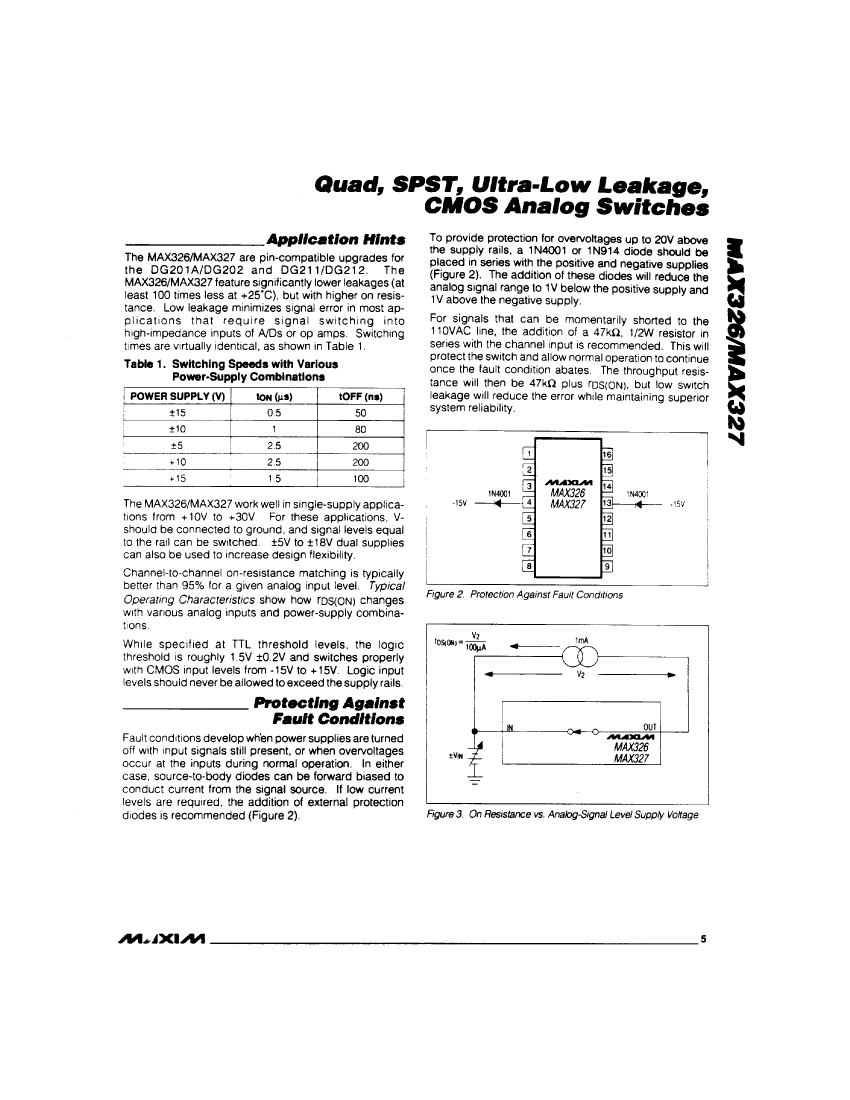

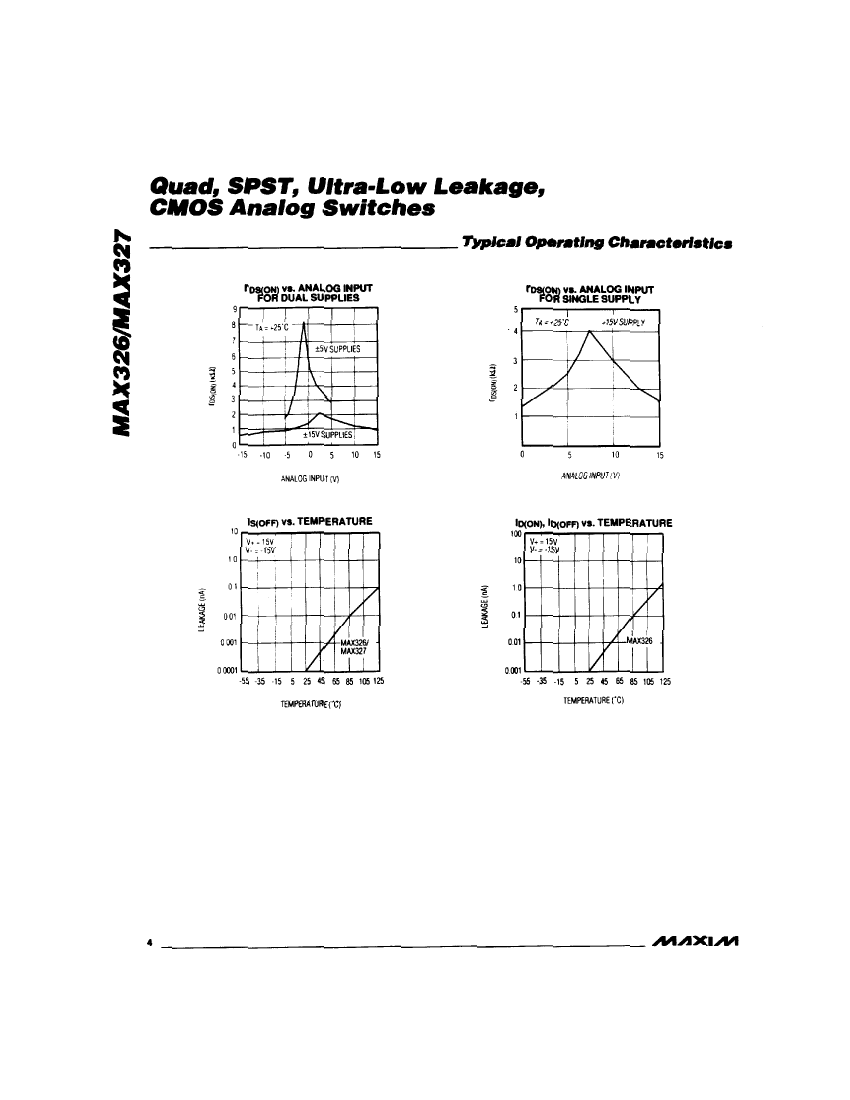

Preview

MAX327CEE+T: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, QSOP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size309KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX327CEE+T Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, QSOP-16

MAX327CEE+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SSOP, SSOP16,.25
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	4.89 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
On-state resistance matching specifications	75 Ω
Maximum on-state resistance (Ron)	3500 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	1.73 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
