TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Unidirectional and Bidirectional
Transient Voltage Suppressor
- High Reliability controlled devices
- Economical series for thru hole mounting
- Unidirectional (A) and Bidirectional (CA) construction
- Selections for 5.8 V to 324 V standoff voltages (V
WM
)
LEVELS
M, MA, MX, MXL
DEVICES
M1.5KE6.8A thru M1.5KE400CA, e3
FEATURES
High reliability controlled devices with wafer fabrication and assembly lot traceability
100 % surge tested devices
Suppresses transients up to 1500 watts @ 10/1000 µs
Optional upscreening available by replacing the M prefix with MA, MX or MXL. These prefixes specify
various screening and conformance inspection options based on MIL-PRF-19500. Refer to
MicroNote
129
for more details on the screening options.
Surface mount equivalent packages are available as MSMC(G)(J)5.0A - SMC(G)(J)170CA
(consult factory for other surface mount options)
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B
RoHS Compliant devices available by adding “e3” suffix
3σ lot norm screening performed on Standby Current I
D
CASE 1
APPLICATIONS / BENEFITS
Protection from switching transients and induced RF
Protection from ESD and EFT per IEC 61000-4-2 and IEC 61000-4-4 with fast response
Secondary lightning protection per IEC 61000-4-5 with 42 Ohms source impedance:
o
Class 1: M1.5KE6.8A to M1.5KE200CA
o
Class 2: M1.5KE5.0A to M1.5KE180CA
o
Class 3: M1.5KE5.0A to M1.5KE91CA
o
Class 4: M1.5KE5.0A to M1.5KE43CA
Secondary lightning protection per IEC61000-4-5 with 12 Ohms source impedance:
o
Class 1 : M1.5KE5.0A to M1.5KE110CA
o
Class 2: M1.5KE5.0A to M1.5KE56CA
o
Class 3: M1.5KE5.0A to M1.5KE27ACA
o
Class 4: M1.5KE5.0A to M1.5KE13CA
Secondary lightning protection per IEC61000-4-5 with 2 Ohms source impedance:
o
Class 2: M1.5KE5.0A to M1.5KE24CA
o
Class 3: M1.5KE5.0A to M1.5KE12CA
MAXIMUM RATINGS
Peak Pulse Power dissipation at 25
º
C: 1500 watts at 10/1000 μs (also see Figures 1, 2, and 3) with
impulse repetition rate (duty factor) of 0.01 % or less
t
clamping
(0 volts to V
BR
min.): < 100 ps theoretical for unidirectional and < 5 ns for bidirectional
Operating and Storage temperature: -65
º
C to +150
º
C
Thermal Resistance: 22
º
C/W junction to lead at 3/8 inch (10 mm) from body, or 82
º
C/W junction to
ambient when mounted on FR4 PC board with 4 mm
2
copper pads (1oz) and track width 1 mm, length 25
mm
Steady-State Power dissipation: 5 watts at T
L
= 40
º
C, or 1.52 watts at T
A
= 25
º
C when mounted on FR4
PC board described for thermal resistance
Forward Surge: 200 Amps peak impulse of 8.3 ms half-sine wave at 25ºC (unidirectional only).
Solder temperatures: 260
º
C for 10 s (maximum)
RF01008 Rev C, September 2010
High Reliability Product Group
Page 1 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________
MECHANICAL AND PACKAGING
Void-free transfer molded thermosetting epoxy body meeting UL94V-0
Tin-Lead (90 % Sn, 10 % Pb) or RoHS (100% Sn) Compliant annealed matte-Tin plating readily solderable per
MIL-STD-750, method 2026
Body marked with part number
Cathode indicated by band. No cathode band on bi-directional devices.
Available in bulk or custom tape-and-reel packaging
TAPE-AND-REEL standard per EIA-296 (add “TR” suffix to part number)
WEIGHT: 1.5 gram (approximate)

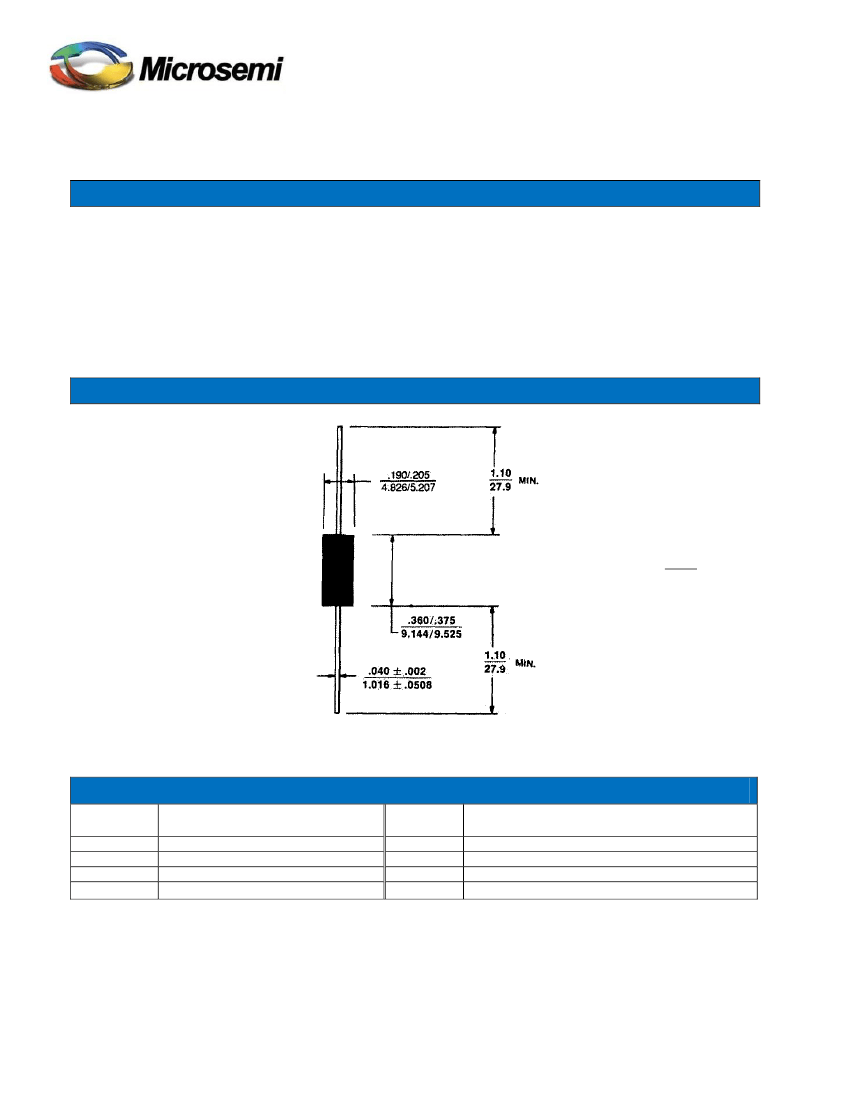

PACKAGE DIMENSIONS
NOTE:
Cathode indicated by band
All dimensions in inches
millimeters
SYMBOLS & DEFINITIONS
Symbol
V
WM
P
PP
V
BR
I
D
Definition
Working Peak (Standoff) Voltage
Peak Pulse Power
Breakdown Voltage
Standby Current
Symbol
I
PP
V
C
Definition
Peak Pulse Current
Clamping Voltage
Breakdown Current for V
BR
I
BR
RF01008 Rev C, September 2010
High Reliability Product Group
Page 2 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________
ELECTRICAL CHARACTERISTICS @ 25
o
C
Rated
Standoff
Voltage
V
WM
(Note 1)
V
5.80
6.40
7.02
7.78
8.55
9.40
10.220
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
324.00
Breakdown
Voltage
V
BR
@
I
BR
Maximum
Clamping
Voltage
V
C
@ I
PP
Maximum
Standby
Current
I
D
@ V
WM
A
1000
500
200
50
10
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Peak Pulse
Current
(see Fig. 2)
I
PP
Maximum
Temperature
Coefficient of
V
BR
(
V(BR)
)
%/ C
.057
.061
.065
.068
.073
.075
.078
.081
.084
.086
.088
.090
.092
.094
.096
.097
.098
.099
.100
.101
.101
.102
.103
.104
.104
.105
.105
.106
.106
.107
.107
.107
.108
.108
.108
.108
.108
.110
.110
.111
.111
.111
o
Industry Type
Number
(Note 2)
JEDEC
Type
Number
M1.5KE6.8A
M1.5KE7.5A
M1.5KE8.2A
M1.5KE9.1A
M1.5KE10A
M1.5KE11A
M1.5KE12A
M1.5KE13A
M1.5KE15A
M1.5KE16A
M1.5KE18A
M1.5KE20A
M1.5KE22A
M1.5KE24A
M1.5KE27A
M1.5KE30A
M1.5KE33A
M1.5KE36A
M1.5KE39A
M1.5KE43A
M1.5KE47A
M1.5KE51A
M1.5KE56A
M1.5KE62A
M1.5KE68A
M1.5KE75A
M1.5KE82A
M1.5KE91A
M1.5KE100A
M1.5KE110A
M1.5KE120A
M1.5KE130A
M1.5KE150A
M1.5KE160A
M1.5KE170A
M1.5KE180A
M1.5KE200A
M1.5KE220A
M1.5KE250A
M1.5KE300A
M1.5KE350A
M1.5KE400A
1N6267A
1N6268A
1N6269A
1N6270A
1N6271A
1N6272A
1N6273A
1N6274A
1N6275A
1N6276A
1N6277A
1N6278A
1N6279A
1N6280A
1N6281A
1N6282A
1N6283A
1N6284A
1N6285A
1N6286A
1N6287A
1N6288A
1N6289A
1N6290A
1N6291A
1N6292A
1N6293A
1N6294A
1N6295A
1N6296A
1N6297A
1N6298A
1N6299A
1N6300A
1N6301A
1N6303A
-
-
-
V
6.45 – 7.14
7.13 – 7.88
7.79 – 8.61
8.65 – 9.55
9.50 – 10.50
10.50 – 11.60
11.40 – 12.60
12.40 – 13.70
14.30 – 15.80
15.20 – 16.80
17.10 – 18.90
19.00 – 21.00
20.90 – 23.10
22.80 – 25.20
25.70 – 28.40
28.50 – 31.50
31.40 – 34.70
34.20 – 37.80
37.10 – 41.00
40.90 – 45.20
44.70 – 49.40
48.50 – 53.60
53.20 – 58.80
58.90 – 65.10
64.60 – 71.40
71.30 – 78.80
77.90 – 86.10
86.50 – 95.50
95.00 – 105.00
105.00 – 116.00
114.00 – 126.00
124.00 – 137.00
143.00 – 158.00
152.00 – 168.00
162.00 – 179.00
171.00 – 189.00
190.00 – 210.00
209.00 – 231.00
237.00 – 263.00
285.00 – 315.00
332.00 – 368.00
380.00 – 420.00
mA
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
A
143.0
132.0
124.0
112.0
103.0
96.0
90.0
82.0
71.0
67.0
59.5
54.0
49.0
45.0
40.0
36.0
33.0
30.0
28.0
25.3
23.2
21.4
19.5
17.7
16.3
14.6
13.3
12.0
11.0
9.9
9.1
8.4
7.2
6.8
6.4
6.1
5.5
4.6
5.0
5.0
4.0
4.0
NOTE 1:
Normal selection criteria for TVS devices is by rated stand-off voltage (V
WM
) and should be equal or greater than dc
or continuous peak operating voltage.
For bidirectional construction, indicate a CA as suffix after part number (e.g. M1.5KE33CA). For Bidirectional types
having VWM of 8 volts and under, the ID leakage current is doubled. Bidirectional capacitance is half that shown in
Figure 4 at zero volts.
For unidirectional, the forward voltage (V
F
) is 3.5 volts maximum at 100 Amps peak for 8.3 ms half-sine wave.
NOTE 2:
NOTE 3:
RF01008 Rev C, September 2010
High Reliability Product Group
Page 3 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________

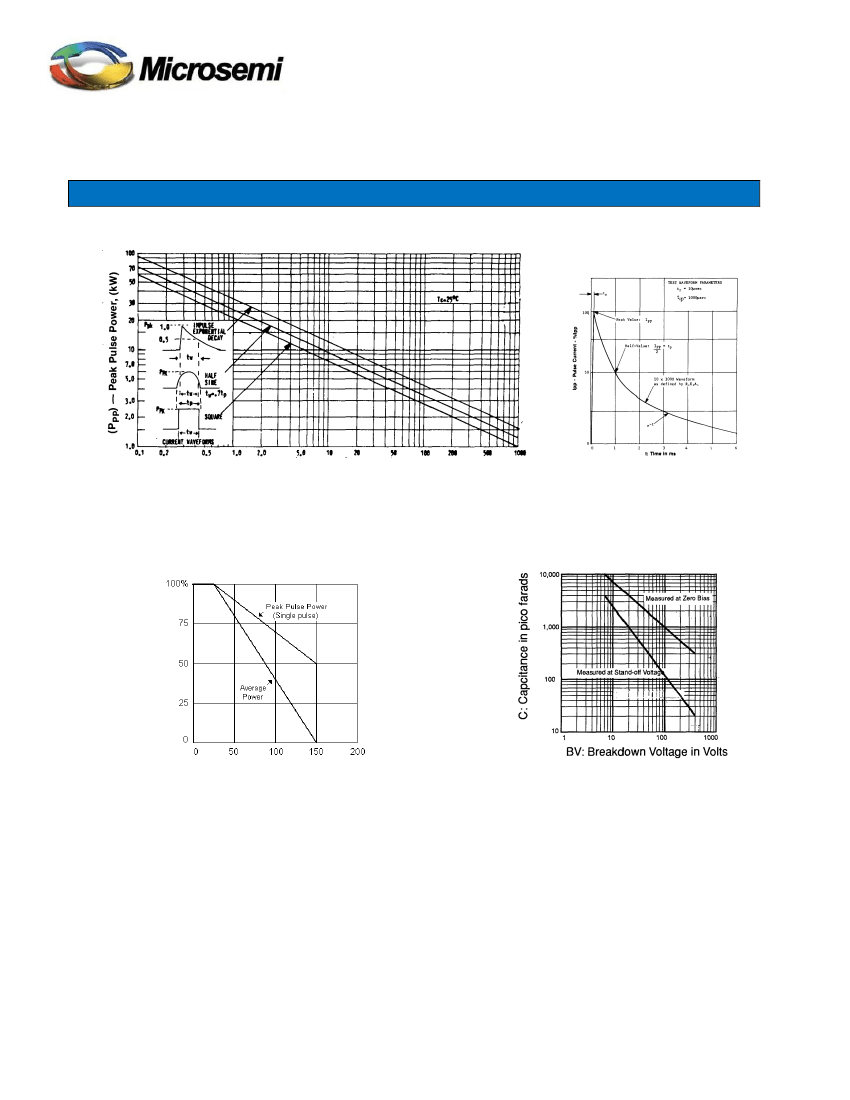

GRAPHS
Pulse Time (tw) in
s
FIGURE 1
– Peak Pulse Power vs. Pulse Time (tw) in µs
FIGURE 2
Pulse Wave Form
Peak Pulse Power (
P
PP
) or continuous
Power in Percent of 25
o
C Rating
T
L
Lead Temperature
o
C
FIGURE 3
Derating Curve
FIGURE 4
Typical Capacitance vs.
Breakdown Voltage
RF01008 Rev C, September 2010
High Reliability Product Group
Page 4 of 4
