DSS9NC52A101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DSS9NC52A101

DSS9NC52A101: DescriptionData Line Filter, 1 Function(s), 100V, 7A; CategoryAnalog mixed-signal IC filter; File Size48KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

DSS9NC52A101 Overview

Data Line Filter, 1 Function(s), 100V, 7A

DSS9NC52A101 Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN FERRITE BEAD
capacitance	100 µF
filter type	DATA LINE FILTER
high	10.5 mm
length	12 mm
Manufacturer's serial number	DSS9
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
physical size	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)
Rated current	7 A
Rated voltage	100 V
width	7.5 mm

Preview

Download Datasheet

View All

Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

!Note

•Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.

This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for

C31E11.pdf 04.3.8

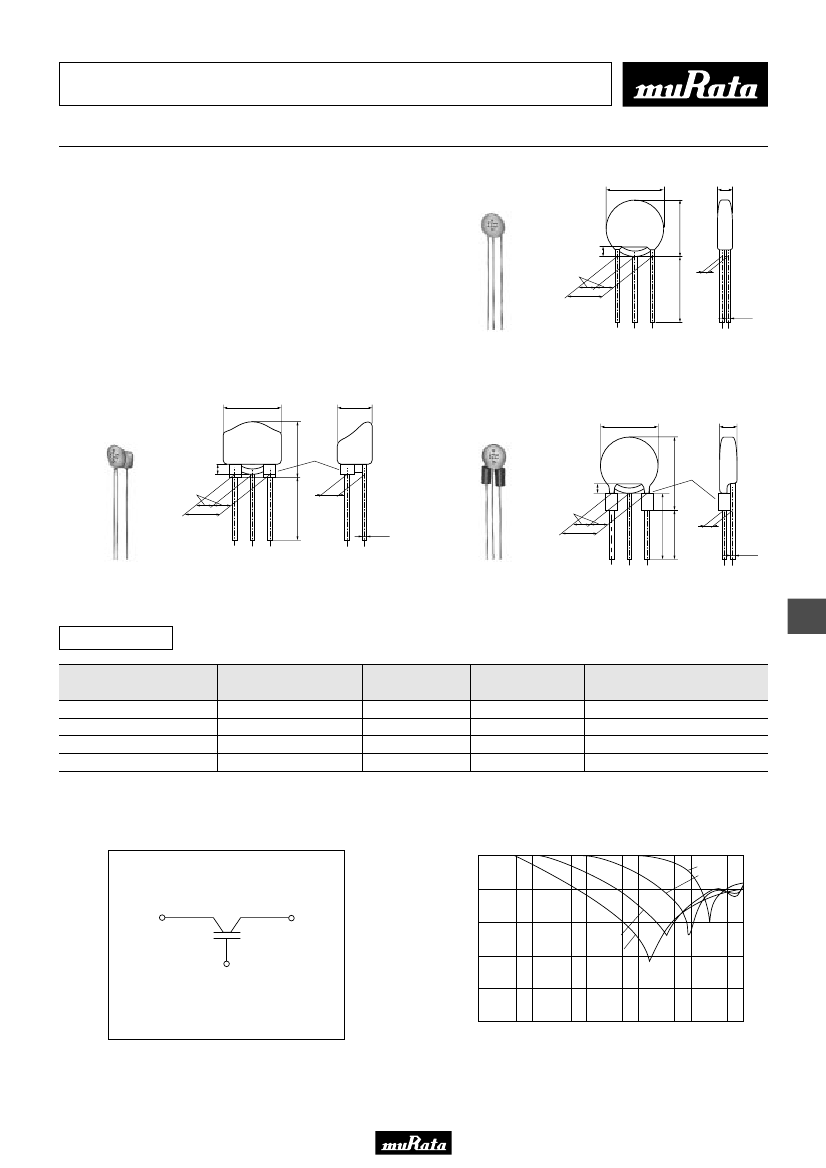

On-Board Type (DC) EMI Suppression Filters (EMIFILr)

Disc Type EMIFILr Broad Type DSN9/DSS9/DST9 Series

Features

DS_9 is a basic type EMI suppression filter which can

obtain high insertion loss in a wide frequency range.

Its three terminal structure enables nice high

frequency performance. DSS9NP32A222/DSS9NT31H223 are

lost distortion types for audio circuits.

9.5 max.

4.0 max.

2.5±0.5

5.0±0.5

1.5 max.

10.0 max.

1.0±0.5

ø0.65

GND

Q55 Type : 25.0 min.

Q56 Type : 6.0±1.0

Q54 Type : 4.0±0.5

DSN9N_Q55B

(in mm)

12.0 max.

7.5 max.

9.5 max.

10.5 max.

4.0 max.

1.5 max.

2.5±0.5

5.0±0.5

2.5±0.5

ø0.65

GND

Q55 Type : 25.0 min.

Q56 Type : 6.0±1.0

Q54 Type : 4.0±0.5

1.5 max.

15.5 max.

Ferrite bead

5.0±0.5

1.25±0.5

ø0.65

DSS9N_Q55B

DST9N_Q55B

(in mm)

GND

*1 Bottom of the ferrite beads may not be level with each other.

Q55 Type : I= 25.0 min.

Q52 Type : I1 = 6.0±1.0

Q50 Type : I1 = 4.0±0.5

(in mm)

DSN9 Series

Part Number

DSN9NC52A271

DSN9NC52A222

DSN9NC51H223

DSN9NC51C104

Capacitance

(pF)

270 +20%,-20%

2200 +20%,-20%

22000 +50%,-20%

100000 +20%,-20%

Rated Voltage

(Vdc)

100

Rated Current

(A)

Operating Temperature Range

(°C)

-25 to +85

Equivalent Circuit

Insertion Loss Characteristics (Typical)

(50Ω - 50Ω)

270pF

2200pF

Insertion Loss (dB)

22000pF

100000pF

GND

No polarity.

100

0.01

0.1

Frequency (MHz)

100

1000

123

DSS9NC52A101 Related Products

	DSS9NC52A101	DSN9NC51C104	DSS9NT31H223	DSS9NP32A222	DSS9NC52A470	DSS9NC52A271	DSS9NC52A222	DSS9NC52A220	DSS9NC51H223
Description	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 16V, 7A	Data Line Filter, 1 Function(s), 50V, 7A	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 100V, 7A	Data Line Filter, 1 Function(s), 50V, 7A
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	100 µF	100000 µF	22000 µF	2200 µF	47 µF	270 µF	2200 µF	22 µF	22000 µF
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	10.5 mm	10 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm
length	12 mm	9.5 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
Manufacturer's serial number	DSS9	DSN9	DSS9	DSS9	DSS9	DSS9	DSS9	DSS9	DSS9
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L9.5XB4.0XH10.0 (mm)/L0.374XB0.157XH0.394 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)	L12.0XB7.5XH10.5 (mm)/L0.472XB0.295XH0.413 (inch)
Rated current	7 A	7 A	7 A	7 A	7 A	7 A	7 A	7 A	7 A
Rated voltage	100 V	16 V	50 V	100 V	100 V	100 V	100 V	100 V	50 V
width	7.5 mm	4 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Maker	Murata	-	Murata	Murata	Murata	Murata	Murata	Murata	Murata
Other features	BUILT-IN FERRITE BEAD	-	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD	BUILT-IN FERRITE BEAD
