HM2P07PDF320GF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P07PDF320GF

HM2P07PDF320GF: DescriptionBoard Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size413KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PDF320GF Overview

Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,

HM2P07PDF320GF Parametric

Parameter Name	Attribute value
Objectid	2109468977
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
UL Flammability Code	94V-0

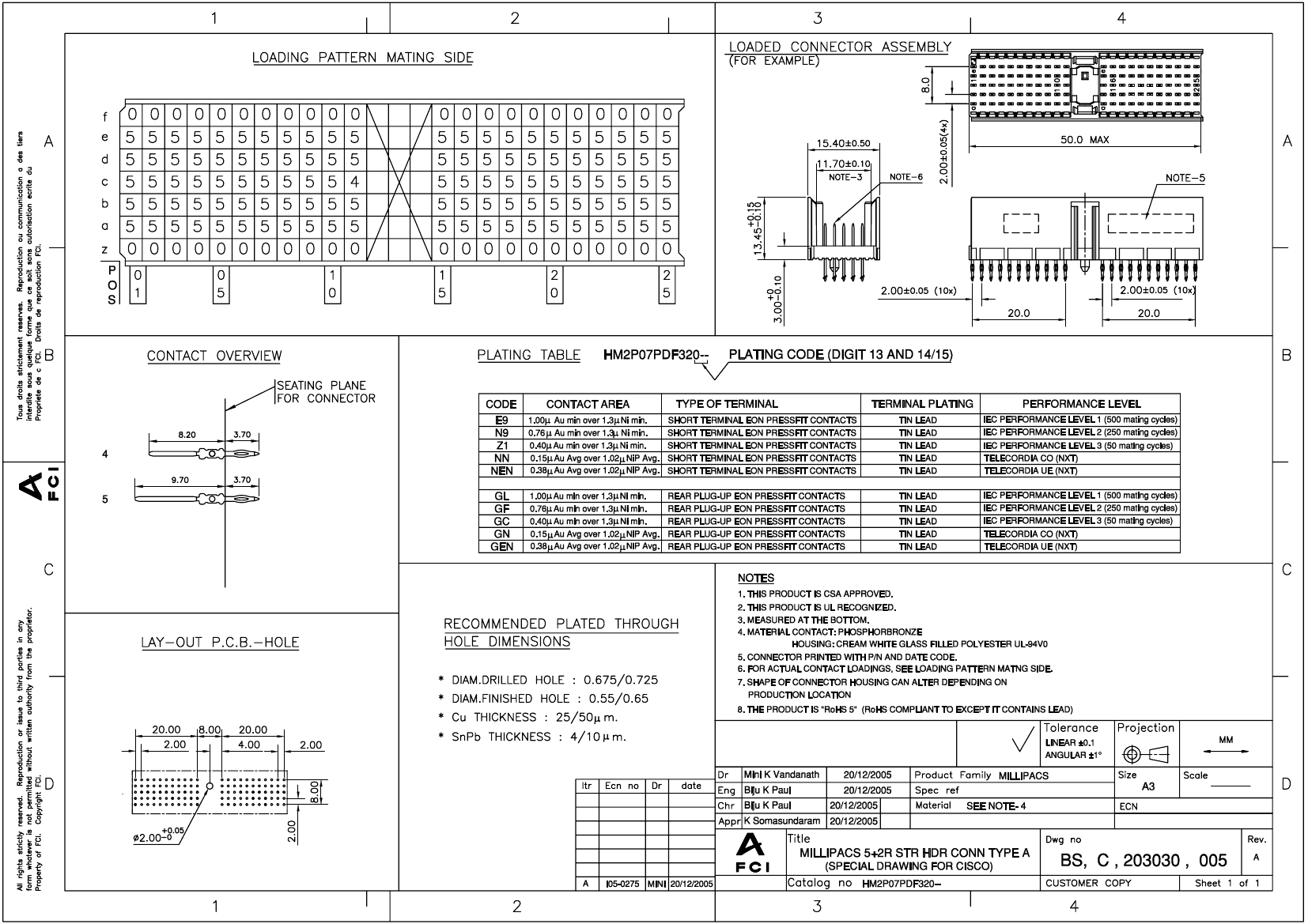

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Jan 07, 2006

HM2P07PDF320GF Related Products

	HM2P07PDF320GF	HM2P07PDF320GC	HM2P07PDF320GEN	HM2P07PDF320GL	HM2P07PDF320GN	HM2P07PDF320NEN	HM2P07PDF320NN
Description	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	154	154	154	154	154	154	154
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	2109468977	2109468975	-	2109468978	2109468979	2109468981	2109468982
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
YTEOL	8.6	8.6	-	8.6	8.6	8.6	8.6
