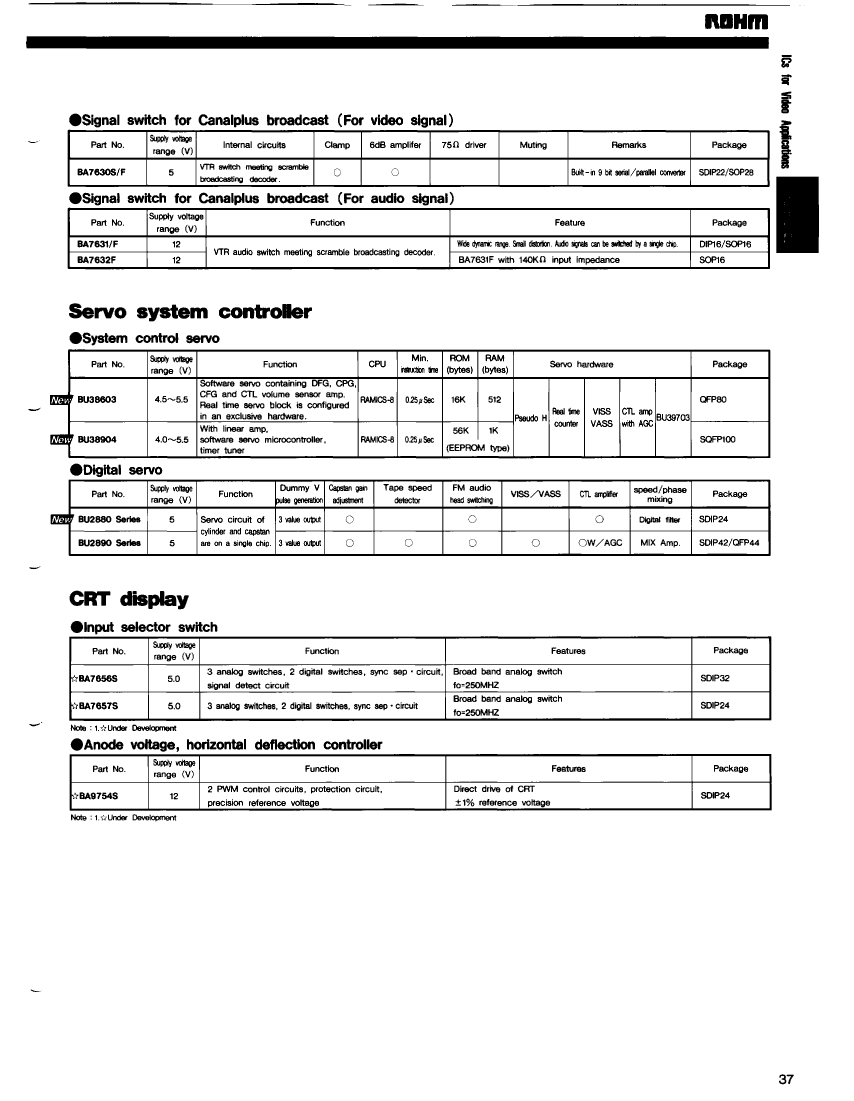

BA7632FE2: DescriptionConsumer Circuit, PDSO16, SOP-16; CategoryOther integrated circuit (IC) Consumption circuit; File Size37KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA7632FE2 Overview

Consumer Circuit, PDSO16, SOP-16

BA7632FE2 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	16
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G16
length	10 mm
Number of functions	1
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	12 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

Preview

Download Datasheet

View All

BA7632FE2 Related Products

	BA7632FE2	BA7631FT2	BA7656S	BA7632FE1	BA7632F	BA7632FT2	BA7632FT1	BA9754S
Description	Consumer Circuit, PDSO16, SOP-16	Audio/Video Switch, 1 Func, PDSO16, SOP-16	Audio/Video Switch, 1 Func, PDIP32, SDIP-32	Consumer Circuit, PDSO16, SOP-16	Consumer Circuit, PDSO16, SOP-16	Consumer Circuit, PDSO16, SOP-16	Consumer Circuit, PDSO16, SOP-16	Horizontal Deflection IC, PDIP24, SDIP-24
Parts packaging code	SOIC	SOIC	DIP	SOIC	SOIC	SOIC	SOIC	DIP
package instruction	LSOP,	SOP-16	SDIP,	LSOP,	LSOP,	LSOP,	LSOP,	DIP,
Contacts	16	16	32	16	16	16	16	24
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T32	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T24
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	32	16	16	16	16	24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	SDIP	LSOP	LSOP	LSOP	LSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	YES	YES	YES	YES	NO
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Commercial integrated circuit types	CONSUMER CIRCUIT	-	-	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	HORIZONTAL DEFLECTION IC
length	10 mm	10 mm	28 mm	10 mm	10 mm	10 mm	10 mm	-
Maximum seat height	1.6 mm	1.7 mm	5 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	-
Maximum supply voltage (Vsup)	12 V	-	-	12 V	12 V	12 V	12 V	12 V
Minimum supply voltage (Vsup)	12 V	-	-	12 V	12 V	12 V	12 V	12 V
Terminal pitch	1.27 mm	1.27 mm	1.778 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-
width	4.4 mm	4.4 mm	10.16 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	-
