BA7795FS-E2 datasheet, PDF - EEWORLD Datasheet

BA7795FS-E2: DescriptionConsumer Circuit, PDSO24, 0.80 MM PITCH, SSOP-24; CategoryOther integrated circuit (IC) Consumption circuit; File Size306KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

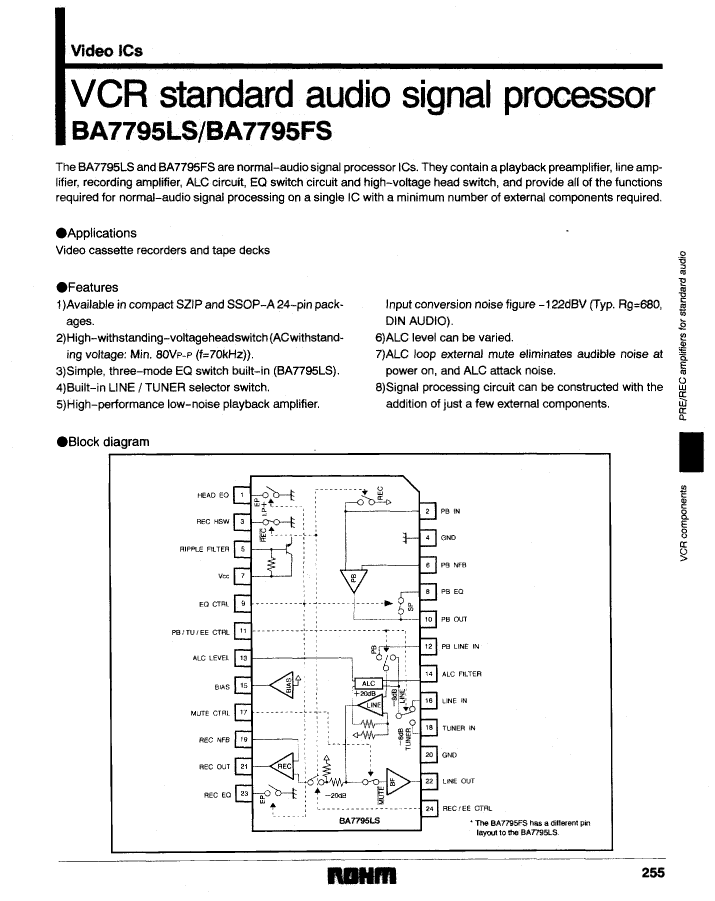

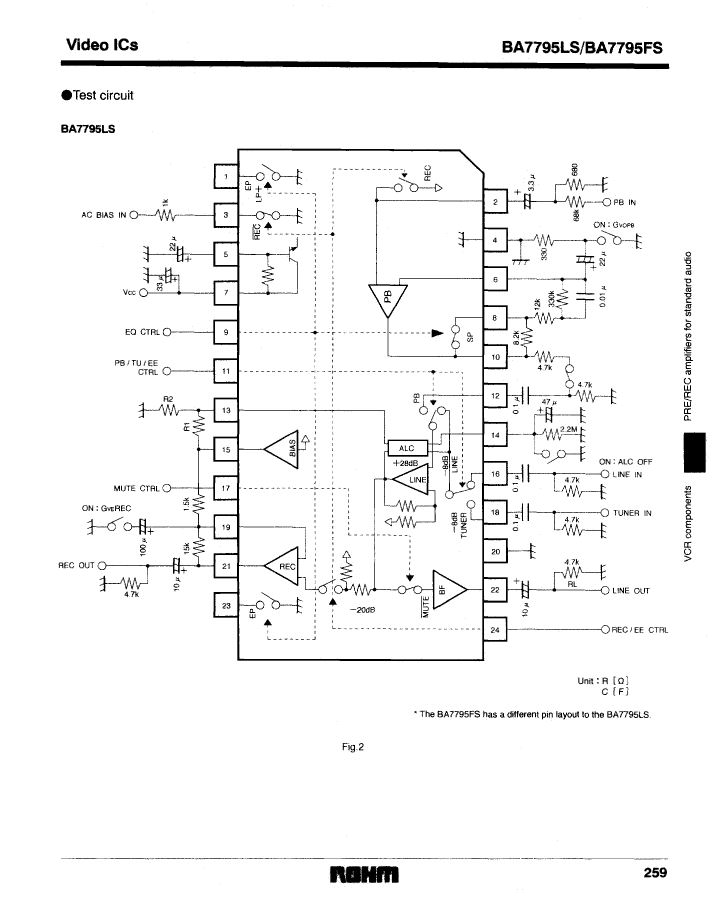

BA7795FS-E2 Overview

Consumer Circuit, PDSO24, 0.80 MM PITCH, SSOP-24

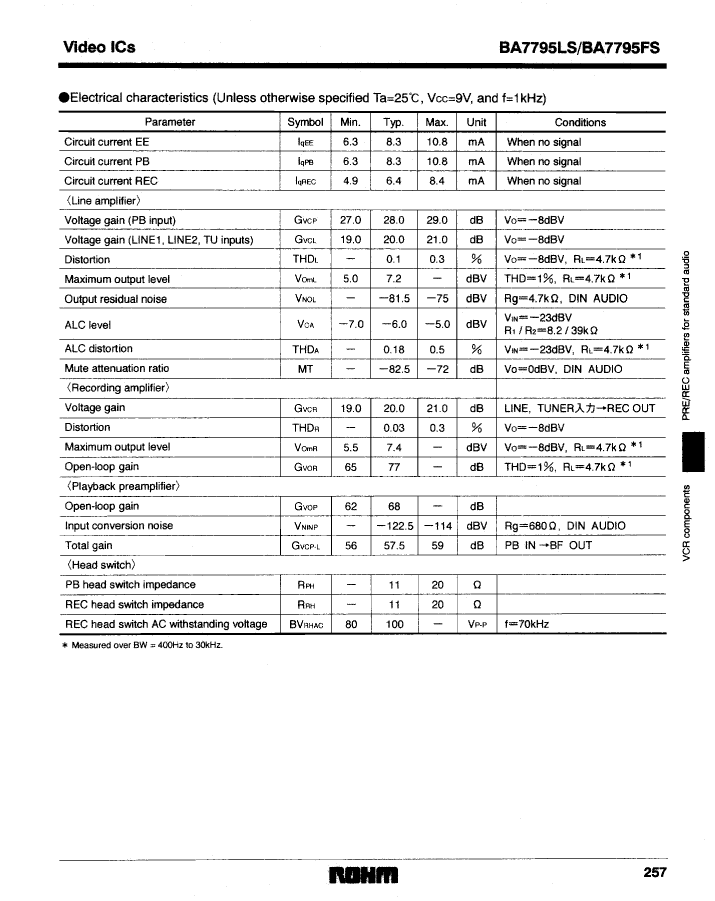

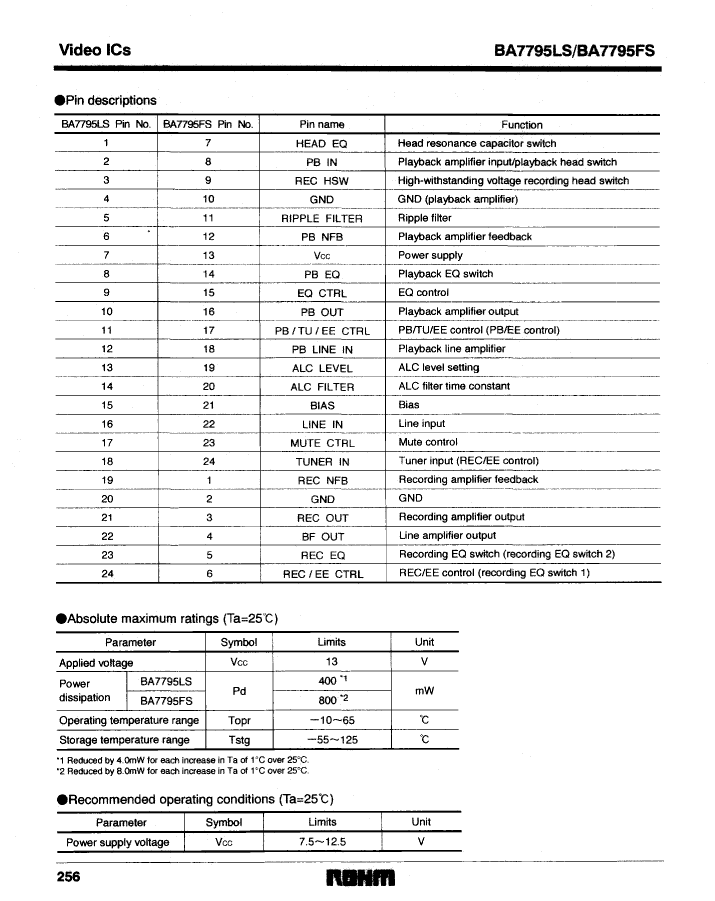

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	0.80 MM PITCH, SSOP-24
Contacts	24
Reach Compliance Code	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24
JESD-609 code	e3/e2
length	10 mm
Number of terminals	24
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum slew rate	10.8 mA
Maximum supply voltage (Vsup)	12.5 V
Minimum supply voltage (Vsup)	7.5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

	BA7795FS-E2	BA7795FS-E1
Description	Consumer Circuit, PDSO24, 0.80 MM PITCH, SSOP-24	Consumer Circuit, PDSO24, 0.80 MM PITCH, SSOP-24
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SSOP	SSOP
package instruction	0.80 MM PITCH, SSOP-24	0.80 MM PITCH, SSOP-24
Contacts	24	24
Reach Compliance Code	compliant	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3/e2	e3/e2
length	10 mm	10 mm
Number of terminals	24	24
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm
Maximum slew rate	10.8 mA	10.8 mA
Maximum supply voltage (Vsup)	12.5 V	12.5 V
Minimum supply voltage (Vsup)	7.5 V	7.5 V
surface mount	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
width	5.4 mm	5.4 mm
