UNISONIC TECHNOLOGIES CO., LTD
2SB649/A
BIPOLAR POWER GENERAL
PURPOSE TRANSISTOR
APPLICATIONS
* Low frequency power amplifier complementary pair with UTC
2SB669/A
PNP SILICON TRANSISTOR
1
1
TO-252
SOT-89
1
TO-126
1
TO-126C
1
TO-92
*Pb-free plating product number:
2SB649L/2SB649AL

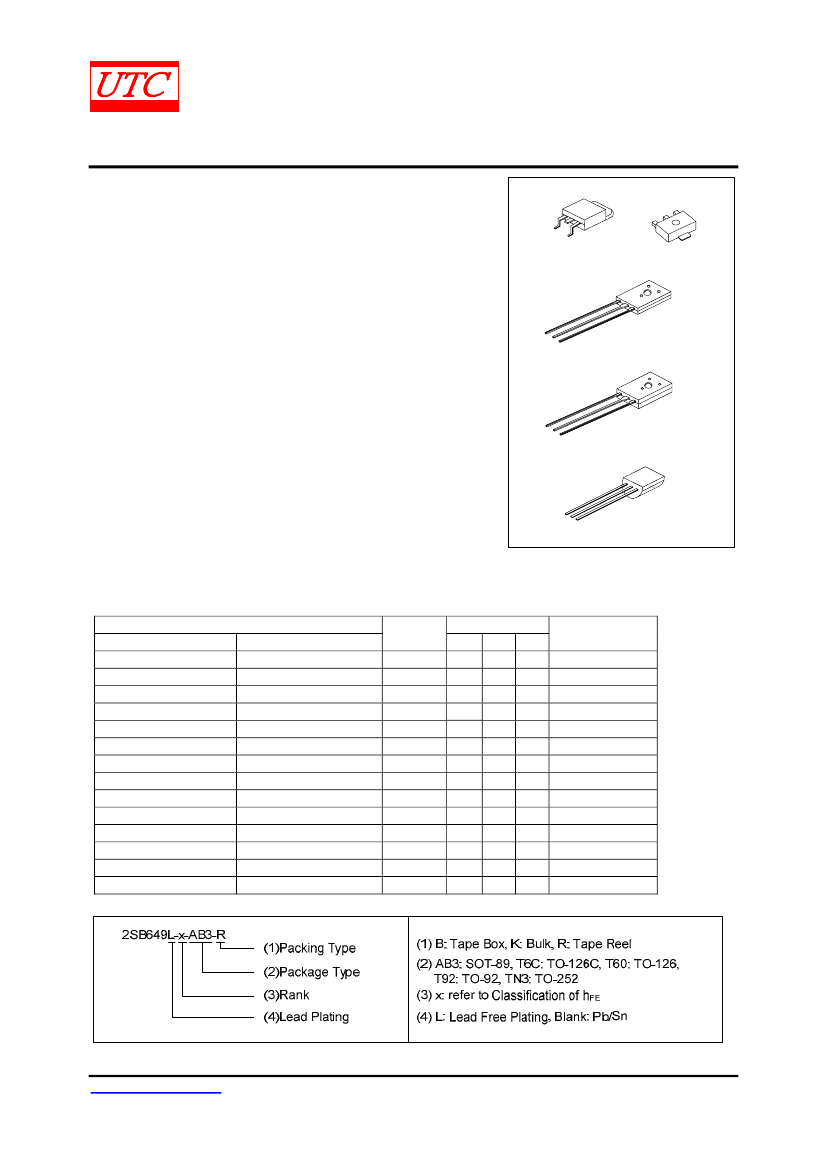

ORDERING INFORMATION
Order Number
Normal
Lead Free Plating
2SB649-x-AB3-R
2SB649L-x-AB3-R
2SB649-x-T6C-K
2SB649L-x-T6C-K
2SB649-x-T60-K
2SB649L-x-T60-K
2SB649-x-T92-B
2SB649L-x-T92-B
2SB649-x-T92-K
2SB649L-x-T92-K
2SB649-x-TN3-R
2SB649L-x-TN3-R
2SB649-x-TN3-T
2SB649L-x-TN3-T
2SB649A-x-AB3-R
2SB649AL-x-AB3-R
2SB649A-x-T6C-K
2SB649AL-x-T6C-K
2SB649A-x-T60-K
2SB649AL-x-T60-K
2SB649A-x-T92-B
2SB649AL-x-T92-B
2SB649A-x-T92-K
2SB649AL-x-T92-K
2SB649A-x-TN3-R
2SB649AL-x-TN3-R
2SB649A-x-TN3-T
2SB649AL-x-TN3-T
Package
SOT-89
TO-126C
TO-126
TO-92
TO-92
TO-252
TO-252
SOT-89
TO-126C
TO-126
TO-92
TO-92
TO-252
TO-252
Pin Assignment
1
2
3
B
C
E
E
C
B
E
C
B
E
C
B
E
C
B
B
C
E
B
C
E
B
C
E
E
C
B
E
C
B
E
C
B
E
C
B
B
C
E
B
C
E
Packing
Tape Reel
Bulk
Bulk
Tape Box
Bulk
Tape Reel
Tube
Tape Reel
Bulk
Bulk
Tape Box
Bulk
Tape Reel
Tube
www.unisonic.com.tw
Copyright © 2008 Unisonic Technologies Co., Ltd
1 of 4
QW-R204-006,E
2SB649/A
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Peak Current
TO-126/TO-126C
TO-92
SOT-89
TO-252
2SB649
2SB649A
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
l
C(PEAK)
PNP SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(Ta=25℃, unless otherwise specified)
RATING
-180
-120
-160
-5
-1.5
-3
1.4
1
500
2
+150
-40 ~ +150
UNIT
V
V
V
A
A
W
W
mW
W
°C
°C
Collector Power Dissipation
P
D
Junction Temperature
Storage Temperature
T
J
T
STG
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(Ta=25℃, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
Collector to Base Breakdown Voltage
BV
CBO
I
C
=-1mA, I
E
=0
Collector to Emitter Breakdown
2SB649
BV
CEO
I
C
=-10mA, R
BE
=∞
Voltage
2SB649A
Emitter to Base Breakdown Voltage
BV
EBO
I
E
=-1mA, I
C
=0
Collector Cut-off Current
I
CBO
V
CB
=-160V, I
E
=0
h
FE1
V
CE
=-5V, I
C
=-150mA (note)
2SB649
V
CE
=-5V, I
C
=-500mA (note)
h
FE2
DC Current Gain
h
FE1
V
CE
=-5V, I
C
=-150mA (note)
2SB649A
h
FE2
V
CE
=-5V, I
C
=-500mA (note)
Collector-Emitter Saturation Voltage
V
CE(SAT)
Ic=-600mA, I
B
=-50mA
Base-Emitter Voltage
V
BE
V
CE
=-5V, I
C
=-150mA
Current Gain Bandwidth Product
f
T
V
CE
=-5V,I
C
=-150mA
Output Capacitance
Cob
V
CB
=-10V, I
E
=0, f=1MHz
Note: Pulse test.
MIN
-180
-120
-160
-5
60
30
60
30
TYP
MAX UNIT
V
V
V
µA
-10
320
200
-1
-1.5
140
27
V
V
MHz
pF
CLASSIFICATION OF h
FE
RANK
RANGE
B
60-120
C
100-200
D
160-320
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R204-006,E
2SB649/A

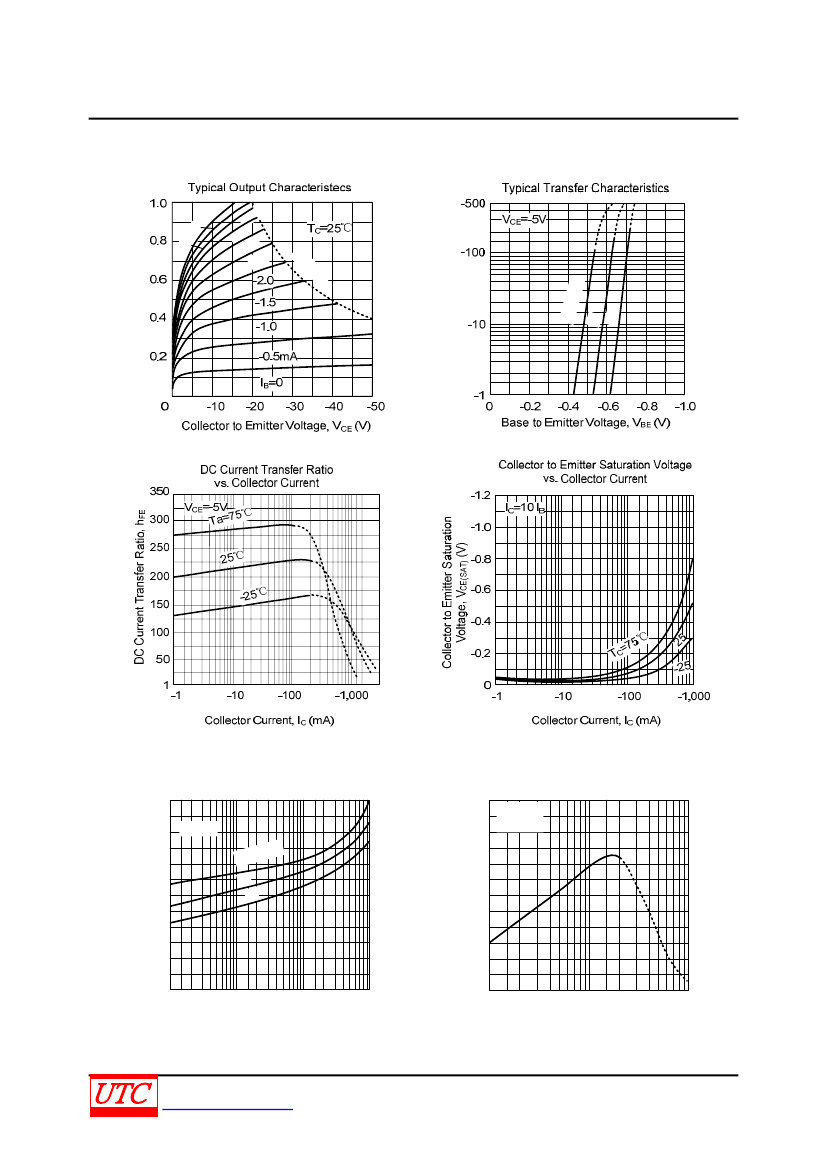

TYPICAL CHARACTERISTICS
PNP SILICON TRANSISTOR
5
-4
.5 -5
.0
-5
.
Collector Current, I
C
(mA)
Collector Current, I
C
(A)
0
-4.
5
-3. .0
-3
5
-2.
Ta=7
5
℃
1.2
Base to Emitter Saturation
Voltage, V
BE(SAT)
(V)
1.0
0.8
0.6
0.4
0.2
0
1
Base to Emitter Saturation Voltage
vs. Collector Current
240
I
C
=10I
B
25
T
C
=-
25
75
℃
Gain Bandwidth Product
vs. Collector Current
Gain Bandwidth Product, f
T
(MHz)
V
CE
=5V
Ta=25℃
200
160
120
80
40
0
10
3
10
30
100 300 1,000
Collector Current, I
C
(mA)
30
100
300
1,000
Collector Current, I
C
(mA)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
25
-2 5
=2
P
D
0W
3 of 4
QW-R204-006,E
2SB649/A
TYPICAL CHARACTERISTICS(Cont.)
PNP SILICON TRANSISTOR
Collector Output Capacitance
vs. Collector to Base Voltage
Collector Output Capacitance, C
ob
(pF)
200
100
50
20
10
5
2
-1
f=1MHz
I
E
=0
-3
-10
-30
-100
Collector to Base Voltage, V
CB
(V)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Collector Current, I
C
(A)
4 of 4
QW-R204-006,E
