BA6898FP-E1 datasheet, PDF - EEWORLD Datasheet

BA6898FP-E1: DescriptionBrush DC Motor Controller, BIPolar, MDSO30, HSOP-28; CategoryOther integrated circuit (IC) The signal circuit; File Size210KB，13 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6898FP-E1 Overview

Brush DC Motor Controller, BIPolar, MDSO30, HSOP-28

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP, SOP28/42,.4,32
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-MDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	METAL
encapsulated code	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	8 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply current (Isup)	14 mA
Maximum supply voltage (Vsup)	9 V
Minimum supply voltage (Vsup)	6 V
Nominal supply voltage (Vsup)	8 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Optical disc ICs

4-channel BTL driver for CD players

BA6898S / BA6898FP

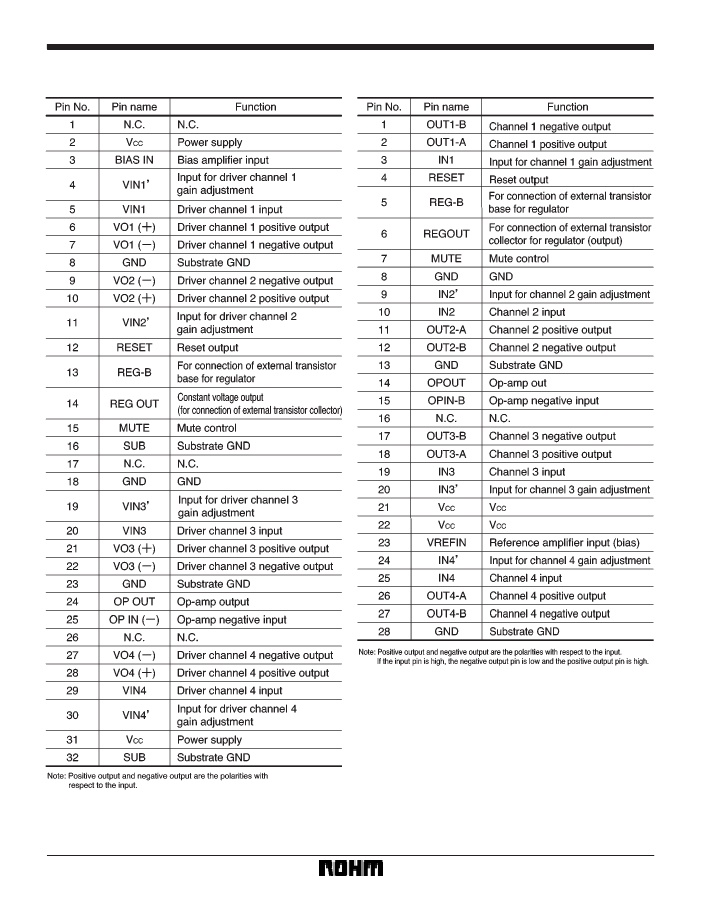

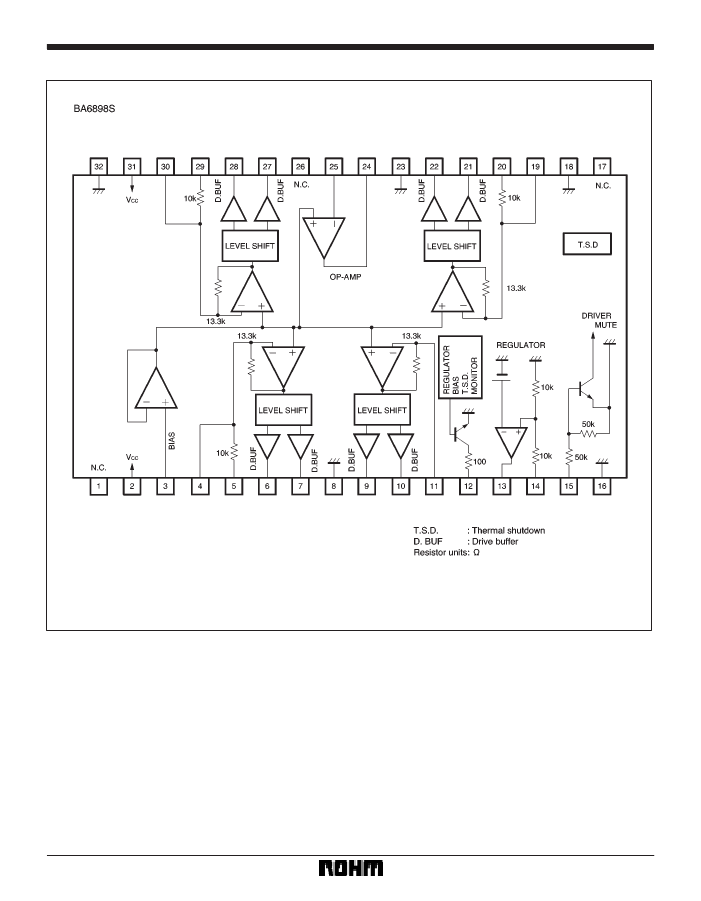

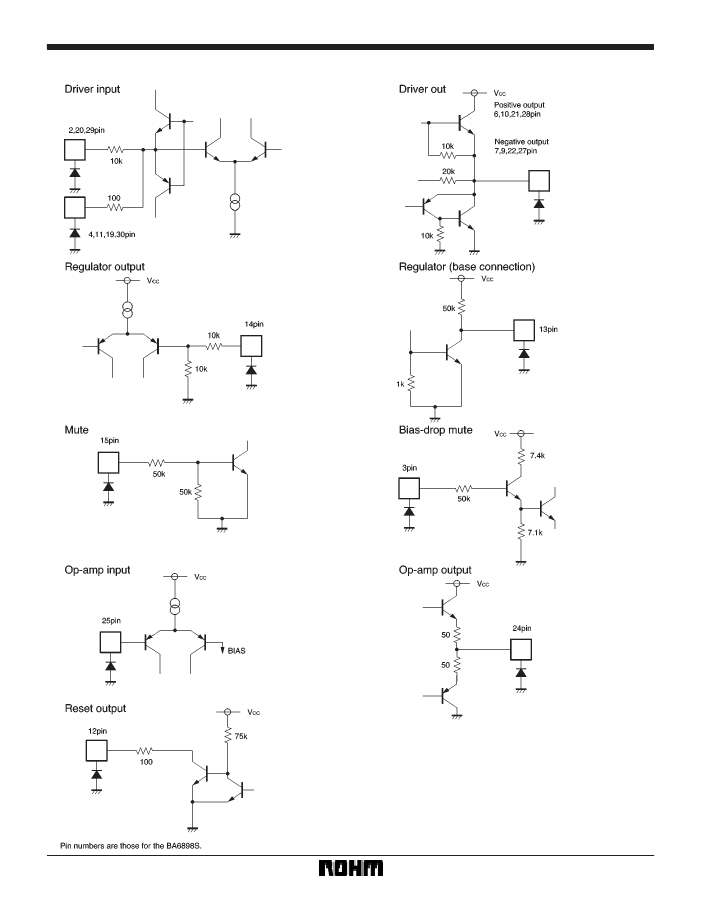

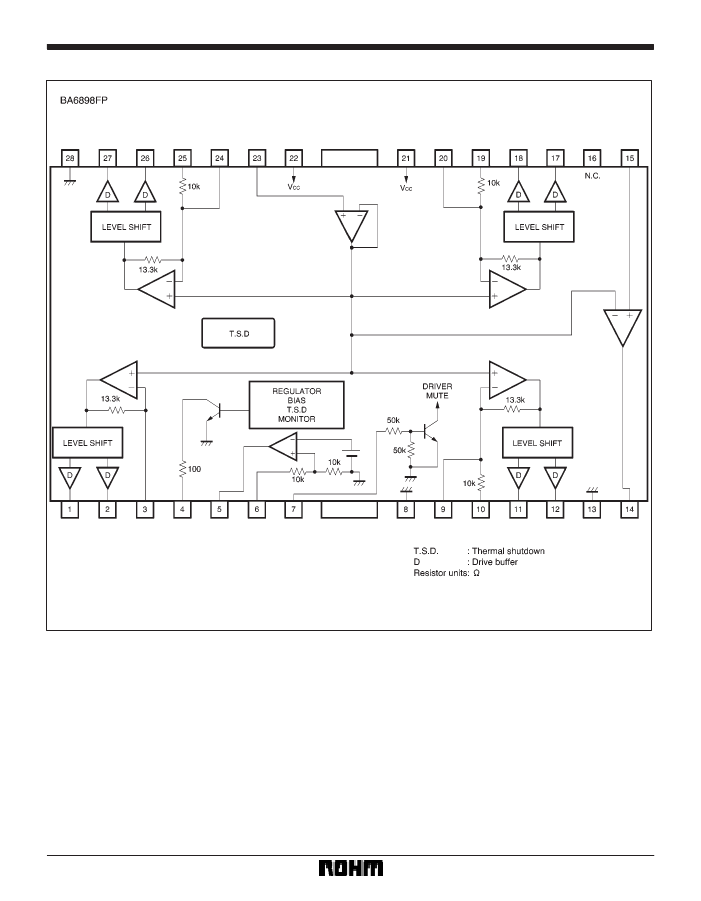

The BA6898S / BA6898FP ICs contain a 4-channel BTL driver , 5V regulator (which requires an externally connected

PNP transistor), multi-purpose operational amplifier, and reset output for use with CD players. Also equipped with an

input pin for gain adjustment for all channels of the driver block so that the gain can be adjusted to the desired value

for your application. Furthermore, a built-in level shift circuit exists to further reduce the amount of external components

required.

FApplications

CD players, CD-ROM, and other optical disc equipment

FFeatures

1) 4-channel BTL driver.

2) Gain is adjustable with externally connected resistor.

3) Internal thermal shutdown circuit.

4) Internal 5V regulator (requires external PNP transis-

tor).

5) Internal multi-purpose operational amplifier.

6) Equipped with reset output pin.

FAbsolute

maximum ratings (Ta = 25_C)

671

	BA6898FP-E1	BA6898FP-E2
Description	Brush DC Motor Controller, BIPolar, MDSO30, HSOP-28	Brush DC Motor Controller, BIPolar, MDSO30, HSOP-28
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	SOIC	SOIC
package instruction	HSSOP, SOP28/42,.4,32	HSOP-28
Contacts	28	28
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-MDSO-G30	R-MDSO-G30
JESD-609 code	e3/e2	e3/e2
length	18.5 mm	18.5 mm
Number of functions	1	1
Number of terminals	30	30
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
Package body material	METAL	METAL
encapsulated code	HSSOP	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32	SOP28/42,.4,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
power supply	8 V	8 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.41 mm	2.41 mm
Maximum supply current (Isup)	14 mA	14 mA
Maximum supply voltage (Vsup)	9 V	9 V
Minimum supply voltage (Vsup)	6 V	6 V
Nominal supply voltage (Vsup)	8 V	8 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
width	7.5 mm	7.5 mm
