DTA123 JM/JE/JUA/JCA/JSA
PNP Small Signal Transistor
Small Signal Product
Features
◇
Built-in bias resistors enable the configuration of an inverter
circuit without connecting external input resistor
(see equivalent circuit).
◇
The bias resistors consist of thin -film resistors with
complete isolation to allow negative biasing of the input.
They also have the advantage of almost completely
eliminating parasitic effects.
◇
Only the on/off conditions need to be set for
operation, marking device design easy.
◇
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code.

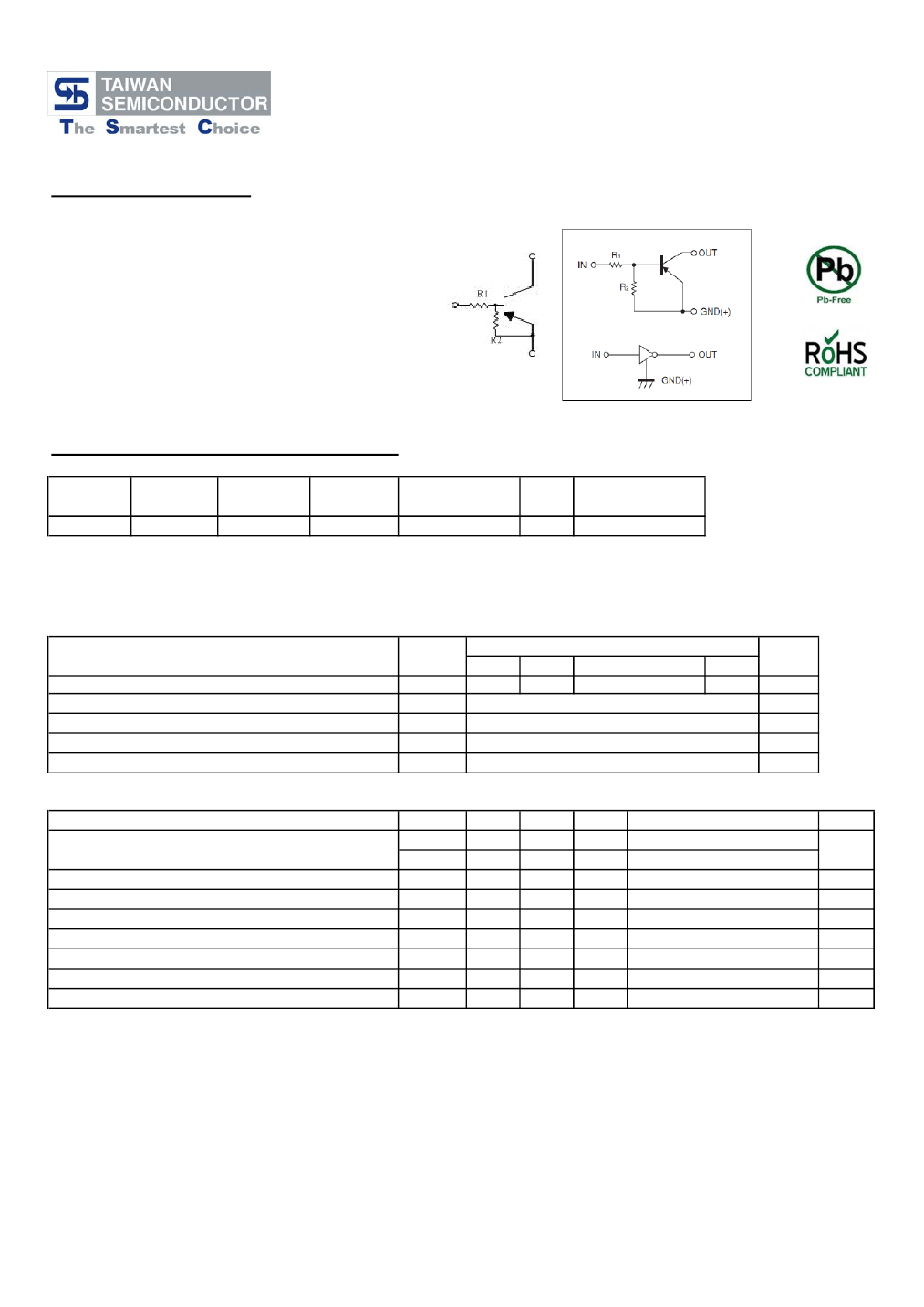

Equivalent Circuit
Ordering Information (example)
Part No.
DTA123 JM
Package
SOT-723
Packing
8K / 7" Reel
Packing code
RM
Packing code
(Green)
RMG
Marking
E32
Manufacture code
M0
Note : Detail please see "Ordering Information(detail, example)" below.
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Value
JM
100
JE
150
JUA / JCA
200
-50
-12 ~ +5
-100
-55 to + 150
JSA
300
Parameter
Power Dissipation
Supply Voltage
Input Voltage
Output Current
Junction and Storage Temperature Range
Symbol
P
D
V
CC
V
IN
I
O
T
J
, T
STG
Unit
mW
V
V
mA
°C
Notes : 1. Valid provided that electrodes are kept at ambient temperature
Parameter
Input Voltage
Output Voltage
Input Current
Output Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
Min
-0.5
Typ
Max
-1.1
Condtion
V
CC
= -5V , I
O
= -100μA
V
O
= -0.3V , I
O
= -5mA
I
O
/ I
I
= -5mA / -0.25mA
V
I
= -5V
V
CC
= -50V , V
I
= 0
V
O
= -5V , I
O
= -10mA
Unit
V
V
mA
μA
KΩ
-0.1
-0.3
-3.6
-0.5
80
1.54
17
2.2
21
250
2.86
26
V
O
= -10V , I
O
= -5mA , f=100MHz
MHz

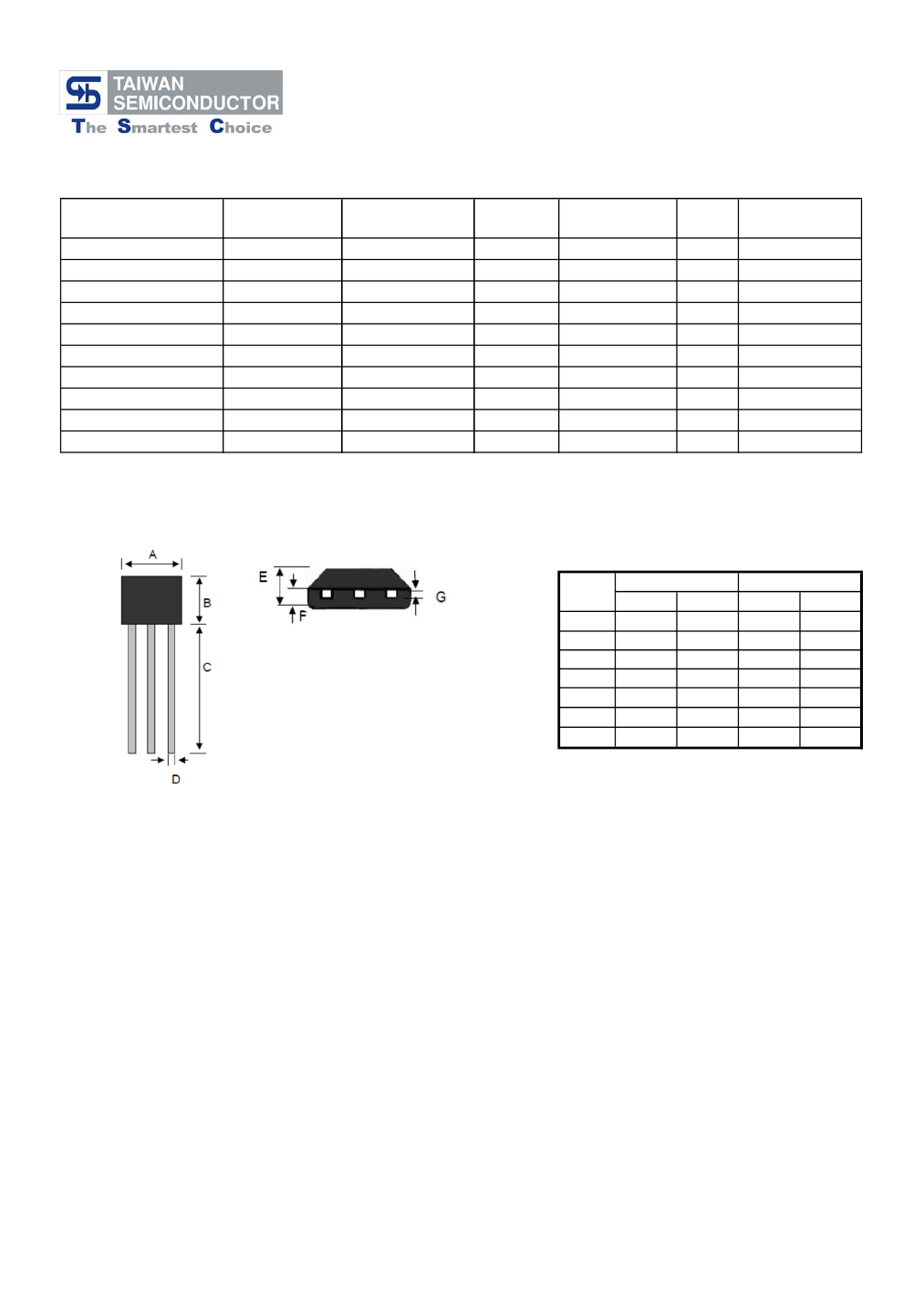

Version : B13
