BA7797F-T2 datasheet, PDF - EEWORLD Datasheet

BA7797F-T2: DescriptionConsumer Circuit, PDSO18, SOP-18; CategoryOther integrated circuit (IC) Consumption circuit; File Size278KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

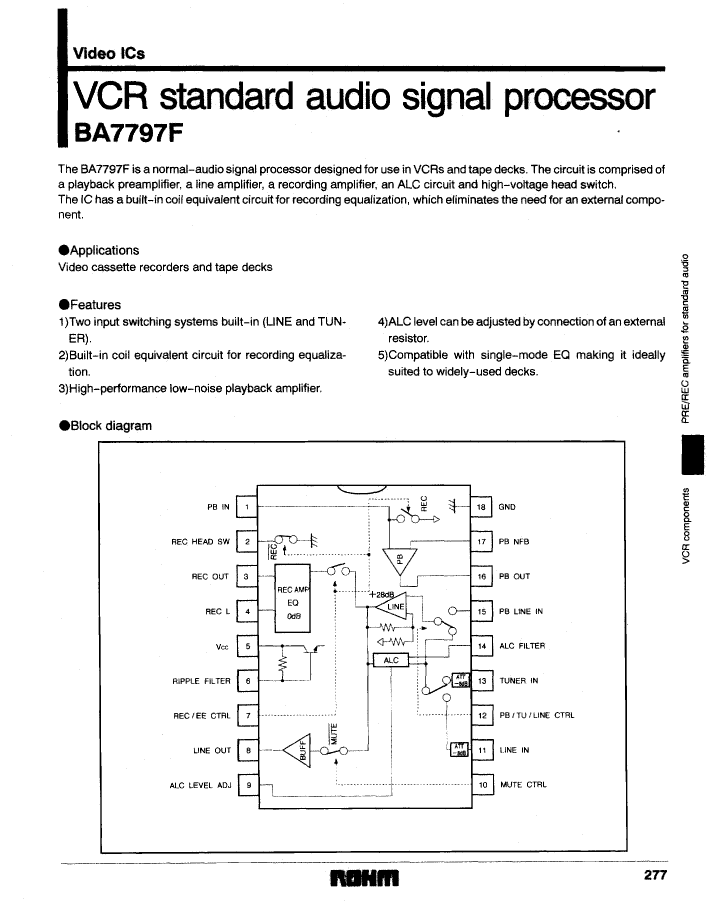

BA7797F-T2 Overview

Consumer Circuit, PDSO18, SOP-18

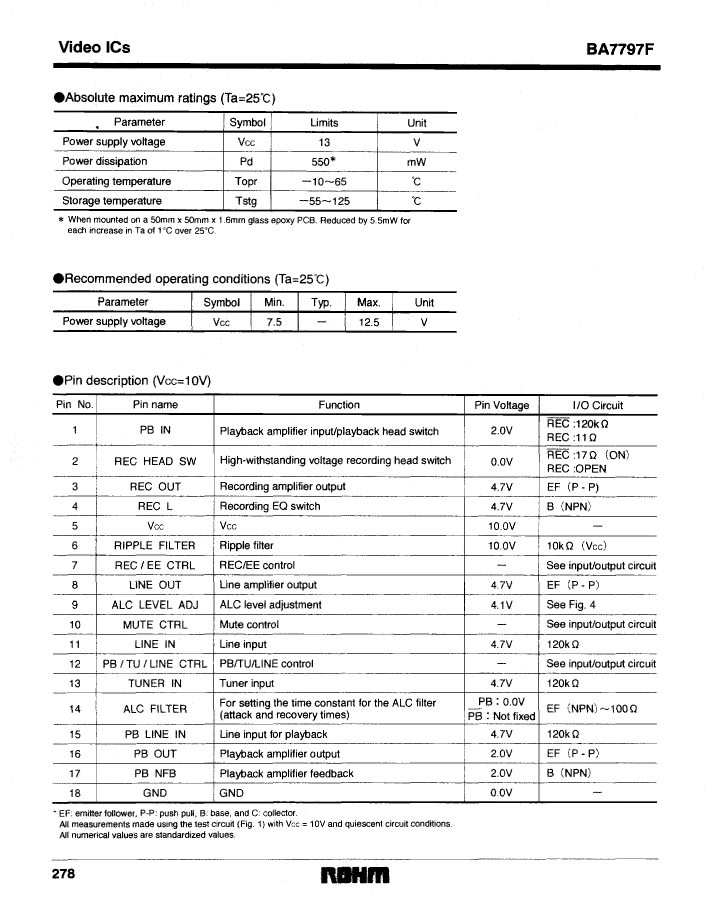

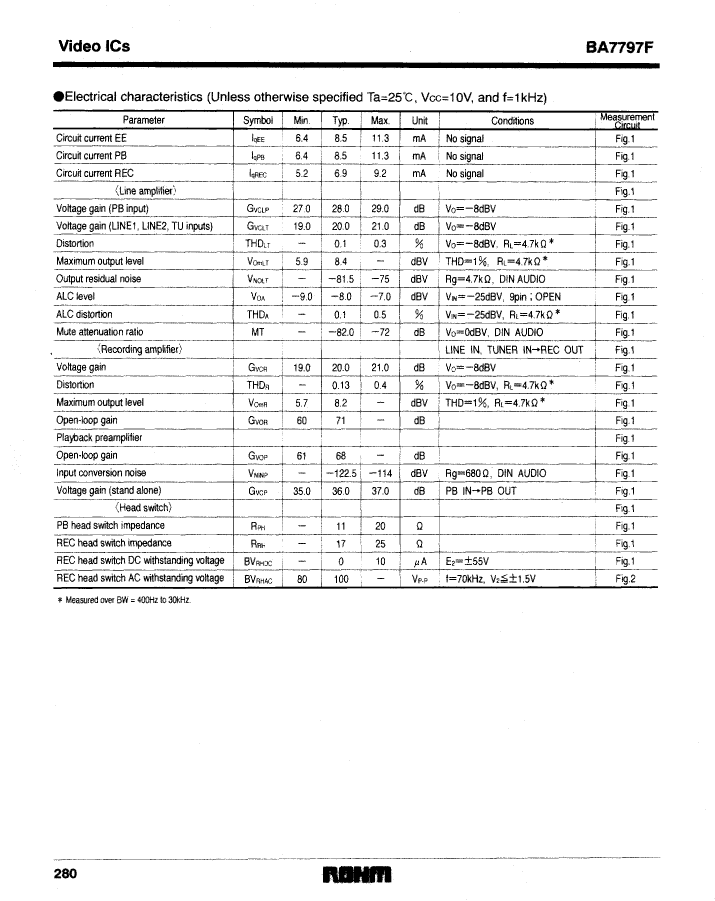

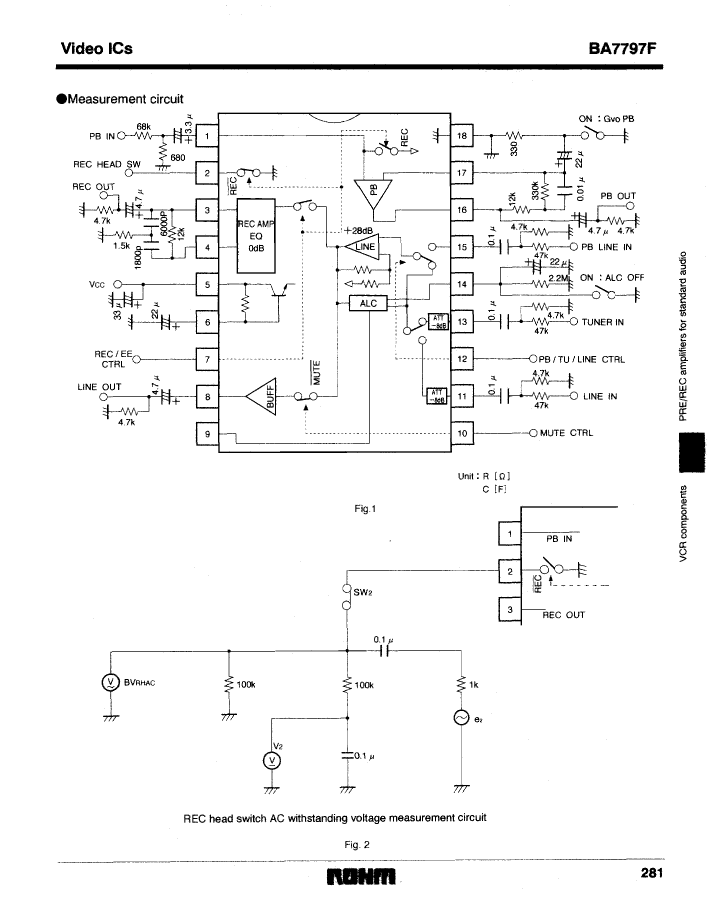

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP-18
Contacts	18
Reach Compliance Code	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G18
JESD-609 code	e3/e2
length	11.2 mm
Number of terminals	18
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum slew rate	11.3 mA
Maximum supply voltage (Vsup)	12.5 V
Minimum supply voltage (Vsup)	7.5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

	BA7797F-T2	BA7797F-E2	BA7797F-E1
Description	Consumer Circuit, PDSO18, SOP-18	Consumer Circuit, PDSO18, SOP-18	Consumer Circuit, PDSO18, SOP-18
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP-18	SOP-18	SOP-18
Contacts	18	18	18
Reach Compliance Code	compliant	compliant	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18
JESD-609 code	e3/e2	e3/e2	e3/e2
length	11.2 mm	11.2 mm	11.2 mm
Number of terminals	18	18	18
Maximum operating temperature	65 °C	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm
Maximum slew rate	11.3 mA	11.3 mA	11.3 mA
Maximum supply voltage (Vsup)	12.5 V	12.5 V	12.5 V
Minimum supply voltage (Vsup)	7.5 V	7.5 V	7.5 V
surface mount	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10
width	5.4 mm	5.4 mm	5.4 mm
