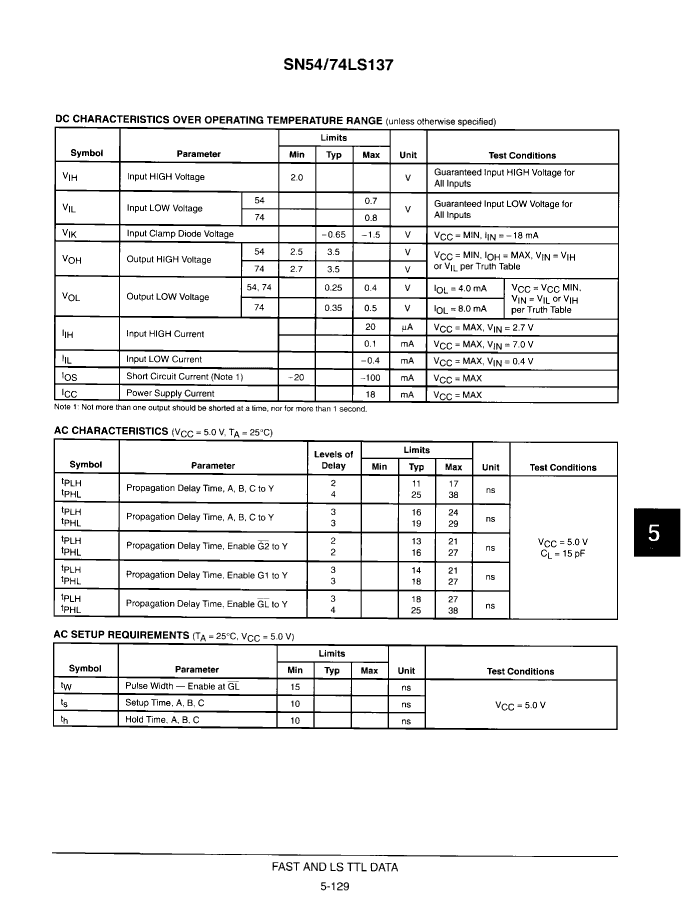

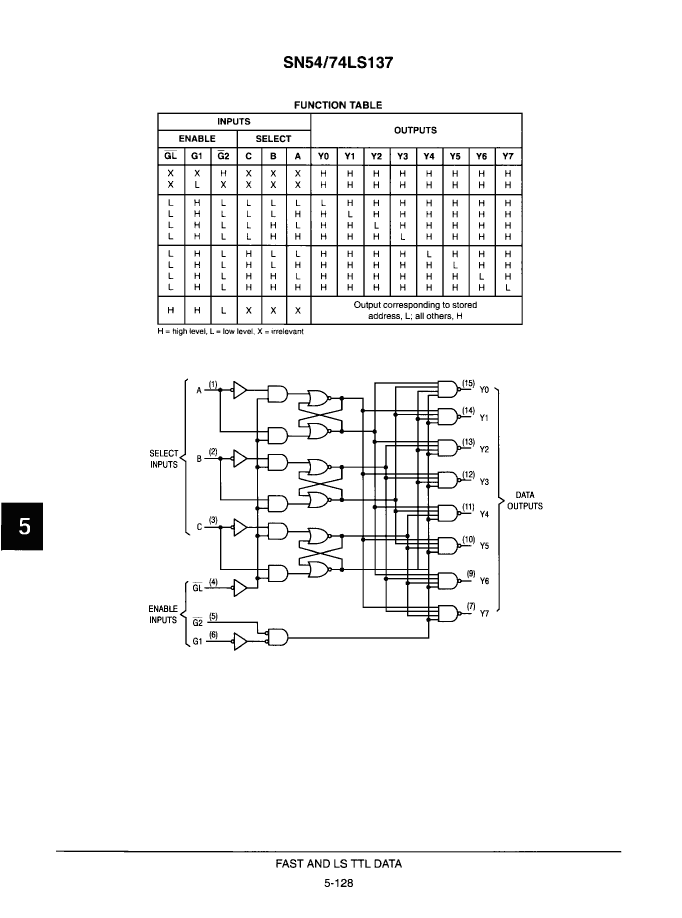

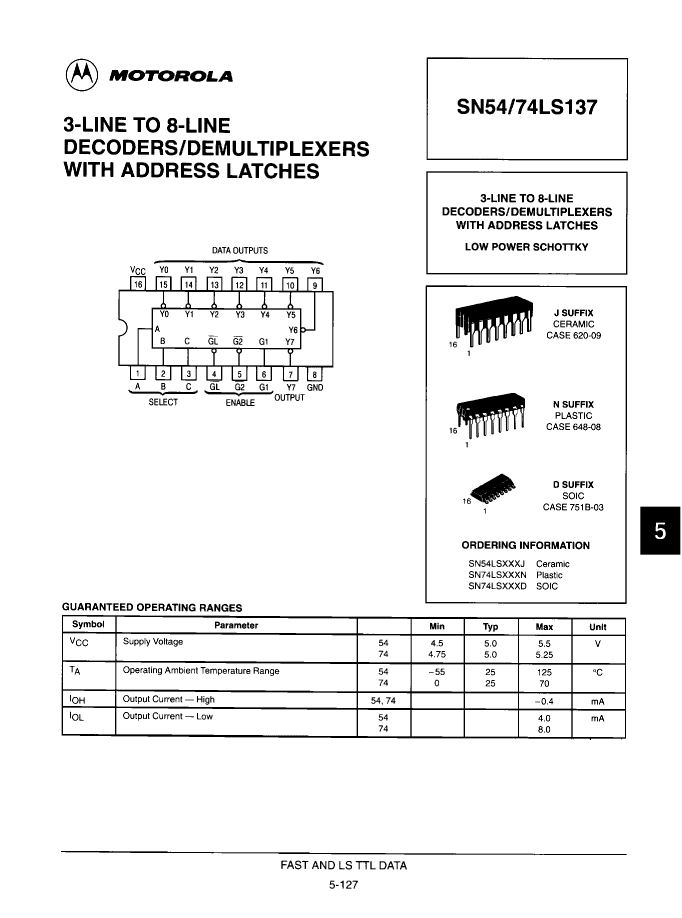

Preview

SN74LS137ND: DescriptionLS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-08; Categorylogic logic; File Size59KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS137ND Overview

LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-08

SN74LS137ND Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDRESS LATCHES; 2 ENABLE INPUTS
series	LS
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	18 mA
propagation delay (tpd)	38 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

SN74LS137ND Related Products

	SN74LS137ND	SN74LS137DR2	SN54LS137JD
Description	LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-08	LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, SOIC-16	LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, CERAMIC, DIP-16
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	SOIC	DIP
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	DIP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	ADDRESS LATCHES; 2 ENABLE INPUTS	ADDRESS LATCHES; 2 ENABLE INPUTS	ADDRESS LATCHES; 2 ENABLE INPUTS
series	LS	LS	LS
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-GDIP-T16
length	19.175 mm	9.9 mm	19.3 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	70 °C	70 °C	125 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	18 mA	18 mA	18 mA
propagation delay (tpd)	38 ns	38 ns	38 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm	4.19 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	7.62 mm
JESD-609 code	e0	e0	-
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	-
Encapsulate equivalent code	DIP16,.3	SOP16,.25	-
power supply	5 V	5 V	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
