DDTA144GKA-13: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, SC-59, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size82KB，3 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

DDTA144GKA-13 Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, SC-59, 3 PIN

DDTA144GKA-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	68
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

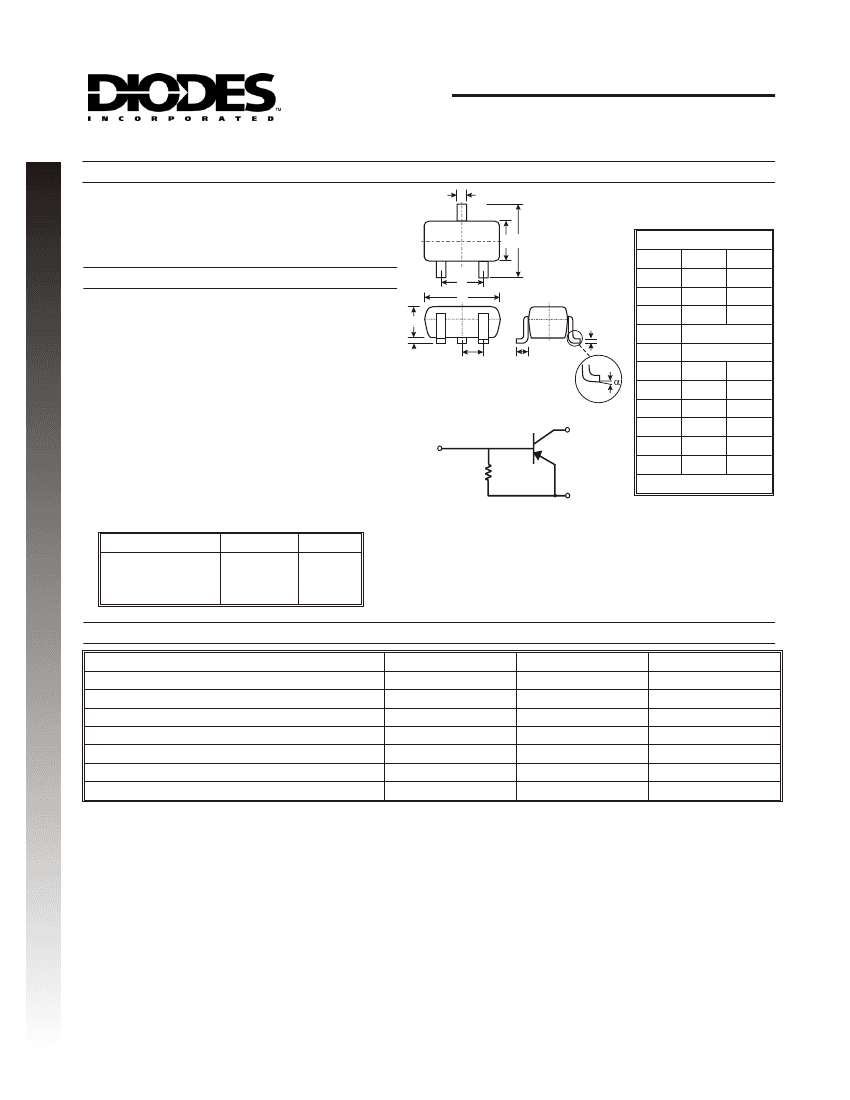

SPICE MODELS: DDTA114KA DDTA124KA DDTA144KA DDTA115KA

DDTA

(R2-ONLY SERIES)

PNP PRE-BIASED SMALL SIGNAL SC-59

SURFACE MOUNT TRANSISTOR

Features

NEW PRODUCT

Epitaxial Planar Die Construction

Complementary NPN Types Available (DDTC)

Built-In Biasing Resistor, R2 only

Available in Lead Free/RoHS Compliant Version (Note 2)

B C

SC-59

Dim

Min

0.35

1.50

2.70

0.95

1.90

2.90

0.013

1.00

0.35

0.10

0°

Max

0.50

1.70

3.00

Mechanical Data

Case: SC-59

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Solderable per MIL-STD-202, Method 208

Also Available in Lead Free Plating (Matte Tin Finish

annealed over Copper leadframe). Please see Ordering

Information, Note 4, on Page 2

Terminal Connections: See Diagram

Marking: Date Code and Type Code (See Table Below &

Page 2)

Ordering Information (See Page 2)

Weight: 0.008 grams (approximate)

3.10

0.10

1.30

0.55

0.20

8°

SCHEMATIC DIAGRAM

All Dimensions in mm

P/N

DDTA114KA

DDTA124KA

DDTA144KA

DDTA115KA

R2 (NOM)

10KW

22KW

47KW

100KW

Type Code

P26

P27

P28

P29

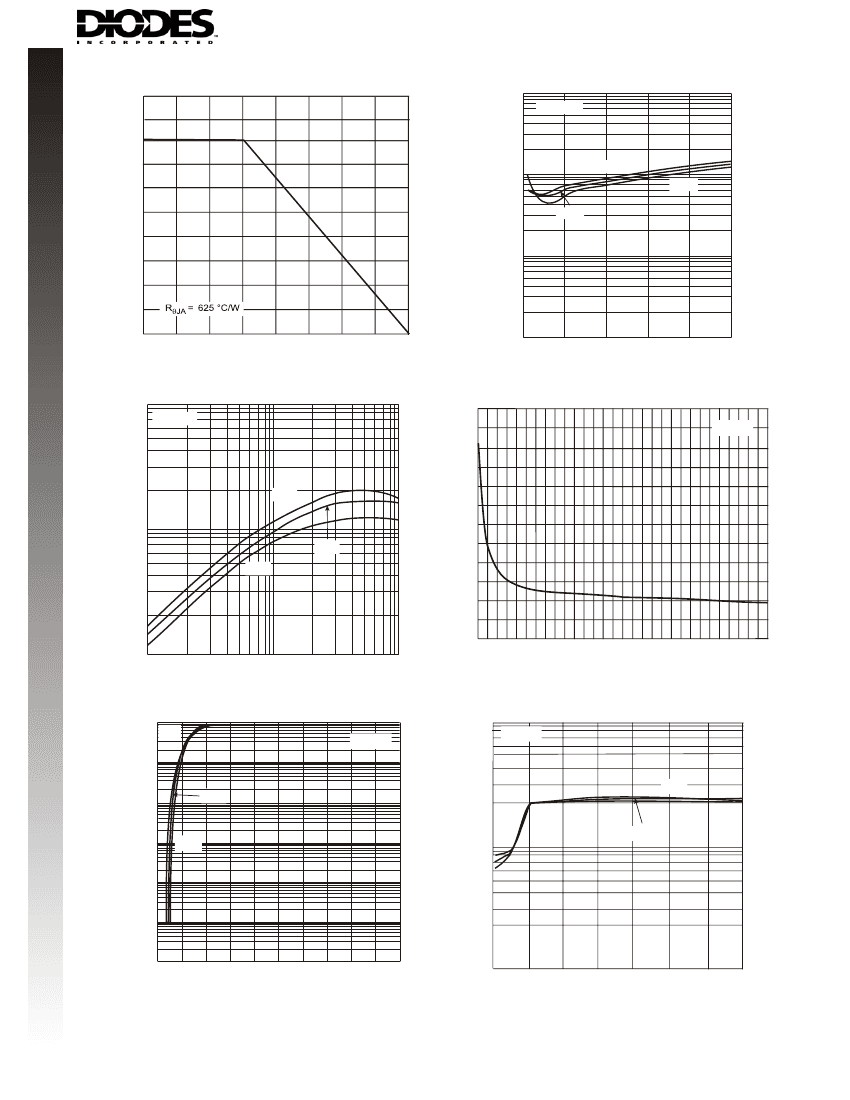

Maximum Ratings

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Power Dissipation

@ T

= 25°C unless otherwise specified

Symbol

CBO

CEO

EBO

(Max)

qJA

, T

STG

Value

-50

-5

-100

200

625

-55 to +150

Unit

°C/W

°C

Characteristic

Thermal Resistance, Junction to Ambient Air (Note 1)

Operating and Storage and Temperature Range

Note:

1. Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.

2. No purposefully added lead.

DS30344 Rev. 4 - 2

1 of 3

www.diodes.com

DDTA (R2-ONLY SERIES) KA

Diodes Incorporated
