ASM-1.8432MHZ-L-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASM-1.8432MHZ-L-T

ASM-1.8432MHZ-L-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1.8432MHz Nom, ROHS COMPLIANT, J LEADED, PLASTIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size833KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASM-1.8432MHZ-L-T Overview

HCMOS/TTL Output Clock Oscillator, 1.8432MHz Nom, ROHS COMPLIANT, J LEADED, PLASTIC, SMD, 4 PIN

ASM-1.8432MHZ-L-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ASM
Installation features	SURFACE MOUNT
Nominal operating frequency	1.8432 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	14.0mm x 8.95mm x 4.7mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

HCMOS/ TTL COMPATIBLE, J LEADED,

PLASTIC MOLDED SMD CRYSTAL CLOCK OSCILLATOR

ASM SERIES

Pb in high temperature solder

(exempt per RoHS 2002/95/EC Annex (7)).

Compliant

RoHS

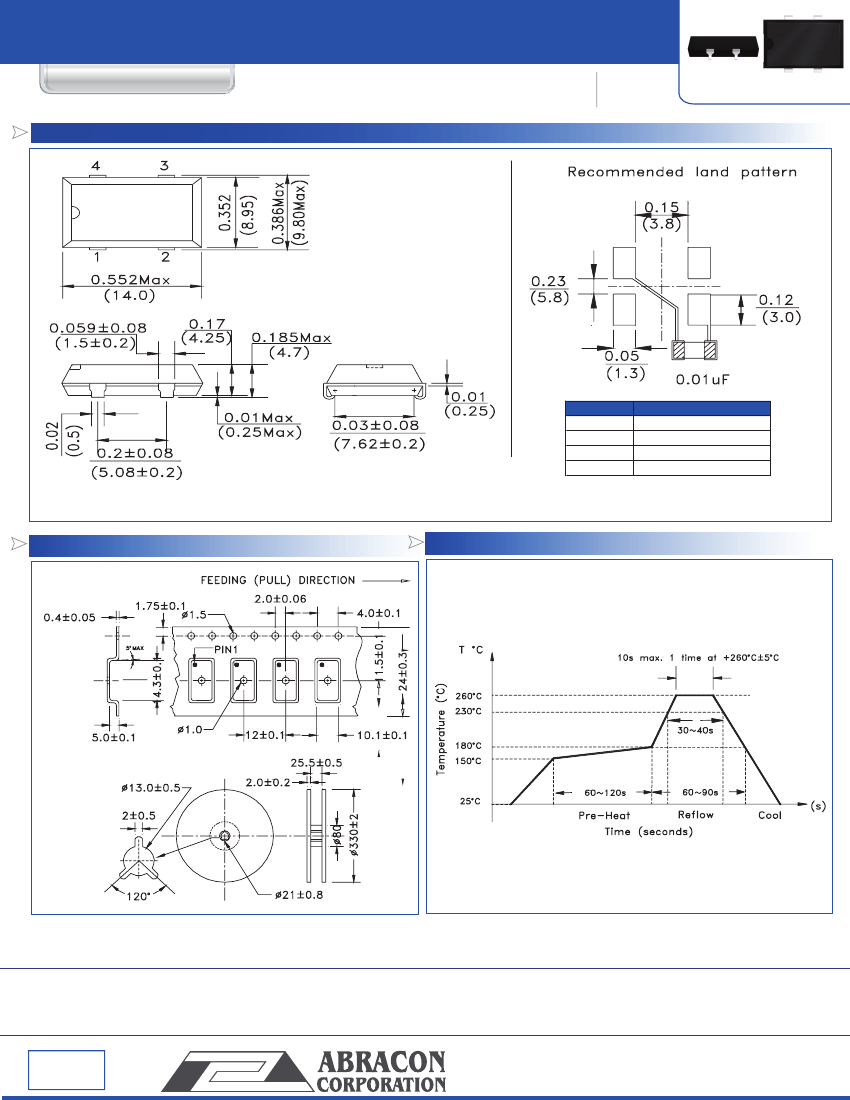

14.0 x 8.95 x 4.7 mm

| | | | | | | | | | | | | | |

The 14x9.8mm plastic package oscillator is not recommended for new designs. Please consider our reduced size ceramic or plastic

molded SMD packages. Recommended series include ASL, ASV, ASVM, ASFL, ASFLM, ASE, ASEM . For 5.0V please use ASL series.

FEATURES:

• Industry standard J-Leaded terminals. • Plastic molded SMD

• HCMOS and TTL compatible

• Tristate Enable/ Disable.

• Extended temperature -40°C to 85°C option

APPLICATIONS:

• Wide range of applications in dialing communication

equipment, AV / OA equipment, Measuring equipment.

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency range:

Operating temperature:

Storage temperature:

Overall frequency stability:

Supply voltage (Vdd):

Input current:

ASM Series

1 ~ 125 MHz

0° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

5.0Vdc ± 10%

20 mA max. for F ≤ 20 MHz

40 mA max. for F ≤ 70 MHz

80 mA max. for F ≤ 125 MHz

40/60 % max. at 1/2Vdd CMOS (see option)

10 ns max.

10 TTL or 50 pFmax.

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

"1" (VIH >= 2.2 V) or open: Oscillation

"0" (VIL < 0.8 V) : Hi Z

10ms max.

±5ppm/year max.

25ps max.

Symmetry:

Rise and fall time (Tr/Tf):

Output load:

Output voltage:

Tristate function :

Stat-up time:

Aging:

Period jitter (1 sigma):

OPTIONS & PART IDENTIFICATION:

ASM - Frequency -

Operating Temp.

Range

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Packaging

Blank

Bulk

Tape and Reel

(1000pcs/reel)

Overall Frequency

Stability

±25ppm

±30ppm

±50ppm

Symmetry

45/55%@1/2Vdd

45/55%@1.4Vdd

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 07.26.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
