CIA31N121AC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> CIA31N121AC

CIA31N121AC: DescriptionData Line Filter, 4 Function(s), 0.3A, EIA STD PACKAGE SIZE 1206, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size787KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CIA31N121AC Overview

Data Line Filter, 4 Function(s), 0.3A, EIA STD PACKAGE SIZE 1206, 8 PIN

CIA31N121AC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMSUNG
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.5 Ω
filter type	DATA LINE FILTER
high	0.8 mm
length	3.2 mm
Installation type	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB1.6XH0.8 (mm)/L0.126XB0.063XH0.031 (inch)
Rated current	0.3 A
width	1.6 mm

Preview

Download Datasheet

View All

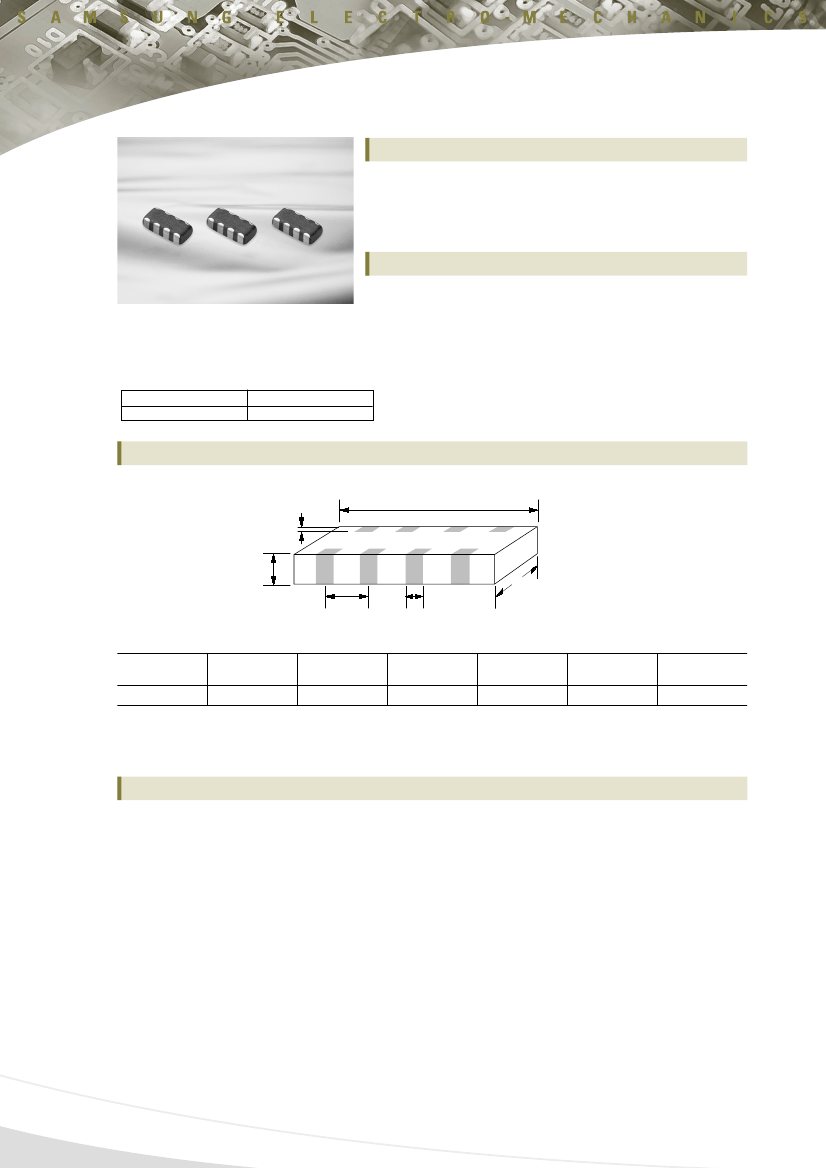

Chip Bead Array; CIA Series

For EMI Suppression

Feature

•Four

lines by one chip

•Perfect

shape for automatic mounting, with no directionality.

•Excellent

solderability and high heat resistance for either flow or

reflow soldering.

•Closed

magnetic circuit configuration with no cross-talk which is

suitable for high density PCBs.

Application

•EMI

prevention in Notebook PC, LCD and car navigation

•Ideal

for dealing with line noise from multiple signals such as

in computer buses.

The CIA Series is an array of ferrite beads used for EMI suppression filters.

This series is often used for high density Printed Circuit Boards to save the space and cost.

It suppresses electro-magentic wave noise by increased impedance, especially by increased resistance at noise frequency.

Operating Temp

Storage Temp

-25~+85

℃

-40~+85

℃

Dimensions

Unit : mm

SIZE CODE

3.2±0.2

1.6±0.2

0.8±0.2

0.4±0.2

0.3±0.15

0.8±0.1

Part Numbering

(1)

(2)

(3)

(4)

121

(5)

(6)

(7)

(1) Chip Beads

(2) A : Bead array

(3) Dimension

(4) Material Code

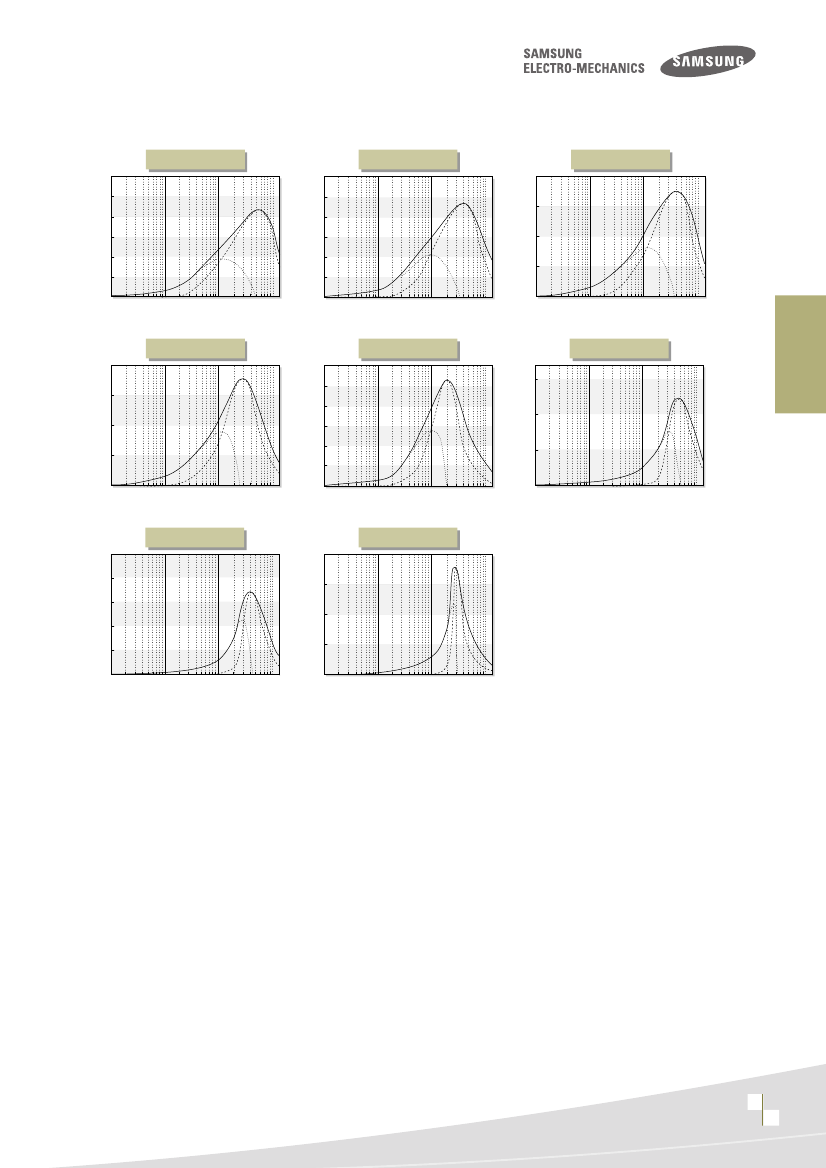

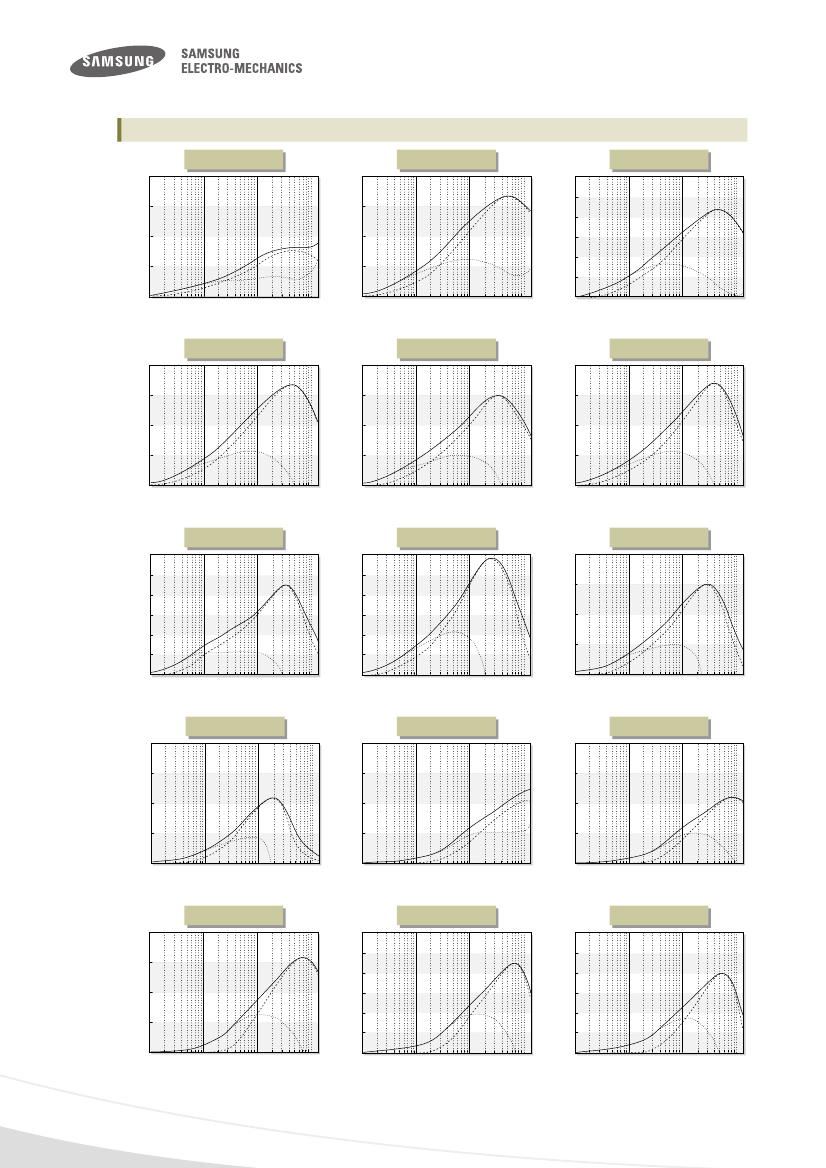

U:Broad impedance, especially suppresses noise in the 10~200MHz range

J:Suppresses noise in the 100~300MHz range

N:Suppresses noise in the 200~500MHz range

(5) Nominal Impedance(121:120Ω, 300 : 30Ω)

(6) Thickness option(N: Standard, A: Thinner than standard, B: Thicker than standard)

(7) Packaging(C: paper tape, E: embossed tape)
