MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by DTA114GE/D
Product Preview
General Purpose Transistor
PNP Bipolar Junction Transistor
with a 10 k
W
Base–Emitter Resistor
MAXIMUM RATINGS
(TJ = 25°C unless otherwise noted)
Rating
Collector–Emitter Voltage
Collector–Base Voltage
Emitter–Base Voltage
Collector Current
Base Current
Total Power Dissipation @ TC = 25°C
Total Power Dissipation @ TC = 85°C
Thermal Resistance — Junction to Ambient (1)
Operating and Storage Temperature Range
1. Minimum FR–4 or G–10 PCB, Operating to Steady State.
Symbol
VCEO
VCBO
VEBO
IC
IB
PD
PD
R
q
JA
Value
50
50
5.0
100
20
150
78
833
–55 to 150
Unit
V
V
V
mA
mA
mW
mW
°C/W
°C
DTA114GE
50 Volts
100 mAmps
150 mW
3
2
1
CASE 463–01
SOT–416/SC–90
COLLECTOR (3)
BASE (1)
RBE
EMITTER (2)
RBE = 10 k
W
ELECTRICAL CHARACTERISTICS
(TC = 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Collector–Emitter Breakdown Voltage
(IC = 50
µAdc)
Collector–Emitter Breakdown Voltage
(IC = 1.0 mAdc)
Collector–Emitter Breakdown Voltage
(IE = 720
m
Adc)
Collector Cutoff Current
(VCB = 50 Vdc, IE = 0 Adc)
Emitter Cutoff Current
(VEB = 4.0 Vdc, IC = 0 Adc)
ON CHARACTERISTICS
DC Current Gain
(VCE = 5.0 Vdc, IC = 5.0 mAdc)
Collector–Emitter Saturation Voltage
(IC = 10 mAdc, IB = 500
m
Adc)
hFE
30
VCE(sat)
—
—
0.3
—
—
Vdc
BVCBO
50
BVCEO
50
BVEBO
5.0
ICBO
—
IEBO
300
—
580
—
0.5
—
—
—
—
Vdc
—
—
Vdc
Vdc
Symbol
Min
Typ
Max
Unit
m
Adc
m
Adc
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
Thermal Clad is a trademark of the Bergquist Company
Motorola Small–Signal Transistors, FETs and Diodes Device Data
©
Motorola, Inc. 1998
1
DTA114GE

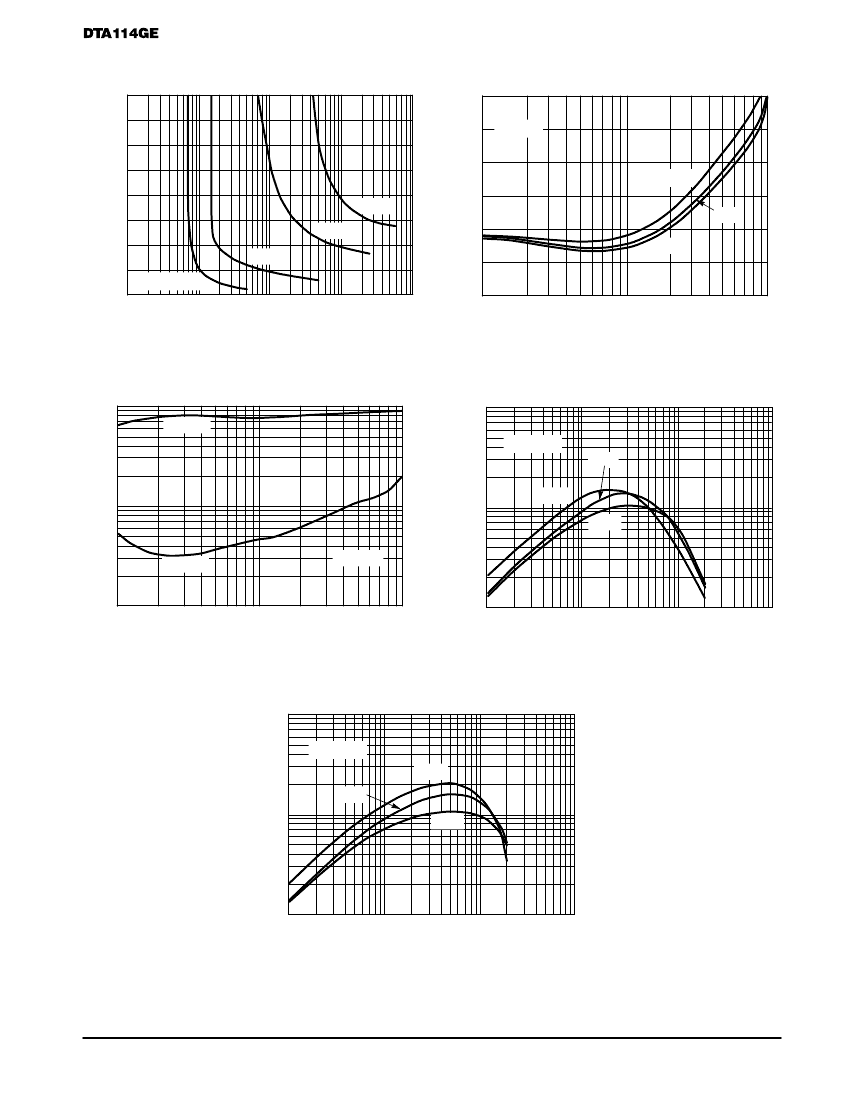

TYPICAL ELECTRICAL CHARACTERISTICS
0.4
0.18
IC/IB = 10
VCE(sat), VOLTAGE (V)
VCE(sat), VOLTAGE (V)
0.3
0.12
T = 85°C
25°C
0.06
0°C
0.2
100 mA
50 mA
0.1
10 mA
0
0.01
IC = 1.0 mA
0.1
1.0
IB, BASE CURRENT (mA)
10
100
0
1.0
10
IC, COLLECTOR CURRENT (mA)
100
Figure 1. Collector–Emitter Saturation Voltage
Figure 2. Collector–Emitter Saturation Voltage
1.0
VBE(sat)
1000
VCE = 1.0 V
hFE, DC CURRENT GAIN
25°C
150°C
100
–40°C
VOLTAGE (V)
0.1
VCE(sat)
0.01
IC/IB = 10
1.0
10
IC, COLLECTOR CURRENT (mA)
100
10
1.0
10
100
IC, COLLECTOR CURRENT (mA)
1000
Figure 3. “On” Voltages
Figure 4. DC Current Gain
1000
VCE = 5.0 V
hFE , DC CURRENT GAIN
150°C
25°C
100
–40°C
10
1.0
10
100
IC, COLLECTOR CURRENT (mA)
1000
Figure 5. DC Current Gain
2
Motorola Small–Signal Transistors, FETs and Diodes Device Data
DTA114GE
MINIMUM RECOMMENDED FOOTPRINTS FOR SURFACE MOUNTED APPLICATIONS
Surface mount board layout is a critical portion of the total
design. The footprint for the semiconductor packages must
be the correct size to insure proper solder connection
interface between the board and the package. With the
correct pad geometry, the packages will self align when
subjected to a solder reflow process.
0.5 min. (3x)
TYPICAL
SOLDERING PATTERN
0.5 min. (3x)
Unit: mm
1.4
SOT–416/SC–90 POWER DISSIPATION
The power dissipation of the SOT–416/SC–90 is a function
of the pad size. This can vary from the minimum pad size for
soldering to the pad size given for maximum power
dissipation. Power dissipation for a surface mount device is
determined by TJ(max), the maximum rated junction tempera-
ture of the die, R
θJA
, the thermal resistance from the device
junction to ambient; and the operating temperature, TA.
Using the values provided on the data sheet, PD can be
calculated as follows:
PD =
TJ(max) – TA
R
θJA
the equation for an ambient temperature TA of 25°C, one can
calculate the power dissipation of the device which in this
case is 150 milliwatts.
PD =
150°C – 25°C
= 150 milliwatts
833°C/W
The values for the equation are found in the maximum
ratings table on the data sheet. Substituting these values into
The 833°C/W assumes the use of the recommended
footprint on a glass epoxy printed circuit board to achieve a
power dissipation of 150 milliwatts. Another alternative would
be to use a ceramic substrate or an aluminum core board
such as Thermal Clad™. Using a board material such as
Thermal Clad, a higher power dissipation can be achieved
using the same footprint.
SOLDERING PRECAUTIONS
The melting temperature of solder is higher than the rated
temperature of the device. When the entire device is heated
to a high temperature, failure to complete soldering within a
short time could result in device failure. Therefore, the
following items should always be observed in order to
minimize the thermal stress to which the devices are
subjected.
•
Always preheat the device.
•
The delta temperature between the preheat and
soldering should be 100°C or less.*
•
When preheating and soldering, the temperature of the
leads and the case must not exceed the maximum
temperature ratings as shown on the data sheet. When
using infrared heating with the reflow soldering method,
the difference should be a maximum of 10°C.
•
The soldering temperature and time should not exceed
260°C for more than 10 seconds.
•
When shifting from preheating to soldering, the
maximum temperature gradient should be 5°C or less.
•
After soldering has been completed, the device should
be allowed to cool naturally for at least three minutes.
Gradual cooling should be used as the use of forced
cooling will increase the temperature gradient and result
in latent failure due to mechanical stress.
•
Mechanical stress or shock should not be applied during
cooling.
* Soldering a device without preheating can cause excessive
thermal shock and stress which can result in damage to the
device.
Motorola Small–Signal Transistors, FETs and Diodes Device Data
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÉÉÉ
0.5
ÉÉÉ
ÉÉÉ
ÉÉÉ
1
3
DTA114GE
SOLDER STENCIL GUIDELINES
Prior to placing surface mount components onto a printed
circuit board, solder paste must be applied to the pads. A
solder stencil is required to screen the optimum amount of
solder paste onto the footprint. The stencil is made of brass
or stainless steel with a typical thickness of 0.008 inches.
The stencil opening size for the surface mounted package
should be the same as the pad size on the printed circuit
board, i.e., a 1:1 registration.
TYPICAL SOLDER HEATING PROFILE
For any given circuit board, there will be a group of control
settings that will give the desired heat pattern. The operator
must set temperatures for several heating zones, and a
figure for belt speed. Taken together, these control settings
make up a heating “profile” for that particular circuit board.
On machines controlled by a computer, the computer
remembers these profiles from one operating session to the
next. Figure 6 shows a typical heating profile for use when
soldering a surface mount device to a printed circuit board.
This profile will vary among soldering systems but it is a good
starting point. Factors that can affect the profile include the
type of soldering system in use, density and types of
components on the board, type of solder used, and the type
of board or substrate material being used. This profile shows
temperature versus time. The line on the graph shows the
actual temperature that might be experienced on the surface
of a test board at or near a central solder joint. The two
profiles are based on a high density and a low density board.
The Vitronics SMD310 convection/infrared reflow soldering
system was used to generate this profile. The type of solder
used was 62/36/2 Tin Lead Silver with a melting point
between 177 –189°C. When this type of furnace is used for
solder reflow work, the circuit boards and solder joints tend to
heat first. The components on the board are then heated by
conduction. The circuit board, because it has a large surface
area, absorbs the thermal energy more efficiently, then
distributes this energy to the components. Because of this
effect, the main body of a component may be up to 30
degrees cooler than the adjacent solder joints.
STEP 1
PREHEAT
ZONE 1
“RAMP”
200°C
STEP 2
STEP 3
VENT
HEATING
“SOAK” ZONES 2 & 5
“RAMP”
STEP 5
STEP 4
HEATING
HEATING
ZONES 4 & 7
ZONES 3 & 6
“SPIKE”
“SOAK”
170°C
160°C
STEP 6 STEP 7
VENT COOLING
205° TO 219°C
PEAK AT
SOLDER JOINT
DESIRED CURVE FOR HIGH
MASS ASSEMBLIES
150°C
150°C
140°C
SOLDER IS LIQUID FOR
40 TO 80 SECONDS
(DEPENDING ON
MASS OF ASSEMBLY)
100°C
100°C
DESIRED CURVE FOR LOW
MASS ASSEMBLIES
50°C
TIME (3 TO 7 MINUTES TOTAL)
TMAX
Figure 6. Typical Solder Heating Profile
4
Motorola Small–Signal Transistors, FETs and Diodes Device Data
DTA114GE
PACKAGE DIMENSIONS
–A–
S
2
3
STYLE 1:
PIN 1. BASE
2. EMITTER
3. COLLECTOR
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
DIM
A
B
C
D
G
H
J
K
L
S
MILLIMETERS
MIN
MAX
0.70
0.80
1.40
1.80
0.60
0.90
0.15
0.30
1.00 BSC
–––
0.10
0.10
0.25
1.45
1.75
0.10
0.20
0.50 BSC
INCHES
MIN
MAX
0.028
0.031
0.055
0.071
0.024
0.035
0.006
0.012
0.039 BSC
–––
0.004
0.004
0.010
0.057
0.069
0.004
0.008
0.020 BSC
G –B–
1
D
3 PL
0.20 (0.008)
M
B
K
0.20 (0.008) A
J
C
L
H
CASE 463–01
ISSUE A
SOT–416/SC–90
Motorola Small–Signal Transistors, FETs and Diodes Device Data
5
