Ordering number:ENN1580C
NPN Triple Diffused Planar Type Silicon Transistor
2SC3457
800V/3A Switching Regulator Applications
Features
· High breakdown voltage and high reliability.
· High-speed switching (t
f
: 0.1µs typ).
· Wide ASO.
· Adoption of MBIT process.
Package Dimensions
unit:mm
2010C
[2SC3457]
10.2
3.6
5.1
4.5
1.3
2.7
18.0
5.6
1.2
0.8
14.0
15.1
6.3
0.4
1
2
3
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
PW≤300µs, Duty Cycle≤10%
Tc=25˚C
2.55
2.55
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-220AB
Conditions
2.7
Ratings
1100
800
7
3
10
1.5
50
150
–55 to +150
Unit
V
V
V
A
A
A
W
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Symbol
ICBO
IEBO
hFE1
hFE2
VCB=800V, IE=0
VEB=5V, IC=0
VCE=5V, IC=0.2A
VCE=5V, IC=1A
10*
8
Conditions
Ratings
min
typ
max
10
10
40*
Unit
µA
µA
Continued on next page.
* : The h
FE
1 of the 2SC3457 is classified as follows. When specifying the h
FE
1 rank, specify two ranks or more in principle.
Rank
hFE
K
10 to 20
L
15 to 30
M
20 to 40
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
61004TN (PC)/N1098HA (KT)/4237AT/N295MW/3085KI/D144MW, TS No.1580–1/4
2SC3457
Continued from preceding page.
Parameter
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Collector-to-Emitter Sustain Voltage
Turn-ON Time
Storage Time
Fall Time
Symbol
fT
Cob
VCE(sat)
VBE(sat)
VCE=10V, IC=0.2A
VCB=10V, f=1MHz
IC=1.5A, IB=0.3A
IC=1.5A, IB=0.3A
1100
800
7
800
0.5
3.0
0.3
Conditions
Ratings
min
typ
15
60
2.0
1.5
max
Unit
MHz
pF
V
V
V
V
V
V
µs
µs
µs
V(BR)CBO IC=1mA, IE=0
V(BR)CEO IC=5mA, RBE=∞
IE=1mA, IC=0
VCEX(sus) IC=1.5A, IB1=–IB2=0.3A, L=2mH, clamped
ton
VCC=400V, 5IB1=–2.5IB2=IC=2A, RL=200
Ω
tstg
tf
VCC=400V, 5IB1=–2.5IB2=IC=2A, RL=200
Ω
VCC=400V, 5IB1=–2.5IB2=IC=2A, RL=200
Ω
V(BR)EBO
Switching Time Test Circuit
IB1
IB2
INPUT
PW=20µs
D.C.≤1%
50Ω
RB
VR
+
100µF
VBE=--5V
+
470µF
VCC=200V
OUTPUT
RL
200Ω

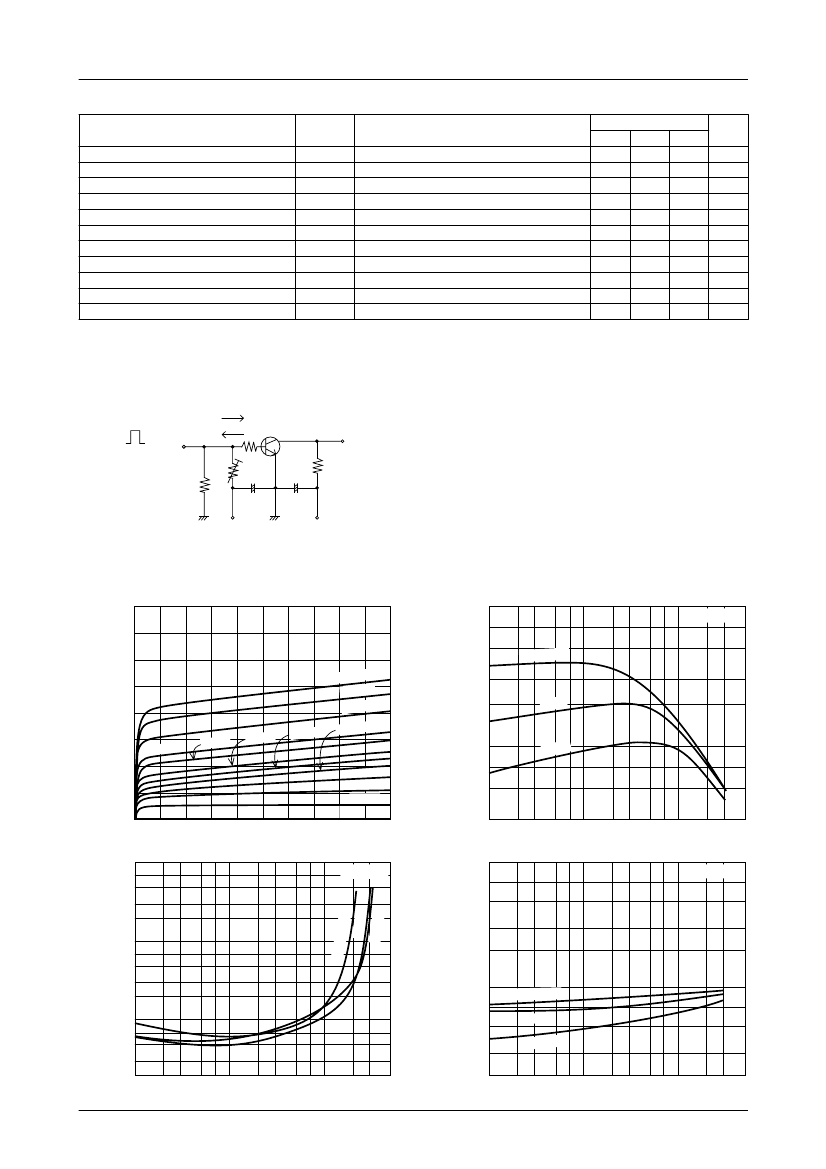

3.2
2.8
IC -- VCE
100
7
5
hFE -- IC
VCE=5V
Collector Current, IC – A
2.4
2.0
1.6
1.2
0.8
0.4
0
0
1
2
3
4
5
6
7
Ta=120
°C
250mA
200mA
150mA
DC Current Gain, hFE
3
2
25
°
C
100mA
80mA
60mA
50mA
40mA
10
7
5
3
0.01
--40
°
C
30mA
20mA
10mA
IB=0
8
9
10
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
Collector-to-Emitter Voltage, VCE – V
10
7
5
ITR05571
10
Collector Current, IC – A
ITR05572
VCE(sat) -- IC
IC / IB=5
Base-to-Emitter
Saturation Voltage, VBE (sat) – V
VBE(sat) -- IC
IC / IB=5
7
5
3
2
Collector-to-Emitter
Saturation Voltage, VCE (sat) – V
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.01
Ta=--4
0
°
C
25
°
C
120
°
C
1.0
7
5
3
Ta=--40°C
25
°C
120
°
C
2
0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
Collector Current, IC – A
ITR05573
Collector Current, IC – A
ITR05574
No.1580–2/4
2SC3457

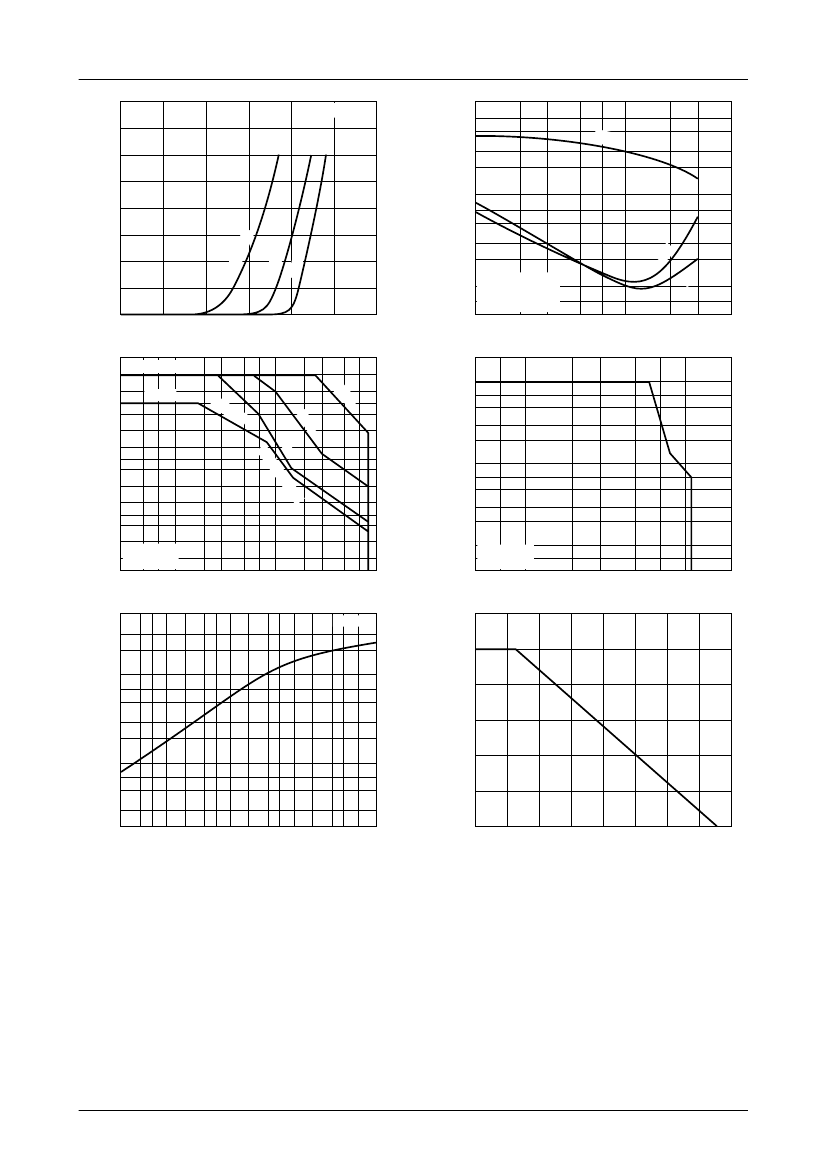

4
IC -- VBE
VCE=5V
Switching Time, SW time –
µs
10
7
5
3
2
1.0
7
5
3
2
0.1
SW Time -- IC
tstg
Collector Current, IC – A
3
2
20
°
C
--40
°
C
1
Ta=
1
25
°
C
0
0
0.2
0.4
0.6
0.8
1.0
1.2
ITR05575
7
5
0.1
VCC=400V
R load
5IB1=--2.5IB2=IC
2
3
5
7
1.0
2
to
n
tf
3
5
Base-to-Emitter Voltage, VBE – V
2
10
5
3
2
1.0
Collector Current, IC – A
2
10
ITR05576
Forward Bias A S O
ICP=10A
s
0
µ
10
Reverse Bias A S O
Collector Current, IC – A
Collector Current, IC – A
IC=3A
PC
50
W
7
5
3
2
1.0
7
5
3
2
0.1
7
5
s
1m
10
5
3
2
0.1
5
3
2
ms
t
era
ion
DC
op
0.01
5
3
Tc=25°C
Single pulse
3
5
7
10
2
3
5
7
100
2
3
IB2=--0.3A
Tc=25°C
5
7
100
2
3
5
7
1000
2
Collector-to-Emitter Voltage, VCE –
Transient Thermal Resistance, Rth(t) –
°C
/ W
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.1
7 1000
V
ITR05577
60
5
Collector-to-Emitter Voltage, VCE – V
ITR05578
Rth(t) -- t
Tc=25°C
Collector Dissipation, P
C
– W
PC -- Ta
50
40
30
20
10
0
2 3
5
1.0
2 3
5
10
2 3
5
100
2 3
Time, t – ms
5 1000
ITR05579
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta – ˚C
ITR05580
No.1580–3/4
2SC3457
