2SC3066F(DP6A) datasheet, PDF - EEWORLD Datasheet

2SC3066F(DP6A): DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon, DP6A, CASE 2029A, 6 PIN; CategoryDiscrete semiconductor The transistor; File Size118KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

2SC3066F(DP6A) Overview

Small Signal Bipolar Transistor, 0.05A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon, DP6A, CASE 2029A, 6 PIN

Parameter Name	Attribute value
Objectid	1881597745
package instruction	IN-LINE, R-PDIP-T6
Contacts	6
Manufacturer packaging code	CASE 2029A
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	120 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JESD-30 code	R-PDIP-T6
Number of components	1
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	130 MHz

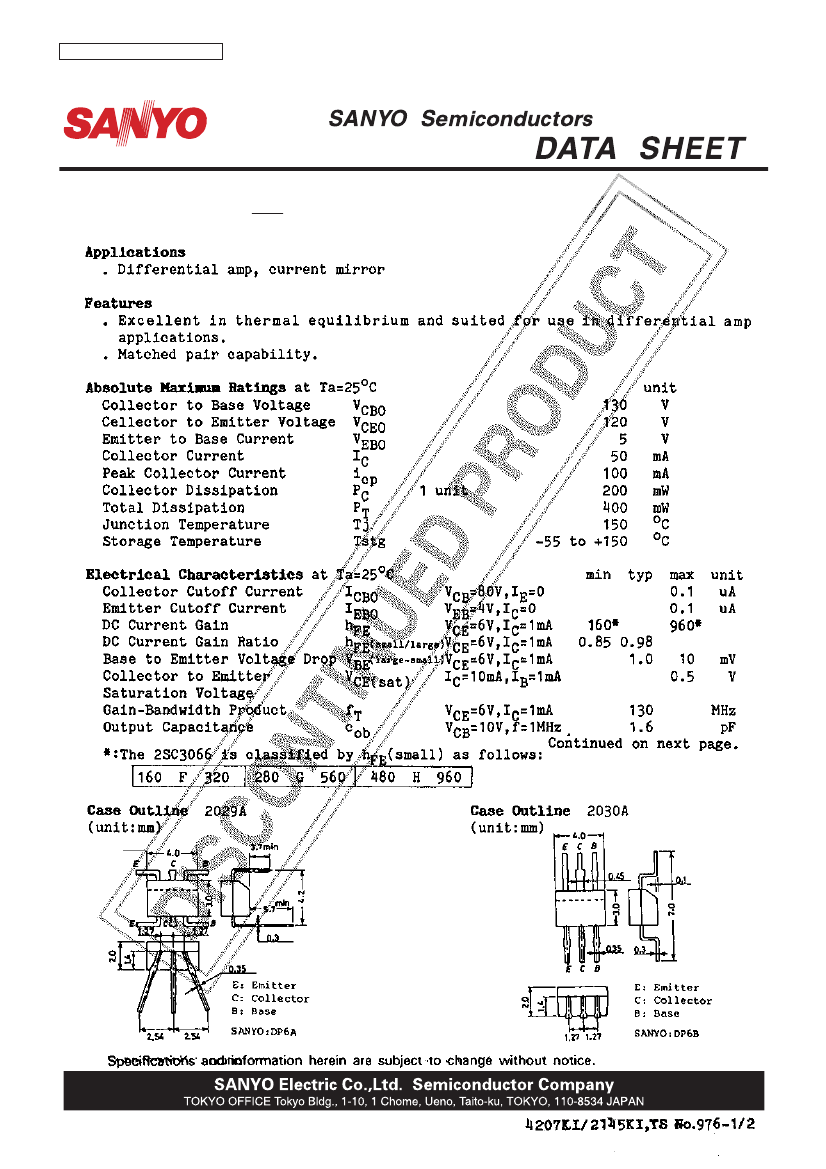

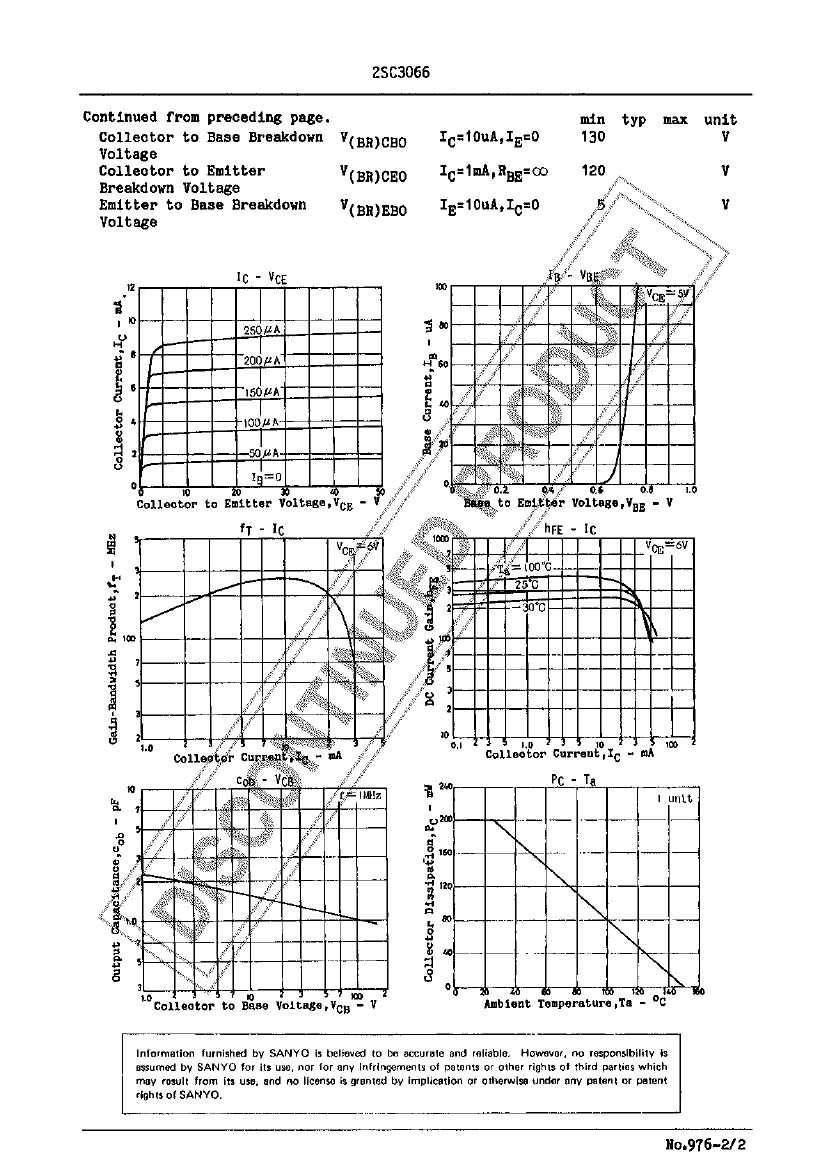

Ordering number : 9 7 6 B

NPN Epitaxial Planar Silicon Transistor

2SC3066

Differential Amp Applications
