Type AFC
–55 °C to 105 °C
SMT Aluminum Electrolytic Capacitors - Low Impedance, 105 °C
Low Impedance and Long-Life for Filtering, Bypassing and Power Supply Decoupling
100 kHz, most ratings can handle more than twice the ripple current of
type AHA. With solid performance at temperatures down to –55 ° C,
Type AFC has more than 90% capacitance retention at –20 ° C and
1 kHz. With low impedance to beyond 100 kHz, it is ideal for higher
power DC/DC converters. The vertical cylindrical cases make for easy
automatic mounting and reflow soldering, and offer big savings and
higher capacitance compared to tantalum capacitors.
Highlights
•
+105
°C,
Up to 1000 Hour Load Life
•
Capacitance Range: 1 µF to 1500 µF
•
Voltage Range: 6.3 Vdc to 50 Vdc
•
AEC-Q200 Compliant
–55 °C to +105 °C
6.3, 10, 16, 25 & 50 Vdc
1.0
µF
to 1500
µF
±20% @ 120 Hz and +20 °C
0.01 CV or 3
µA
@ +20 °C, after two minutes (whichever is greater)
See ratings table
50/60 Hz
120 Hz
1 kHz
10 kHz
100 kHz
Frequency
0.70
.0.75
0.90
0.95
1.00
T
ype AFC Capacitors are the choice for high-frequency filtering. At
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Dissipation Factor:
Ripple Current Multiplier:
Load Life:
1000 h @ +105 °C
∆ Capacitance ±20%
DF: ≤200% of limit
DCL: ≤100% of limit
Shelf Life:
1000 h @ +105 °C
∆ Capacitance ±20%
DF: ≤200% of limit
DCL: ≤100% of limit
RoHS Compliant

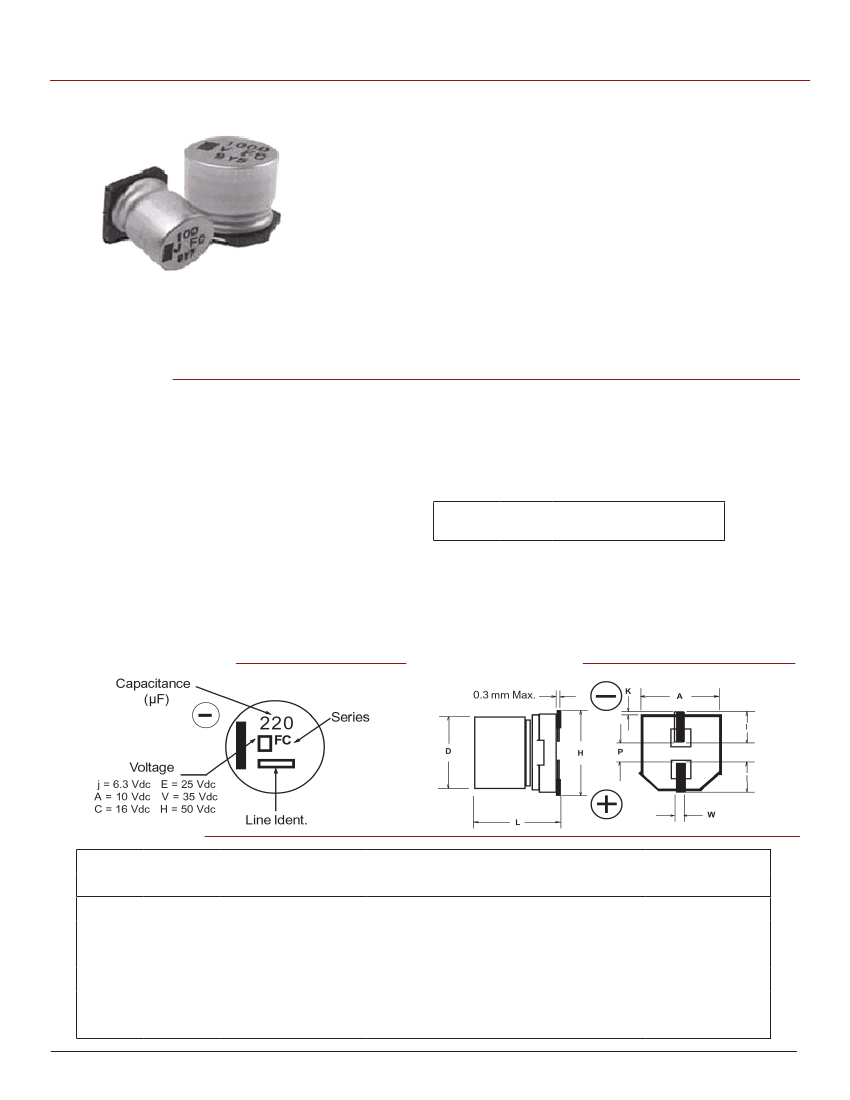

AFC Series Marking
Outline Drawing
Case Dimensions
Case
Code
B
C
D
E
F
G
Dimensions in (mm)
D ± 0.5
4.0
5.0
6.3
8.0
8.0
10.0
L
5.4 +.1,-.2
5.4 +.1,-.2
5.4 +.1,-.2
6.2 ±.3
10.2 ±.3
10.2 ±.3
A ± 0.2
4.3
5.3
6.6
8.3
8.3
10.3
H (max)
5.5
6.5
7.8
9.5
10.0
12.0
I (ref)
1.8
2.2
2.4
3.4
3.4
3.5
W
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.90 ± 0.2
0.90 ± 0.2
P (ref)
1.0
1.5
1.8
2.2
3.2
4.6
K
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.70 ± 0.20
0.70 ± 0.20
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

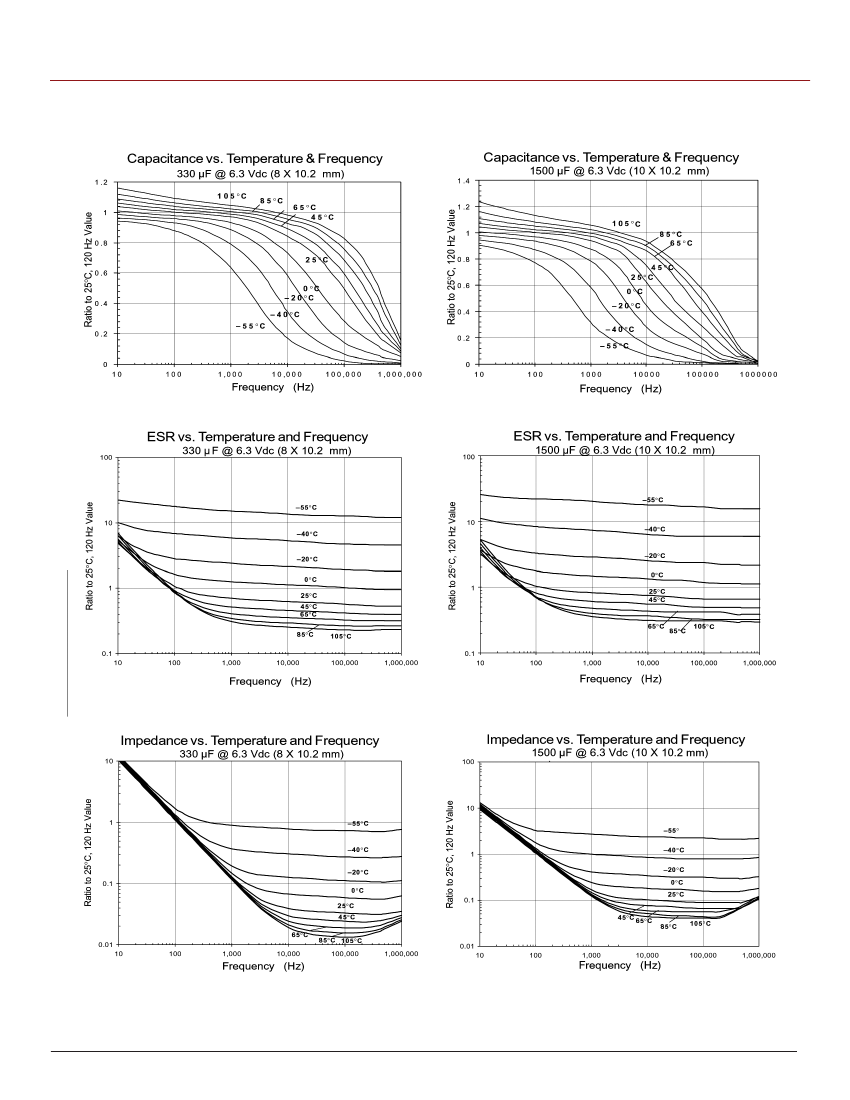

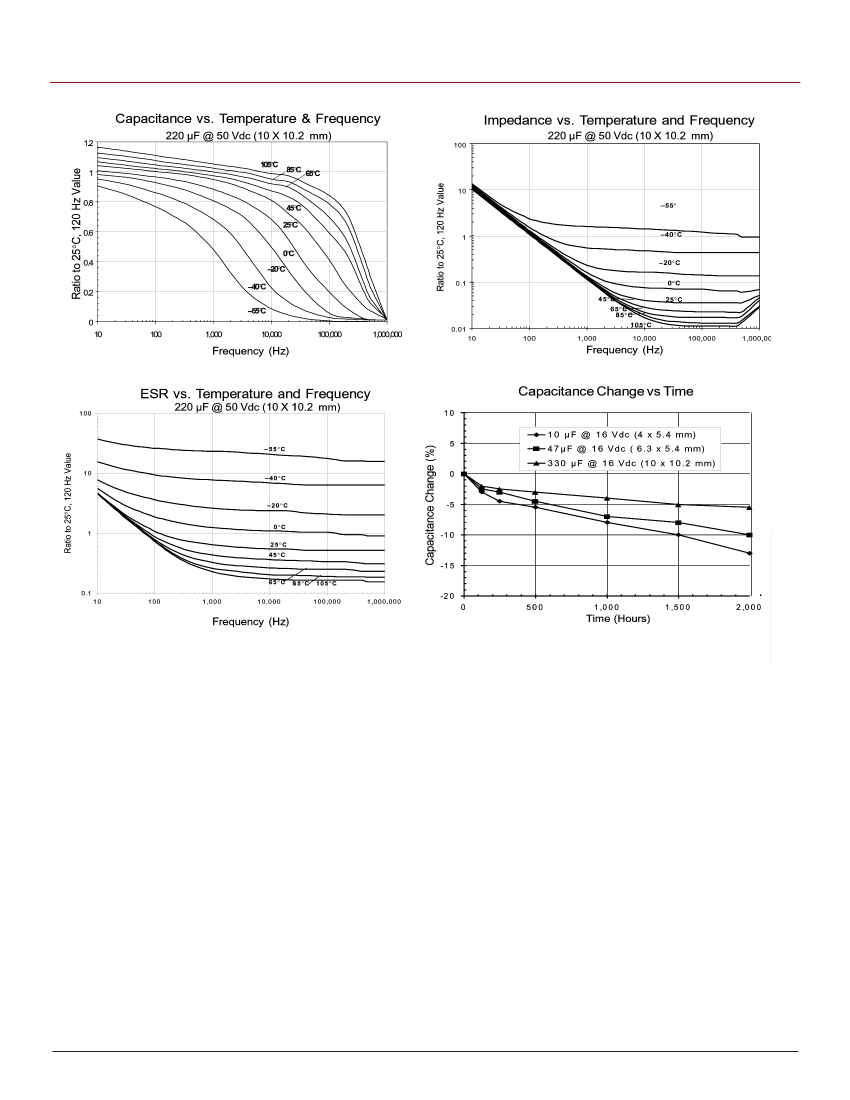

Type AFC
–55 °C to 105 °C
SMT Aluminum Electrolytic Capacitors - Low Impedance, 105 °C
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer is responsible
for checking, confirming and verifying the extent to which the Information contained in this datasheet or other
publication is applicable to an order at the time the order is placed. All Information given herein is believed to be
accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind,
expressed or implied. Statements of suitability for certain applications are based on the knowledge that the Cornell
Dubilier company providing such statements (“Cornell Dubilier”) has of operating conditions that such Cornell
Dubilier company regards as typical for such applications, but are not intended to constitute any guarantee, warranty
or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage, transportation, or
operating environment. The Information is intended for use only by customers who have the requisite experience and
capability to determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given gratis (unless
otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability for the advice given or
results obtained. Although Cornell Dubilier strives to apply the most stringent quality and safety standards regarding
the design and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable
designs or other safeguards (such as installation of protective circuitry or redundancies or other appropriate protective
measures) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or
property damage. Although all product-related warnings, cautions and notes must be observed, the customer should
not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures
may not be required.
