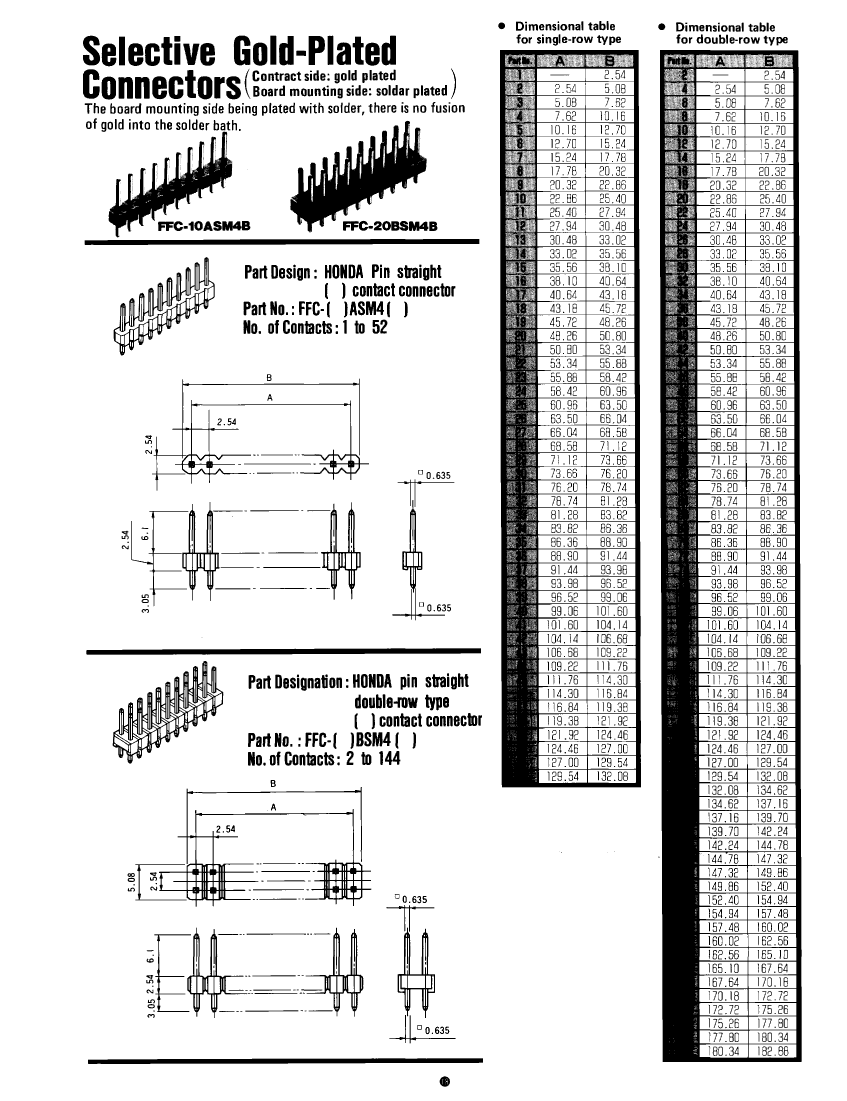

FFC-ASM4 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

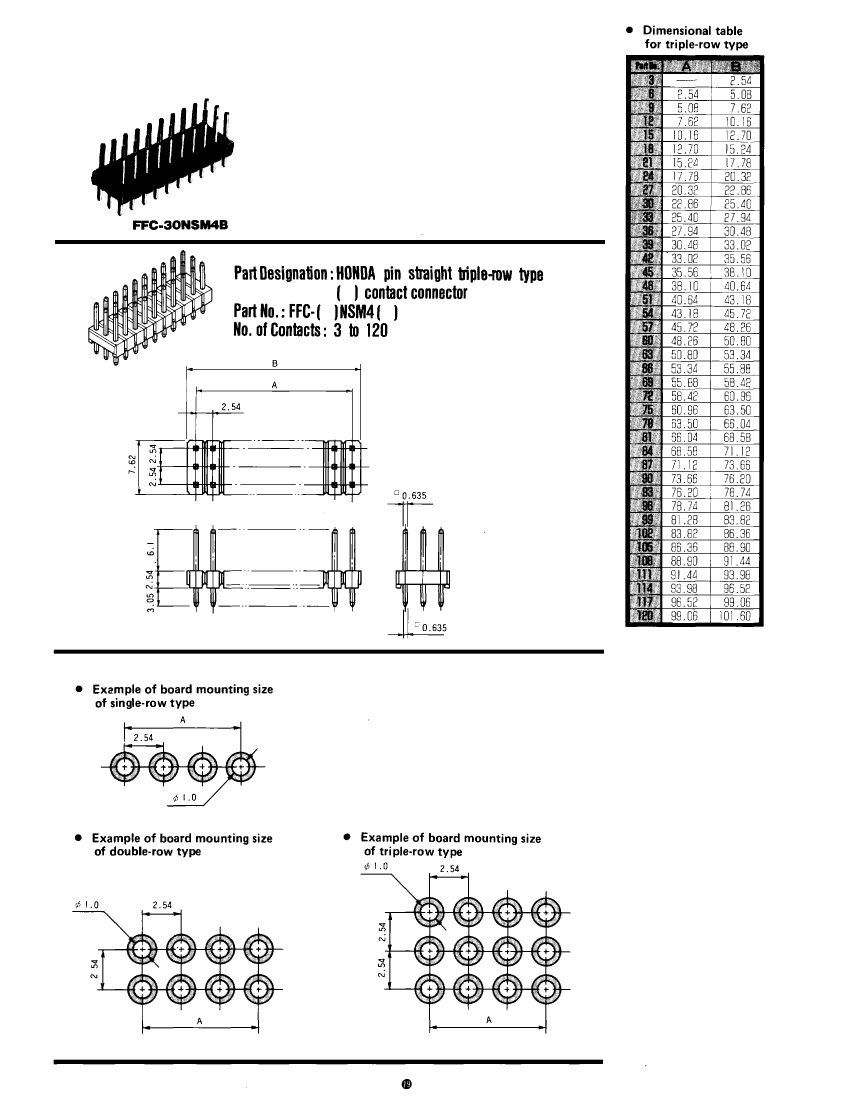

	FFC-ASM4	FFC-BSM4	FFC-NSM4
Description	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 30 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	2	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	10	20	30
