KBF-455M-4A: DescriptionCeramic BPF, 0.455MHz; CategoryAnalog mixed-signal IC filter; File Size163KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

KBF-455M-4A Overview

Ceramic BPF, 0.455MHz

KBF-455M-4A Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	unknown
Other features	2 ELEMENT; HIGH SELECTIVITY
Attenuation frequency (+/-Δf) - minimum value	2 kHz
Attenuation@frequency min	6 dB
Center frequency or cutoff frequency (fo/fc)	0.455 MHz
filter type	CERAMIC BPF
high	8 mm
Input/output impedance	2000 OHM
Maximum insertion loss	6 dB
length	7 mm
Manufacturer's serial number	KBF-455M
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
physical size	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)
width	6 mm

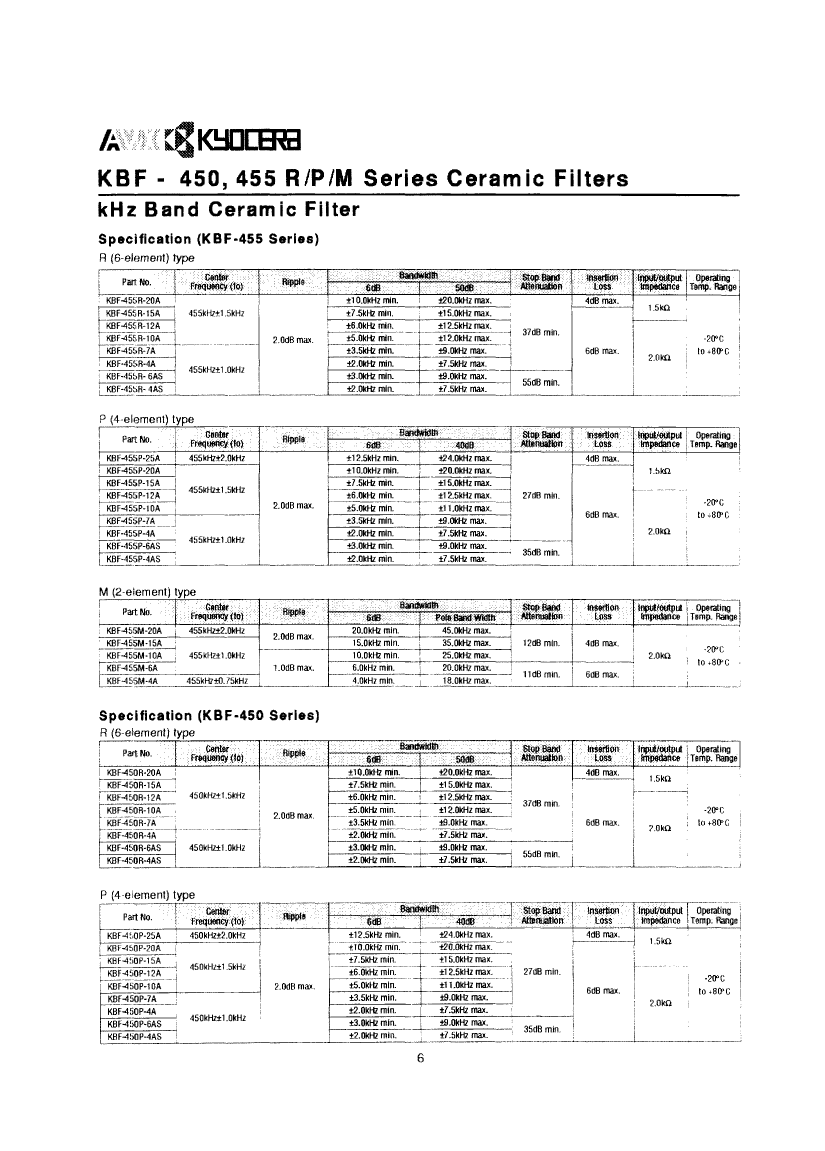

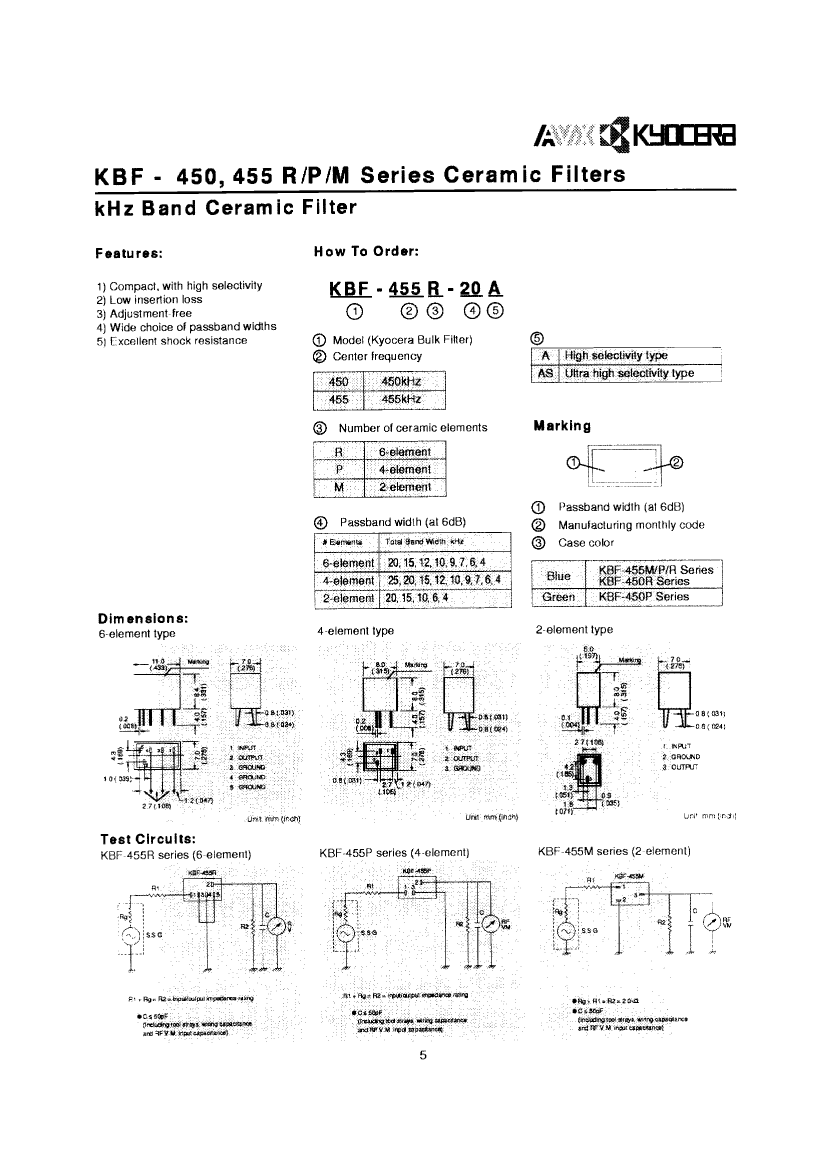

Preview

Download Datasheet

View All

KBF-455M-4A Related Products

	KBF-455M-4A	KBF-455R-4A	KBF-455M-10A	KBF-455M-15A	KBF-455M-20A	KBF-455M-6A	KBF-450P-4A
Description	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.455MHz	Ceramic BPF, 0.45MHz
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	2 ELEMENT; HIGH SELECTIVITY	6 ELEMENT; HIGH SELECTIVITY	2 ELEMENT; HIGH SELECTIVITY	2 ELEMENT; HIGH SELECTIVITY	2 ELEMENT; HIGH SELECTIVITY	2 ELEMENT; HIGH SELECTIVITY	4 ELEMENT; HIGH SELECTIVITY
Attenuation frequency (+/-Δf) - minimum value	2 kHz	2 kHz	5 kHz	7.5 kHz	10 kHz	3 kHz	2 kHz
Attenuation@frequency min	6 dB	6 dB	6 dB	6 dB	6 dB	6 dB	6 dB
Center frequency or cutoff frequency (fo/fc)	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.45 MHz
filter type	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF
high	8 mm	8.4 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Input/output impedance	2000 OHM	2000 OHM	2000 OHM	2000 OHM	2000 OHM	2000 OHM	2000 OHM
Maximum insertion loss	6 dB	6 dB	4 dB	4 dB	4 dB	6 dB	6 dB
length	7 mm	11 mm	7 mm	7 mm	7 mm	7 mm	8 mm
Manufacturer's serial number	KBF-455M	KBF-455R	KBF-455M	KBF-455M	KBF-455M	KBF-455M	KBF-450P
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
physical size	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)	L11XB7XH8.4 (mm)/L0.433XB0.276XH0.331 (inch)	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)	L7XB6XH8 (mm)/L0.276XB0.197XH0.315 (inch)	L8XB7XH8 (mm)/L0.315XB0.276XH0.315 (inch)
width	6 mm	7 mm	6 mm	6 mm	6 mm	6 mm	7 mm
