2SC3617TK-AZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC3617TK-AZ

2SC3617TK-AZ: Description300mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size226KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2SC3617TK-AZ Overview

300mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN

2SC3617TK-AZ Parametric

Parameter Name	Attribute value
Parts packaging code	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	2000
JESD-30 code	R-PSSO-F3
JESD-609 code	e6
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	220 MHz
Base Number Matches	1

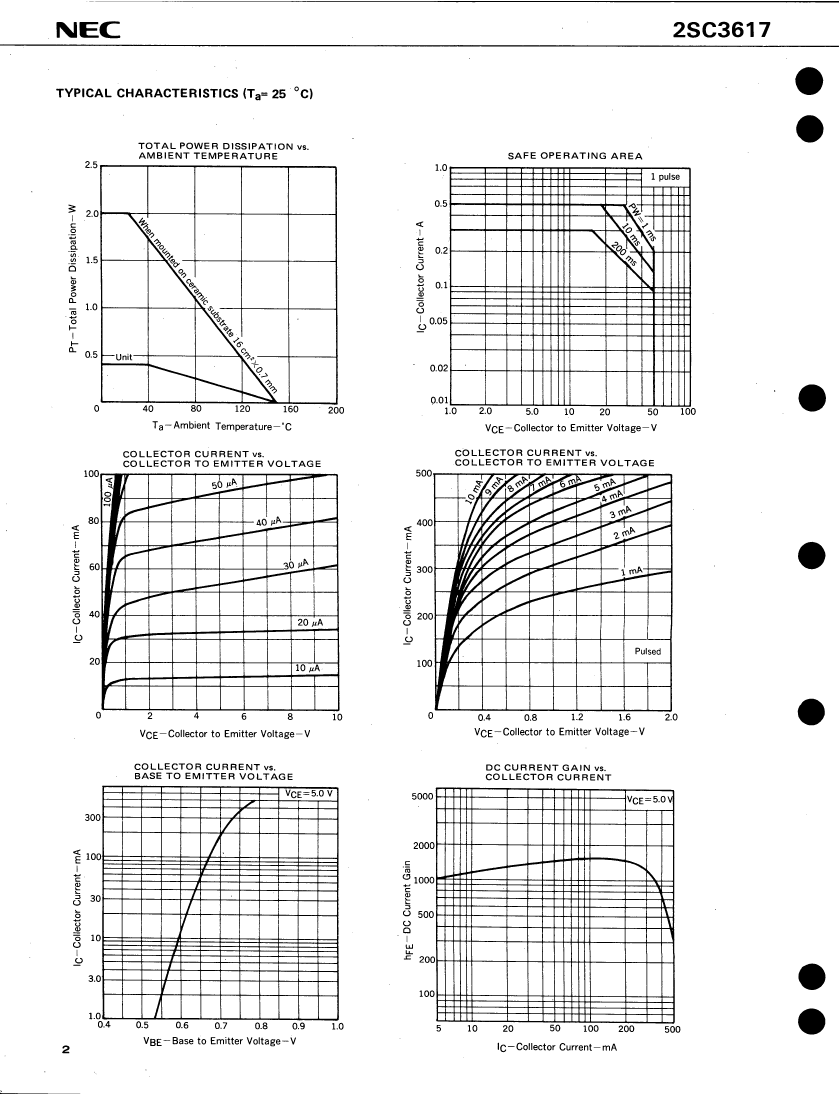

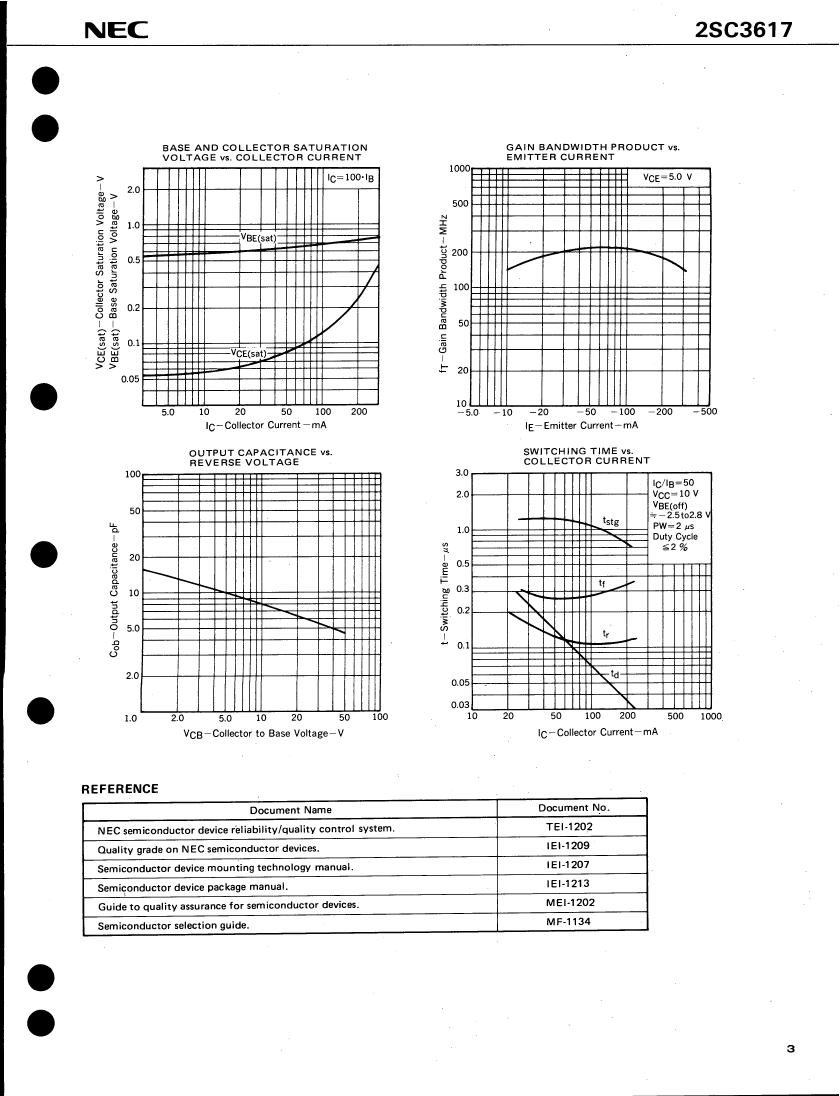

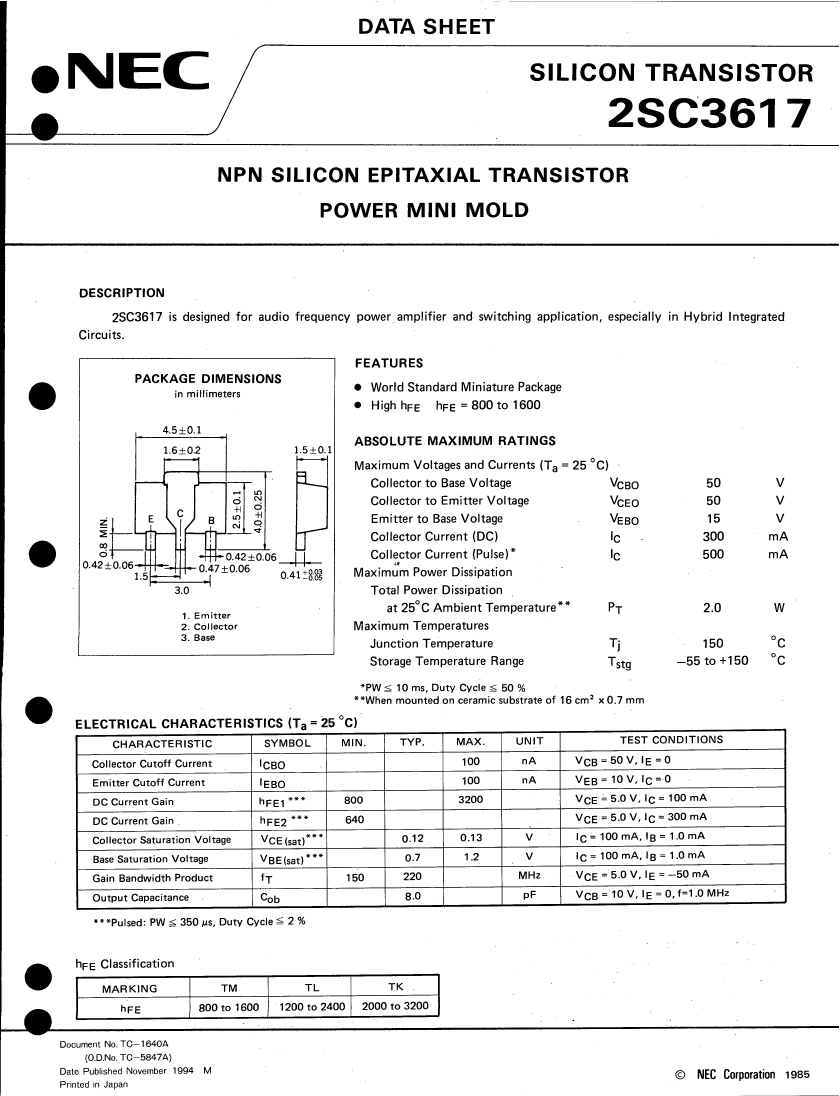

Preview

Download Datasheet

View All

2SC3617TK-AZ Related Products

	2SC3617TK-AZ	2SC3617TL-AZ	2SC3617TM-AZ
Description	300mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	300mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	300mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN
Parts packaging code	SC-62	SC-62	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Contacts	3	3	3
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.3 A	0.3 A	0.3 A
Collector-emitter maximum voltage	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	2000	1200	800
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
JESD-609 code	e6	e6	e6
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	220 MHz	220 MHz	220 MHz
Base Number Matches	1	1	1
