DA-26-4: DescriptionRF/Microwave Attenuator, 2000 MHz - 6000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 5 dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size639KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

DA-26-4 Overview

RF/Microwave Attenuator, 2000 MHz - 6000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 5 dB INSERTION LOSS-MAX

DA-26-4 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Nominal attenuation	15 dB
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum insertion loss	5 dB
Maximum operating frequency	6000 MHz
Minimum operating frequency	2000 MHz
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

MODEL

DA-26-4, DA-618-4

2-18 GHz, Digital Attenuators

TECHNICAL BULLETIN

Description

Two models are provided, to cover the frequency

range of 2-18 GHz, in two bands: 2-6GHz

(Model DA-26-4) and 6-18Ghz Model DA-618-4).

Both models are 4-bit digitally controlled, with a

dynamic range of 15dB.

The units are designed in microstrip, using PIN

diodes to switch ceramic film resistor elements.

The units have SMA connectors and solder feed-

through bias terminals.

They are intended for military, including airborne,

applications. *(1)

SPECIFICATIONS

MODEL: DA-26-4

MODEL: DA-618-4

Frequency:

2-6 GHz

6-18 GHz

Insertion Loss:

5.0 dBMax.

7.0 dB Max.

Attenuation range:

15 dB Min.

Attenuation step size:

1 dB nominal

Attenuation error:

+/ - 0.5 dB Max.

+/ - 0.8 dB Max.

VSWR:

1.8 :1 Max.

2.0:1 Max.

Input power Max.:

+20 dBm

Switching speed:

30n Sec., Max.

30n Sec. Max.

Logic Input:

TTL, 4 Bit

TTL 4 Bit

Input power supplies:

+ 5 VDC @ 500 mA DC, and -12 VDC @ 50 mA DC

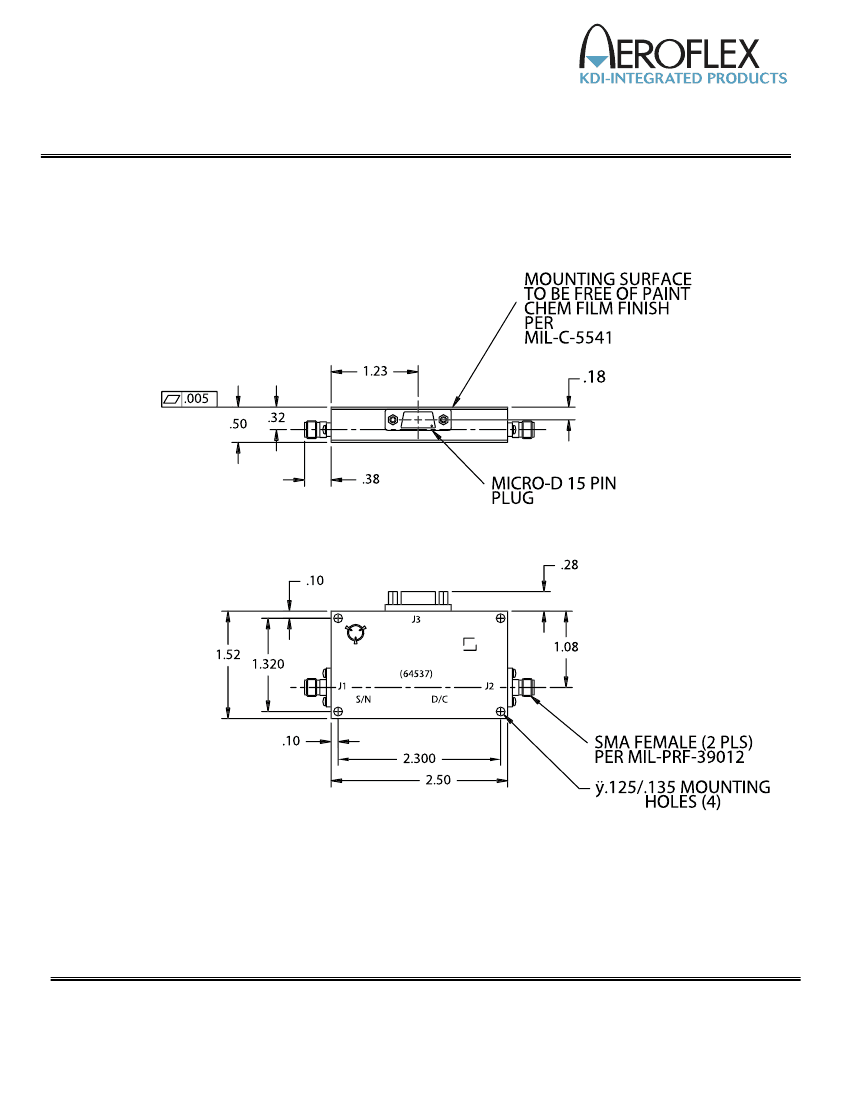

*(1) Environmental conditions:Available upon request.

1

60 South Jefferson Road, Whippany, NJ 07981

TEL: 973-887-8100 * FAX: 973-884-0445 * web: www.aeroflex-kdi.com

email: sales@aeroflex-kdi.com

DA-26-4 Related Products

	DA-26-4	DA-618-4
Description	RF/Microwave Attenuator, 2000 MHz - 6000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 5 dB INSERTION LOSS-MAX	Variable Attenuator, 6000MHz Min, 18000MHz Max, 7dB Insertion Loss-Max
Maker	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown
Nominal attenuation	15 dB	15 dB
structure	COAXIAL	COAXIAL
Maximum input power (CW)	20 dBm	20 dBm
Maximum insertion loss	5 dB	7 dB
Maximum operating frequency	6000 MHz	18000 MHz
Minimum operating frequency	2000 MHz	6000 MHz
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.8	2
