SUR41D: DescriptionSingle Color LED, Red, Diffused, 4.74mm, 3 X 4.5 MM TRIANGULAR; CategoryLED optoelectronic/LED photoelectric; File Size129KB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

SUR41D Overview

Single Color LED, Red, Diffused, 4.74mm, 3 X 4.5 MM TRIANGULAR

SUR41D Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	3 X 4.5 MM TRIANGULAR
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	2.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7.6 mm
method of packing	BULK
peak wavelength	627 nm
shape	TRIANGULAR
size	4.74 mm
surface mount	NO
Terminal pitch	2.3 mm
perspective	100 deg

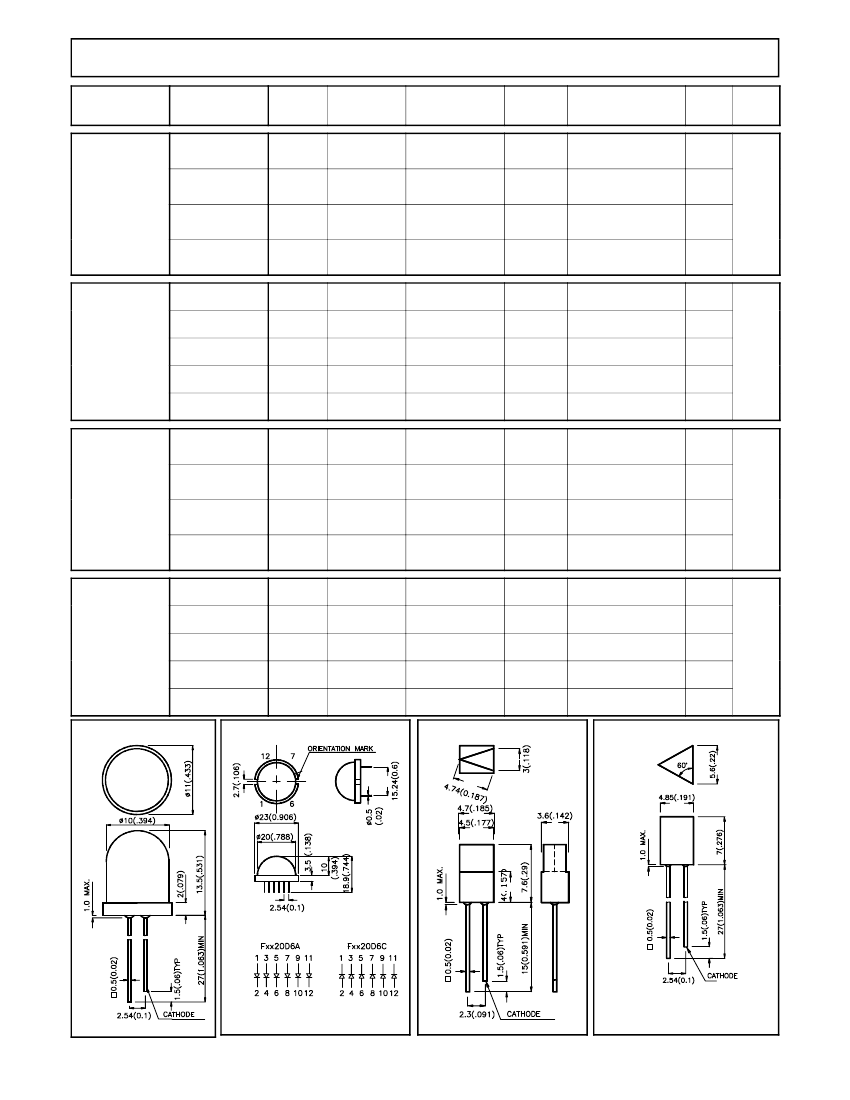

Preview

Download Datasheet

View All

Round

Shape

Part Number

Emitting

Color

and Triangular LEDs

Lens-Color

Wave

Length

(nm)

Luminous Intensity

IF=10mA *20mA(mcd)

Min.

Max.

Viewing

Angle

Figure

No.

Emitting

Material

10mm Round

LUR01D

Red

GaAsP/GaP

Red Diffused

625

*40 - 150

60°

LUO01D

Orange

GaAsP/GaP

Orange Diffused

625

*40 - 150

60°

LUG01D

Green

GaP

Green Diffused

565

*20 - 70

60°

LUY01D

Yellow

GaAsP/GaP

Yellow Diffused

590

*20 - 70

60°

20mm Round

FUR20D6A

FUR20D6C

FMR20D6A

FMR20D6C

FUG20D6A

FUG20D6C

FMG20D6A

FMG20D6C

FUY20D6A

FUY20D6C

Red

Green

Yellow

GaAsP/GaP

GaAlAs

GaP

GaAsP/GaP

Red Diffused

Green Diffused

Yellow Diffused

625

660

565

590

4 - 13

*50 - 80

8 - 40

*40 - 75

2.5 - 8.3

120°

3x4.5mm Triangular

SHR41D

Red

GaP

Red Diffused

700

0.5 - 0.8

100°

SUR41D

Red

GaAsP/GaP

Red Diffused

625

2-5

100°

SUG41D

Green

GaP

Green Diffused

565

1.25 - 3.2

100°

SUY41D

Yellow

GaAsP/GaP

Yellow Diffused

590

1.25 - 3.2

100°

5.6x4.9mm Triangular

SHR40D

SUR40D

SUO40D

SUG40D

SUY40D

Red

Orange

Green

Yellow

GaP

GaAsP/GaP

GaP

GaAsP/GaP

Red Diffused

Orange Diffused

Green Diffused

Yellow Diffused

700

625

565

590

0.5 - 0.8

5 -12.5

2-8

2-5

100°

Package Dimensions Units : mm

Tolerance : .25mm (0.01")
