Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> M67709M

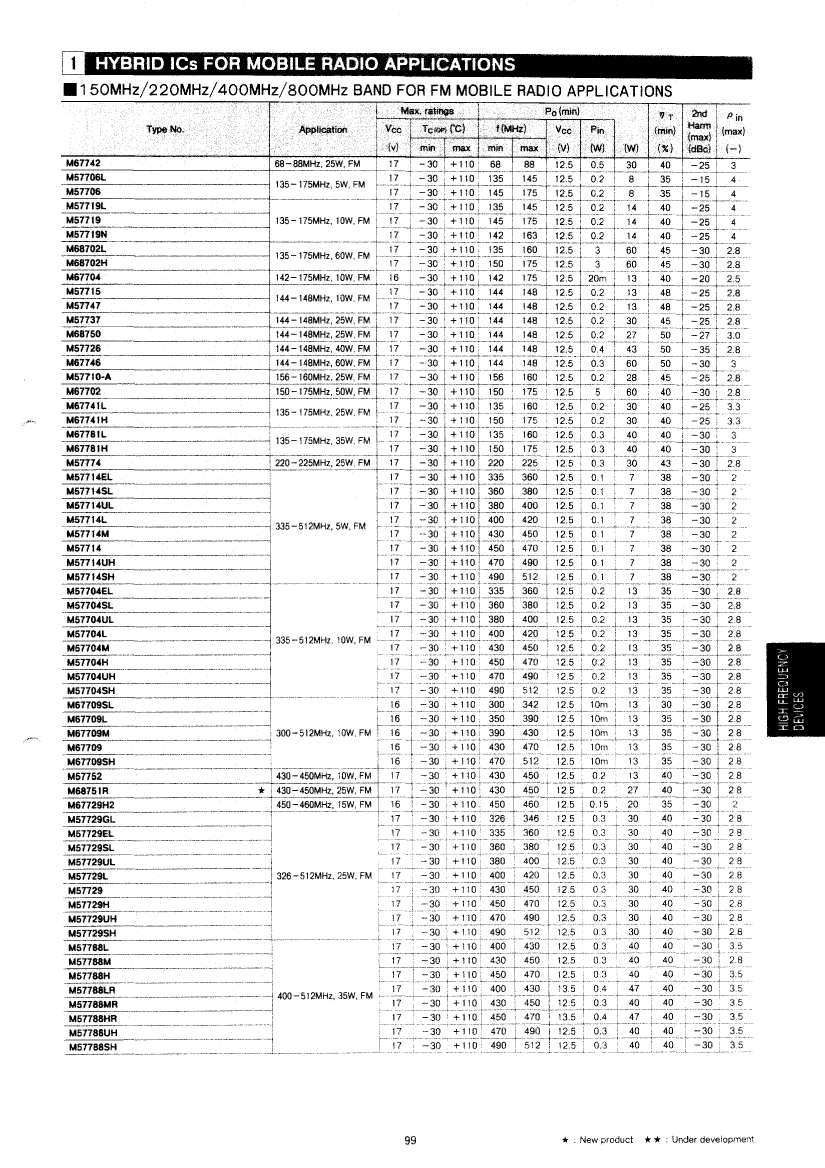

Preview

M67709M: DescriptionNarrow Band High Power Amplifier, 390MHz Min, 430MHz Max, Hybrid,; CategoryWireless rf/communication Radio frequency and microwave; File Size175KB，1 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M67709M Overview

Narrow Band High Power Amplifier, 390MHz Min, 430MHz Max, Hybrid,

M67709M Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	FLNG,2.0\"H.SPACE
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	13 dBm
Maximum operating frequency	430 MHz
Minimum operating frequency	390 MHz
Maximum operating temperature	110 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	FLNG,2.0\"H.SPACE
power supply	5,12.5 V
RF/Microwave Device Types	NARROW BAND HIGH POWER
technology	HYBRID
Maximum voltage standing wave ratio	2.8

Preview

Download Datasheet

View All

M67709M Related Products

	M67709M	M67702	M67704	M67709SL	M67709L	M67709SH	M67729H2
Description	Narrow Band High Power Amplifier, 390MHz Min, 430MHz Max, Hybrid,	Narrow Band High Power Amplifier, 150MHz Min, 175MHz Max, Hybrid,	Narrow Band High Power Amplifier, 142MHz Min, 175MHz Max, Hybrid,	Narrow Band High Power Amplifier, 300MHz Min, 342MHz Max, Hybrid,	Narrow Band High Power Amplifier, 350MHz Min, 390MHz Max, Hybrid,	Narrow Band High Power Amplifier, 470MHz Min, 512MHz Max, Hybrid,	Narrow Band High Power Amplifier, 450MHz Min, 460MHz Max, Hybrid,
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
package instruction	FLNG,2.0\"H.SPACE	FLNG,3.2\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.4\"H.SPACE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	13 dBm	40 dBm	16 dBm	13 dBm	13 dBm	13 dBm	24.77 dBm
Maximum operating frequency	430 MHz	175 MHz	175 MHz	342 MHz	390 MHz	512 MHz	460 MHz
Minimum operating frequency	390 MHz	150 MHz	142 MHz	300 MHz	350 MHz	470 MHz	450 MHz
Maximum operating temperature	110 °C	110 °C	110 °C	100 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	FLNG,2.0\"H.SPACE	FLNG,3.2\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.0\"H.SPACE	FLNG,2.4\"H.SPACE
power supply	5,12.5 V	12.5 V	5,12.5 V	5,12.5 V	5,12.5 V	5,12.5 V	12.5 V
RF/Microwave Device Types	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Maximum voltage standing wave ratio	2.8	2.8	2.5	20	2.8	2.8	2
