8001-4151: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size218KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8001-4151 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

8001-4151 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.494 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8001
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.118 inch
Termination type	SOLDER LUG
Total number of contacts	15

Preview

Download Datasheet

View All

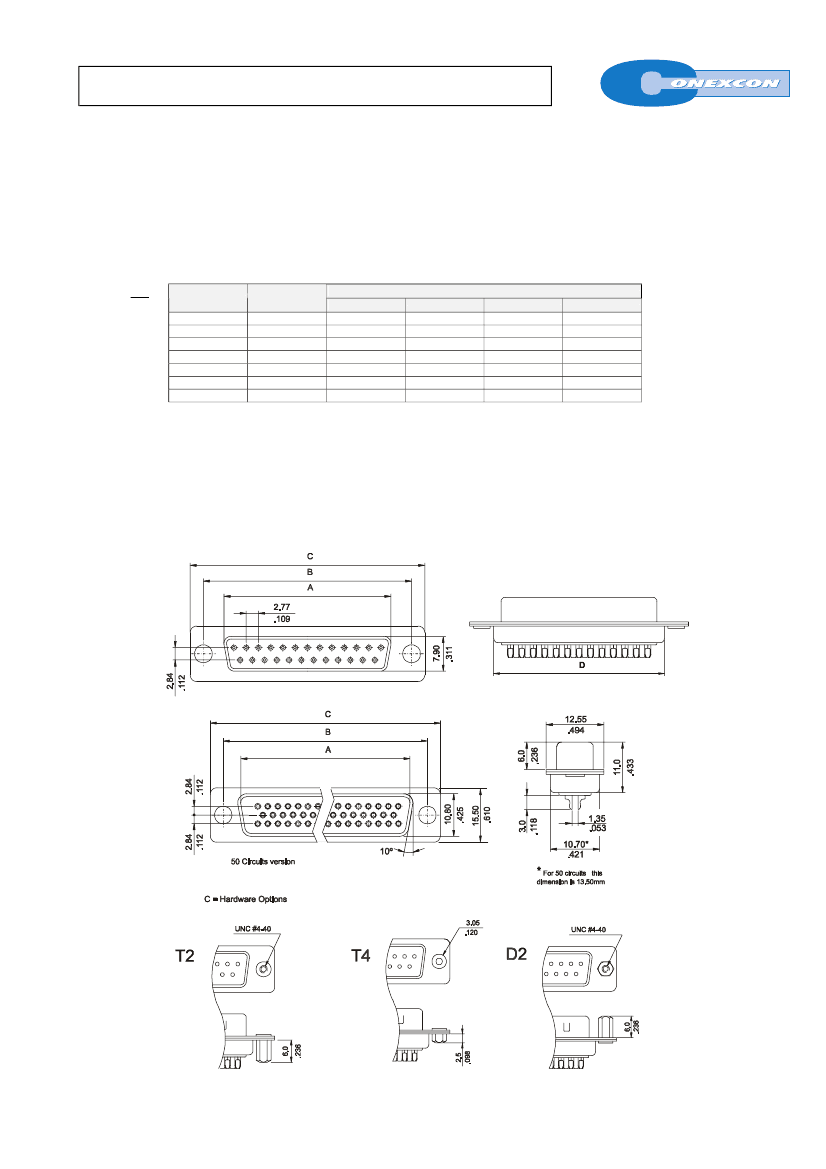

SOLDER TYPE D-SUB RECEPTACLE

SERIES.

8001 SERIES

Solder Type D-Sub

Features

!

#

Shell: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information

Part Number

8001 –

T09C

8001 –

T15C

8001 –

T19C

8001 –

T23C

8001 –

T25C

8001 –

T37C

8001 –

T50C

Dimensions

A

16.33 (0.643)

24.66 (0.971)

30.07 (1.184)

35.41 (1.394)

38.38 (1.511)

54.84 (2.159)

52.43 (2.064)

B

24.99 (0.984)

33.32 (1.312)

38.94 (1.533)

44.28 (1.743)

47.04 (1.852)

63.50 (2.500)

61.11 (2.406)

C

30.81 (1.213)

39.14 (1.541)

44.94 (1.769)

50.56 (1.991)

53.04 (2.088)

69.32 (2.729)

66.93 (2.635)

D

19.23 (0.757)

27.56 (1.085)

32.86 (1.294)

38.38 (1.511)

41.28 (1.625)

57.73 (2.273)

55.12 (2.170)

#

Available in 9, 15, 19, 23, 25, 37 and 50 circuits

Insulator Material: Glass filled

polyester

UL 94V-0

Contact Material: Phosphor

bronze

Different plating options are available

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

9

15

19

23

25

37

50

T = Contact Plating

C = Hardware Options

#

T =

3.

Gold flash over 50µ” nickel

T =

4.

10µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

#

C =

1.

Standard with 3.05mm(.012”) dia. mount hole

C =

2.

Version T2

C =

3.

Version T4

C =

4.

Version D2

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
