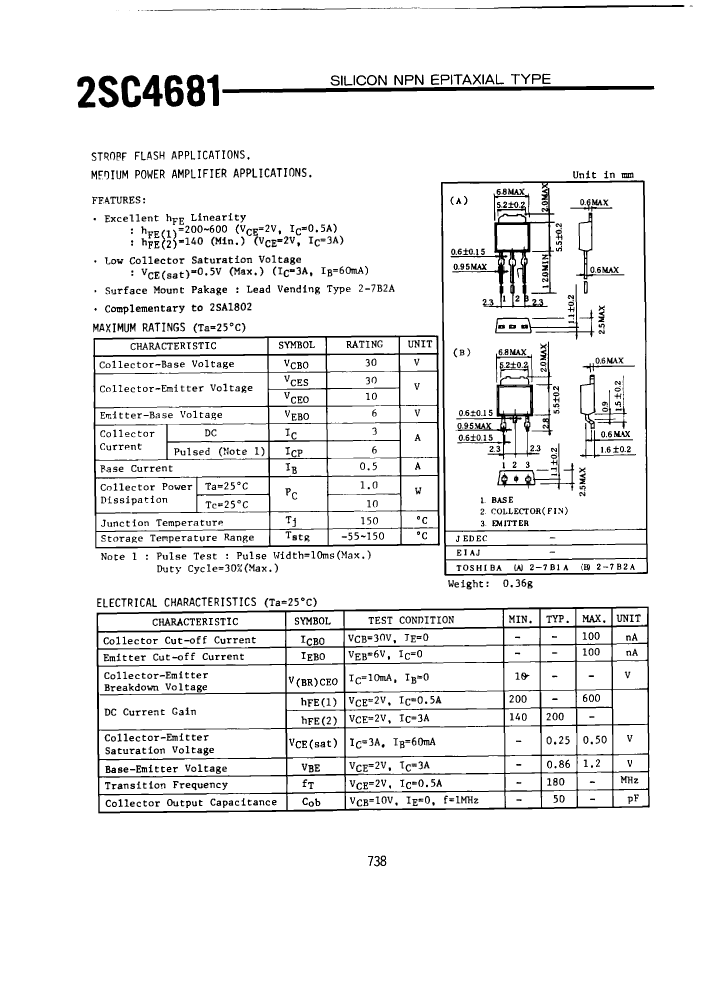

2SC4681B datasheet, PDF - EEWORLD Datasheet

2SC4681B: DescriptionTRANSISTOR 3000 mA, 10 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size36KB，1 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

2SC4681B Overview

TRANSISTOR 3000 mA, 10 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PSSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	10 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JESD-30 code	R-PSSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
Base Number Matches	1

	2SC4681B	2SC4681A
Description	TRANSISTOR 3000 mA, 10 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 10 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
package instruction	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A
Collector-emitter maximum voltage	10 V	10 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	140	140
JESD-30 code	R-PSSO-G3	R-PSIP-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	NO
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	180 MHz	180 MHz
Base Number Matches	1	1
