REVISION AE
DO NOT
SCALE FROM
THIS PRINT
POSITION #1
INDICATOR
01
DESIGNED AND DIMENSIONED
IN MILLIMETERS [INCHES]
C
"A" REF
(SEE TABLE 5)
"B" REF
(SEE TABLE 5)
59
No OF POSITIONS
(PER ROW)
-005, -010, -011, -013, -020, -025, -030,
-035, -040, -049, -050, -060, -070, -075,-100
(-100 AVAILABLE ON -09.0 LEAD STYLE ONLY
SEE NOTE 8)
LEAD STYLE
ERM8-XXX-XX.X-X-DV-XXXX-XX
3.25 .128
REF
02
5.60 .220
REF
C
0.800 .031
(TOL. NON-ACCUM)
"C"
(SEE TABLE 5)
C
60
-02.0 = 2mm
-05.0 = 5mm
-08.0 = 8mm
-09.0 = 9mm
***-15.0 = 15mm
PLATING SPECIFICATION
-L: 10µ" LIGHT SELECTIVE GOLD
IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD
IN CONTACT AREA,
MATTE TIN ON TAIL
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
** = NOT RELEASED FOR PRODUCTION
*** = NOT TOOLED
1.10 .043
REF
ERM8-XXX-XX.X-DV-01
(SEE TABLE 3)
"A"
0.23 .009 REF
"C"
(SEE TABLE 5)
C
L
C
"A"
1.32 .052
REF
3° MAX
SWAY
C
L
NOTES:
-K: POLYIMIDE FILM PAD
(FOR -EGP & EGPS OPTIONS
USE K-DOT-.157-.250-.005)
(FOR ALL OTHER OPTIONS USE K-500-300)
-DS: DIFFERENTIAL PAIR (HOT SWAP)
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(SEE TABLE 4 FOR POSITION AVAILABILITY)
-L : LATCHES
(AVAILABLE ONLY ON -05.0, -08.0, -09.0 &
***-15.0 LEAD STYLES. -L ON -08.0 & -09.0
NOT TOOLED)
(SEE TABLE FOR AVAILABILITY)
(NOT AVAILABLE WITH -EGP, -L2, -W, -EGP, -EGPS
OPTIONS)
*** -L2: LATCHES WITH LONG WELD TAB
(AVAILABLE ONLY ON -05.0, -08.0 & .09.0
LEAD STYLES)(NOT AVAILABLE WITH -L, -E, -W,
-EGP AND -EGPS OPTIONS)
*** -E: EXTENDED GUIDE POSTS, WITH LONG WELD TAB
(AVAILABLE ONLY ON -05.0, -08.0 & .09.0
LEAD STYLES, NOT AVAILABLE WITH -L OPTION,
SEE NOTE 6)
*** -W: WELD TAB (AVAILABLE ONLY ON -05.0, -08.0 & .09.0
LEAD STYLES)
-EGP: EXTENDED GUIDE POSTS
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(NOT AVAILABLE WITH -L OPTION)
-EGPS: EXTENDED GUIDE POST SHIELD
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(NOT AVAILABLE WITH -L OPTION)
(-010, -020, -025, & -030 POSITIONS ONLY)
PACKAGING
-TR: TAPE & REEL (SEE NOTES 4 & 7)
-TY: TRAY (SEE NOTE 7)
OPTIONS
"N"
(SEE TABLE 8)
1.50 .059
'R'
0.800 .0315 (TYP)
C
(TOL. NON-ACCUM)
"D" REF
(SEE TABLE 5)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: TERMINAL 2.22 N [.5 LB.], WELD TAB 4.45 N [1 LB.]
4. FOR QUANTITY UP TO 49 PIECES, NO LEADER, TRAILER, OR
EIA-481-D REEL WILL BE SUPPLIED. FOR QUANTITY OF 50-124
PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.
5. "F" DIMENSION DOES NOT APPLY TO -EGP & -EGPS OPTION, SEE FIG. 5 & 6.
6. NOTE DELETED.
7. -TR PACKAGING NOT AVAILABLE ON THE 100 POSITION; -TY PACKAGING ONLY
AVAILABLE ON -100 POSITION.
8. NOT AVAILABLE WITH -L, -L2, -E OR -W OPTIONS.
(ERM8-030-02.0-X-DV-XX SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)

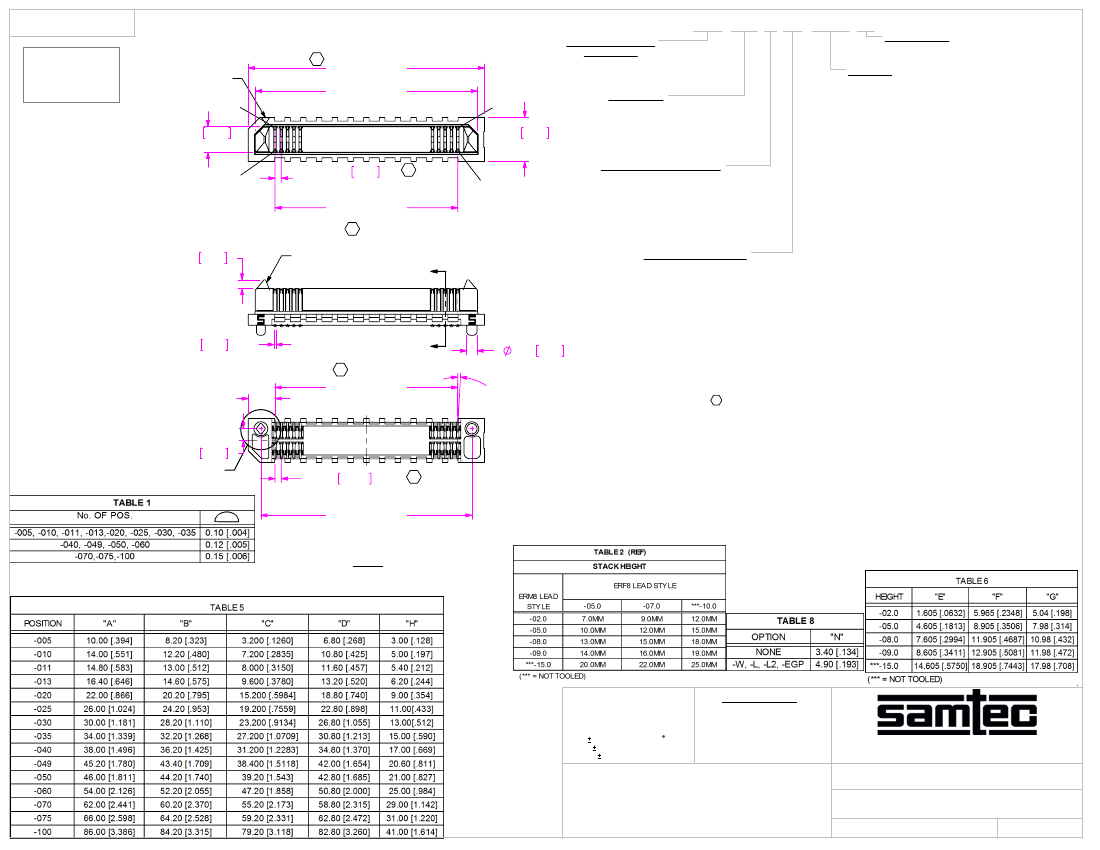

FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.050 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS BRONZE
LATCH: BeCu
SHIELD: PHOS BRONZE
F:\DWG\MISC\Mktg\ERM8-XXX-XX.X-X-DV-XXXX-XX-MKT.slddrw
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-XX
9/27/2005
SHEET
1
OF
6
BY:
KNOWLDEN
REVISION AE
3.200
- 0.060
.1260
- .0024
C
T-1MXX-XX.X-X
(SEE TABLE 3)
"E"
1.07 .042 REF
0.9 .03 REF
C
"F" REF
(SEE TABLE 6)
C
SEE TABLE 1, SHT 1
+0.050
+.0020
0.65 .025
1.10 .043
REF
-A PIN VOID CORES
C
L
C
L
CORE SUPPORT
FEATURE PRESENT IN
LAST 5 POSITIONS ON
EACH END
1.32 .052
REF
4.64
- 0.13
.183
- .005
+0.18
+.007
SECTION "A"-"A"
SCALE 4 : 1
3.20 .126
REF
1.35 .053 REF
(SIGNAL PINS)
C
DETAIL 'R'
SCALE 4 : 1
(ERM8-030-09.0-X-DV-XX SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
BOTTOM VIEW
SIGNAL[SHORT PIN]
GROUND[LONG PIN]
"K"
(SEE TABLE 7)
"P"
C
"N"
SIGNAL[SHORT PIN]
GROUND[LONG PIN]
WT-XX-XX-X
(SEE TABLE 3)
2.10 .082
C
ERM8-XXX-XX.X-DV-L
(SEE TABLE 3)
0.64 .025
REF
"S" REF
(SEE TABLE 3)
"T" REF
(SEE TABLE 3)
C
L
T-1M48-XX.X-X
(SEE TABLE 3)
SECTION "N"-"N"
0.62 .025 REF
(GROUND PINS)
C
L
"N"
"P"
0.30 .012
REF
C
2 MAX SWAY
(EITHER DIRECTION)
SECTION "P"-"P"
C
L
C
"L"
(SEE TABLE 7)
"J" REF
(SEE TABLE 7)
-DS WITH -L OR -L2 OPTIONS
(-DS AVAILABLE ON -05.0 LEADSTYLE ONLY)
(-L AVAILABLE ON -05.0, -08.0, -09.0 & ***-15.0 LEAD STYLES ONLY.
-L ON -08.0 & -09.0 NOT TOOLED)

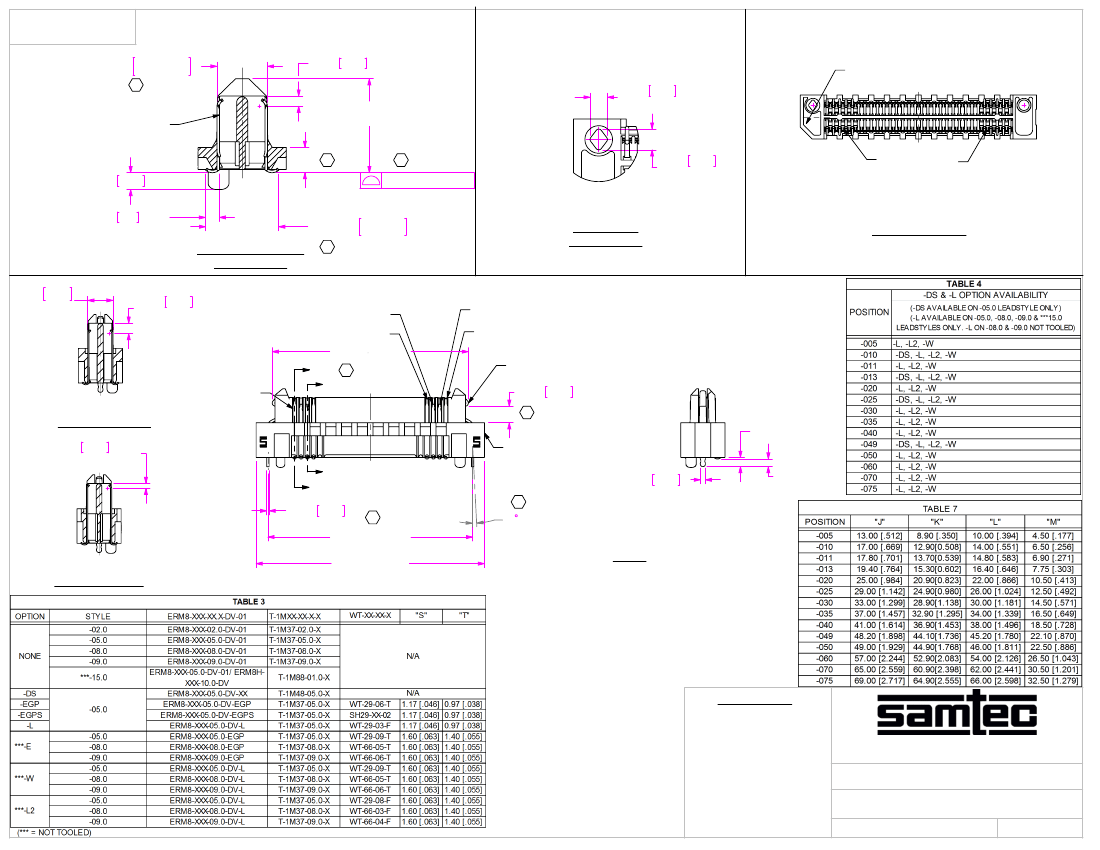

(ERM8-025-05.0-X-DV-DS-L SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-XX
SHEET
2
OF
6
BY:
KNOWLDEN 9/27/2005
F:\DWG\MISC\Mktg\ERM8-XXX-XX.X-X-DV-XXXX-XX-MKT.slddrw
REVISION AE
"A"
(SEE SHT 1, TABLE 5)
C
"H"
0.50[.020]
C
L
C
L
C
L
"G"
(SEE SHT 1,
TABLE 6)
C
"M"
0.50[.020]
(SEE TABLE 7)
4.00 .157
-K OPTION
(FOR -EGP, -E OR -ES OPTIONS USE K-DOT-.157-.250-.005)
(USE K-500-300 FOR ALL OTHER OPTIONS)
(ERM8-030-XX.X-X-DV-K SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 2
0.46 .018
C
-K WITH -L, -L2 OR -W OPTIONS
(ERM8-025-05.0-X-DV-K-L SHOWN)
(SAME AS FIG 2, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 4

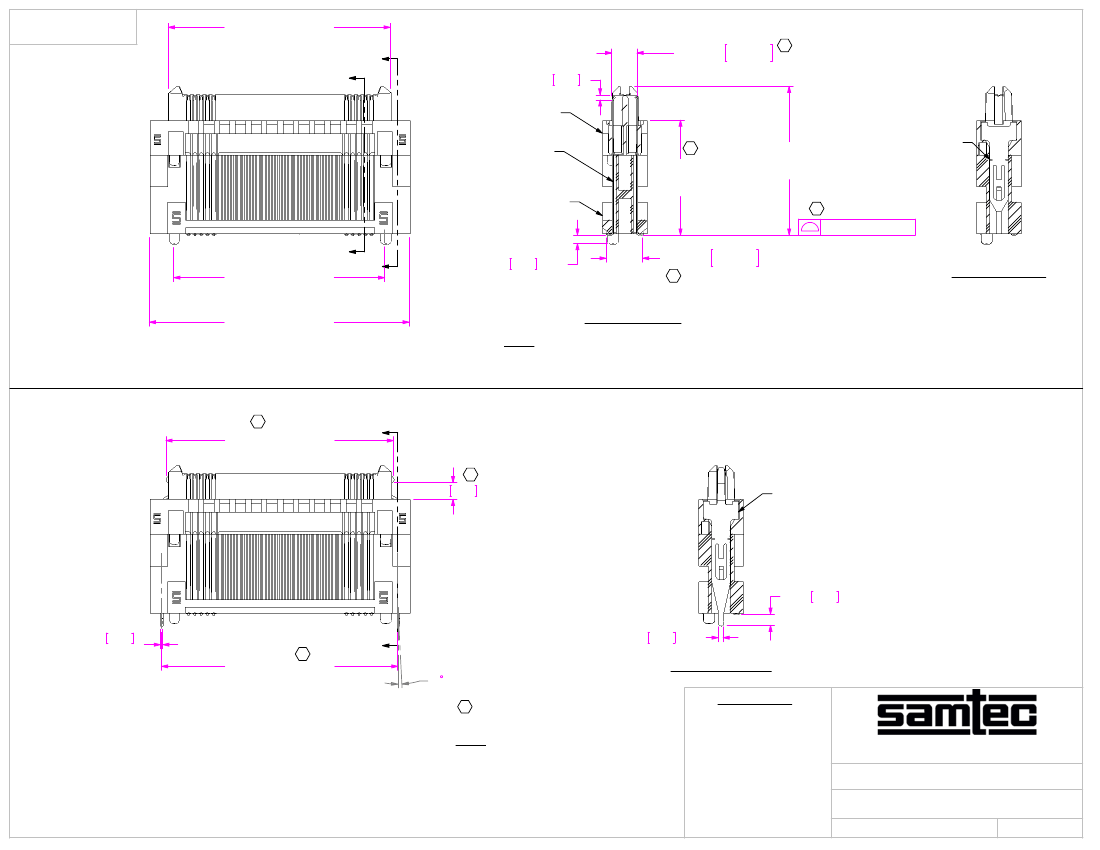

-EGP AND -E OPTIONS
(AVAILABLE ON -05.0 LEAD STYLE ONLY)
(ERM8-030-05.0-X-DV-EGP SHOWN)
(SAME AS FIG 3, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
"J" REF
(SEE SHT 2, TABLE 7)
C
0.11±0.076 .004±.003
FIG 5
10.805 .425
REF
ERM8-XXX-05.0-DV-EGP
(SEE TABLE 3)
WT-XX-XX-X
(SEE TABLE 3)
"L"
(SEE SHT 2, TABLE 7)
C
C
2 MAX SWAY
(EITHER DIRECTION)
"S" (SEE SHT 2, TABLE 3)
"T" (SEE SHT 2, TABLE 3)
C
3 MAX SWAY
C
T-1M37-XX.X-X
IN-PROCESS VIEW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-XX
SHEET
3
OF
6
BY:
KNOWLDEN 9/27/2005
F:\DWG\MISC\Mktg\ERM8-XXX-XX.X-X-DV-XXXX-XX-MKT.slddrw
REVISION AE
C
L
"B"
"B"
"P"
(SEE TABLE 9)
5.70 .224 REF
6.80 .268
7.20 .283 REF
C
L
ERM8-XXX-05.0-DV-EGPS
(SEE TABLE 3)
C
L
SH29-XX-02-X
9.87 .389
10.805 .4254
REF
0.64 .025
REF (TYP)
"R" REF
(SEE TABLE 9)
"Q" REF
(SEE TABLE 9)
5.95 .234 REF
0.64 .025 REF
C
"T" (SEE SHT 2, TABLE 3)
"S" REF (SEE SHT 2, TABLE 3)
C
L
C
0.25 .010
(TYP) REF
C
"L"
(SEE SHT 2,TABLE 7)
2 MAX SWAY
(EITHER DIRECTION)

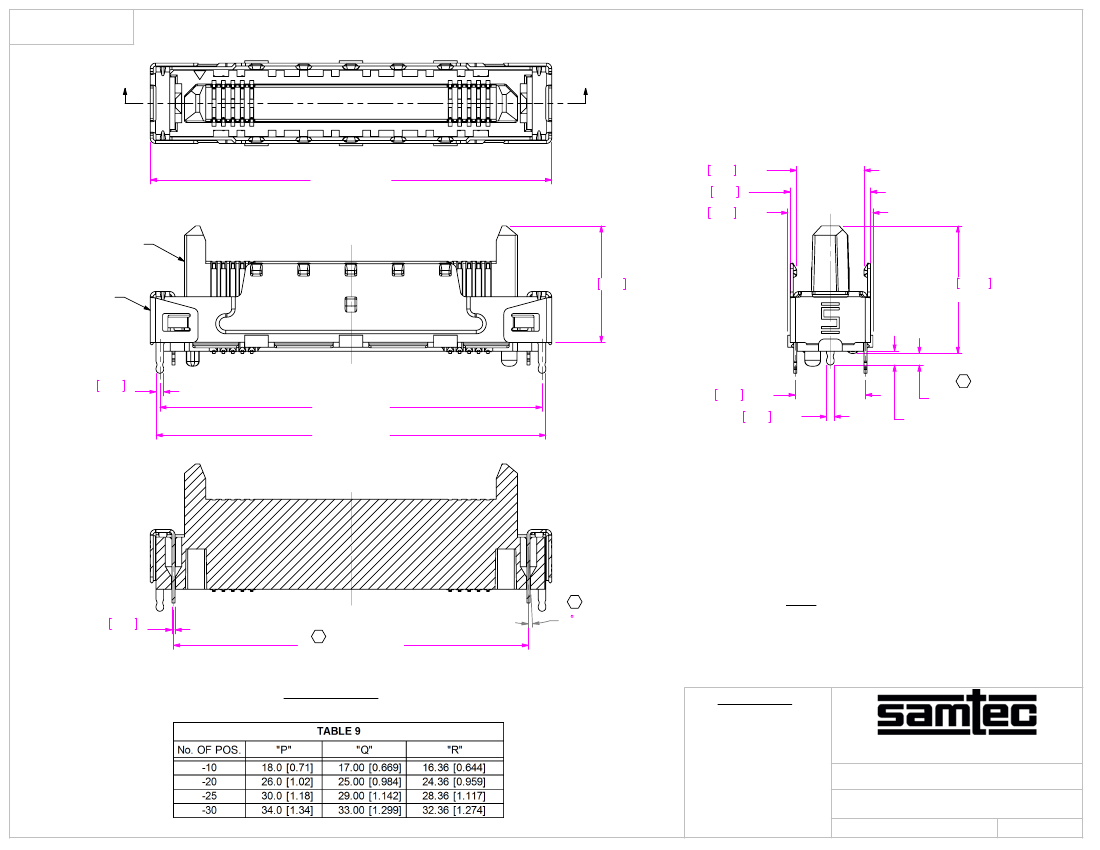

-EGPS OPTIONS
(AVAILABLE ON -05.0 LEAD STYLE ONLY)
(ERM8-030-05.0-X-DV-EGPS SHOWN)
(SAME AS FIG 5, EXCEPT AS SHOWN)
FIG 6
SECTION "B"-"B"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
F:\DWG\MISC\Mktg\ERM8-XXX-XX.X-X-DV-XXXX-XX-MKT.slddrw
BY:
KNOWLDEN9/27/2005
ERM8-XXX-XX.X-X-DV-XXXX-XX
SHEET
4
OF
6
REVISION AE
"B" REF
(SEE SHT 2, TABLE 5)
"T"
"S"
0.64 .025
ERM8-XXX-05.0-DV-S
T-1M88-01.0-X
C
"E"
(SEE SHT 1,
TABLE 6)
3.20
- 0.06
.126
- .002
+0.05
+.002
C
"F"
(SEE SHT 1,
TABLE 6)
C
WT-66-02-X
(2 PLCS)
ERM8H-XXX-10.0-DV
SEE TABLE 1, SHT1
"S"
"D"
(SEE SHT 2, TABLE 5)
"J" REF
(SEE SHT 2, TABLE 7)
"T"
1.07 .042 REF
4.64
- 0.13
.183
- .005
C
+0.18
+.007
SECTION "T"-"T"
SECTION "S"-"S"

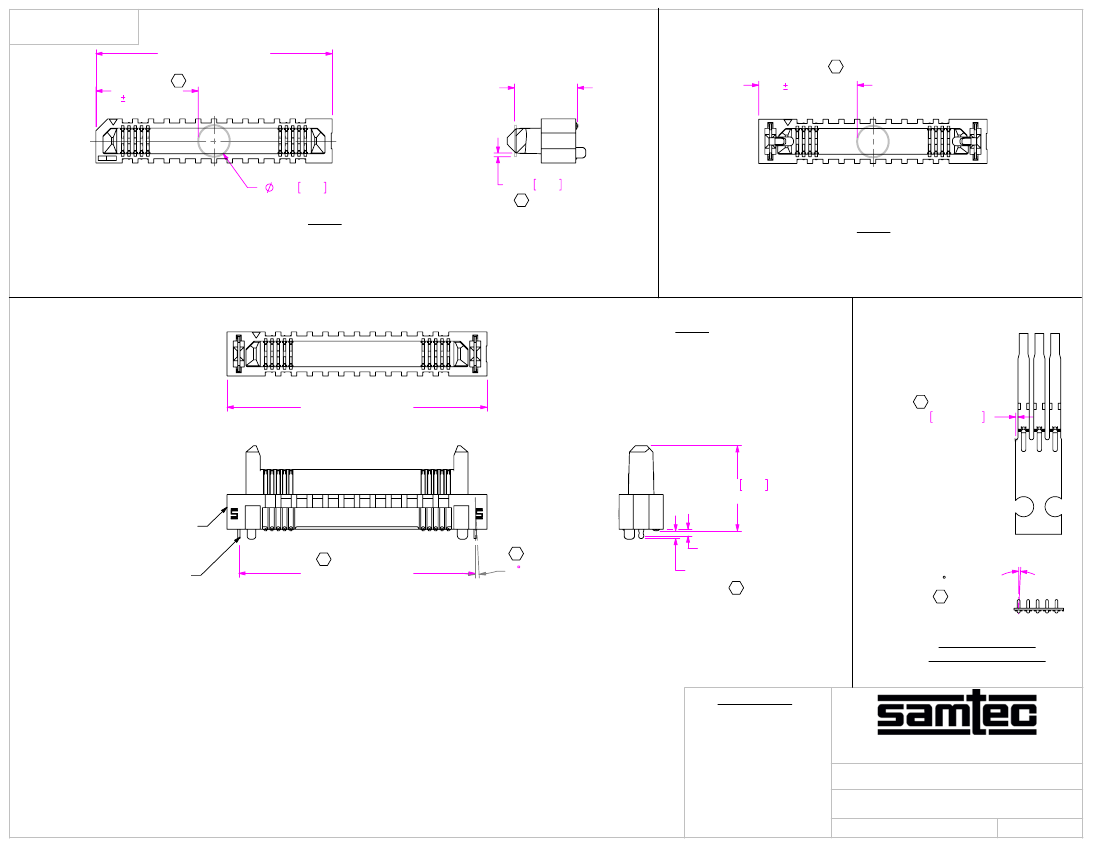

(***ERM8-030-15.0-X-DV SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
***NOT TOOLED
FIG 7
"K"
(SEE SHT 2, TABLE 7)
C
"U"
C
2.10 .082
WT-66-01-X
(2 PLCS)
1.40 .055 REF
0.64 .025 REF
0.30 .012
REF (TYP)
C
"L"
(SEE SHT 2, TABLE 7)
"U"
2 MAX SWAY
(EITHER DIRECTION)
C
SECTION "U"-"U"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
(***ERM8-030-15.0-X-DV-L SHOWN)
(SAME AS FIG. 7, EXCEPT AS SHOWN)
***NOT TOOLED
FIG 8
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-XX
9/27/2005
SHEET
5
OF
6
F:\DWG\MISC\Mktg\ERM8-XXX-XX.X-X-DV-XXXX-XX-MKT.slddrw
BY:
KNOWLDEN
