REVISION S
POSITION #1
INDICATOR
DO NOT
SCALE FROM
THIS PRINT
01
"A"
(REF)
"B"
(REF)
59
No OF POSITIONS
(PER ROW)
-005, -010, -011, -013, -020, -025, -030,
-035, -040, -049, -050, -060, -070, -075,-100
(-100 AVAILABLE ON -09.0 LEAD STYLE ONLY)
ERM8-XXX-XX.X-X-DV-XXXX-TR
3.25 .128 (REF)
02
5.60 .220
(REF)
0.800 .0315
(TOL. NON-ACCUM)
C
"C"
60
1.10 .043
(REF)
1.10 .043
(REF)
C
ERM8-XXX-XX.X-DV-01
(SEE TABLE 3)
LEAD STYLE
-02.0 = 2mm
-05.0 = 5mm
-08.0 = 8mm
-09.0 = 9mm
PLATING SPECIFICATION
-L: LIGHT SELECTIVE GOLD / MATTE TIN
(USE T-1MXX-XX.X-L)
-S: SELECTIVE GOLD / MATTE TIN
(USE T-1MXX-XX.X-S)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
(** = NOT RELEASED FOR PRODUCTION)
"A"
-K: POLYIMIDE FILM PAD
(FOR -EGP & EGPS OPTIONS
S
USE K-DOT-.157-.250-.005)
(FOR ALL OTHER OPTIONS USE K-500-300)
-DS: DIFFERENTIAL PAIR (HOT SWAP)
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(SEE TABLE 4 FOR POSITION AVAILABILITY)
-L : LATCHES
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(SEE TABLE FOR AVAILABILITY)
(NOT AVAILABLE WITH -EGP OPTION)
-EGP: EXTENDED GUIDE POSTS
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(NOT AVAILABLE WITH -L OPTION)
** -W: WELD TAB, USE WT-29-06-T, FOR USE
WITH ERM8-XXX-05.0-DV-L INSULATOR ONLY
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
** -EGPS: EXTENDED GUIDE POST SHIELD
(AVAILABLE ONLY ON -05.0 LEAD STYLE)
(NOT AVAILABLE WITH -L OPTION)
(-10, -20, -25, & -30 POSITIONS ONLY)
TAPE & REEL
(STANDARD PACKAGING)
(SEE NOTES 4 & 7)
OPTIONS
(-02.0 SHOWN)
1.32 .052
(REF)
"A"
1.32 .052
(REF)
3° MAX
SWAY
(-05.0 SHOWN)
(-08.0 SHOWN)
3.200
- 0.060
.1260
- .0024
C
0.65 .025
C
L
'R'
0.800 .0315 (TYP)
C
(TOL. NON-ACCUM)
"D"
(REF)
T-1M37-XX.X-X
(SEE TABLE 3)
1.07 .042 REF
C
L
+0.18
+0.050
+.0020
(-09.0 SHOWN)
(**-05.0 WITH -EGPS
OPTION SHOWN)
DETAIL 'R'
SCALE 4 : 1
"N"
1.50 .059
C
"C"
C
L
"F" (REF)
"E"
C
C
SEE TABLE 1
4.64
- 0.13
.183
- .005
C
+.007
(ERM8-030-02.0-X-DV-XX SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)

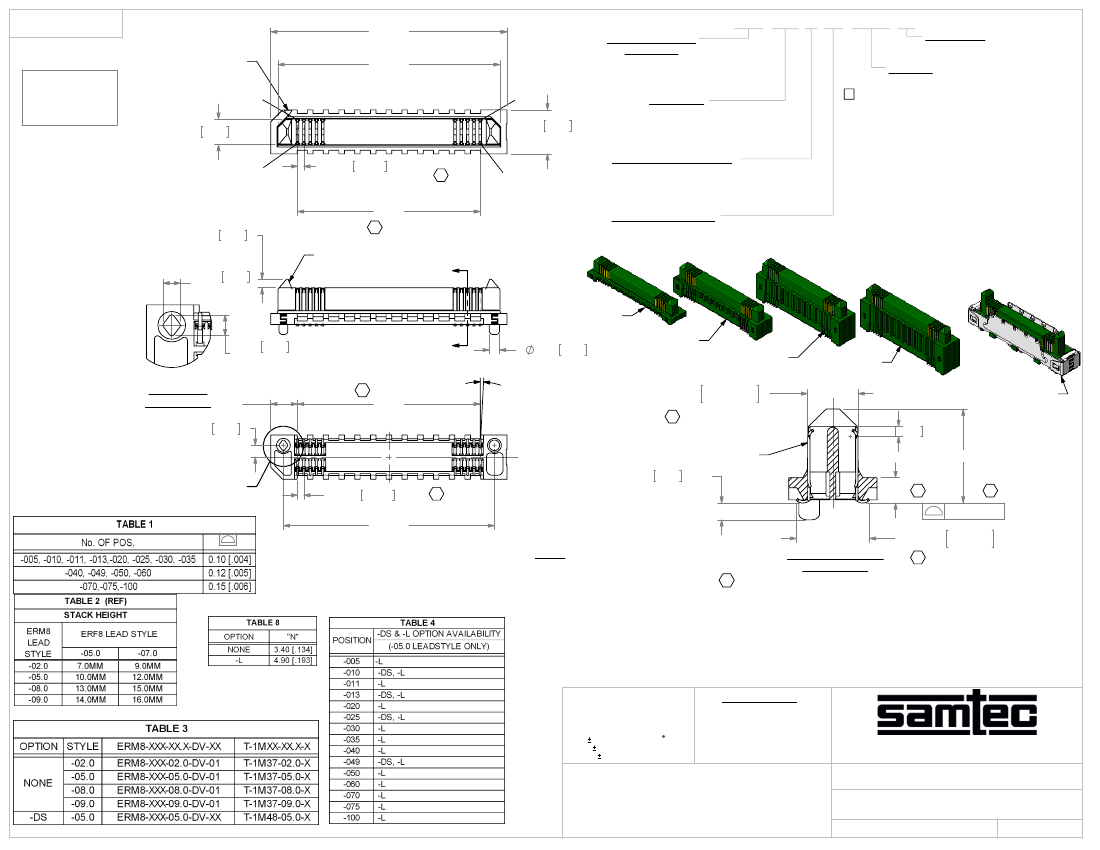

FIG.1
NOTES:
DESIGNED AND DIMENSIONED
IN MILLIMETERS [INCHES]
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: TERMINAL 2.22 N [.5 LB.], WELD TAB 4.45 N [1 LB.]
4. FOR QUANTITY UP TO 49 PIECES, NO LEADER, TRAILER, OR
EIA-481-D REEL WILL BE SUPPLIED. FOR QUANTITY OF 50-124
PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.
5. "F" DIMENSION DOES NOT APPLY TO -EGP & -EGPS OPTION, SEE FIG. 5 & 6.
6. -EGP, -EGPS & -L OPTIONS NOT AVAILABLE TOGETHER.
7. -TR PACKAGING NOT AVAILABLE ON THE 100 POSITION.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
SECTION "A"-"A"
SCALE 4 : 1
c:\enterprisevault\DWG\MISC\MKTG\ERM8-XXX-XX.X-X-DV-XXXX-TR-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
TOLERANCES ARE:
DECIMALS
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.050 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS. BRZ.
LATCH: BeCu
SHIELD: PHOS BRONZE
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-TR
9/27/2005
SHEET
1
OF
4
BY:
KNOWLDEN
REVISION S
S

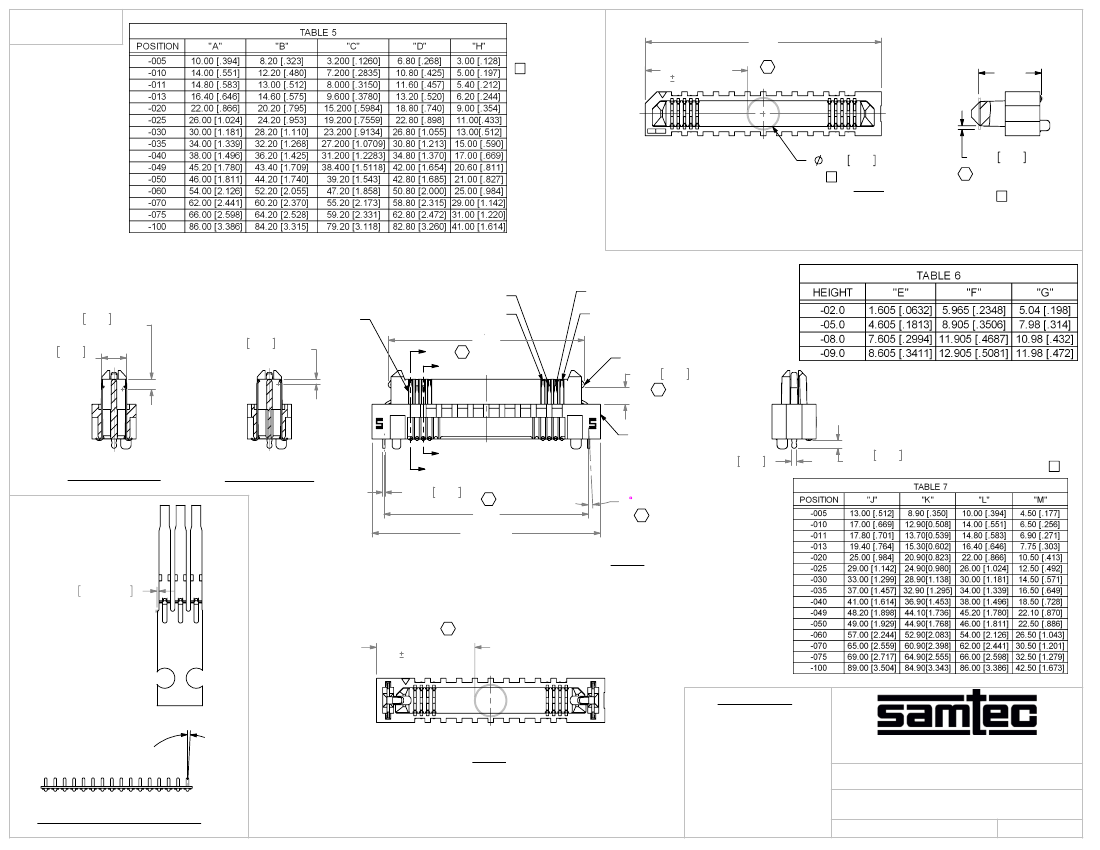

"H"
0.50[.020]
C
L
"A"
C
"G"
C
L
4.00 .157
S
-K OPTION
0.46 .018
C
S
FIG.2
(ERM8-030-XX.X-X-DV-K SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
(FOR -EGP & EGPS OPTIONS USE K--DOT-.157-.250-.005)
(USE K-500-300 FOR ALL OTHER OPTIONS)
SIGNAL[SHORT PIN]
1.35 .053 (REF)
(SIGNAL PINS)
3.20 .126
(REF)
T-1M48-XX.X-X
0.62 .024 (REF)
(GROUND PINS)
GROUND[LONG PIN]
"P"
C
"N"
"K"
SIGNAL[SHORT PIN]
GROUND[LONG PIN]
WT-29-03-X
2.10 .082
C
SECTION "N"-"N"
C
L
SECTION "P"-"P"
C
L
"N"
"P"
0.30 .012
(REF)
C
L
ERM8-XXX-05.0-DV-L
(SEE TABLE 3)
0.64 .025
(REF)
2 MAX SWAY (TYP)
C
0.97 .038
(REF)
S
C
"L"
"J" (REF)
0.11±0.076 .004±.003
C
"M"
0.50[.020]
-L & -DS OPTIONS
(AVAILABLE ON -05.0 LEADSTYLE ONLY)
(ERM8-025-05.0-X-DV-DS-L SHOWN)
(SAME AS FIG. 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG. 3
PROPRIETARY NOTE
C
L
3° MAX SWAY
-K & -L OPTIONS
(ERM8-025-05.0-X-DV-K-L SHOWN)
(SAME AS FIG. 2, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
c:\enterprisevault\DWG\MISC\MKTG\ERM8-XXX-XX.X-X-DV-XXXX-TR-MKT.SLDDRW
FIG. 4
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
T-1M37-XX.X-X IN PROCESS VIEW
ERM8-XXX-XX.X-X-DV-XXXX-TR
SHEET
2
OF
4
BY:
KNOWLDEN 9/27/2005
REVISION S
"J" (REF)
C
ERM8-XXX-05.0-DV-EGP
0.97 .038
(TYP)
10.805 .425
(REF)
WT-29-06-T
C
"L"
2 MAX SWAY (TYP)
C
-EGP OPTIONS
(AVAILABLE ON -05.0 LEAD STYLE ONLY)
(ERM8-030-05.0-X-DV-EGP SHOWN)
(SAME AS FIG. 3, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG. 5
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-TR
SHEET
3
OF
4
c:\enterprisevault\DWG\MISC\MKTG\ERM8-XXX-XX.X-X-DV-XXXX-TR-MKT.SLDDRW
BY:
KNOWLDEN 9/27/2005
REVISION S
C
L
"B"
"B"
"P"
5.70 .224 REF
6.80 .268
7.20 .283 REF
C
L
ERM8-XXX-05.0-DV-EGPS
C
L
SH29-XX-02-X
9.87 .389
10.805 .4254
REF
"Q" REF
0.64 .025
REF
0.97 .038
C
C
L
0.25 .010
(TYP) REF
C
C
"L"
2 MAX SWAY (TYP)
**-EGPS OPTIONS
(AVAILABLE ON -05.0 LEAD STYLE ONLY)
(ERM8-030-05.0-X-DV-EGPS SHOWN)
(SAME AS FIG. 5, EXCEPT AS SHOWN)
(** = NOT RELEASED FOR PRODUCTION)
FIG. 6

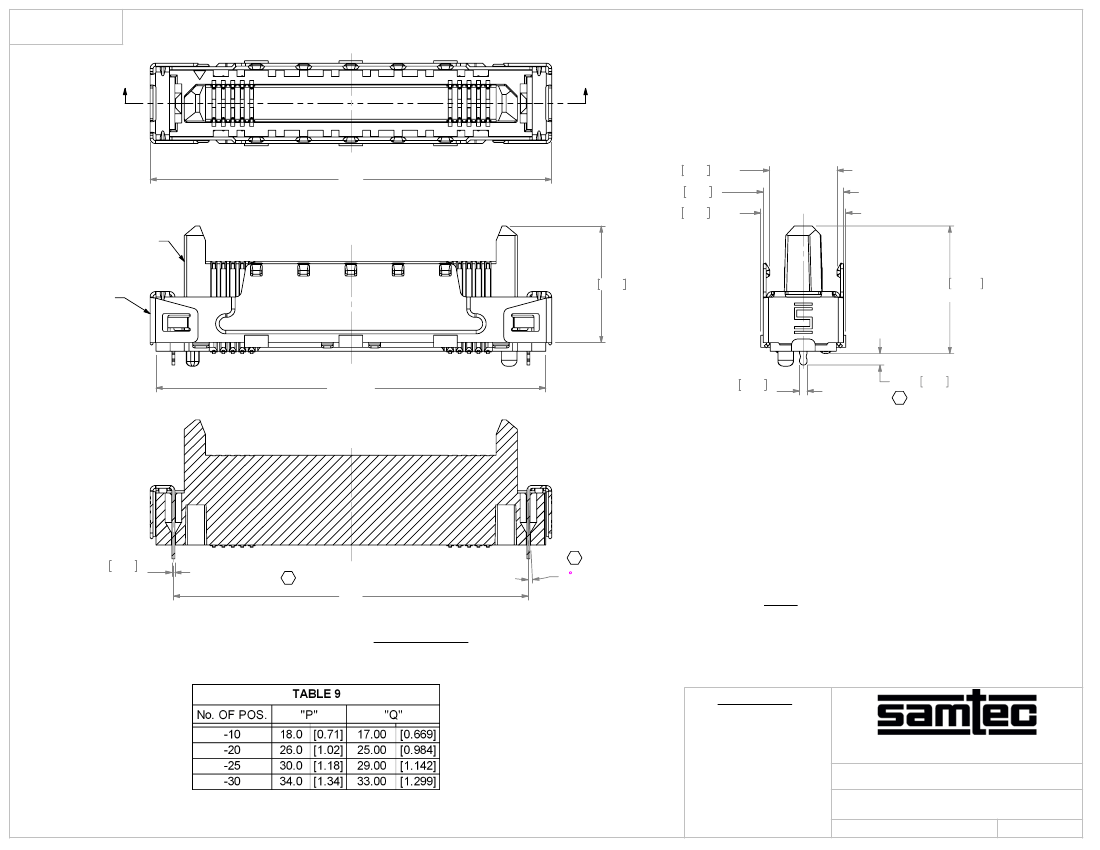

SECTION "B"-"B"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
0.8MM EDGE RATE TERMINAL ASSEMBLY
ERM8-XXX-XX.X-X-DV-XXXX-TR
SHEET
4
OF
4
c:\enterprisevault\DWG\MISC\MKTG\ERM8-XXX-XX.X-X-DV-XXXX-TR-MKT.SLDDRW
BY:
KNOWLDEN9/27/2005
