PK90HB160 datasheet, PDF - EEWORLD Datasheet

PK90HB160: DescriptionSilicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM); CategoryAnalog mixed-signal IC Trigger device; File Size241KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

PK90HB160 Overview

Silicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM)

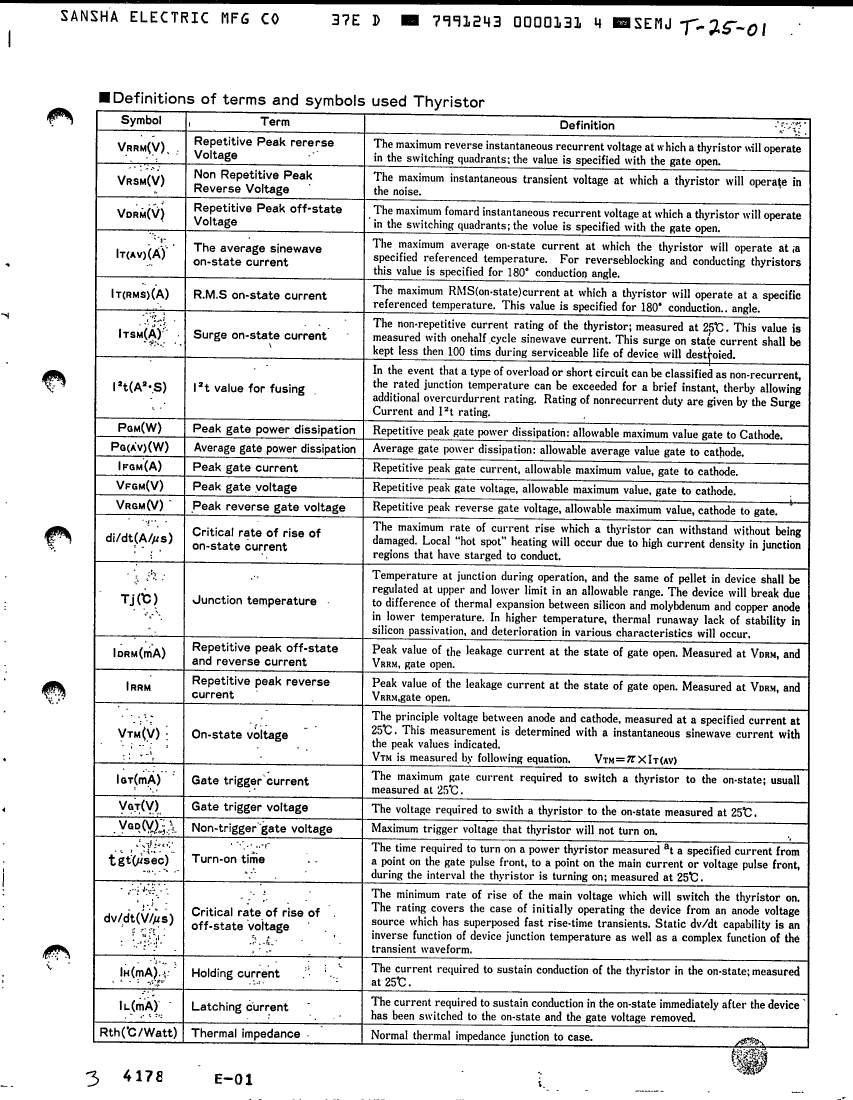

Parameter Name	Attribute value
Maker	SanRex
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	2 V
Quick connection description	0
Description of screw terminals	0
Maximum holding current	50 mA
Maximum leakage current	15 mA
On-state non-repetitive peak current	1800 A
Maximum on-state current	90000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	1600 V
Trigger device type	SCR

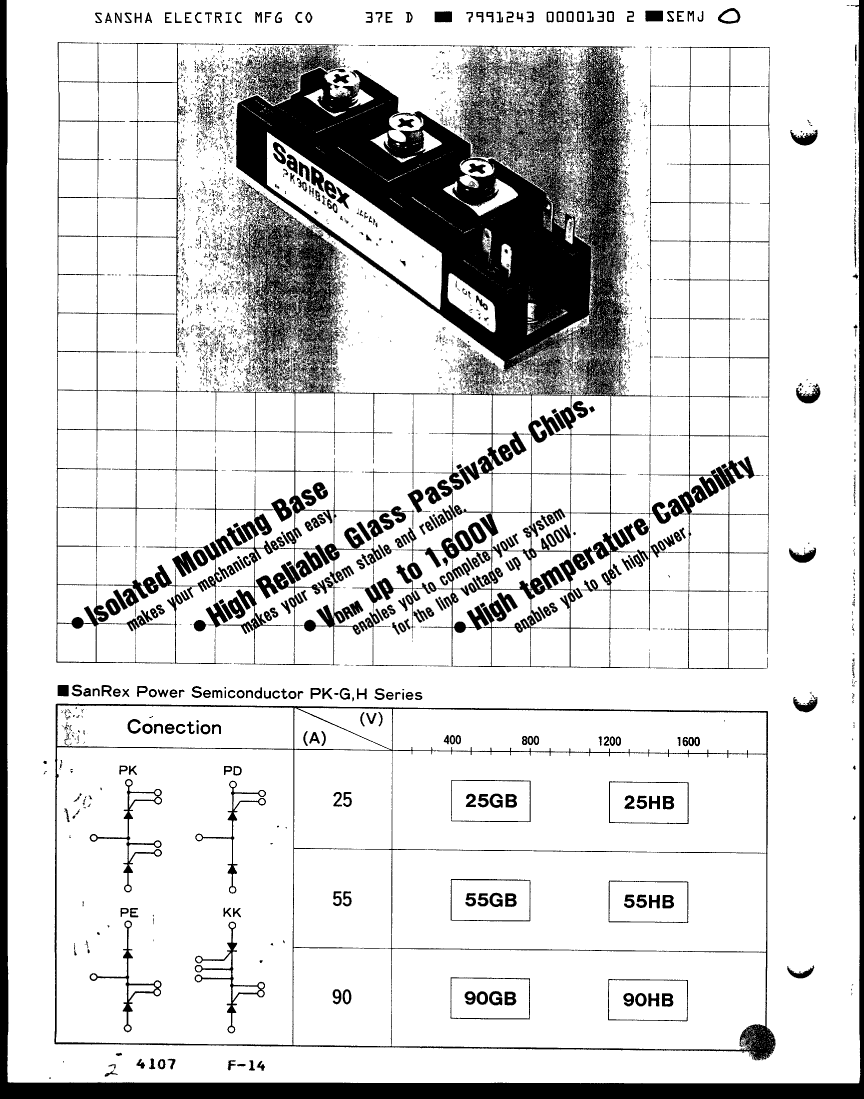

	PK90HB160	KK90HB160	PE90HB160	PD90HB160
Description	Silicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM)	Silicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM), 2 Element	Silicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM)	Silicon Controlled Rectifier, 90000mA I(T), 1600V V(RRM)
Maker	SanRex	SanRex	SanRex	SanRex
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum DC gate trigger current	100 mA	100 mA	100 mA	100 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA
Maximum leakage current	15 mA	15 mA	15 mA	15 mA
On-state non-repetitive peak current	1800 A	1800 A	1800 A	1800 A
Maximum on-state current	90000 A	90000 A	90000 A	90000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Repeated peak reverse voltage	1600 V	1600 V	1600 V	1600 V
