SUHNER TEST+MEASUREMENT
PHASE-MATCHED ADAPTORS
Complete sets of adaptors
Series PC7
185
Item
Interface 1
Interface 2
23008384
PC7
Given by the adptor
@ 18 GHz

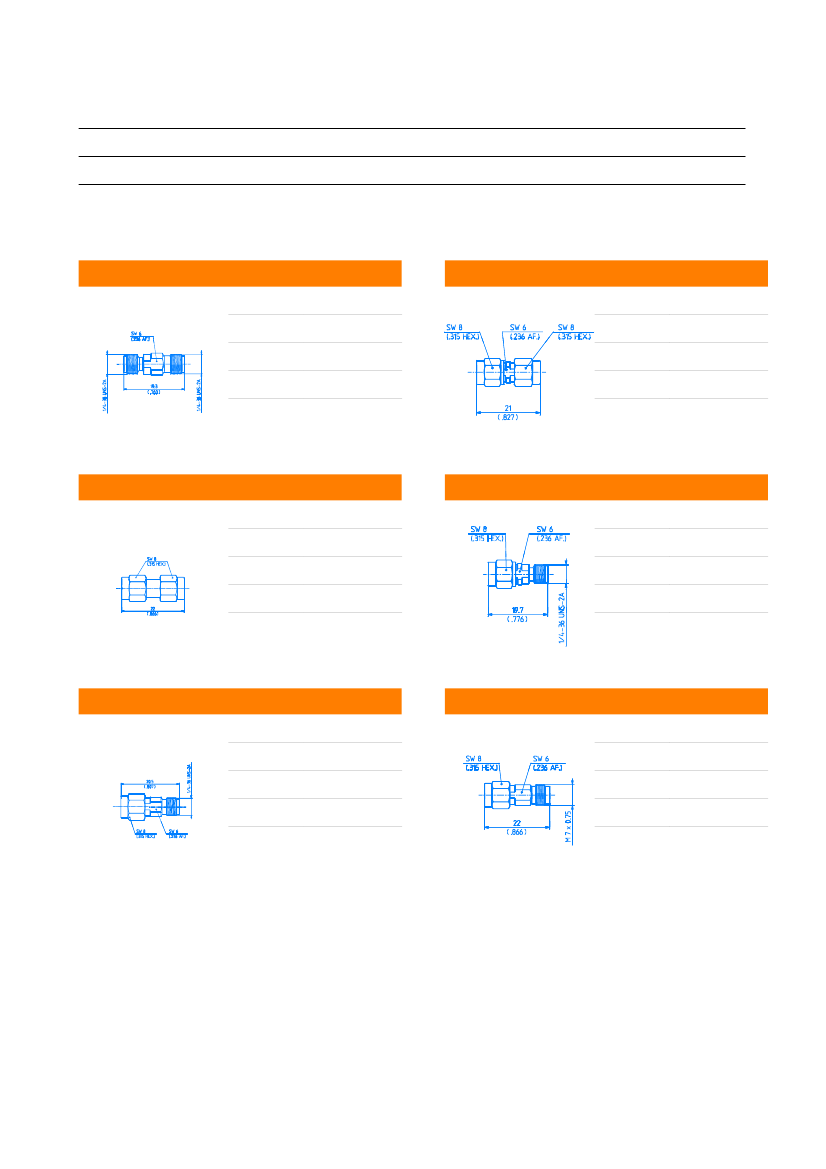

(Product 193)
(Product 194)
(Product 195)
(Product 196)
(Product 197)
(Product 198)
Type
73 Z-0-0-480
Max. frequency 18 GHz
Phase matching ± 2°
Set consists of:
32 PC3.5-PC7-50-3
32 N-PC7-50-5
32 PC7-TNC-50-52
33 PC7-PC3.5-50-3
33 PC7-N-50-5
In phase and propagation time measurements, the
electrical length of the connection between the mea-
surement unit and the device under test must be identi-
cal during calibration and the actual measurement
process.
For these applications,
HUBER+SUHNER
has devel-
oped the adaptors described below. Within the series
(PC7, SK), they all have the identical electrical length,
thereby allowing precise calibrations during phase-
critical measurements.

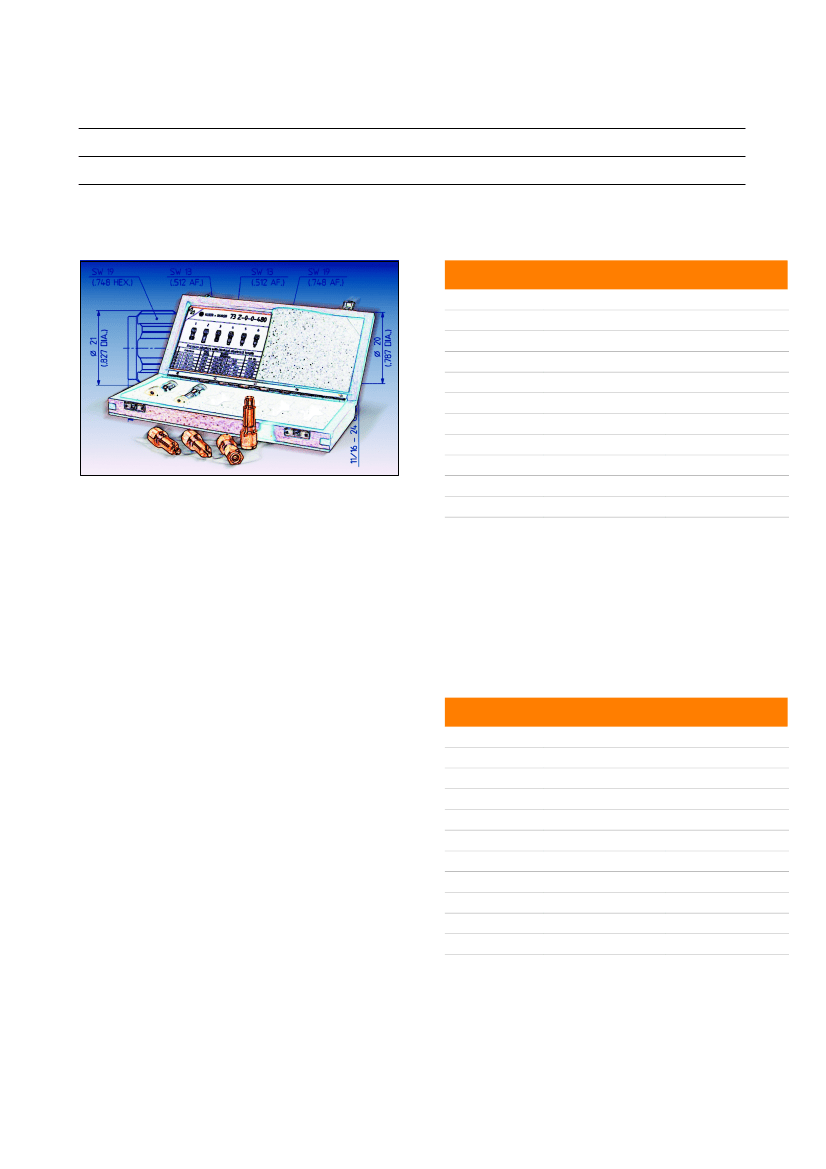

The adaptors are supplied in a wooden box with a
foamed plastic insert, which optimally protects the
adaptors both during handling and during storage.
33 PC7-TNC-50-52
Series SK
186
Item
Interface 1
Interface 2
23009292
SK
Given by the adptor
Type
73 Z-0-0-481
Max. frequency 40 GHz
Phase matching ± 3.5° @ 40 GHz
Empty boxes
Empty boxes 76 Z-0-0-76 (series PC7), 73 Z-0-0-479
(series SK) and matching foamed plastic inserts are
also available
Set consists of:
31 SK-50-0-1
32 SK-50-0-1
33 SK-50-0-1
32 PC2.4-SK-50-1
33 PC2.4-SK-50-2
33 SK-PC2.4-50-1

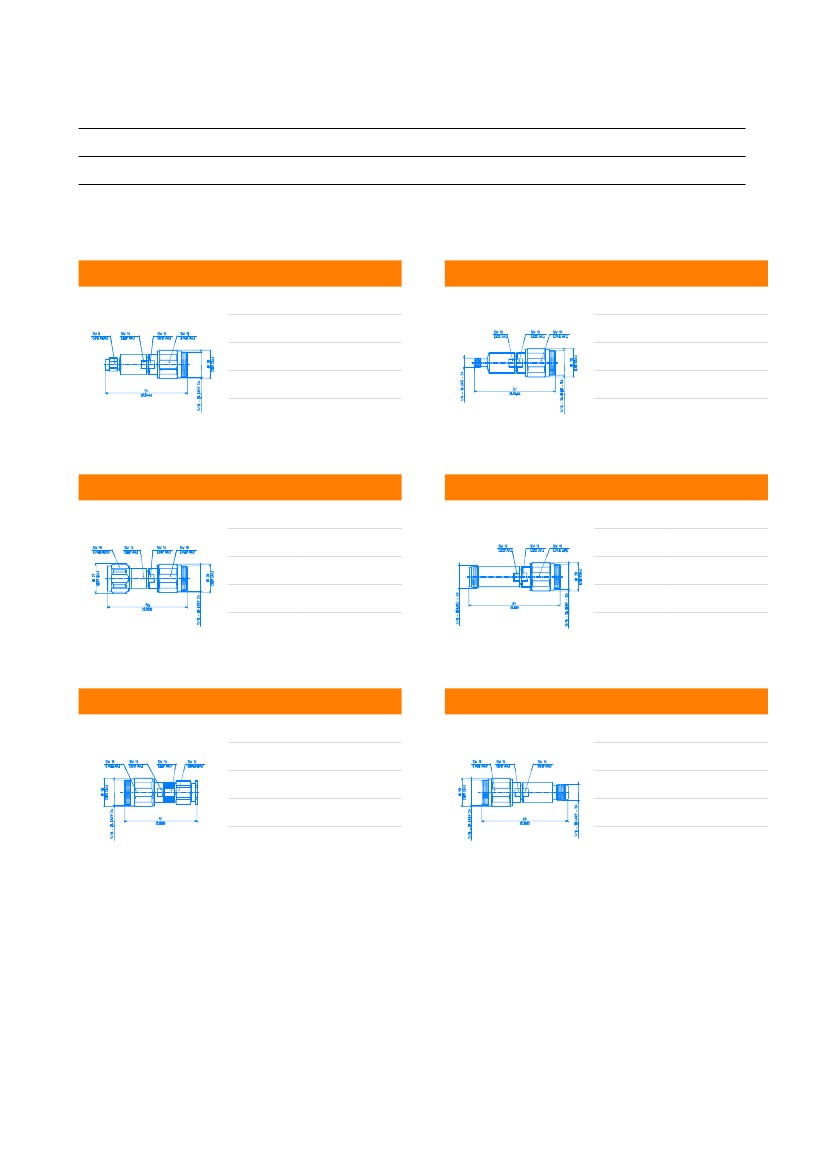

(Product 187)
(Product 188)
(Product 189)
(Product 190)
(Product 191)
(Product 192)
