HM2P08PKF1H1GL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P08PKF1H1GL

HM2P08PKF1H1GL: DescriptionBoard Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size227KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PKF1H1GL Overview

Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

HM2P08PKF1H1GL Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	50 GROUND SHILED CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1 e

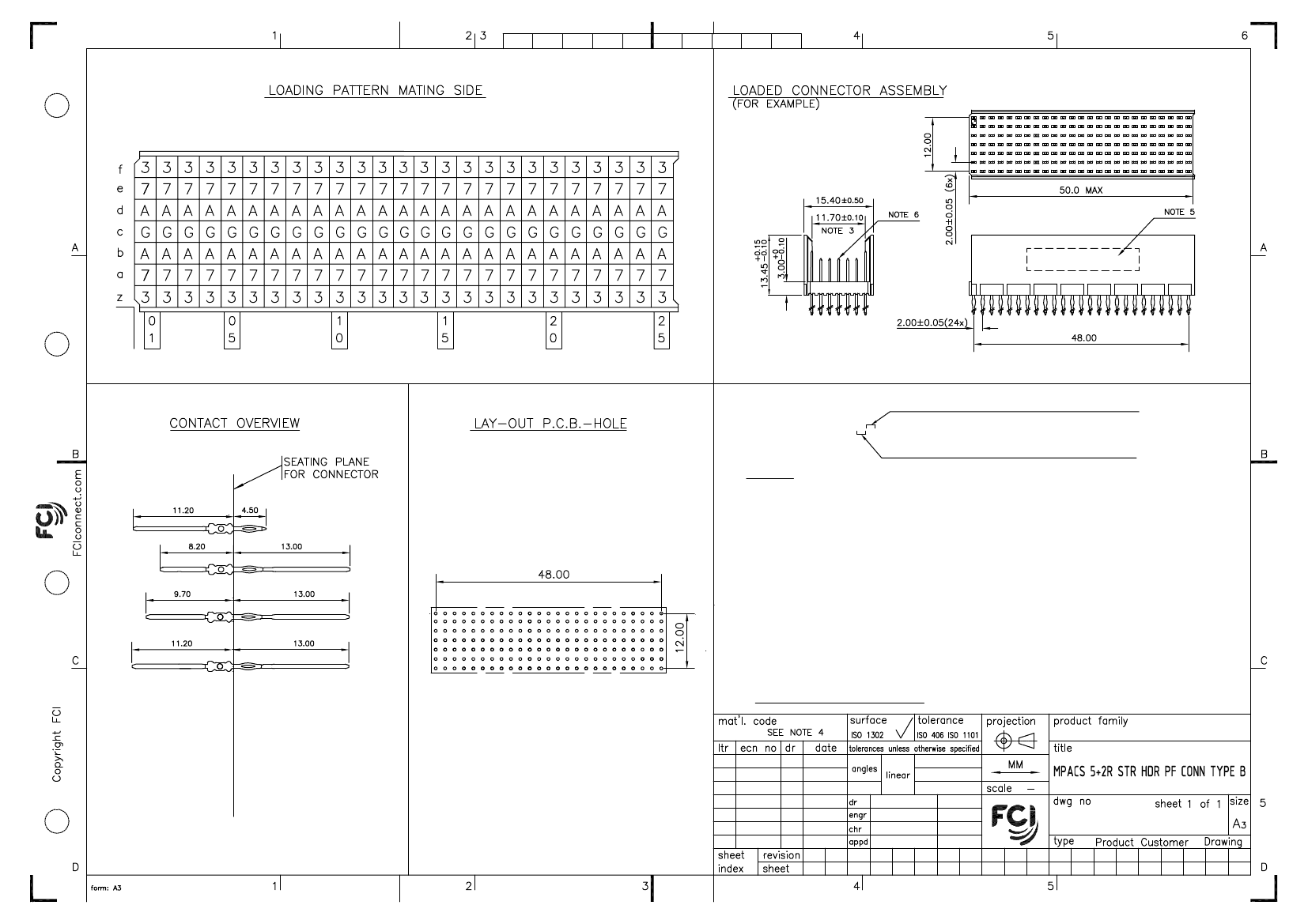

HM2P08PKF1H1----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P08PKF1H1----

MILLIPACS

I05-0207

I06-0122

MINI

2005-10-27

2006-07-20

0°±1°

MINI K VANDANATH 2005-10-27

BIJU K PAUL

2005-10-27

2006-07-20

.0±0.2

.00±0.1

BS, C ,203028,307

PDM: Rev:B

STATUS:

Released

Printed: Dec 03, 2007

2 5

HM2P08PKF1H1GL Related Products

	HM2P08PKF1H1GL	HM2P08PKF1H1GLLF
Description	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Other features	50 GROUND SHILED CONTACTS IN 2 ROWS AVAILABLE	50 GROUND SHILED CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	MATTE TIN
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e3
MIL compliance	NO	NO
Manufacturer's serial number	HM2	HM2
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	175	175
UL Flammability Code	94V-0	94V-0
